Plan 39029ST
Two Story Foyer and Great Room
Heated S.F.
2,484
Beds
4
Baths
3.5
Stories
2
Cars
2
What's Included
Plan Details
  • This two-story home plan with stone, shake and siding facade and a side entry two car garage create a spectacular home plan. Trim detail and a copper roof enhance the beauty of the exterior.
  • A nine foot first floor ceiling height is standard throughout with the great room and foyer ceilings soaring to a full two-story height.
  • Columns and an arched opening frame the kitchen, and a boxed bay expands the breakfast area. A triple sliding glass door introduces light and invites the activities to continue to the rear covered porch.
  • A deluxe master bedroom suite boasts of a whirlpool tub, double bowl vanity, shower and spacious walk-in closet.
  • From the second floor balcony a dramatic view is showcased to the great room and foyer. A secondary bedroom with private bath makes a wonderful guest room.
What's Included
  • General notes and specifications

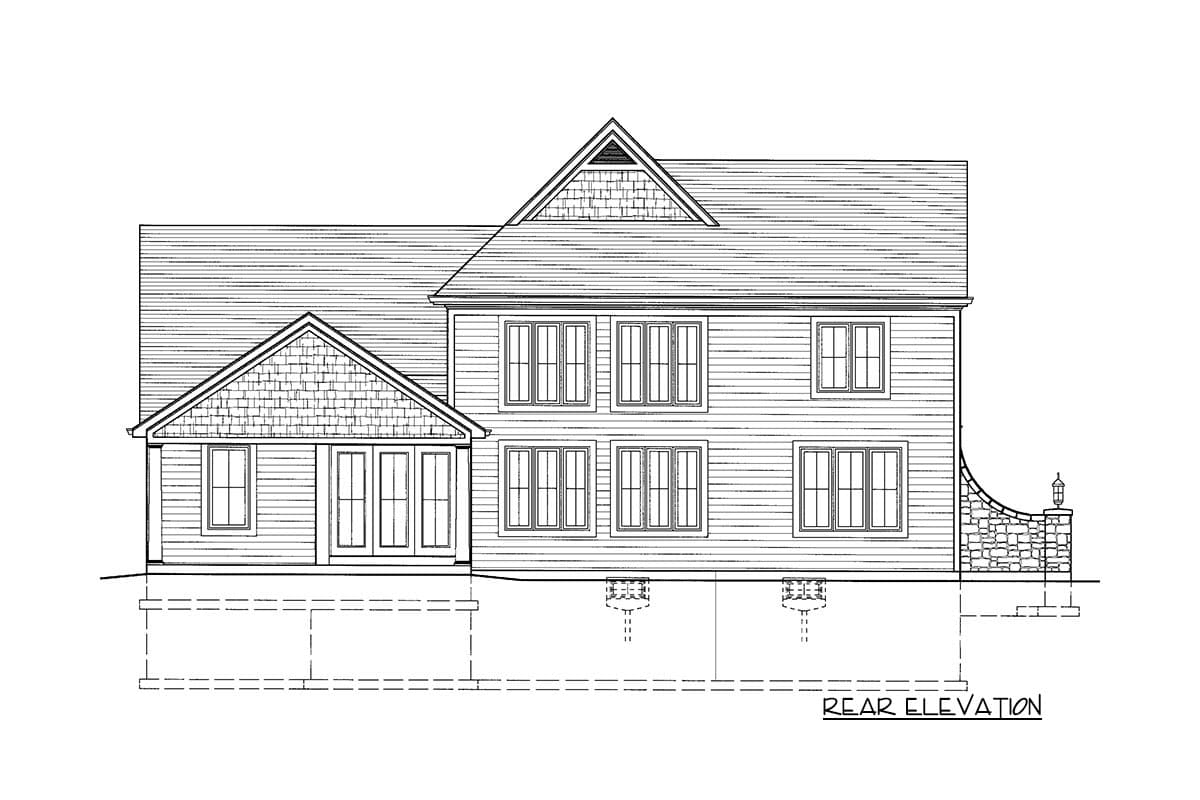

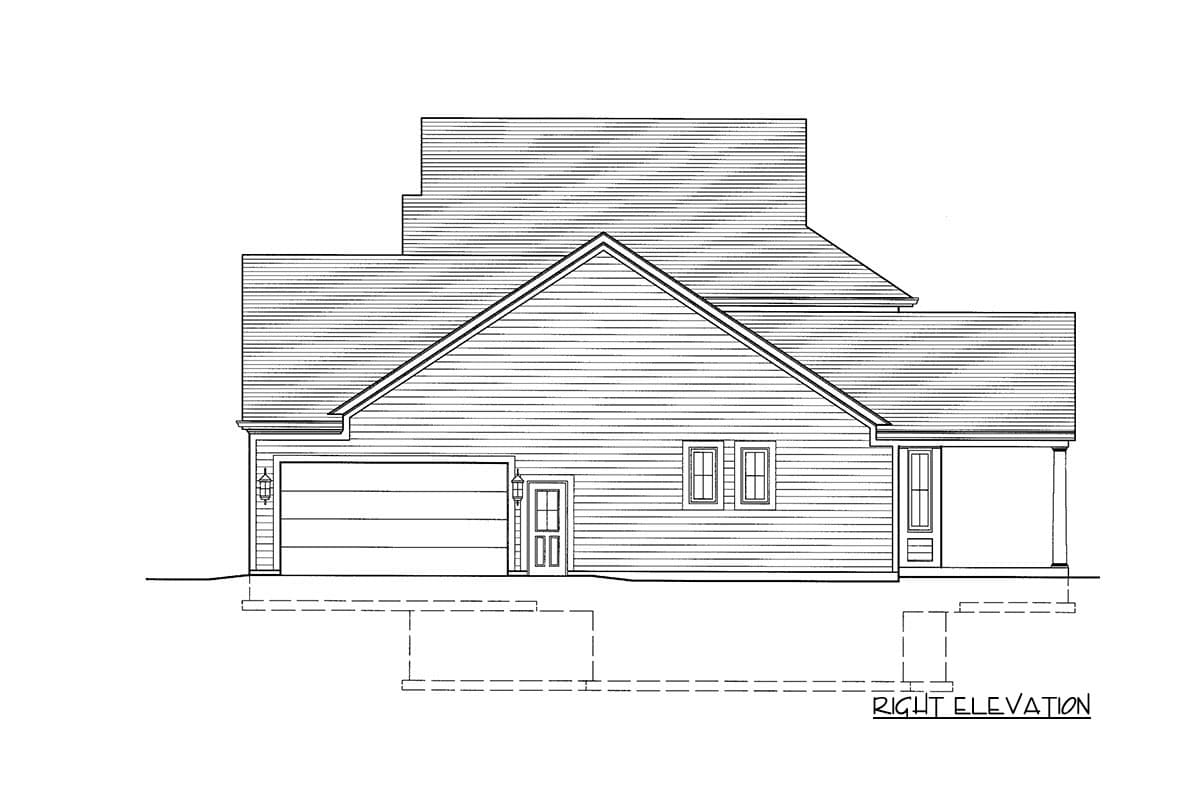

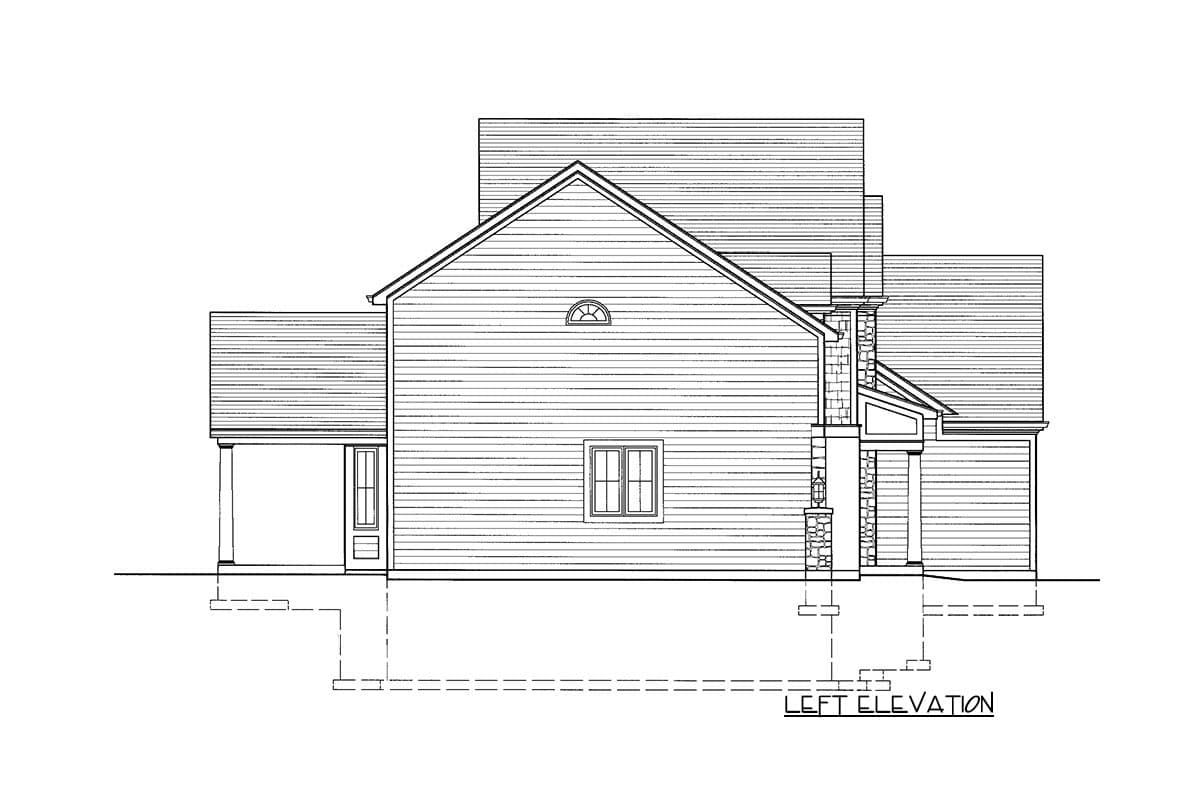

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details

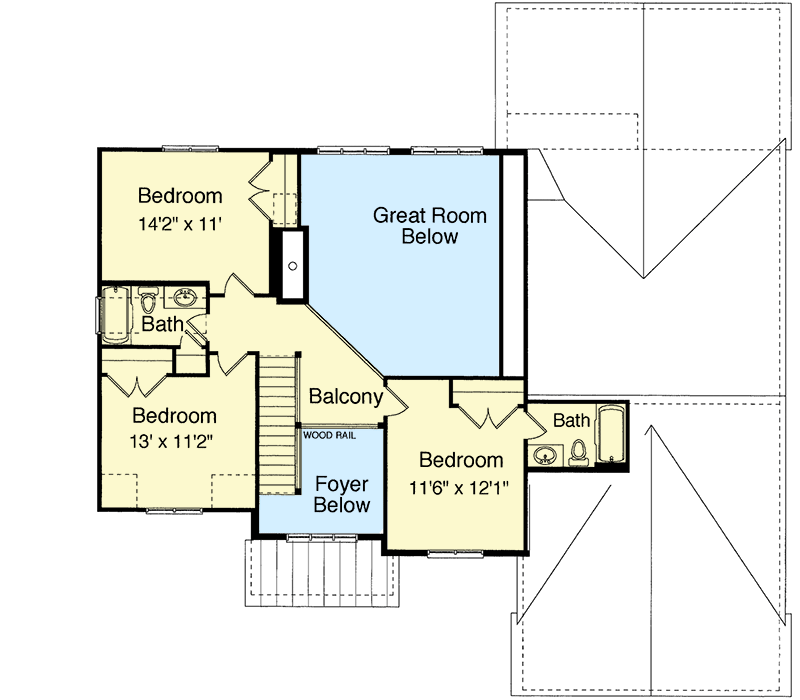

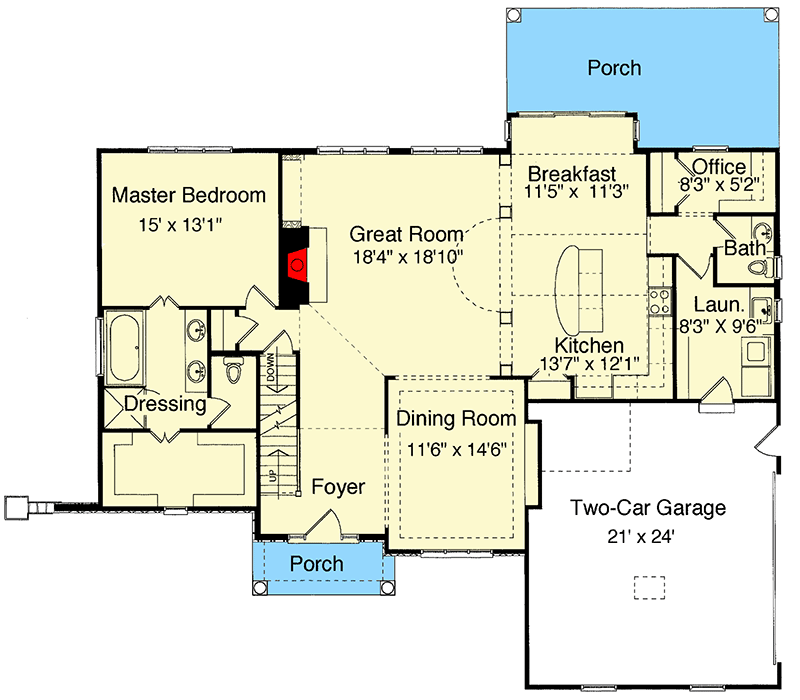

  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
