Plan 59136ND
Two-Story Great Room
Heated S.F.
1,872
Beds
3
Baths
3
Stories
2
Cars
2
What's Included
Plan Details
  • With its slender footprint, this two-story home design works well on a narrow lot with rear access to the garage. Note the wrap-around porches on both floors and the side grilling porch.
  • In the open living area, the great room, with a fireplace, rises for two stories. Columns set off the dining room. The kitchen has a peninsula eating bar.
  • The first-floor bedroom has a walk-in closet and is located near a full bath and the laundry room.
  • Upstairs, another fireplace and a boxed ceiling make the master bedroom special. The wonderful master bath includes a walk-in closet, twin sinks, a glassed-in shower and a spa tub. The loft, another bedroom and another bath complete the floor.
  • Ceilings: 9' first floor; 8' second floor.
  • Foundation options: slab or crawl space. Specify when ordering.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Two-Story Great Room

  • 1,872

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

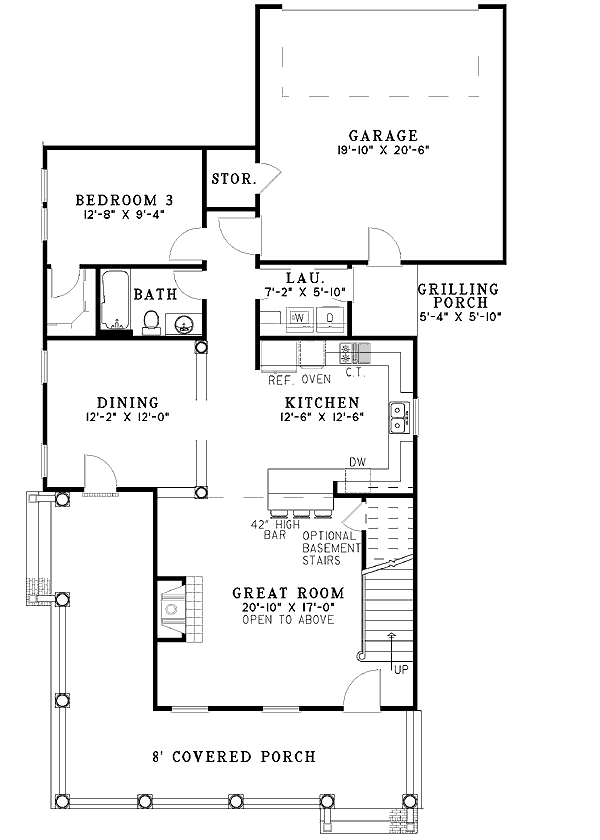

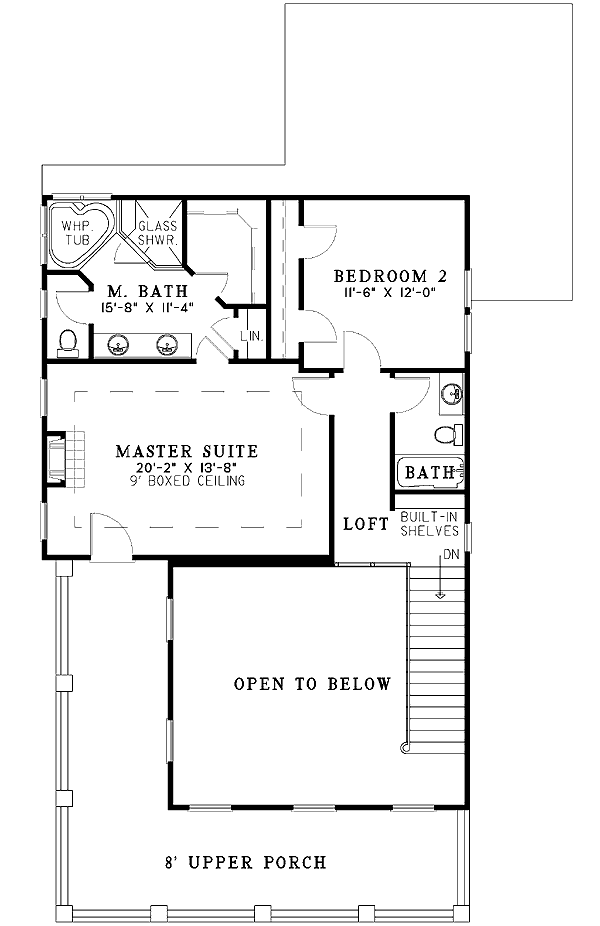

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,872 sq. ft.
  • 1st Floor: 1,068 sq. ft.
  • 2nd Floor: 804 sq. ft.

Dimensions

  • Width: 37' 10"
  • Depth: 65' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 450 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
