Two-Story Great Room with Media Center

Plan 69140AM

  • 4,475

    Heated s.f.

  • 4

    Beds

  • 3.5+

    Baths

  • 2

    Stories

  • 3

    Cars

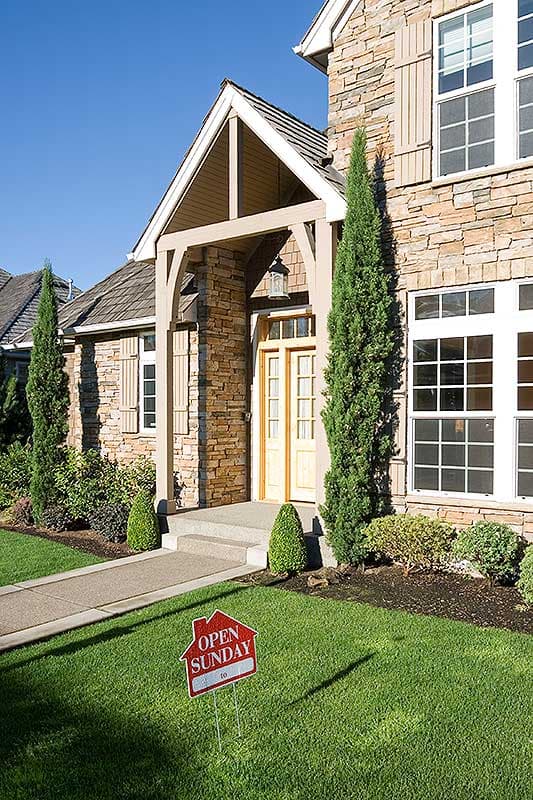

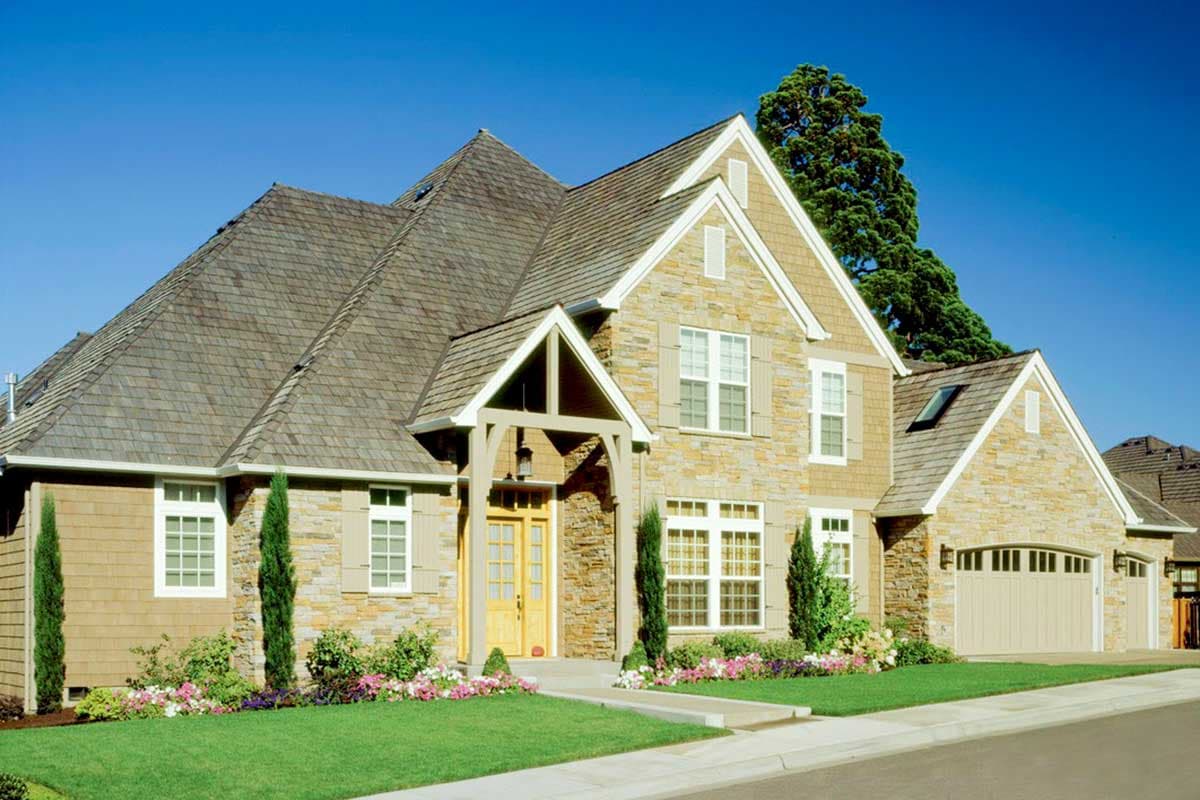

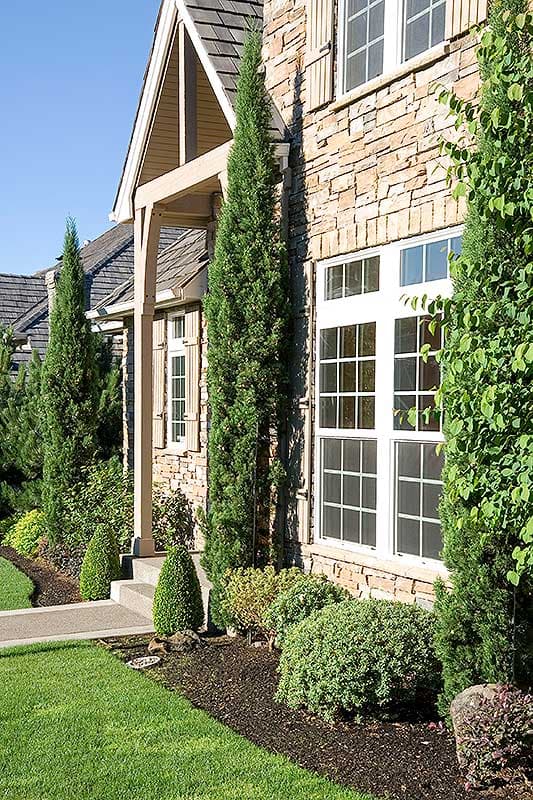

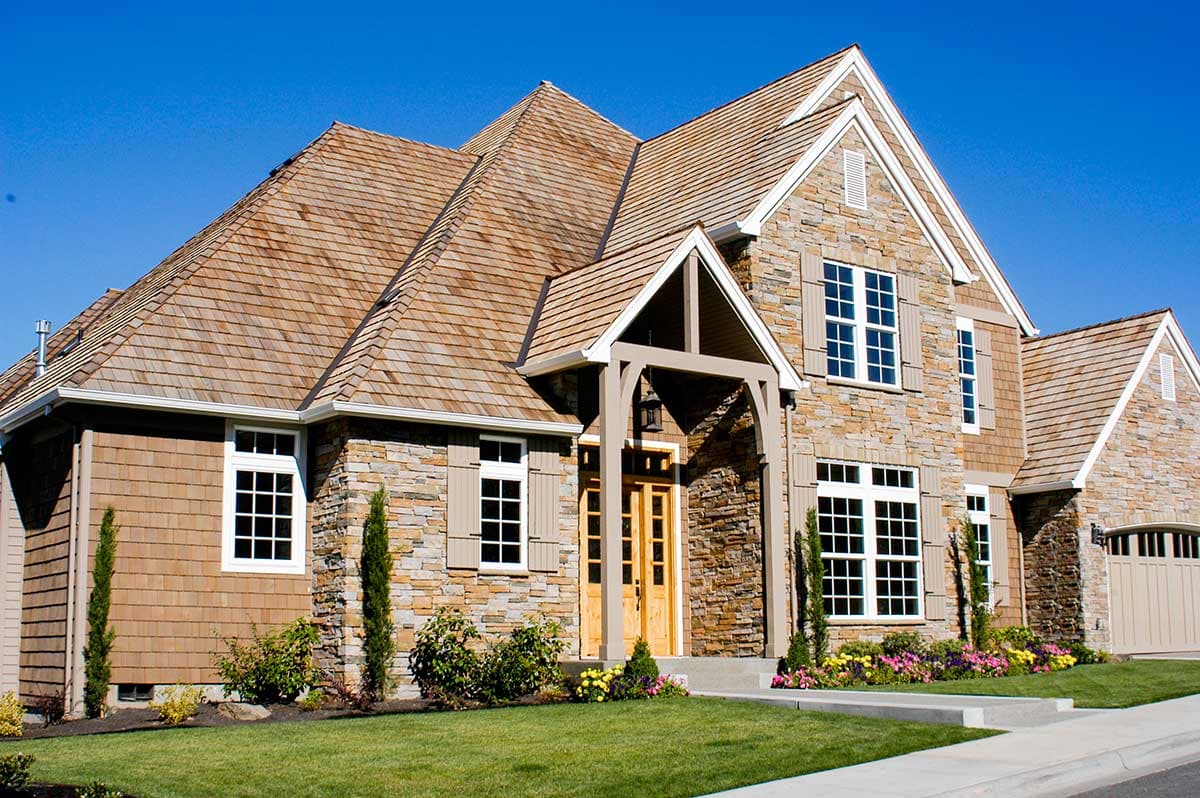

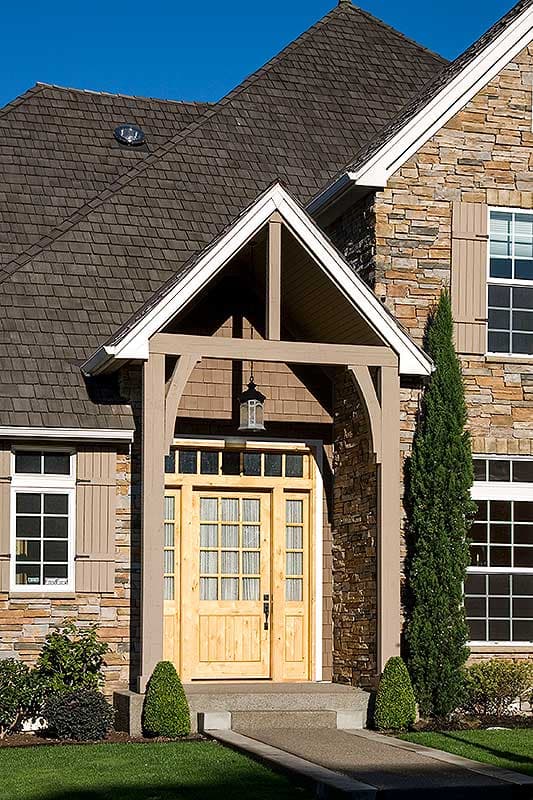

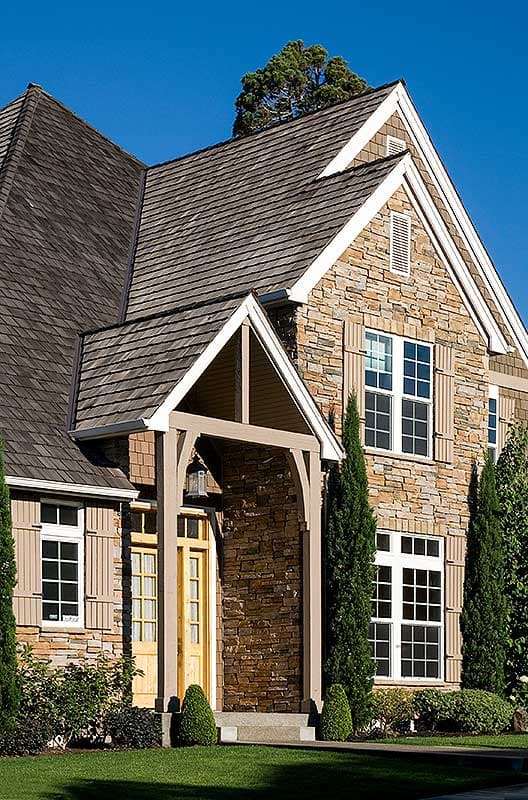

  • Cedar shingles with stone at the three-car garage and around the front entry of this home make a very strong visual statement. Interior spaces are grand, but not ostentatious and work together for a very livable floor plan.
  • The two-story foyer (with half-bath and closet) separates the formal dining room from the two-story great room.
  • A butler's pantry connects the dining room to the kitchen (with attached nook) and also leads to a den.
  • Special features in the great room include a built-in media center, a corner fireplace and an arched transom window overlooking the backyard.
  • The kitchen has a built-in desk and walk-in pantry and connects to the garage via a laundry room and half-bath.
  • On the left side of the main level is a well-appointed master suite with vaulted salon, walk-in closet, and through fireplace to the bath with spa tub and separate shower.
  • The upper level has three additional bedrooms'one with private bath for a guest, a library area with built-ins, and bonus space for another bedroom if you choose.

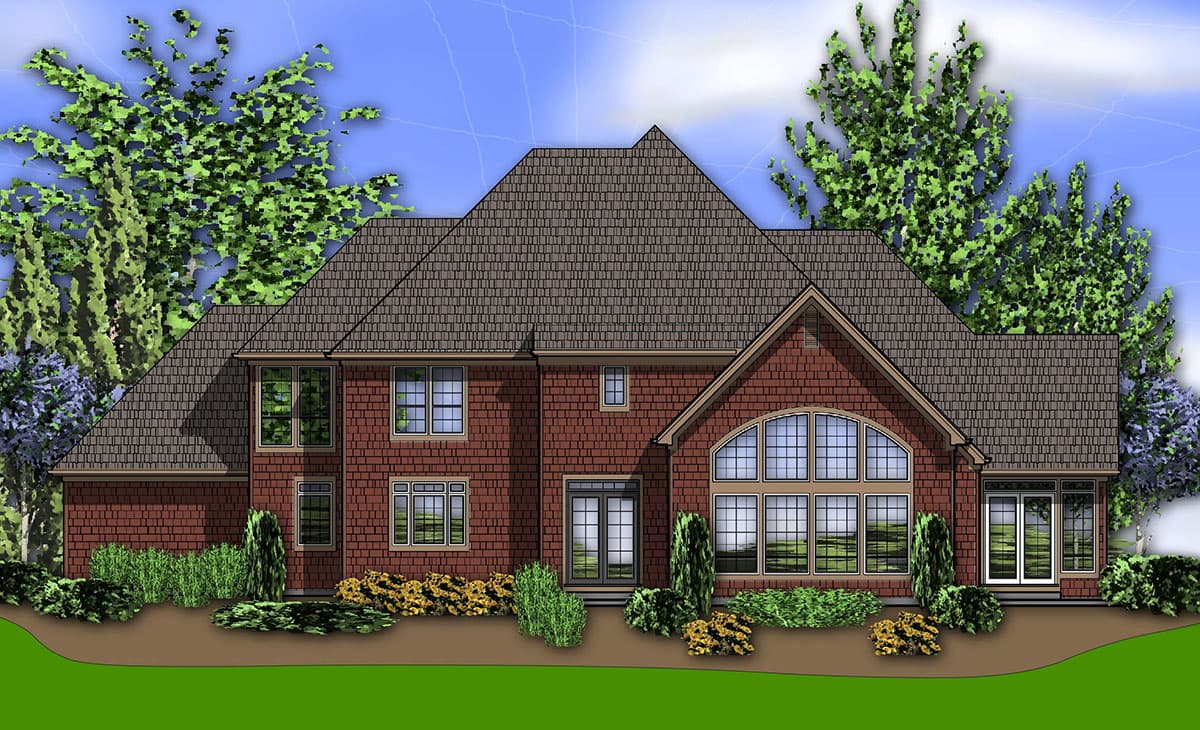

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

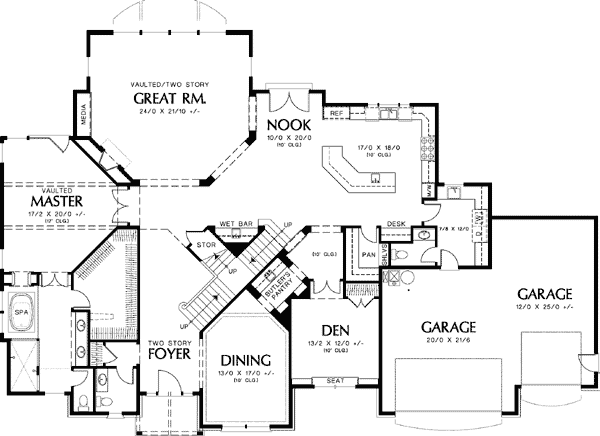

Two-Story Great Room with Media Center - 69140AM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

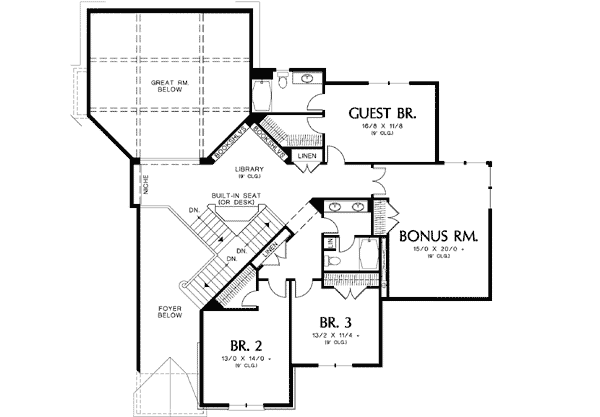

Two-Story Great Room with Media Center - 69140AM floor plan - 2nd Floor

Two-Story Great Room with Media Center

  • 4,475

    Heated s.f.

  • 4

    Beds

  • 3.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,475 sq. ft.
  • 1st Floor: 3,172 sq. ft.
  • 2nd Floor: 1,303 sq. ft.

Dimensions

  • Width: 90' 0"
  • Depth: 61' 0"
  • Max ridge height: 39' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 797 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
All house plans are copyright ©2024 by the architects and designers represented on our web site

Two-Story Great Room with Media Center

  • 4,475

    Heated s.f.

  • 4

    Beds

  • 3.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Two-Story Great Room with Media Center

  • 4,475

    Heated s.f.

  • 4

    Beds

  • 3.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 4,475 sq. ft.
  • 1st Floor: 3,172 sq. ft.
  • 2nd Floor: 1,303 sq. ft.

Dimensions

  • Width: 90' 0"
  • Depth: 61' 0"
  • Max ridge height: 39' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 797 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
