Two-Story House Plan with Deep Lower-Level Patio

Heated S.F.
3,658
Beds
5
Baths
4.5
Stories
2

Floor Plan

Plan 86337HH

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 86337HH

M-F 9am-5pm EST |

1-203-761-8500

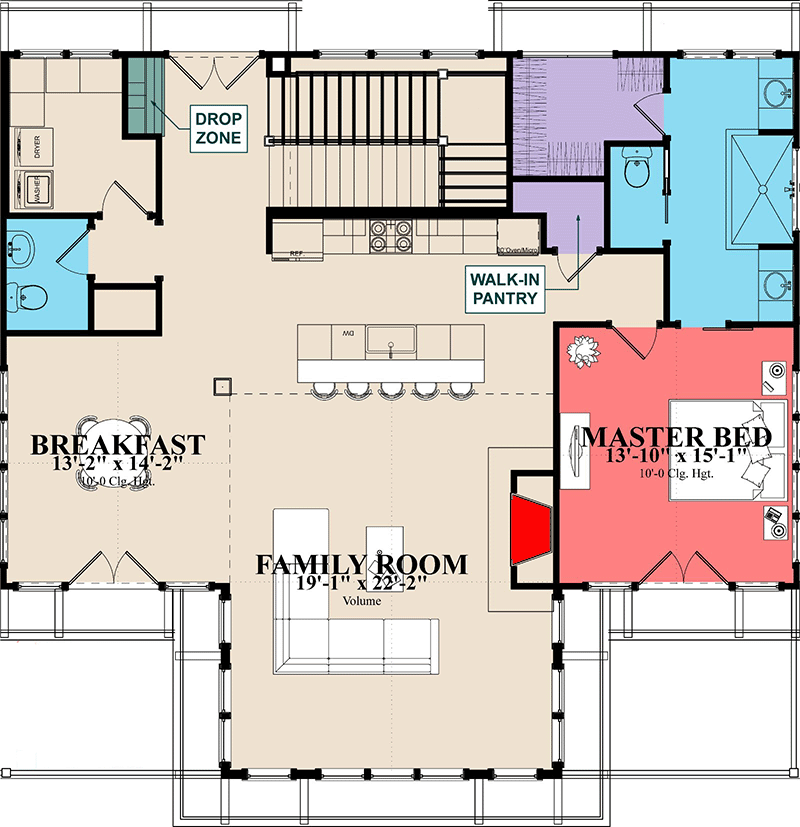

Main Level

Plan 86337HH: Two-Story House Plan with Deep Lower-Level Patio - Floor Plan - Main Level - Beach, Coastal, Cottage, Craftsman, Rustic, Shingle, Vacation

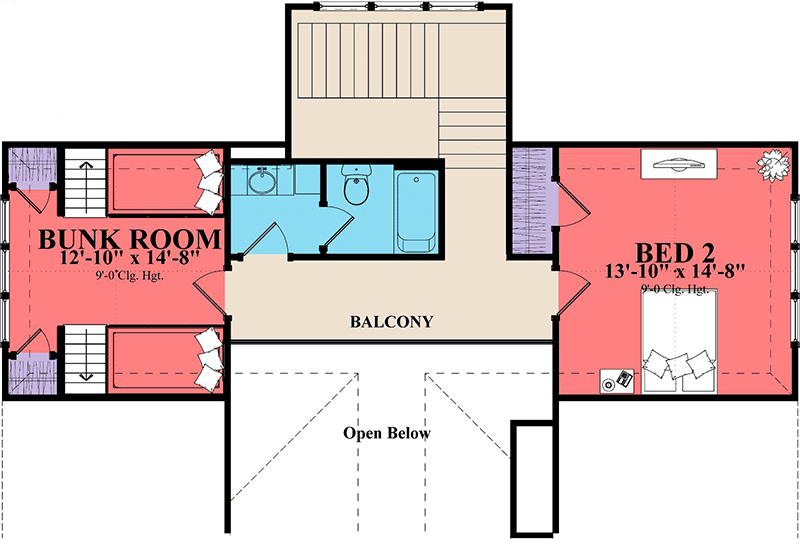

2nd Floor

Plan 86337HH: Two-Story House Plan with Deep Lower-Level Patio - Floor Plan - 2nd Floor - Beach, Coastal, Cottage, Craftsman, Rustic, Shingle, Vacation

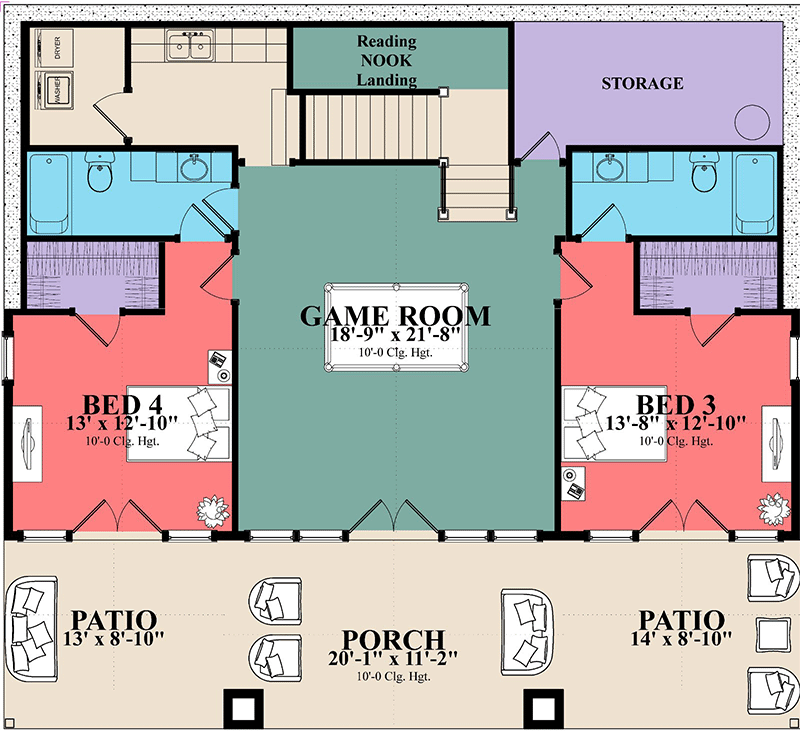

Lower Level

Plan 86337HH: Two-Story House Plan with Deep Lower-Level Patio - Floor Plan - Lower Level - Beach, Coastal, Cottage, Craftsman, Rustic, Shingle, Vacation

Plan Details

  • Deep overhangs created by the hip and valley roof are supported by wooden brackets on this two-story, house plan, which features a lower level that extends outdoors onto a spacious patio.
  • The main level consists of the common living spaces in an open layout, along with the master bedroom for added convenience.
  • An oversized, kitchen island offers seating for five, and a fireplace serves as a focal point to be enjoyed throughout the main level.
  • Upstairs, discover a bunk room and a bedroom, which share the hall bath. The balcony-style hallway overlooks the family room below.
  • Family and friends will enjoy the game room on the lower level, situated between bedrooms 3 and 4. A full bath is connected to each bedroom on this level, and the laundry room neighbors a utility room with a sink.

What's Included

  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,658 sq. ft.

Lower Level

1,299 sq. ft.

1st Floor

1,715 sq. ft.

2nd Floor

644 sq. ft.

Porch, Combined

244 sq. ft.

Storage

144 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

47' 1"

Depth

42' 10"

Max Ridge Height

25' 9"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Architectural Style

Beach

Coastal

Cottage

Craftsman

Rustic

Shingle

Vacation

Special Features

Breakfast Nook

Bunk Room

Butler Walk-in Pantry

Game/Rec Room

Laundry - Lower Level

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,658 sq. ft.

Lower Level

1,299 sq. ft.

1st Floor

1,715 sq. ft.

2nd Floor

644 sq. ft.

Porch, Combined

244 sq. ft.

Storage

144 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

47' 1"

Depth

42' 10"

Max Ridge Height

25' 9"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Architectural Style

Beach

Coastal

Cottage

Craftsman

Rustic

Shingle

Vacation

Special Features

Breakfast Nook

Bunk Room

Butler Walk-in Pantry

Game/Rec Room

Laundry - Lower Level

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Photo Gallery
