Plan 680066VR Two-Story Lake House Plan Under 1800 Square Feet with Vaulted Great Room and Lower Level Expansion

2,090 3-5 3.5 - 4.5 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Two-Story Lake House Plan Under 1800 Square Feet with Vaulted Great Room and Lower Level Expansion

Plan 680066VR

  • 2,090

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • A timber-frame truss lends character to the front porch of this two-story lake house plan, complete with a wrap-around porch to enjoy the available views.
  • The sun-drenched interior features a two-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and easy access to the deck for grilling.
  • The master bedroom is located on the main floor and has a 4-fixture bathroom and a walk-in closet.
  • A loft at the top of the stairs overlooks the great room below and two bedrooms share a bath.
  • Expansion opportunities in the lower level include a two bedrooms (one is a flex room), an open family room plus a bonus room. Mechanicals and storage complete the home plan.
  • Related Plans: Get an alternate lower level layout with house plan 68747VR and get a larger version with house plan 68966VR (1,952 sq. ft.). Extend the roof and get a covered deck with house plan 68856VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

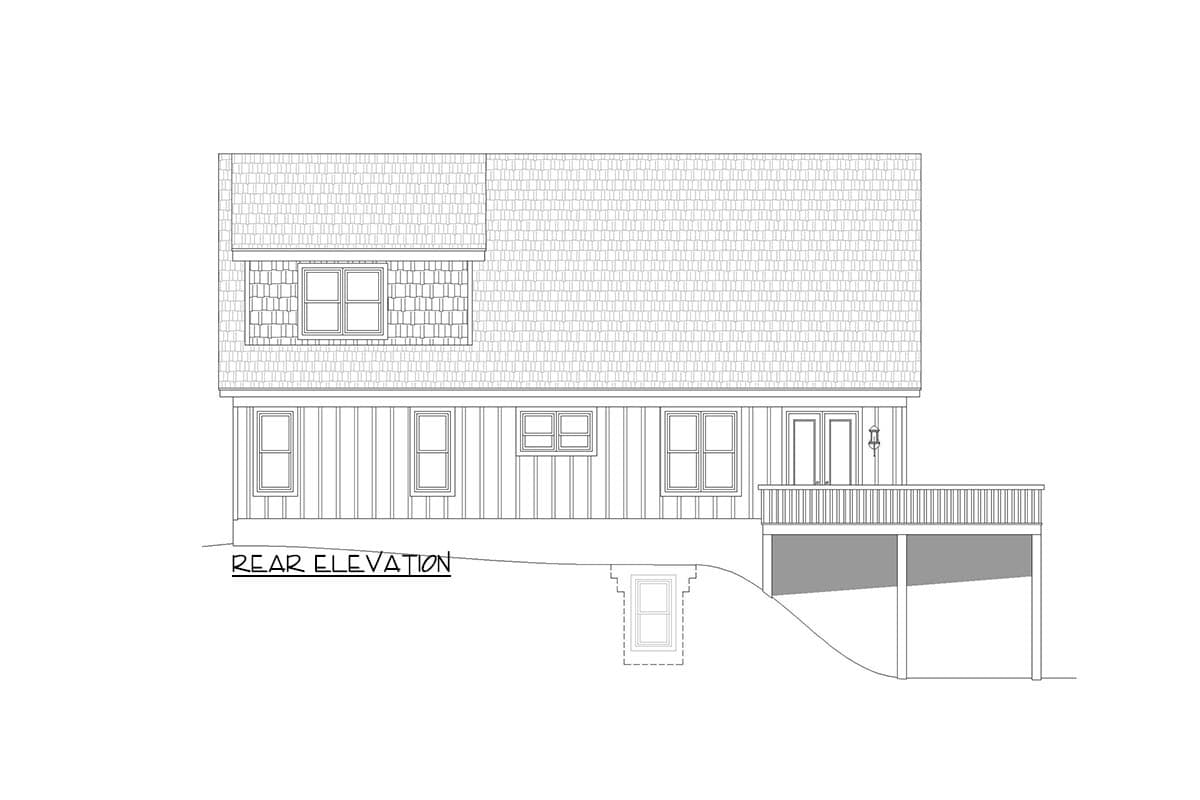

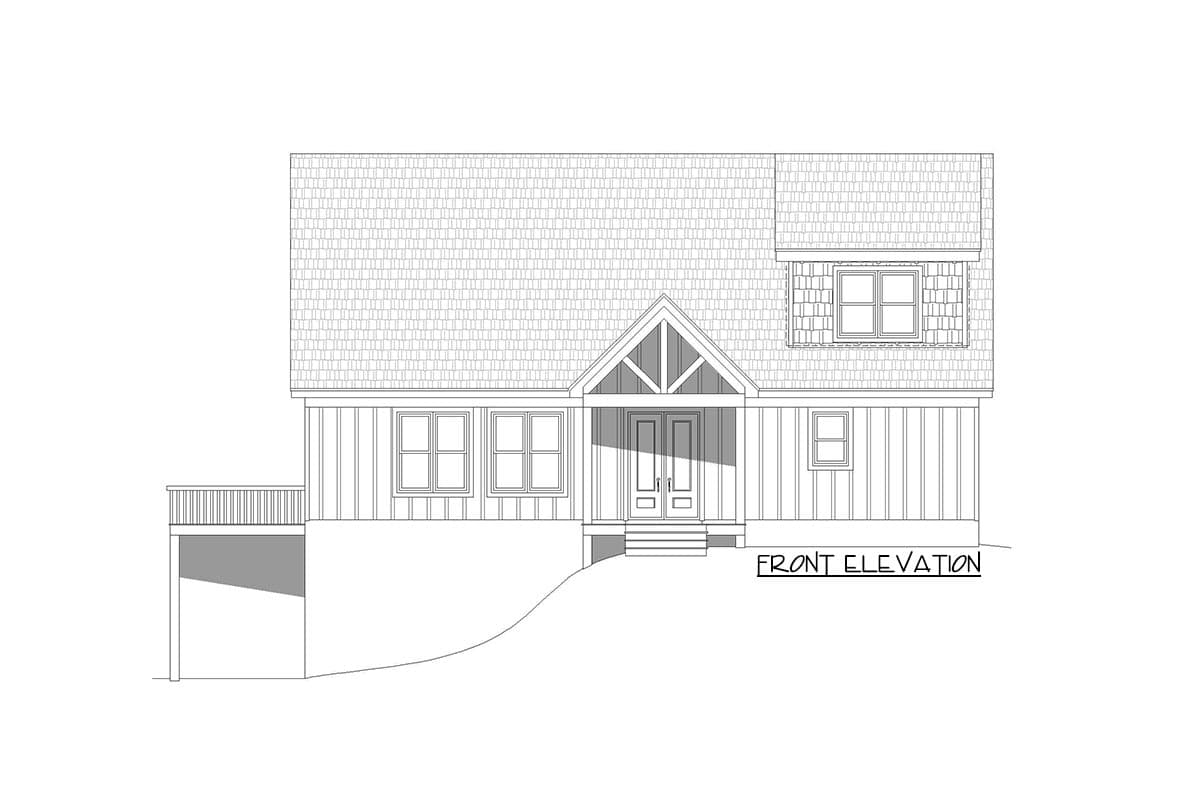

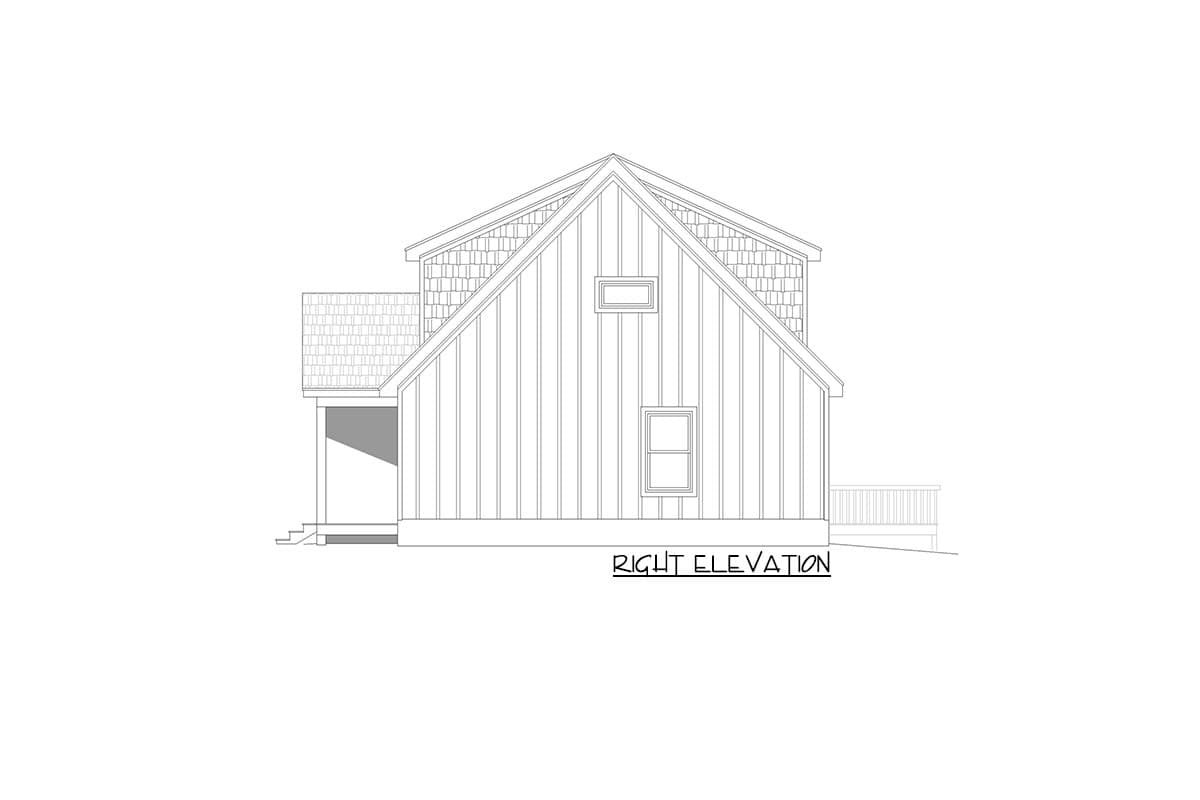

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

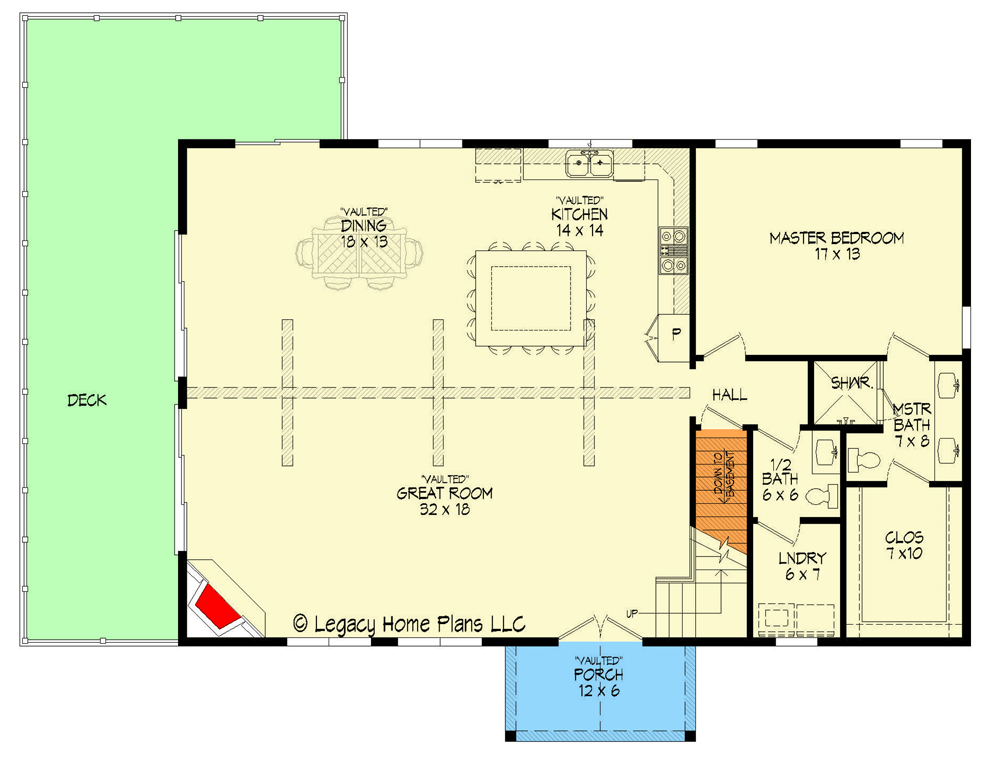

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Two-Story Lake House Plan Under 1800 Square Feet with Vaulted Great Room and Lower Level Expansion - 680066VR floor plan - Main Level

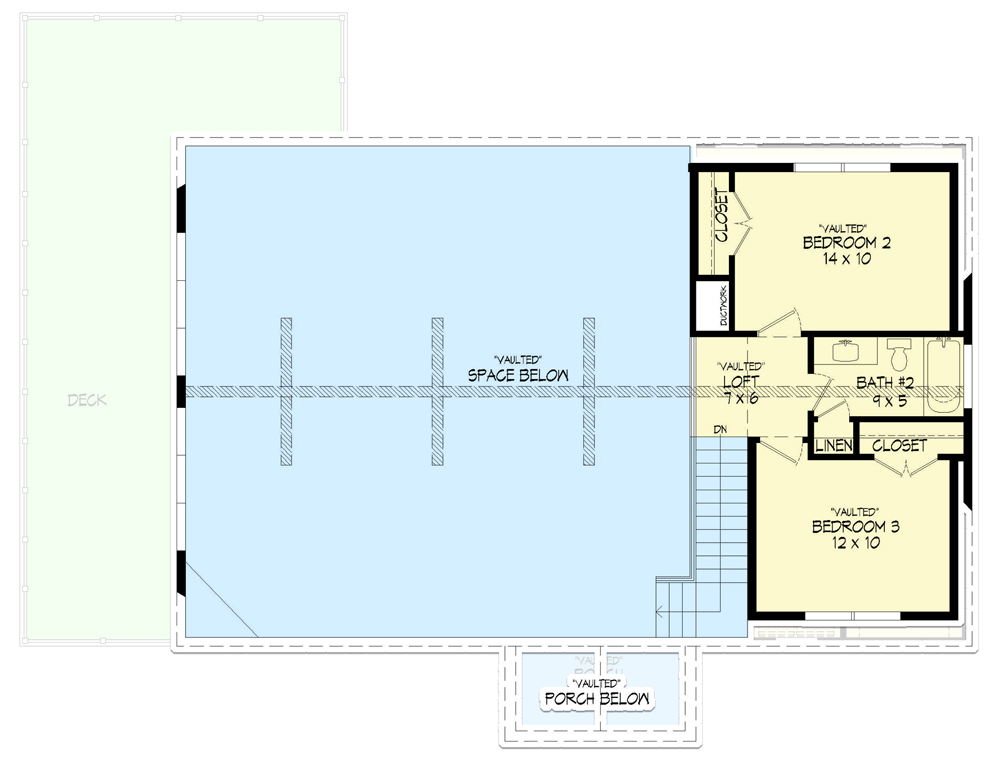

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Two-Story Lake House Plan Under 1800 Square Feet with Vaulted Great Room and Lower Level Expansion - 680066VR floor plan - 2nd Floor

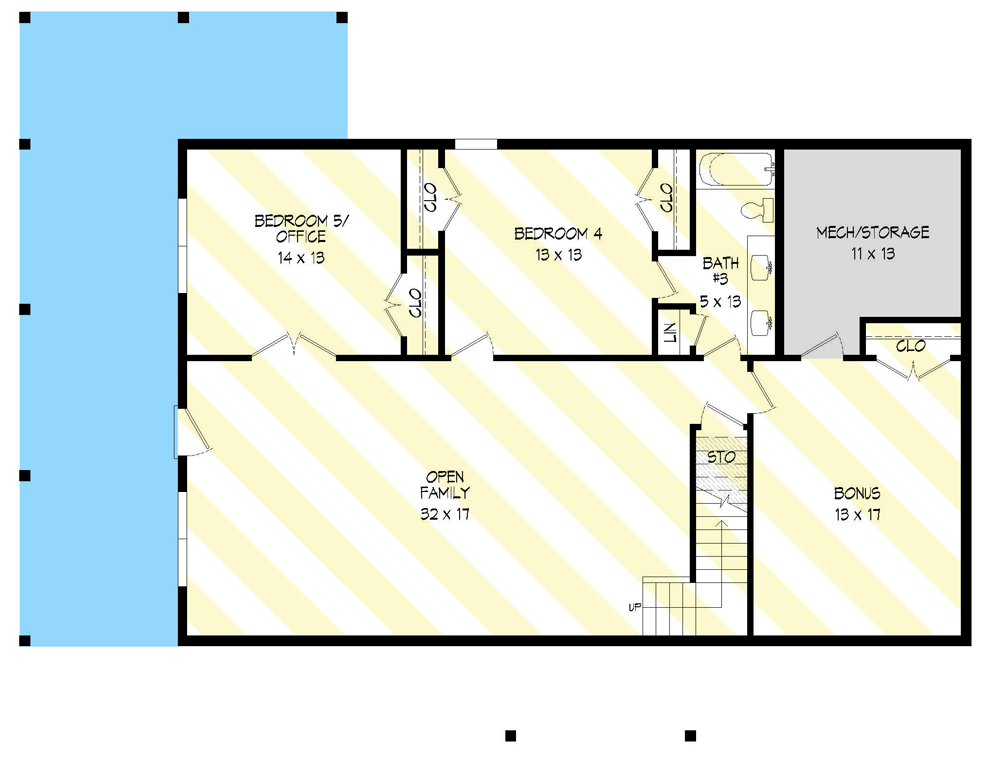

Optionally Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Two-Story Lake House Plan Under 1800 Square Feet with Vaulted Great Room and Lower Level Expansion - 680066VR floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,090 sq. ft.
  • 1st Floor: 1,600 sq. ft.
  • 2nd Floor: 490 sq. ft.
  • Porch, Combined: 542 sq. ft.
  • Optional Lower Level: 1,455 sq. ft.
  • Basement Unfinished: 145 sq. ft.
  • Porch Slab: 320 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 54' 0"
  • Max ridge height: 26' 10"

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0" Second Floor / 9' 6"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick

Architectural Style

Special features

Two-Story Lake House Plan Under 1800 Square Feet with Vaulted Great Room and Lower Level Expansion

  • 2,090

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,575
  • 5 Sets $1,660
  • 5 Sets + PDF $1,805
  • CAD + PDF - Single-Build $2,125
  • View all purchase option online

About This Plan

  • A timber-frame truss lends character to the front porch of this two-story lake house plan, complete with a wrap-around porch to enjoy the available views.
  • The sun-drenched interior features a two-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and easy access to the deck for grilling.
  • The master bedroom is located on the main floor and has a 4-fixture bathroom and a walk-in closet.
  • A loft at the top of the stairs overlooks the great room below and two bedrooms share a bath.
  • Expansion opportunities in the lower level include a two bedrooms (one is a flex room), an open family room plus a bonus room. Mechanicals and storage complete the home plan.
  • Related Plans: Get an alternate lower level layout with house plan 68747VR and get a larger version with house plan 68966VR (1,952 sq. ft.). Extend the roof and get a covered deck with house plan 68856VR.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,090 sq. ft.
  • 1st Floor: 1,600 sq. ft.
  • 2nd Floor: 490 sq. ft.
  • Porch, Combined: 542 sq. ft.
  • Optional Lower Level: 1,455 sq. ft.
  • Basement Unfinished: 145 sq. ft.
  • Porch Slab: 320 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 54' 0"
  • Max ridge height: 26' 10"

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0" Second Floor / 9' 6"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
