Plan 70906MK

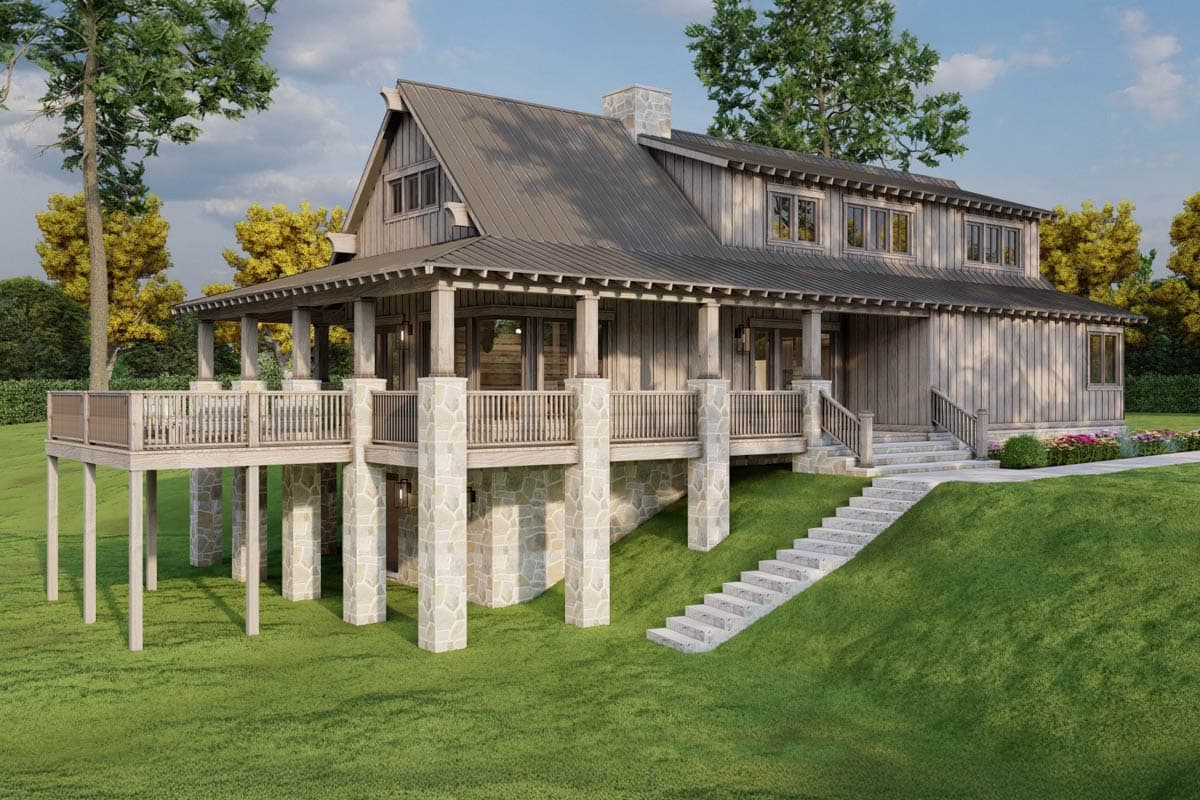

Two-Story Lake House Plan with Wrap-Around Porch - 2706 Sq Ft

Heated S.F.
2,706
Beds
3
Baths
2
Stories
2
Cars
1

Floor Plan

Plan 70906MK

Main Level
Main Level
2nd Floor
2nd Floor

Plan 70906MK

M-F 9am-5pm EST |

1-203-761-8500

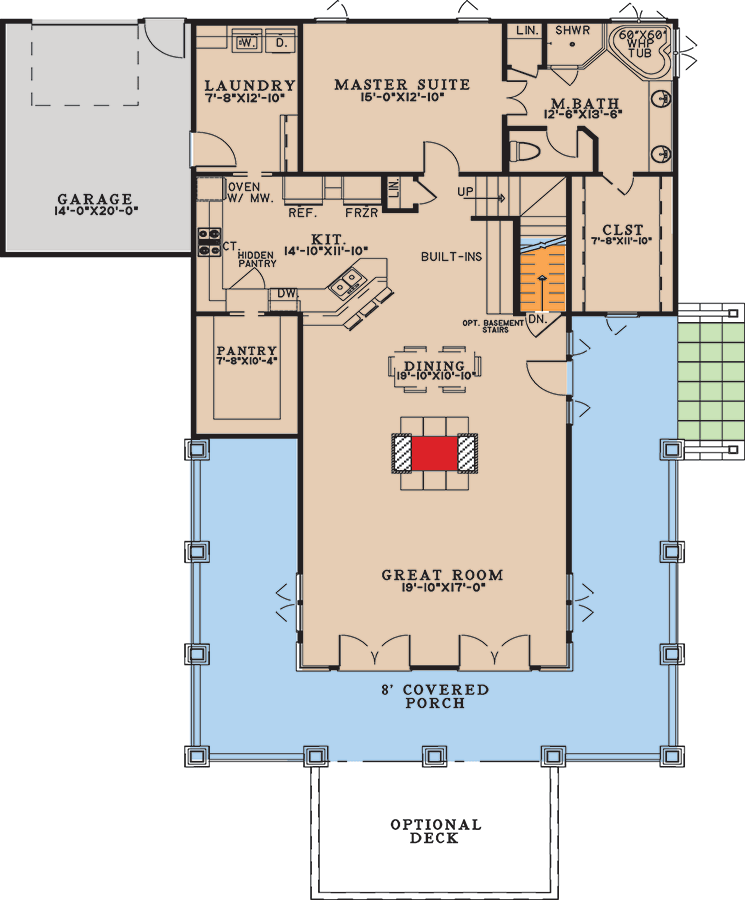

Main Level

Plan 70906MK: Two-Story Lake House Plan with Wrap-Around Porch - 2706 Sq Ft - Floor Plan - Main Level - Country, Craftsman, Mountain, Rustic

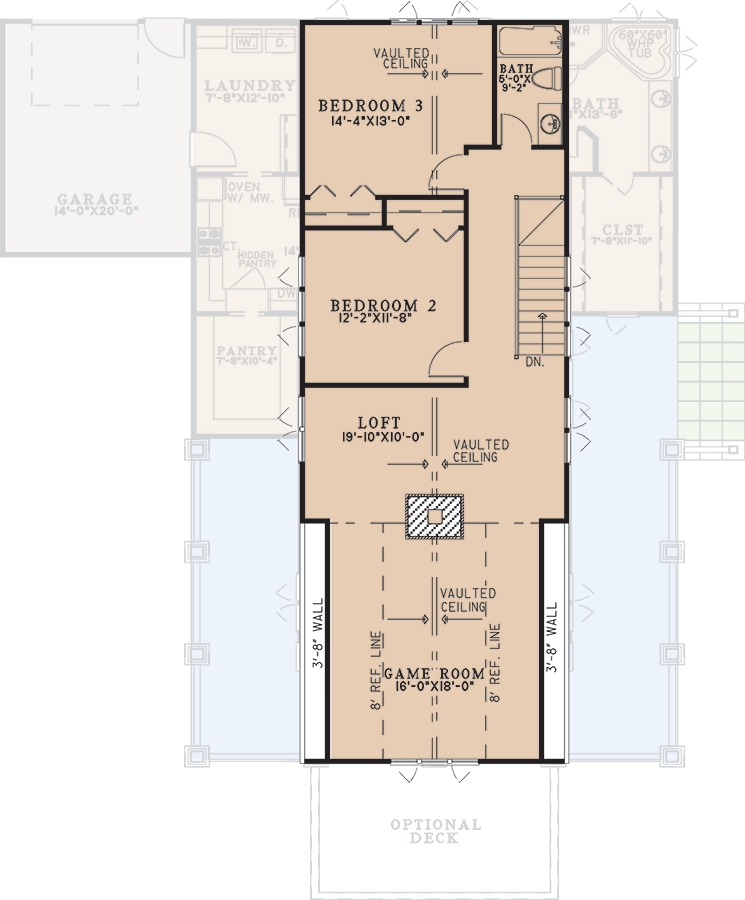

2nd Floor

Plan 70906MK: Two-Story Lake House Plan with Wrap-Around Porch - 2706 Sq Ft - Floor Plan - 2nd Floor - Country, Craftsman, Mountain, Rustic

Plan Details

  • This lake house plan gives you 2,706 square feet of heated living space with 3 beds, 2 baths and a 296 square foot 1-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,706 sq. ft.

1st Floor

1,660 sq. ft.

2nd Floor

1,046 sq. ft.

Porch, Combined

699 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 10"

Depth

76' 8"

Max Ridge Height

23' 4"

Garage

Type

Attached

Area

296 sq. ft.

Count

1 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Mountain

Rustic

Special Features

Bedrooms - Split

Game/Rec Room

Laundry - Main Level

Loft

Master Suite - 1st Floor

Media Room

Mudroom

Walk-in Pantry

Wraparound Porch

Plan Collections

Lake House Plans

Sloping Lot

Square Footage Breakdown

Total Heated Area

2,706 sq. ft.

1st Floor

1,660 sq. ft.

2nd Floor

1,046 sq. ft.

Porch, Combined

699 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 10"

Depth

76' 8"

Max Ridge Height

23' 4"

Garage

Type

Attached

Area

296 sq. ft.

Count

1 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Mountain

Rustic

Special Features

Bedrooms - Split

Game/Rec Room

Laundry - Main Level

Loft

Master Suite - 1st Floor

Media Room

Mudroom

Walk-in Pantry

Wraparound Porch

Plan Collections

Lake House Plans

Sloping Lot
