Plan 52433WM

Two-Story Multi-Family House Plan with Second Story Master - 1491 Sq Ft Per Unit

Heated S.F.
1,491
Units
2
Width
Depth

Floor Plan

Plan 52433WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52433WM

M-F 9am-5pm EST |

1-203-761-8500

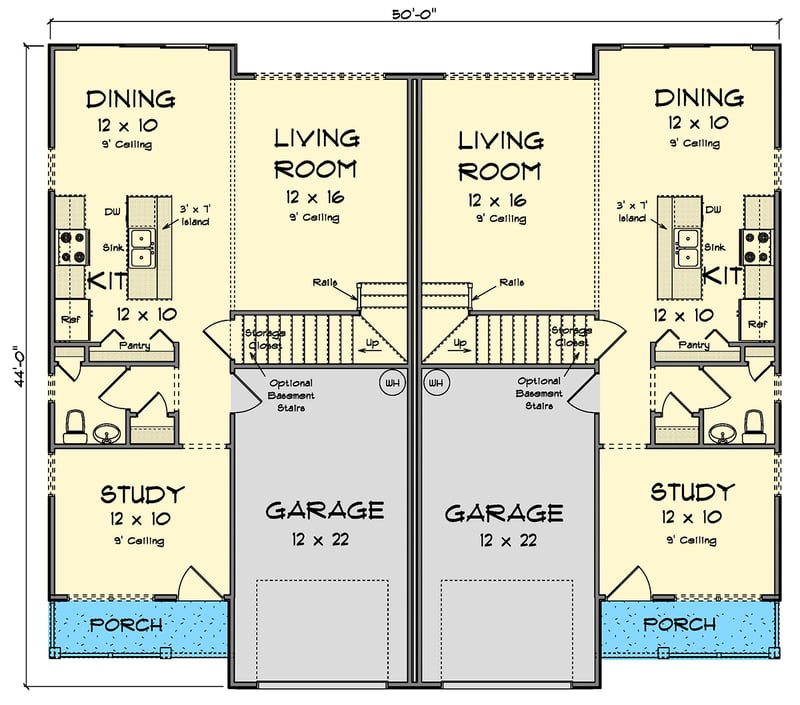

Main Level

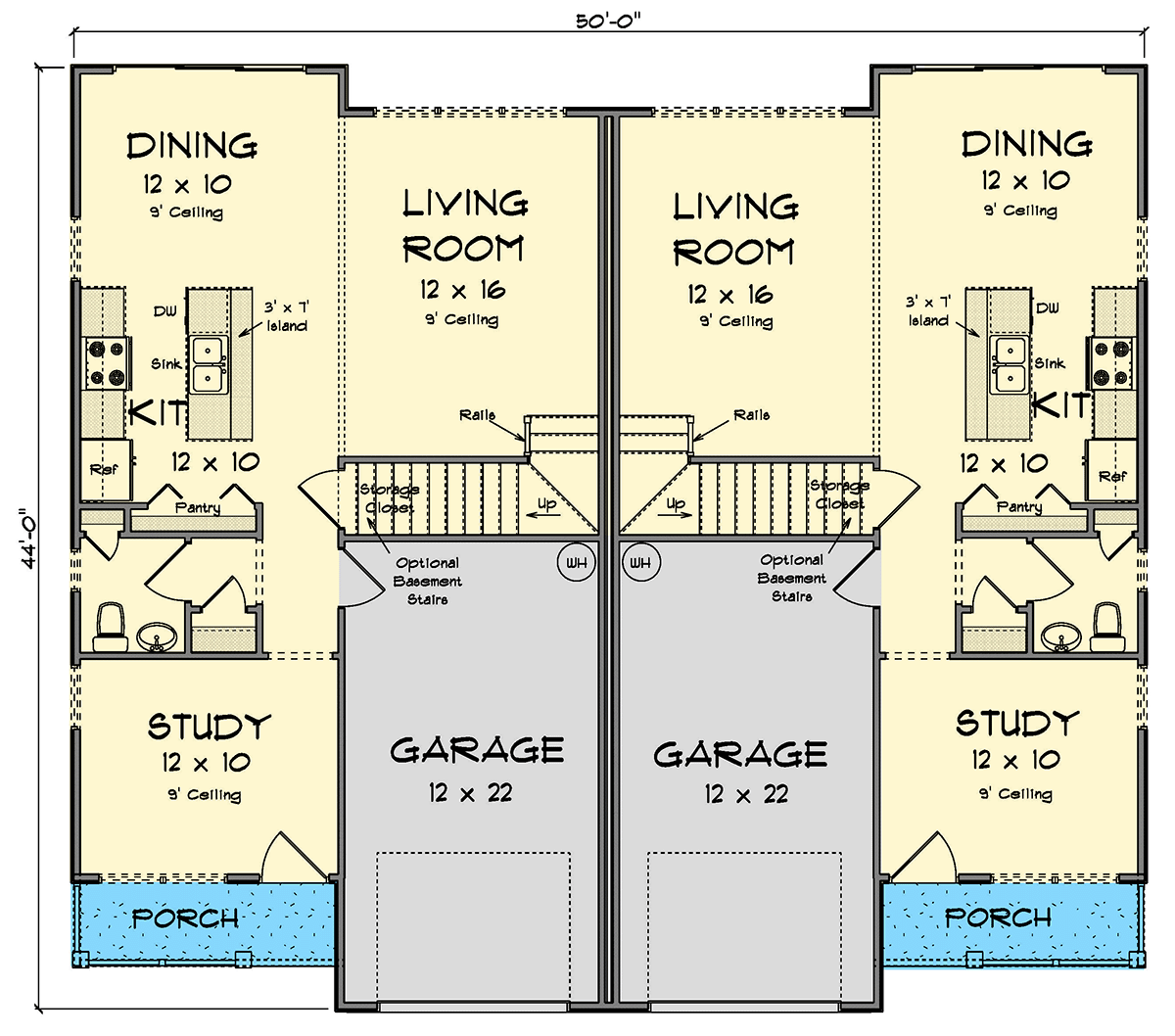

Plan 52433WM: Two-Story Multi-Family House Plan with Second Story Master - 1491 Sq Ft Per Unit - Floor Plan - Main Level - Craftsman, Traditional

2nd Floor

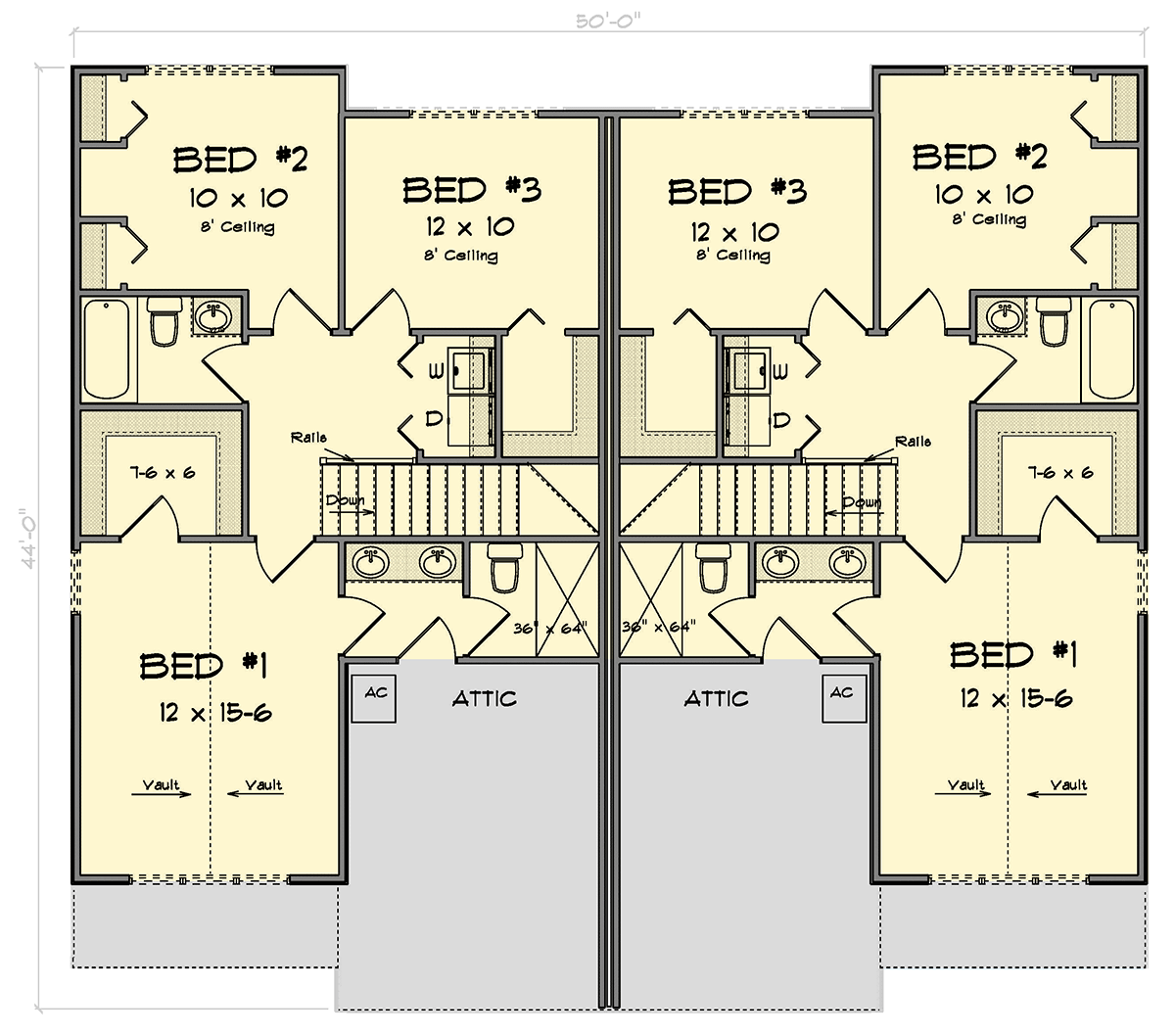

Plan 52433WM: Two-Story Multi-Family House Plan with Second Story Master - 1491 Sq Ft Per Unit - Floor Plan - 2nd Floor - Craftsman, Traditional

Plan Details

  • This multi-family house plan gives you 2 units each with 1,491 square feet of heated living space (723 sq. ft. on the first floor, 768 sq. ft. on the second floor), 3 beds, 2.5 baths and a 278 sq. ft. 1-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,491Sq. Ft.
723 Sq. Ft. 1st
768 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
278 Sq. Ft.
Dimensions
25'width
44'depth
Unfinished Areas
278 Sq. Ft. Garage
49 Sq. Ft. Porch, Front
Unit B
Heated Area
1,491Sq. Ft.
723 Sq. Ft. 1st
768 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
278 Sq. Ft.
Dimensions
25'width
44'depth
Unfinished Areas
278 Sq. Ft. Garage
49 Sq. Ft. Porch, Front

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,491 sq. ft.

1st Floor

723 sq. ft.

2nd Floor

768 sq. ft.

Porch, Front

120 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

44' 0"

Max Ridge Height

27' 4"

Garage

Type

Attached

Area

278 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,491 sq. ft.

1st Floor

723 sq. ft.

2nd Floor

768 sq. ft.

Porch, Front

120 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

44' 0"

Max Ridge Height

27' 4"

Garage

Type

Attached

Area

278 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - Upstairs
