Plan 135317GRA
Two-Story New American House Plan with Home Office and Media Room - 4749 Sq Ft
Heated S.F.
4,749
Beds
5
Baths
6
Stories
2
Cars
3
Floor Plan

Plan 135317GRA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 135317GRA

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level

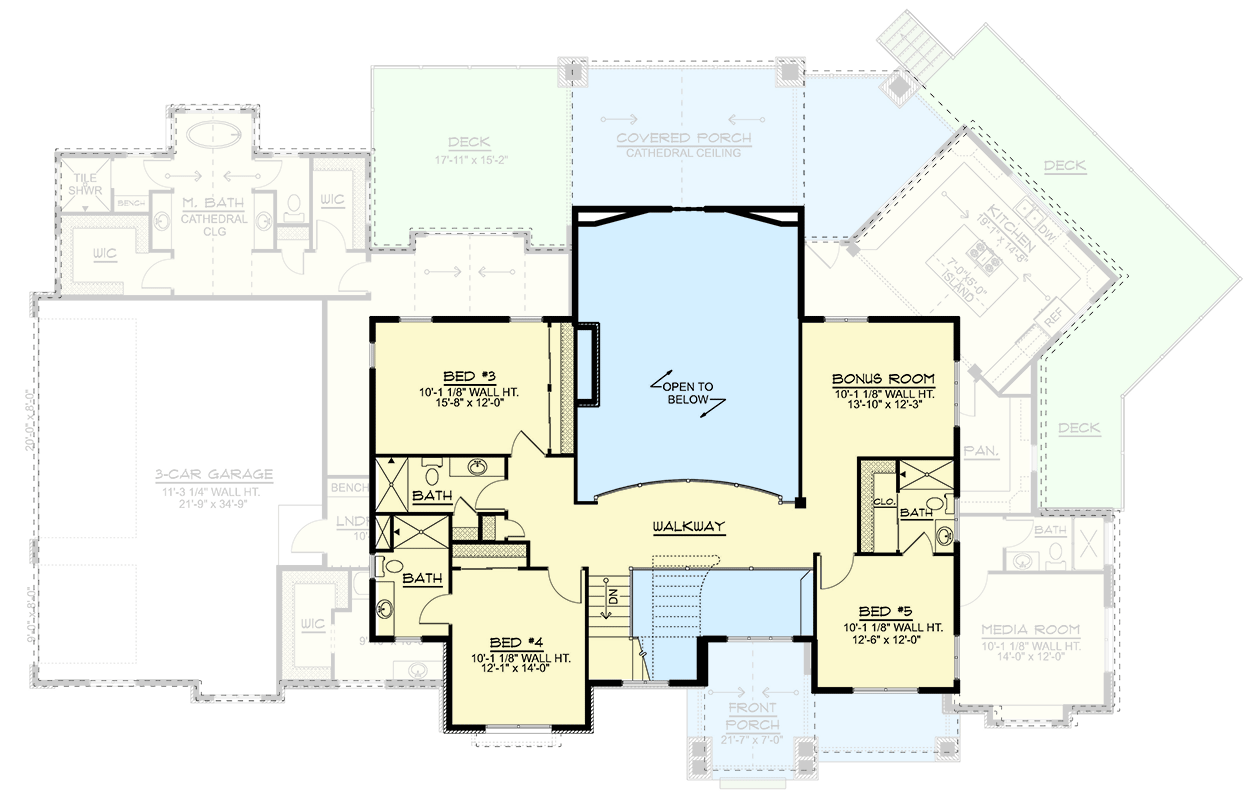

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This New American house plan offers you 4,749 square feet of heated living space with 5 beds, 6 baths and a 915 square foot 3-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,749 sq. ft.

1st Floor

3,446 sq. ft.

2nd Floor

1,303 sq. ft.

Porch, Combined

672 sq. ft.

Deck

721 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

6

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

99' 3"

Depth

64' 4"

Max Ridge Height

34' 3"

Garage

Type

Attached

Area

915 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Architectural Style

Craftsman

Mountain

New American

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Den

Flex Room

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor

Master Suite - Sitting Area

Media Room

Mudroom

Two Story Great Room

Wrap Around Porch

Plan Collections

Home Office
