Plan: 69238AM

Two Story Plan with In-law Suite

4,258 4 3 2 3
Pageloader

Two Story Plan with In-law Suite

Plan 69238AM

  • 4,258

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • For the family with a live-in parent, or older child who needs space apart (but not too far!) this spacious home plan offers a complete in-law suite with a living area, small kitchen, dining room, bedroom and bath, and private garage.
  • The total plan of this separate-but-nearby apartment is 1,163 square feet - roomy enough for long-term stays, but small enough to be manageable.
  • The main body of the home is also quite large and spreads over two floors of living space.
  • The first floor is dedicated to a great room with a fireplace and an entertainment center, a formal dining room, a breakfast nook, a gourmet kitchen and a private office with built-ins.
  • A two-car garage that features a storage area is reached through a service entrance, where you'll find a three-quarter-bath and a storage area/mud room.
  • The second floor holds three bedrooms and a media room with access to a huge storage area. A luxurious master bath is a highlight of the master suite. It is appointed with a walk-in closet, a corner spa tub and a compartmented toilet and shower. The laundry room is also on this floor and offers, in addition to washer/dryer space, a sewing center and laundry tub.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



Two Story Plan with In-law Suite

  • 4,258

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $1,408
  • PDF - single-use $1,758
  • 5 Sets $1,908
  • 5 Sets PLUS $1,958
  • CAD - multi-use $3,516
  • View all purchase option online

About This Plan

  • For the family with a live-in parent, or older child who needs space apart (but not too far!) this spacious home plan offers a complete in-law suite with a living area, small kitchen, dining room, bedroom and bath, and private garage.
  • The total plan of this separate-but-nearby apartment is 1,163 square feet - roomy enough for long-term stays, but small enough to be manageable.
  • The main body of the home is also quite large and spreads over two floors of living space.
  • The first floor is dedicated to a great room with a fireplace and an entertainment center, a formal dining room, a breakfast nook, a gourmet kitchen and a private office with built-ins.
  • A two-car garage that features a storage area is reached through a service entrance, where you'll find a three-quarter-bath and a storage area/mud room.
  • The second floor holds three bedrooms and a media room with access to a huge storage area. A luxurious master bath is a highlight of the master suite. It is appointed with a walk-in closet, a corner spa tub and a compartmented toilet and shower. The laundry room is also on this floor and offers, in addition to washer/dryer space, a sewing center and laundry tub.

Floor Plans

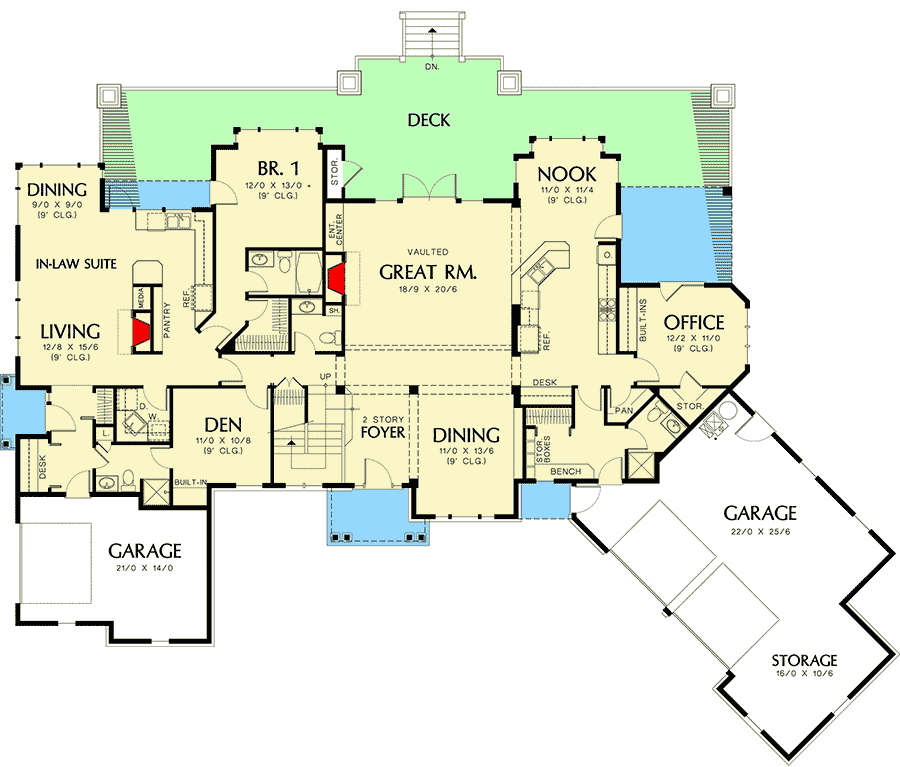

  • Main Level

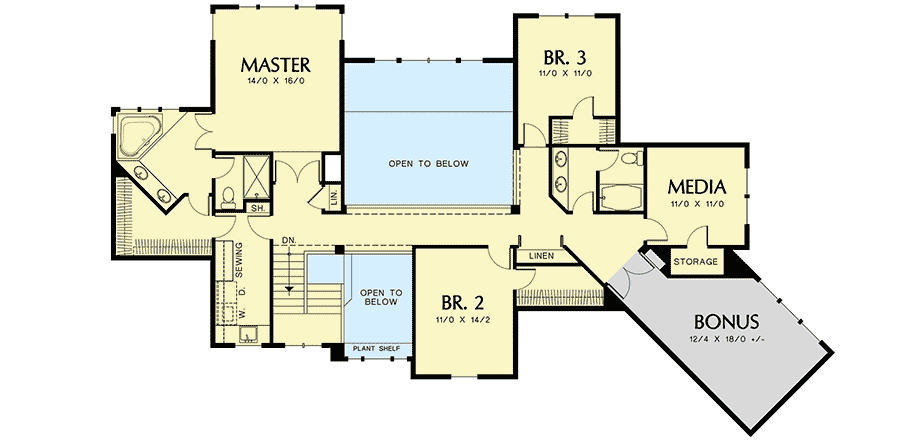

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,258 sq. ft.
  • 1st Floor: 2,712 sq. ft.
  • 2nd Floor: 1,546 sq. ft.
  • Storage: 168 sq. ft.
  • Apartment: 1,163 sq. ft.
  • Bonus: 269 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 100' 5"
  • Depth: 71' 2"
  • Max ridge height: 29' 11"

Garage

  • Type: Attached
  • Area: 764 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Stick

Architectural Style

  • Northwest
  • Traditional

Special features

  • 2nd Floor Laundry
  • 2nd Floor Master Suite
  • Bonus Room
  • CAD Available
  • Den-Office-Library-Study
  • In-Law Suite
  • Media-Game-Home Theater
  • PDF

Plan Collections

  • Luxury
