Two-Story Traditional House Plan
Heated S.F.
2,606
Beds
4
Baths
3
Stories
2
Cars
2
What's Included
Plan Details

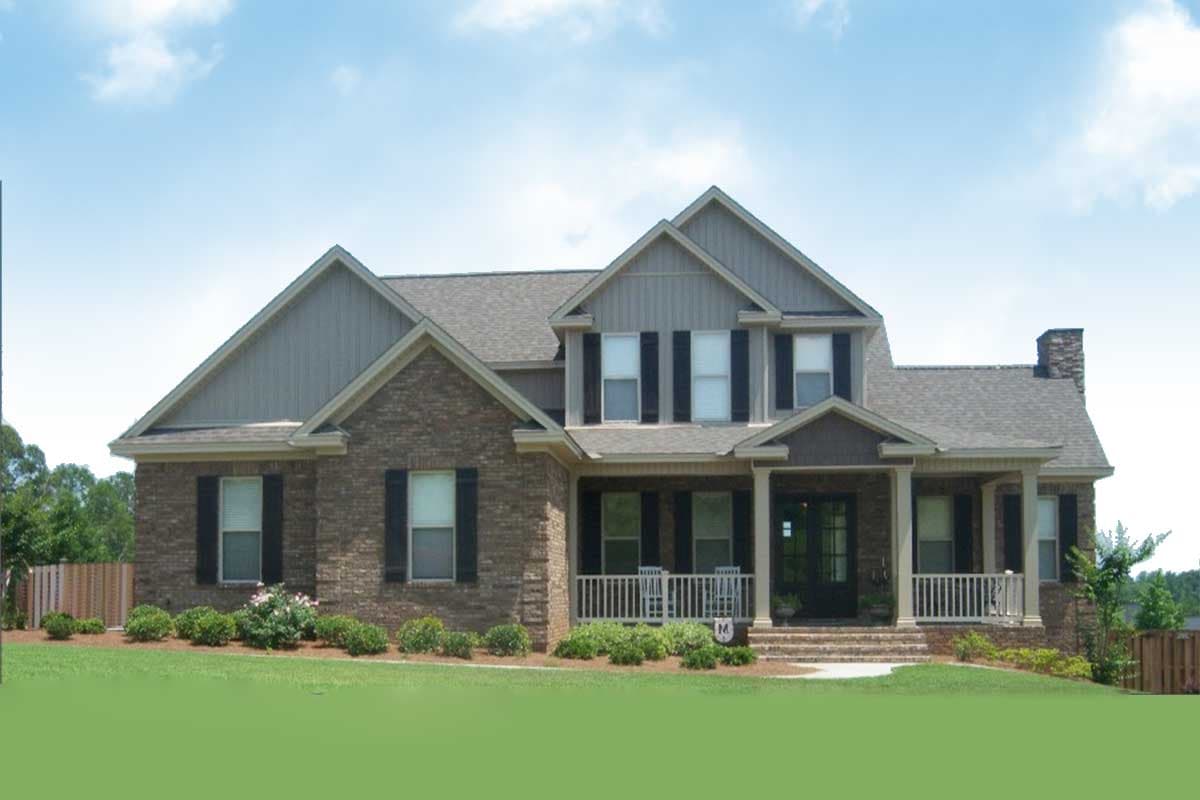

  • An attractive front porch, cascading gables and decorative shutters adorn this well-planned Traditional house plan.
  • Both the front porch and the rear porch wrap around to give you lots of outdoor space.
  • Interior columns eliminate walls, preserving the views from room to room.
  • Fireplaces can be found in the family room and keeping room for a cozy feeling.
  • Two bedrooms on the main floor include a guest suite or nursery and the master suite with its huge walk-in closet.
  • The second floor holds an additional two bedrooms plus a hall bathroom and two linen closets.
  • Related Plan: Get an alternate version with house plan 86319HH.
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Two-Story Traditional House Plan

  • 2,606

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

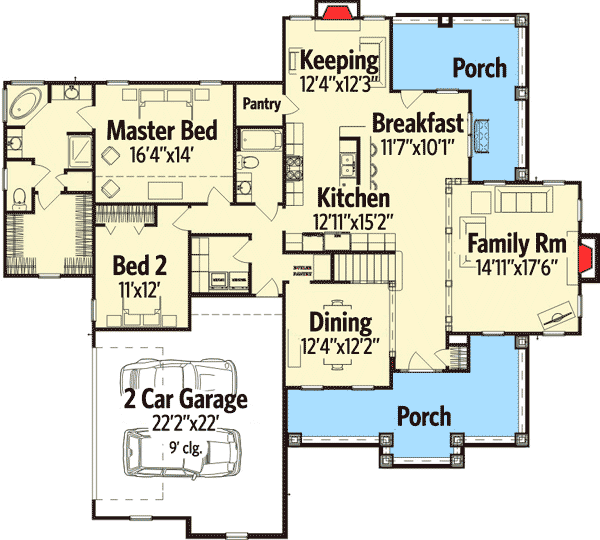

Floor Plan

  • Main Level

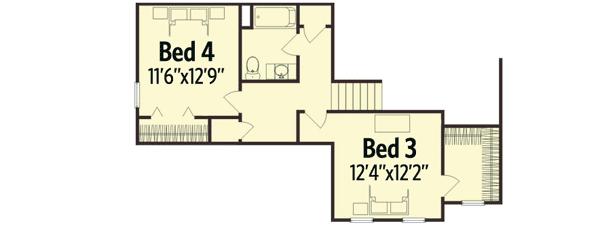

  • 2nd Floor
