Plan 72318DA

Two Unit Modern Home Plan with Upstairs Living

Heated S.F.

3,082

Width

72'

Depth

50'

Cars

4

What's Included

Floor Plan

Main Level

Reverse Floor Plan

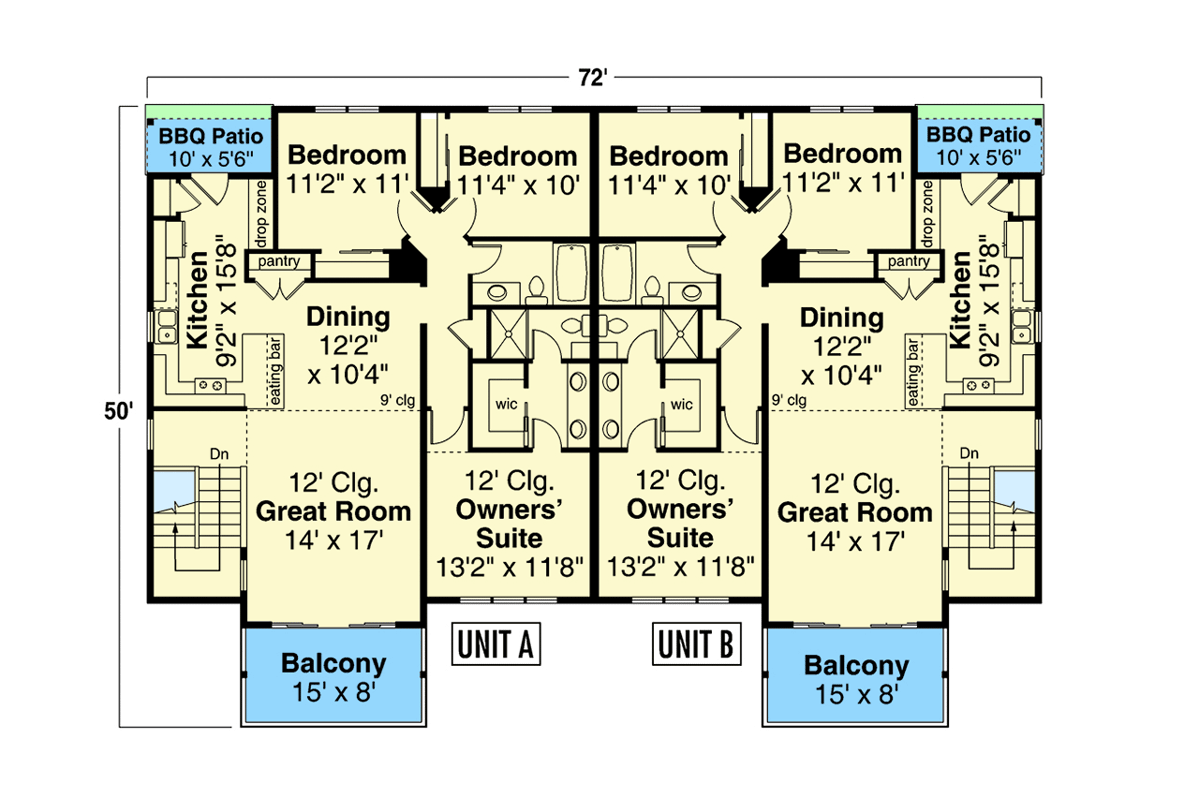

Two Unit Modern Home Plan with Upstairs Living - 72318DA floor plan - Main Level

Lower Level

Reverse Floor Plan

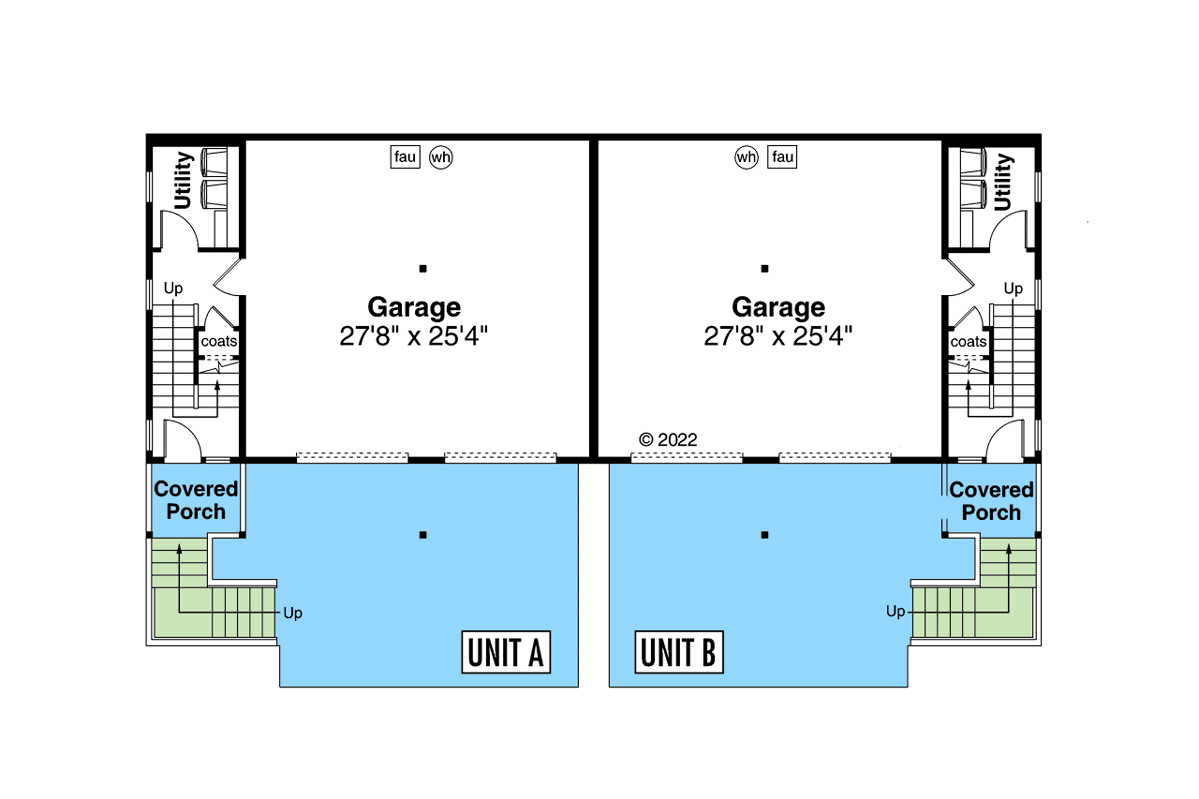

Two Unit Modern Home Plan with Upstairs Living - 72318DA floor plan - Lower Level

Plan Details

The two units in this modern duplex are well decorated by the upscale and unique exterior facade. In each 3 bed 2 bath mirror-image unit, the great room, dining room and kitchen flow together, creating a large gathering space with doors that open onto BBQ patios.
The upstairs in made of the main living areas and the three bedrooms and gives you 1,334 square feet of living space. There are two bathrooms in each unit that are both full size, one in the master suite and one shared by the additional two bedrooms.
The lower floor (207 square feet) hosts the laundry room, conveniently separating the living area from the noise of the washer and dryer. Accompanying the utility room on the lower floor are the two car garages for each of the units.

Unit A

1,541 Sq. Ft.

3 Beds

2 Full Baths

36' w 50' d 29' h

Unit B

1,541 Sq. Ft.

3 Beds

2 Full Baths

36' w 50' d 29' h

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

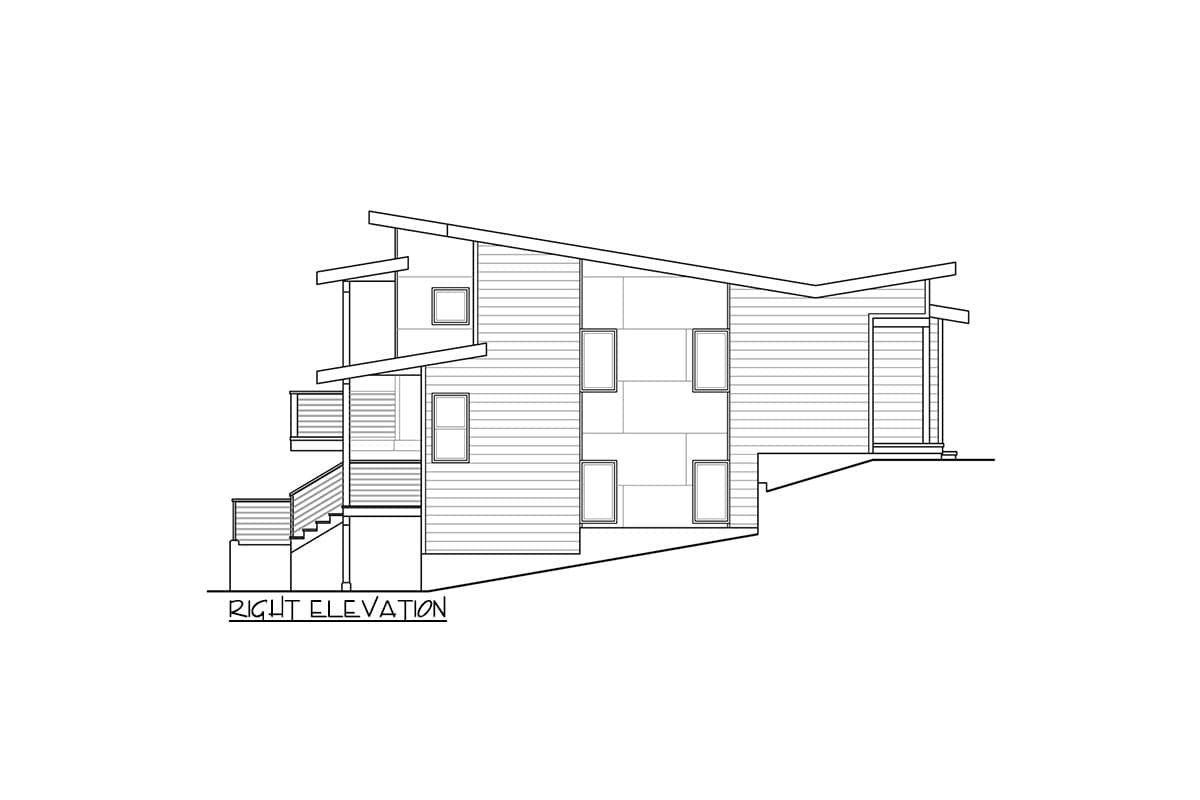

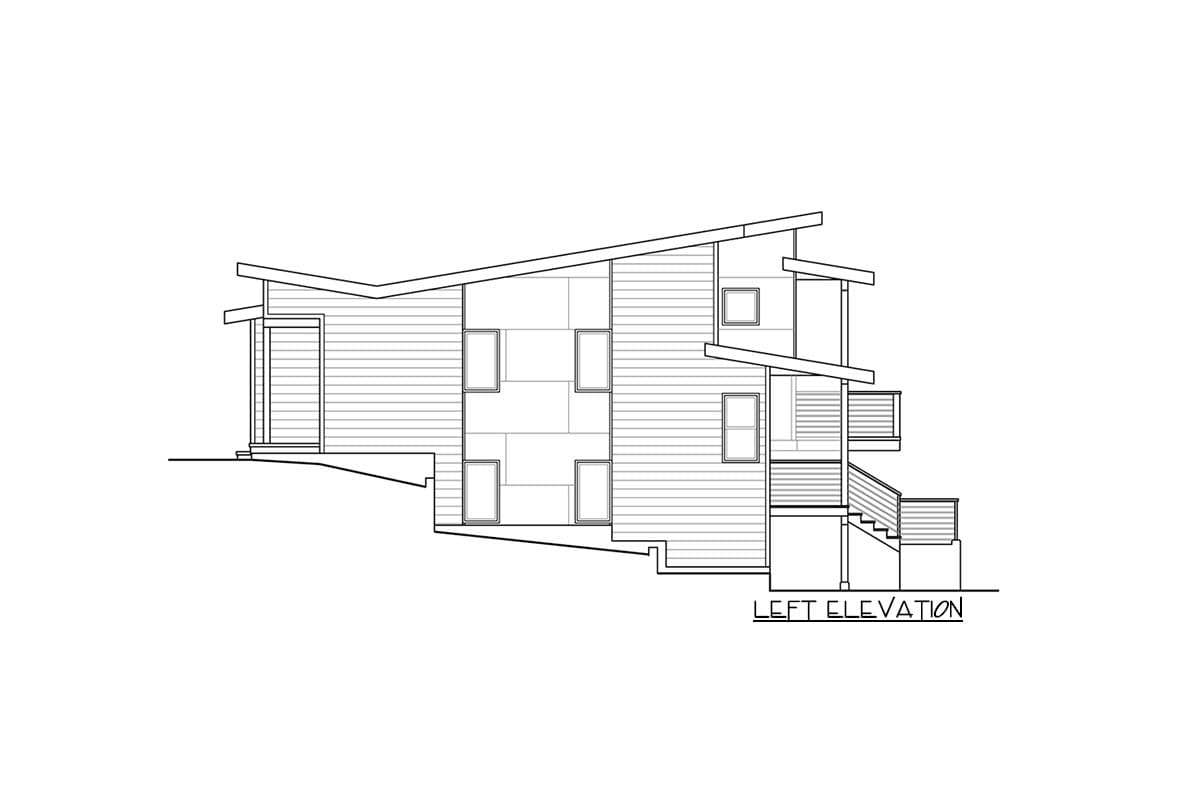

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

3,082 sq. ft.

Lower Level:

414 sq. ft.

1st Floor:

2,668 sq. ft.

Beds/Baths

Bedrooms:

6

Full bathrooms:

4

Foundation Type

Standard Foundations:

Crawl

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

72' 0"

Depth:

50' 0"

Max Ridge Height:

29' 2"

Garage

Type:

Attached

Area:

1446 sq. ft.

Count:

4 Cars

Entry Location:

Front

Ceiling Heights

Lower Level

10'

First Floor

9'

Roof Details

Primary Pitch:

2 on 12

Framing Type:

Truss

Architectural Style

Special Features

Master Suite - 1st Floor
