Plan 59119ND

Ultimate Master Bedroom

Heated S.F.
1,994
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 59119ND

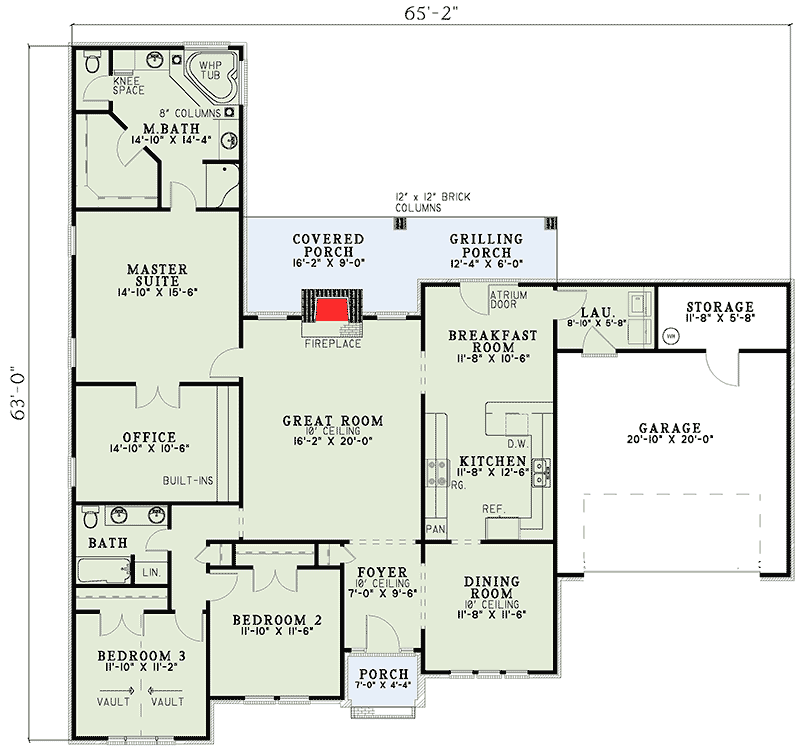

Main Level
Main Level

Plan 59119ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 59119ND: Ultimate Master Bedroom - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • Enter the brick arched entry of this home plan and prepare for the perfect home. An inviting great room with a romantic fireplace is a comfortable gathering room while a formal dining room allows for elegant entertaining.
  • The kitchen adjoins a large breakfast room with atrium door to the rear grilling porch.
  • The master suite features a private office and has the ultimate master bathroom. A corner whirlpool tub is framed by columns and a large walk-in closet, shower and private toilet.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

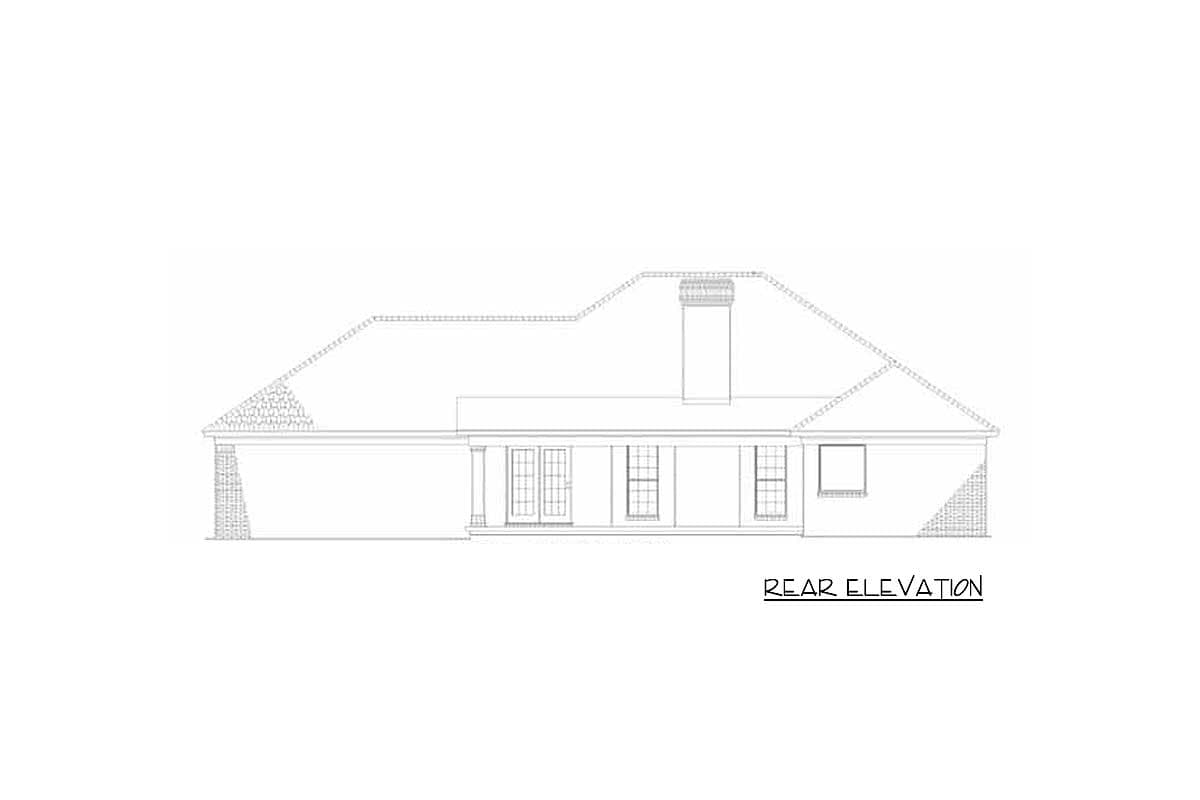

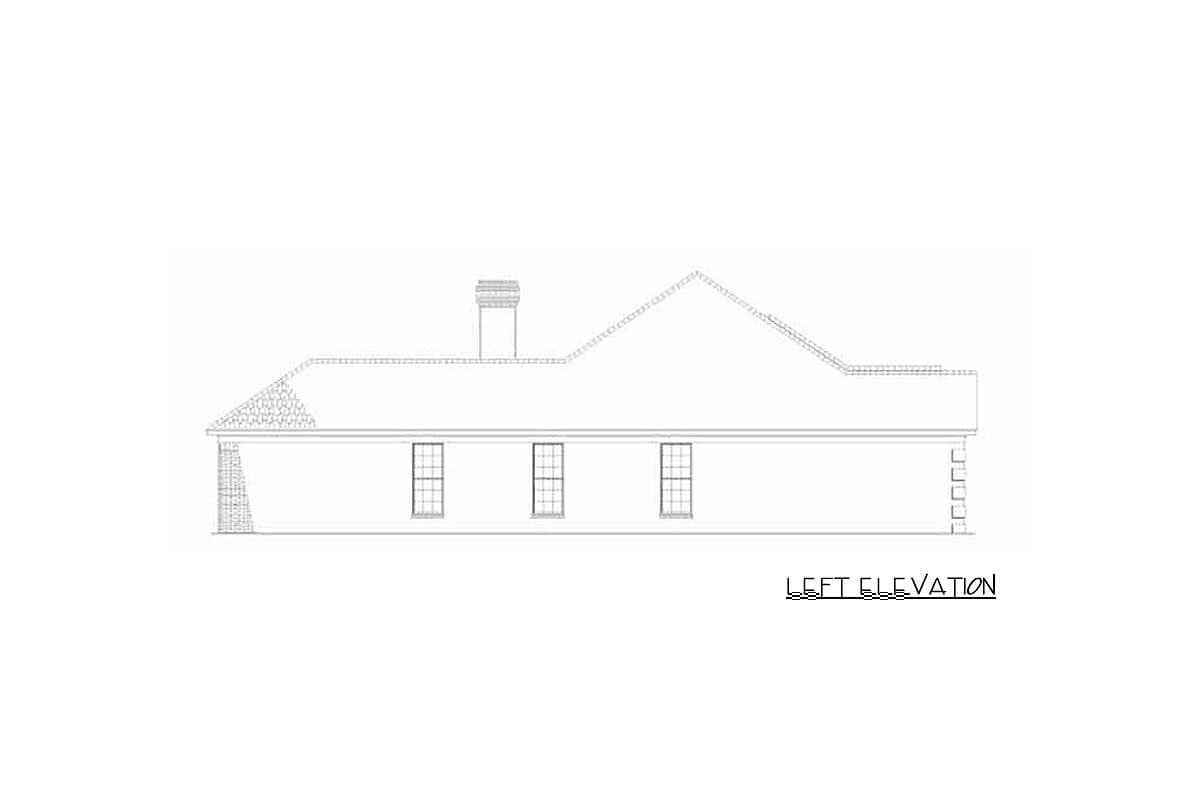

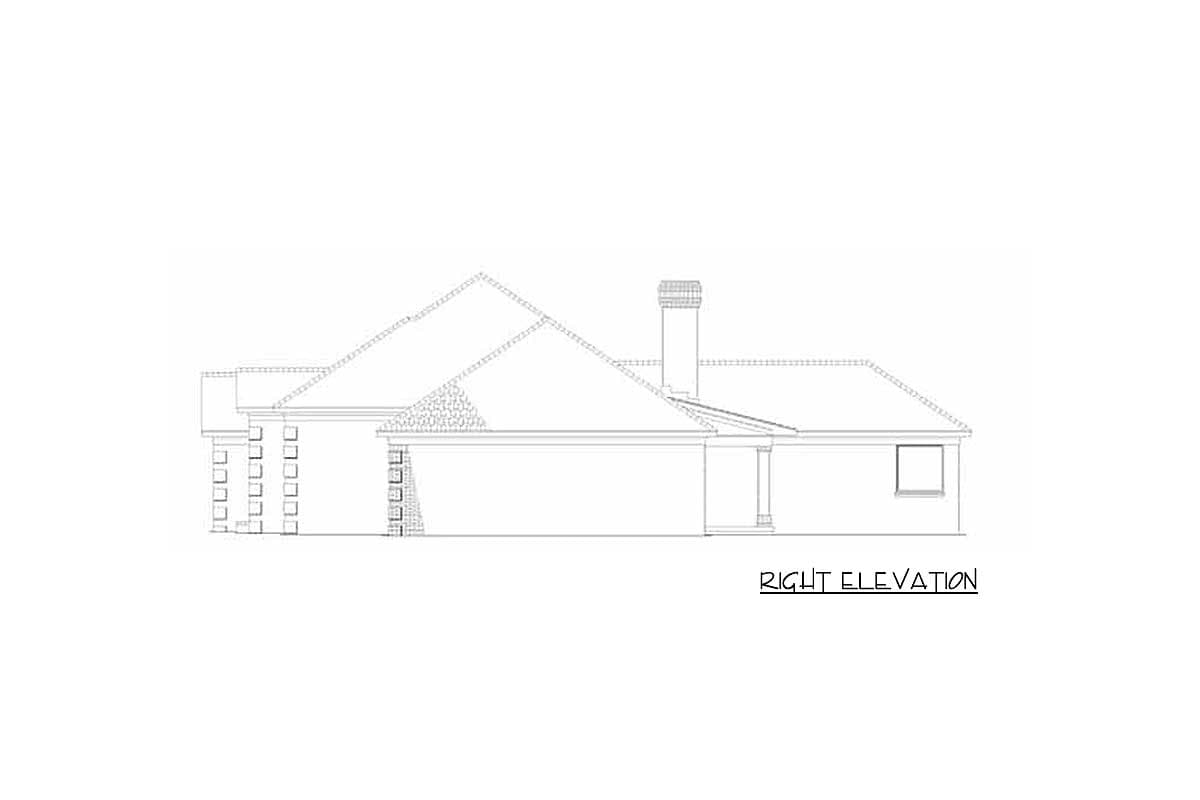

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,994 sq. ft.

1st Floor

1,994 sq. ft.

Porch, Rear

87 sq. ft.

Entry

31 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Daylight, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

65' 2"

Depth

63' 0"

Max Ridge Height

21' 6"

Garage

Type

Attached

Area

417 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Plan Collections

Closed Floor Plans

Home Office

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,994 sq. ft.

1st Floor

1,994 sq. ft.

Porch, Rear

87 sq. ft.

Entry

31 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Daylight, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

65' 2"

Depth

63' 0"

Max Ridge Height

21' 6"

Garage

Type

Attached

Area

417 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Plan Collections

Closed Floor Plans

Home Office

Photo Gallery
