Under 1,600 Square Foot Country Farmhouse Plan with Vaulted Living Space

Plan 69818AM

  • 1,592

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 1,592 square feet house plan gives you 3 beds, 2 baths and a 2-car garage (469 square feet) and has a Country Farmhouse exterior.
  • As you step into the inviting foyer of this beautiful home, your immediate gaze is drawn to the vaulted dining and living room with with a charming fireplace that radiates warmth and coziness. This captivating space seamlessly connects to the outdoor living area, creating a harmonious blend of indoor and outdoor living.
  • In the front of the home is where you will find the kitchen complete with a spacious island and a well-appointed pantry. Just beyond the kitchen lies a convenient laundry room that doubles as a mudroom, providing seamless access to the garage.
  • Venturing to the left side of this thoughtfully designed residence, you'll find the luxurious master suite. The master bedroom is a serene sanctuary, featuring an elegant shower, a dual-sink vanity, and a generously sized master closet that will satisfy all.
  • On the right side of the home, a well-conceived layout offers two comfortably sized bedrooms, each uniquely designed to provide comfort and privacy. These bedrooms share a stylishly appointed bathroom, ensuring that both residents and guests have their own space for relaxation and rejuvenation.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

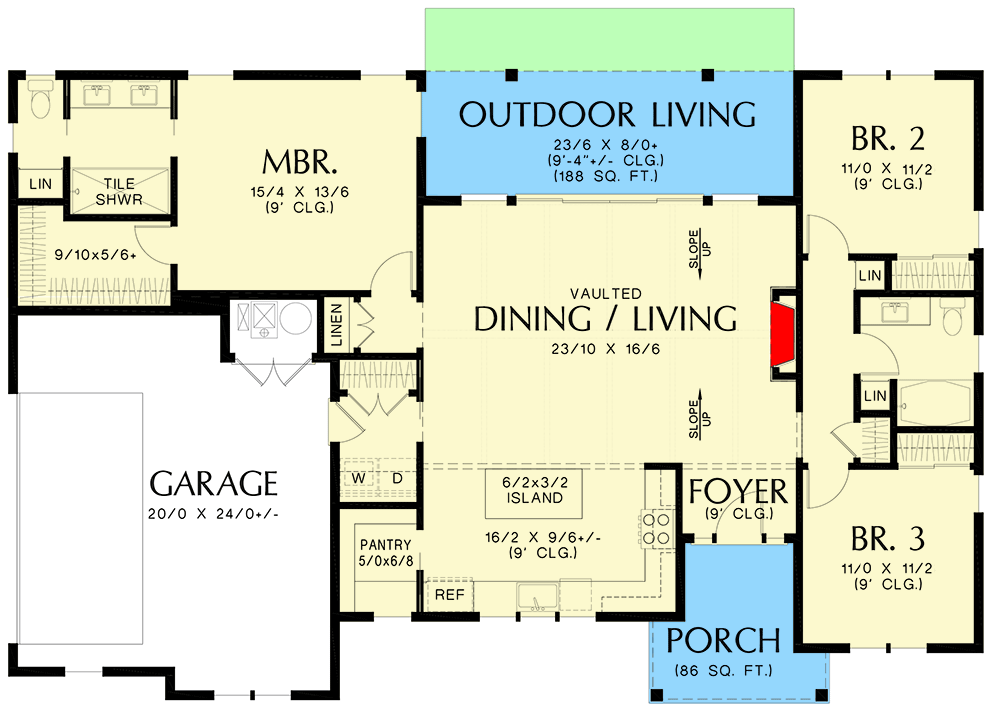

Under 1,600 Square Foot Country Farmhouse Plan with Vaulted Living Space - 69818AM floor plan - Main Level

Main Level - Basement Stair Location

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

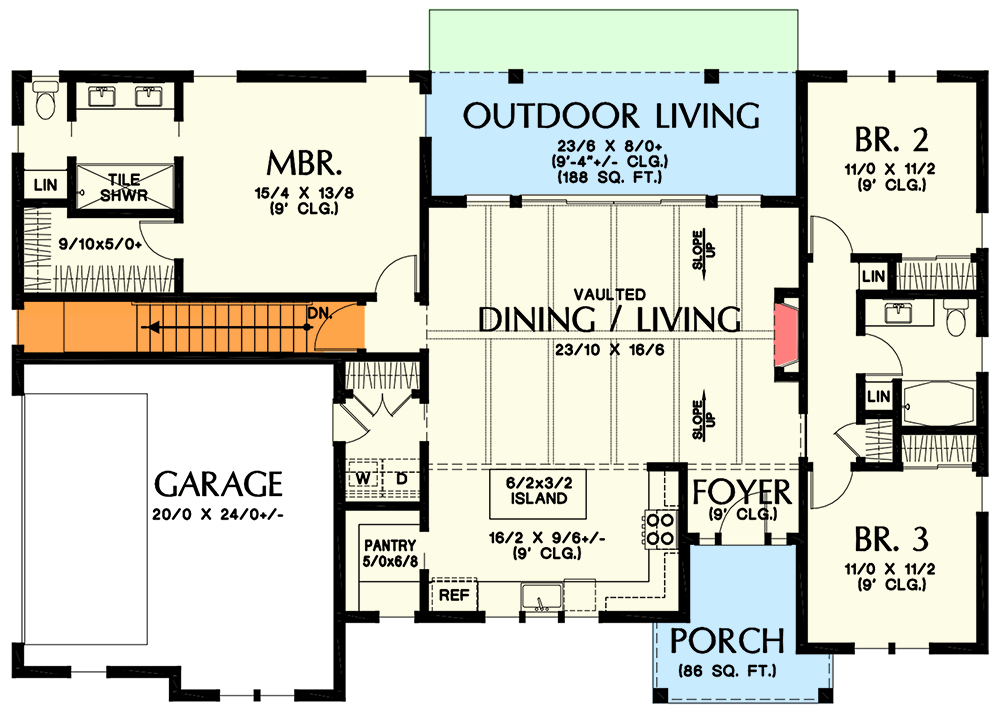

Under 1,600 Square Foot Country Farmhouse Plan with Vaulted Living Space - 69818AM floor plan - Main Level - Basement Stair Location

Under 1,600 Square Foot Country Farmhouse Plan with Vaulted Living Space

  • 1,592

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Main Level - Basement Stair Location

Plan Details

Square Footage Breakdown

  • Total: 1,592 sq. ft.
  • 1st Floor: 1,592 sq. ft.

Dimensions

  • Width: 62' 0"
  • Depth: 40' 0"
  • Max ridge height: 20' 1"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 469 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
