Under 2,000 Square Foot Craftsman Ranch Plan with Vaulted Family Room

Plan 818019JSS

  • 1,912

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • With under 2,000 square feet of living space, this Craftsman Ranch plan packs in a lot of features for the modern family, including an open-concept living space.
  • A vaulted ceiling with exposed beams is centered above a grand fireplace in the spacious family room and three side-by-side windows offer views onto the back porch and beyond.
  • The kitchen island's countertop stretches past the cabinetry to provide a spot for casual meals and a corner pantry is within arm's reach.
  • Four bedrooms wrap around the left side of the design with the primary suite tucked towards the rear and paired with a 5-fixture bathroom and walk-in closet.
  • Store your outerwear, shoes, and bags in the mudroom which is located next to the double garage and laundry room.
  • Related Plan: Find an alternate exterior with plan 818018JSS.

  • Foundation plan
  • Detailed floorplans
  • Roof plan
  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans
The following details are NOT included in the plans:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

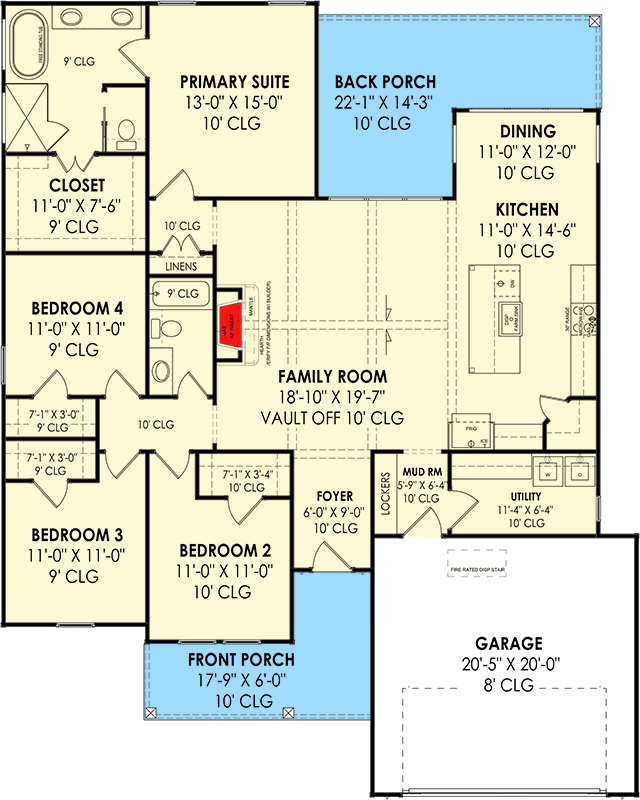

Under 2,000 Square Foot Craftsman Ranch Plan with Vaulted Family Room - 818019JSS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,912 sq. ft.
  • 1st Floor: 1,912 sq. ft.
  • Porch, Combined: 378 sq. ft.
  • Porch, Rear: 237 sq. ft.
  • Porch, Front: 141 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 62' 4"
  • Max ridge height: 25' 6"

Garage

  • Type: Attached
  • Area: 427 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Under 2,000 Square Foot Craftsman Ranch Plan with Vaulted Family Room

  • 1,912

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,195
  • PDF - Unlimited Build $1,895
  • CAD Unlimited + PDF $2,195
  • View all purchase option online
