Under 900 Square Foot Cottage Plan with Wraparound Porch

Name: Plan 801012PM: Under 900 Square Foot Cottage Plan with Wraparound Porch
Brand: Architectural Designs
SKU: 801012PM
Price: 755.0 USD
Availability: InStock

Heated S.F.

894

Beds

Baths

Stories

Floor Plan

Main Level

Plan Details

This Cottage house plan delivers under 900 square feet of living space and includes a charming wraparound porch to welcome guests.
A coat closet awaits your personal items in the foyer which sits next to the living space.
Discover a comfortable space to cook and enjoy meals in the combined kitchen and dining area with nearby sliding doors that lead to the back yard.
Two bedrooms line the left side of the design, and the neighboring full bath includes a laundry closet.

What's Included

Please note this plan is designed to the National Building Code of Canada.

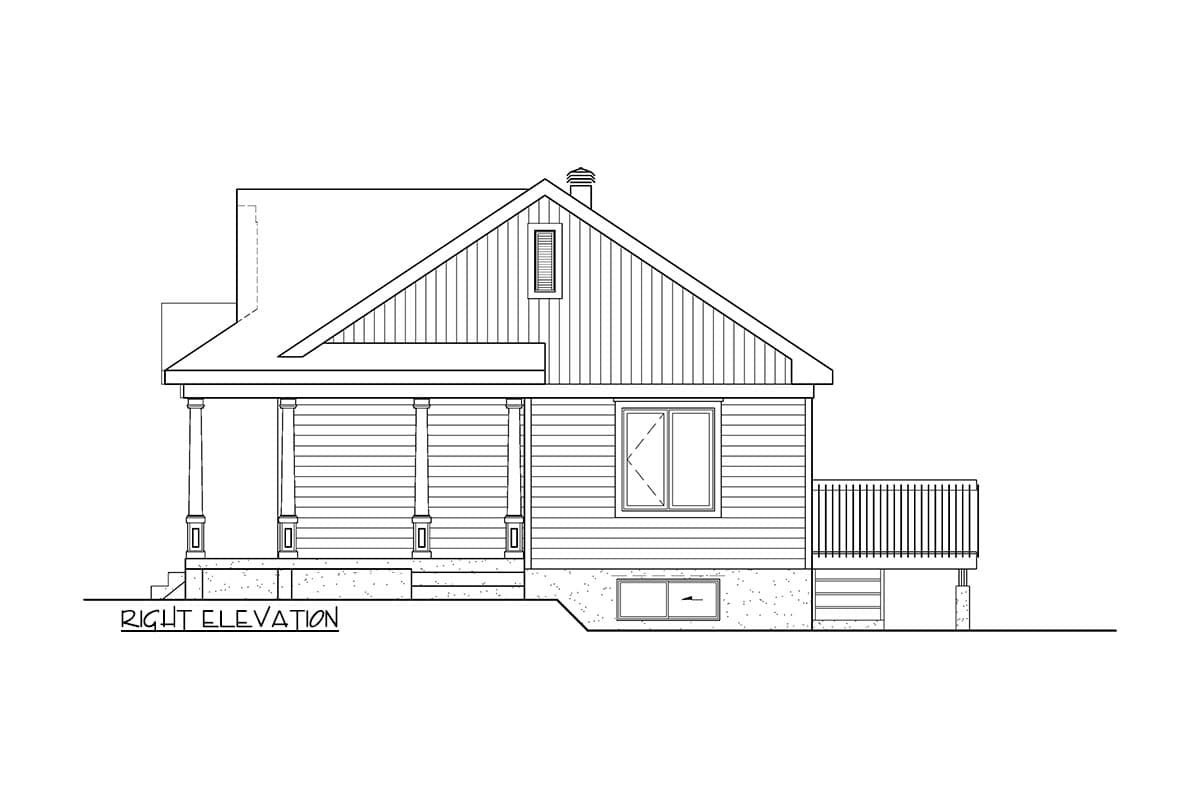

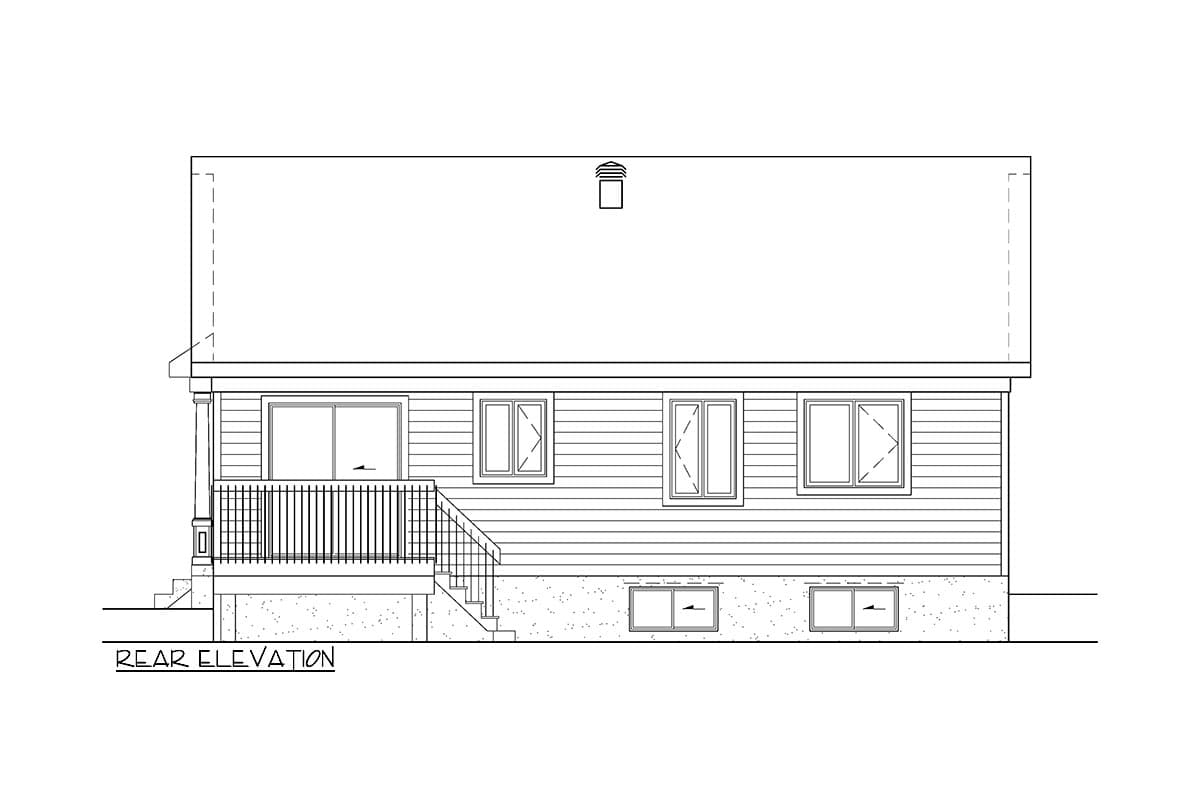

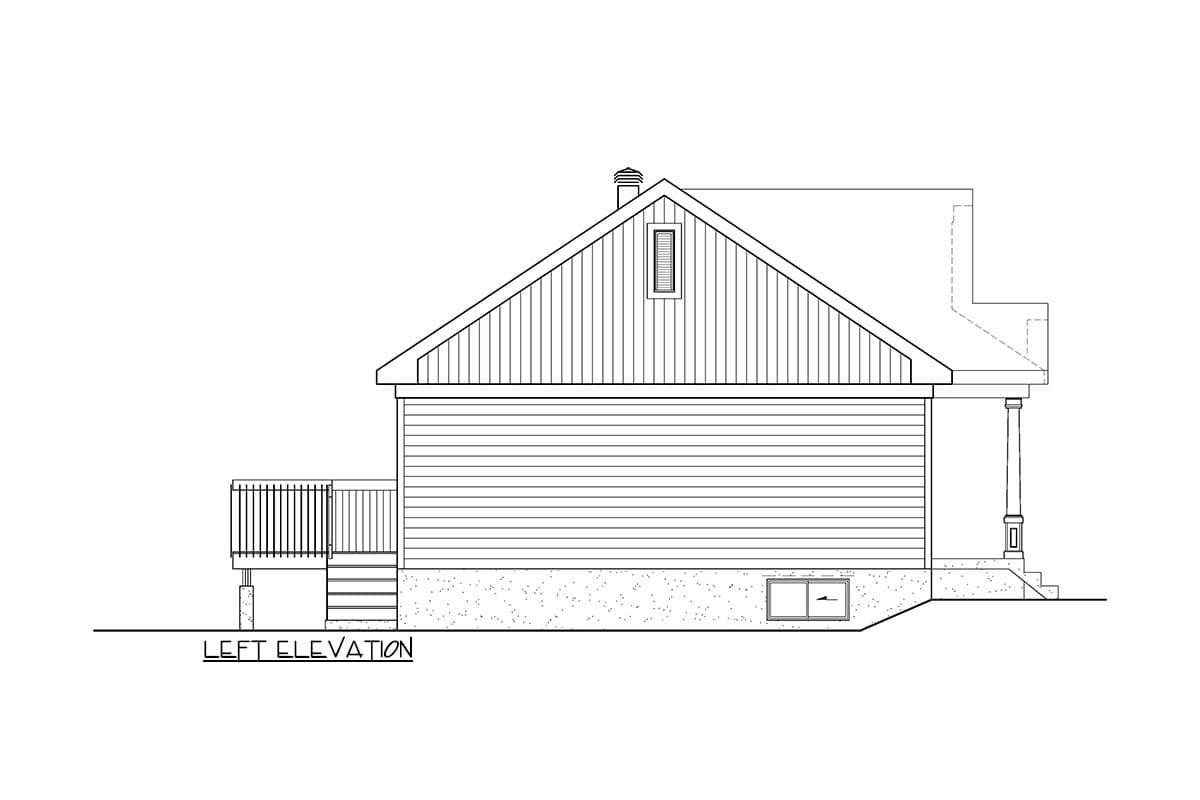

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

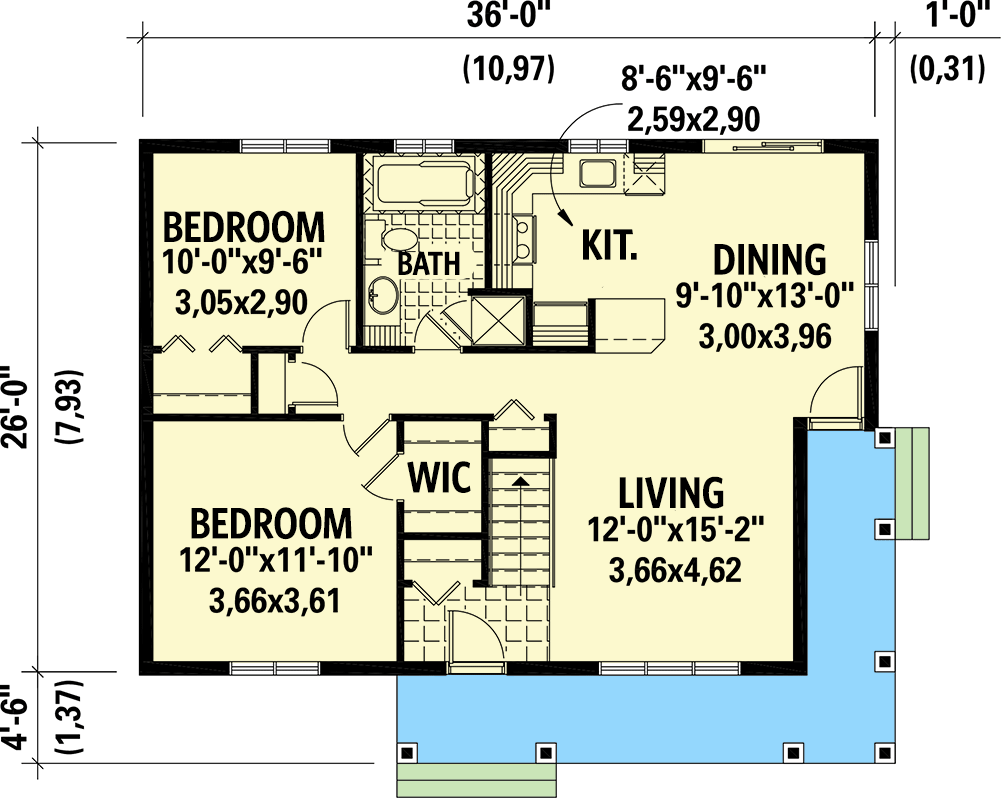

Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
