Plan 46008HC

Unique Hill Country Home Plan

3,163 2 3 2 2
Pageloader

Unique Hill Country Home Plan

Plan 46008HC

  • 3,163

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

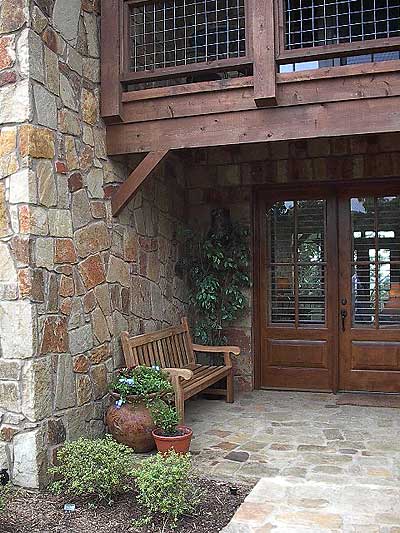

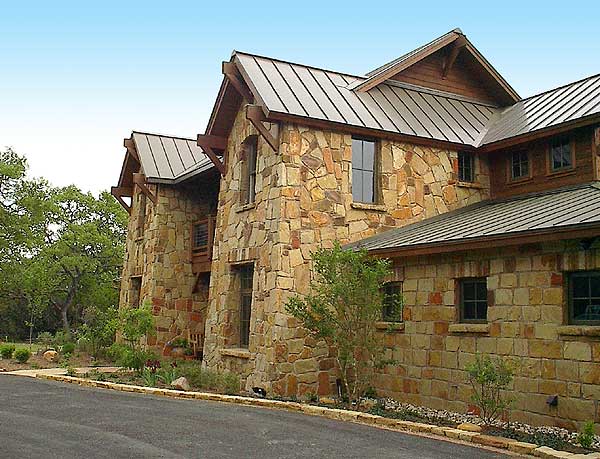

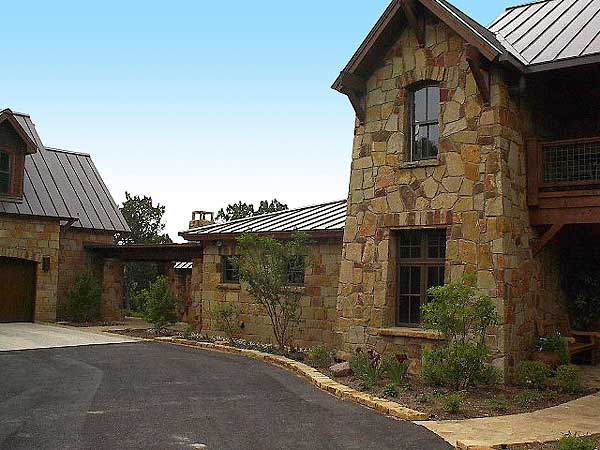

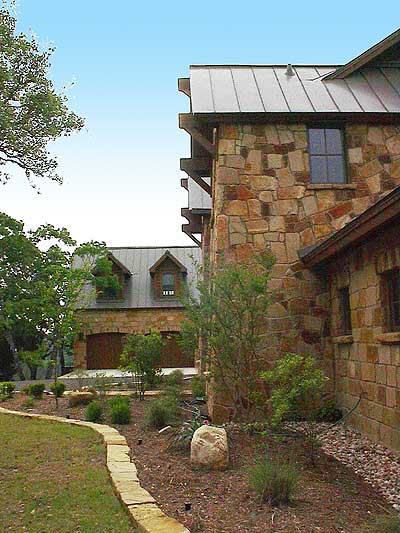

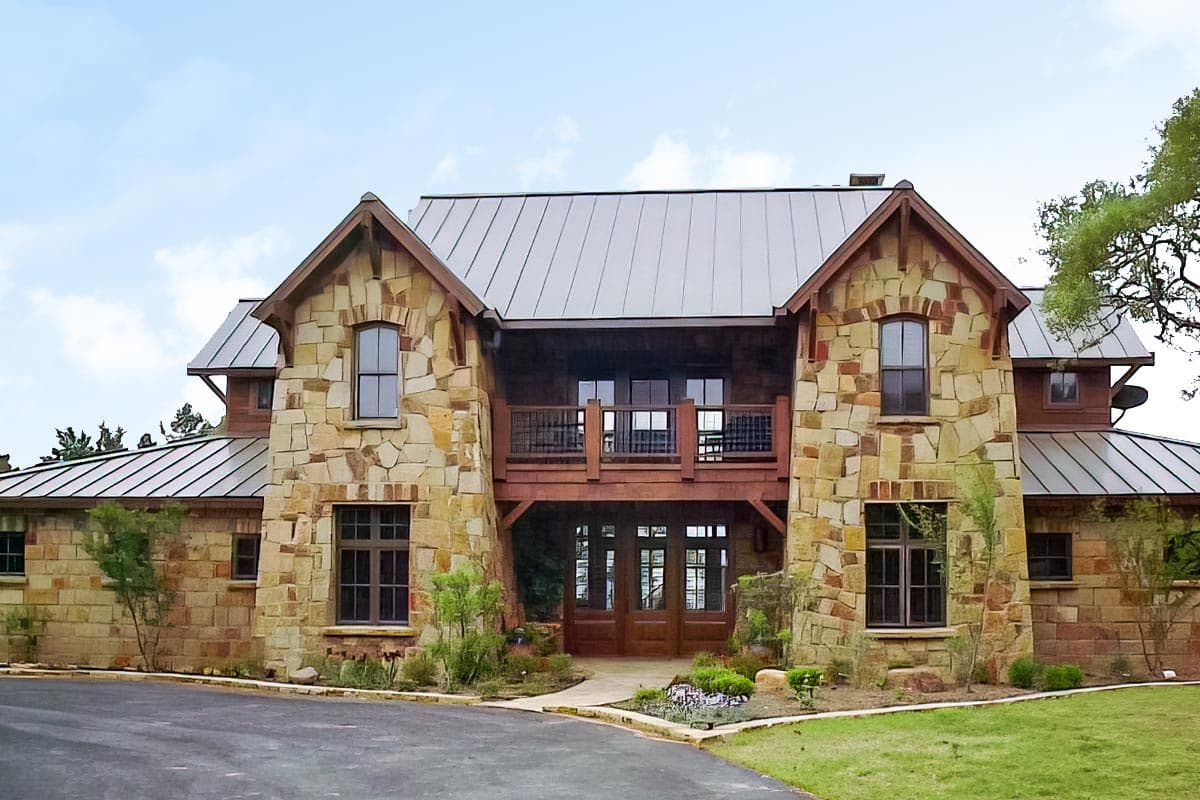

  • The stone exterior and metal roof immediately draw your eyes towards this unique Hill Country home plan.

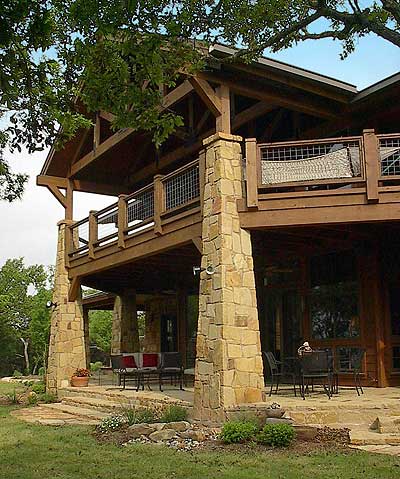

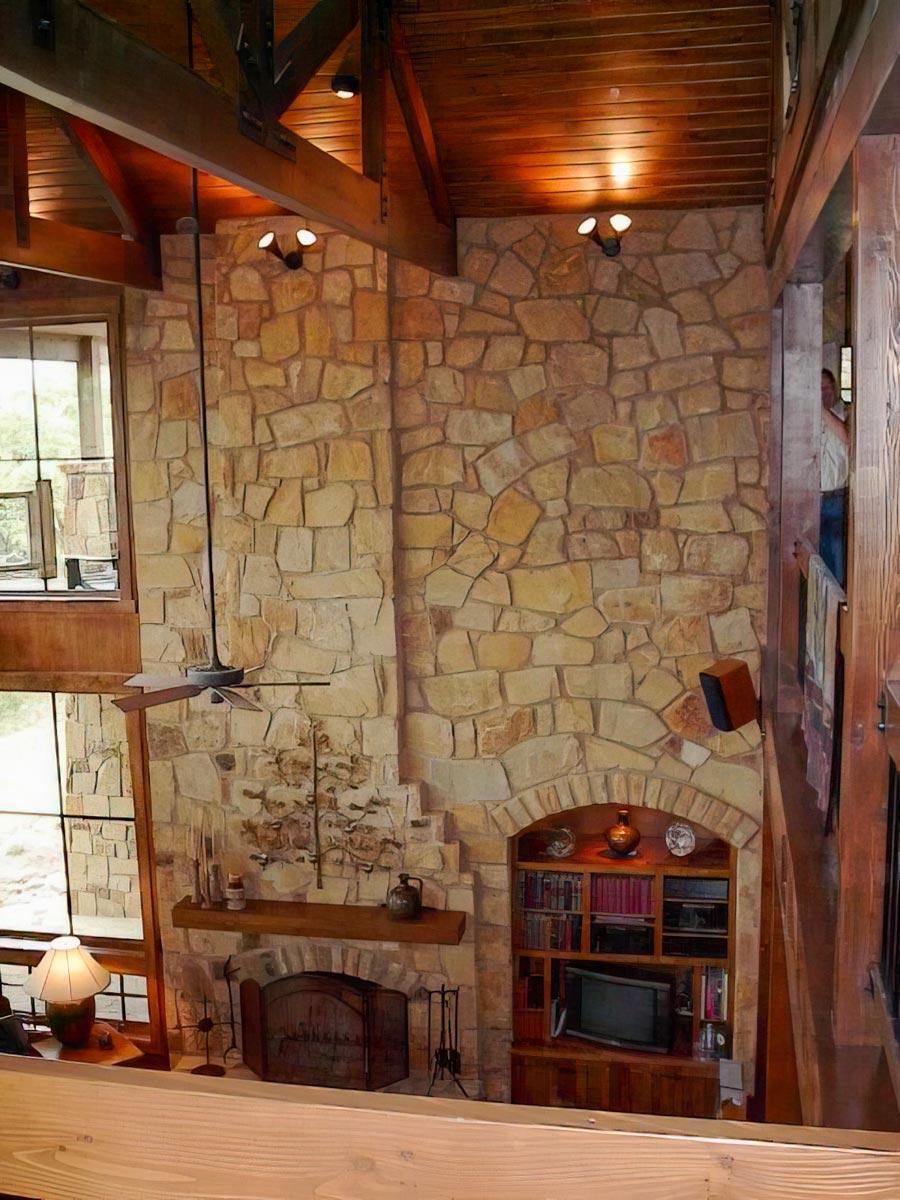

  • From the moment you step into the foyer, the views reach back across the sunken living room with fireplace to the huge covered patio beyond.
  • Bask in the luxury of the master suite with its L-shaped walk-in closet and huge master bath with large walk-in shower and corner soaking tub.

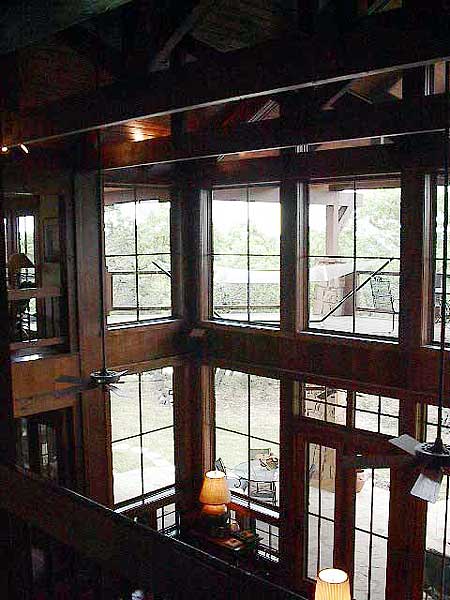

  • On the second floor, a balcony overlooks the two-story living room.

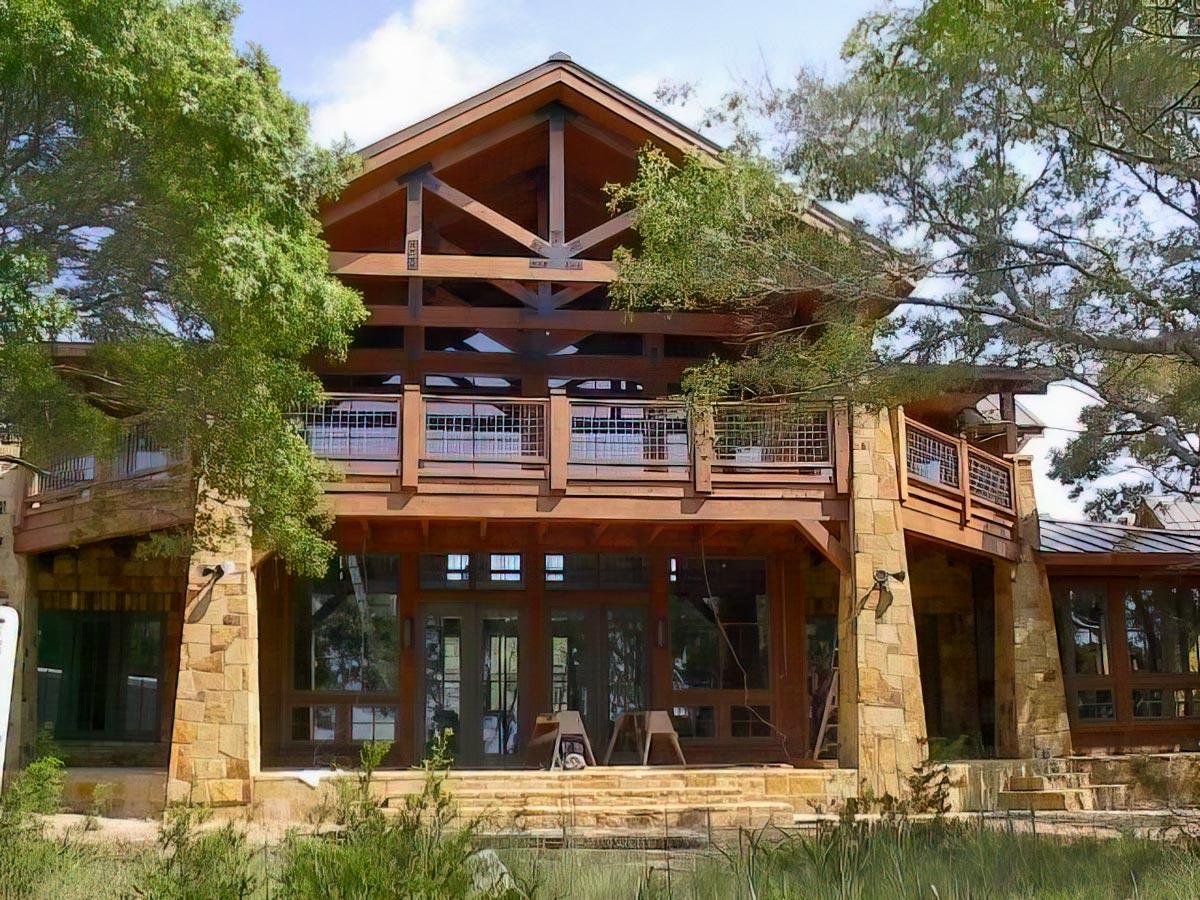

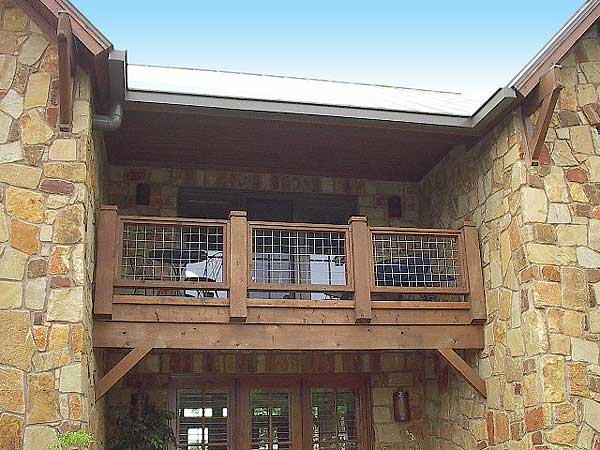

  • Both the study and bedroom 2 open onto a covered wood deck with magnificent views.

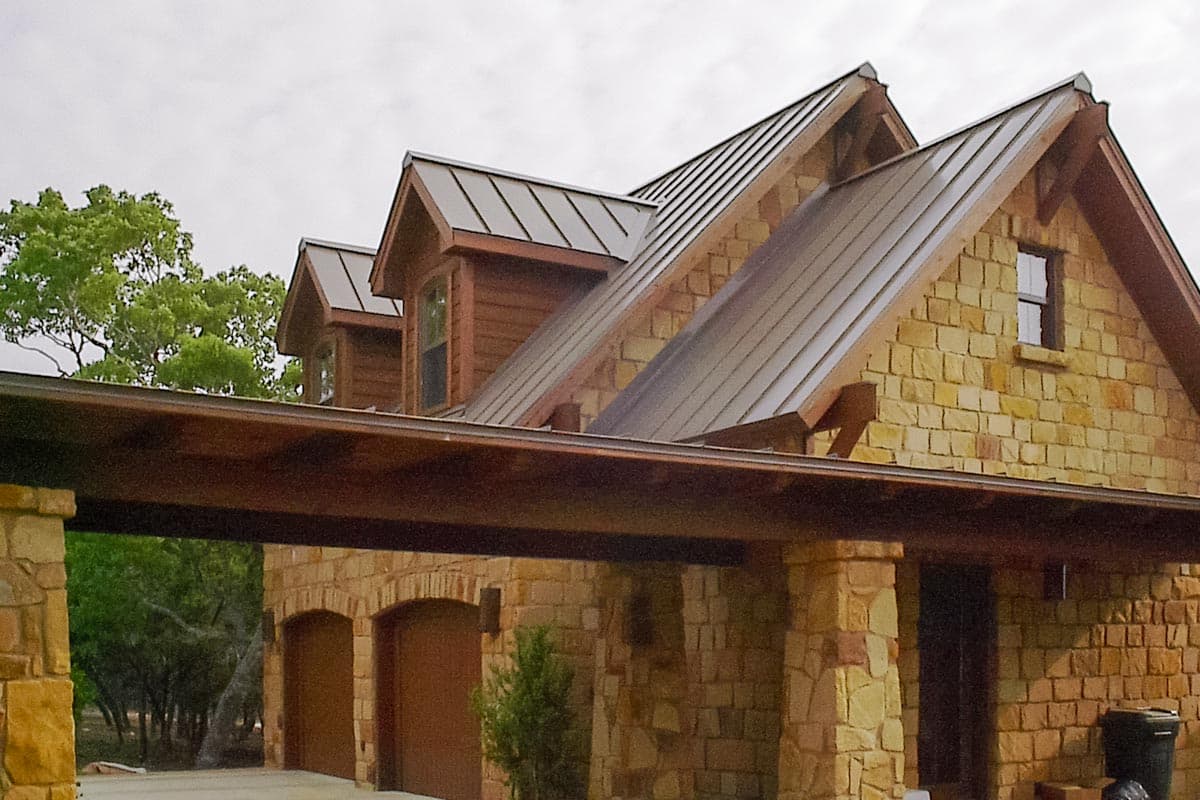

  • A covered walkway leads to the garage with a future living space above it that could easily convert to an in-law suite.

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

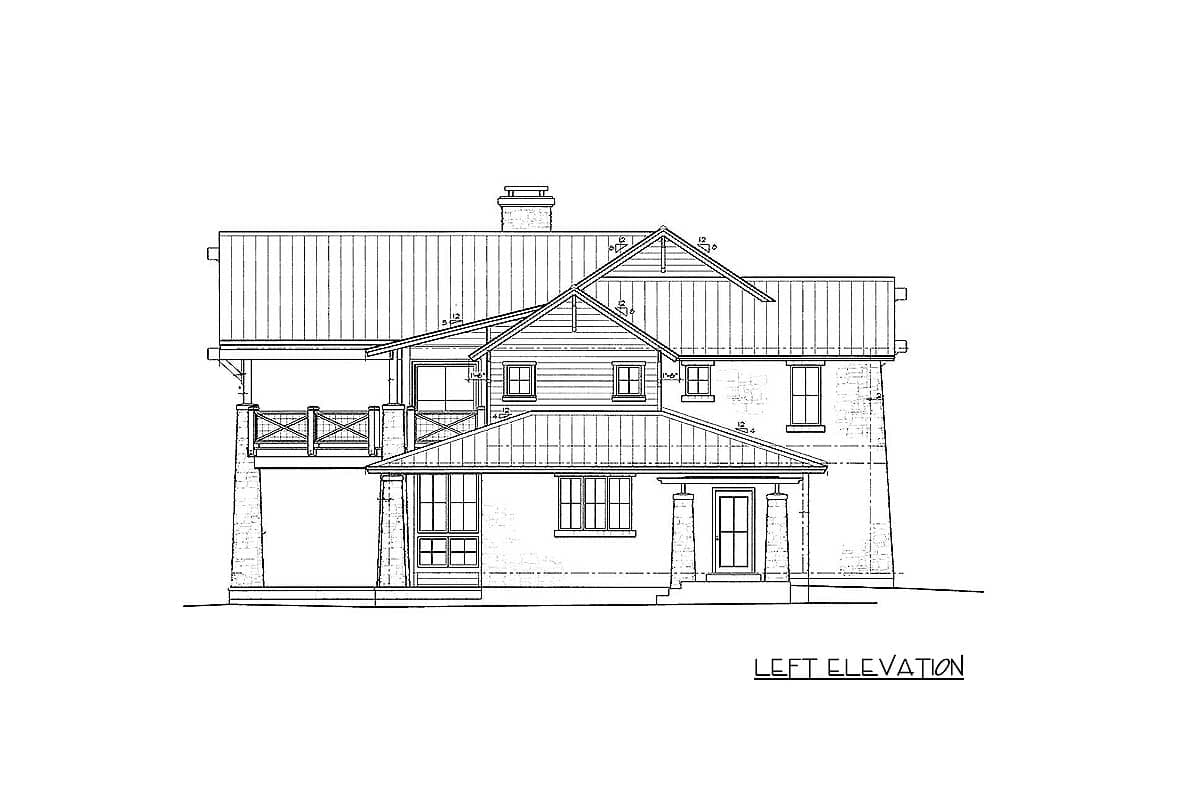

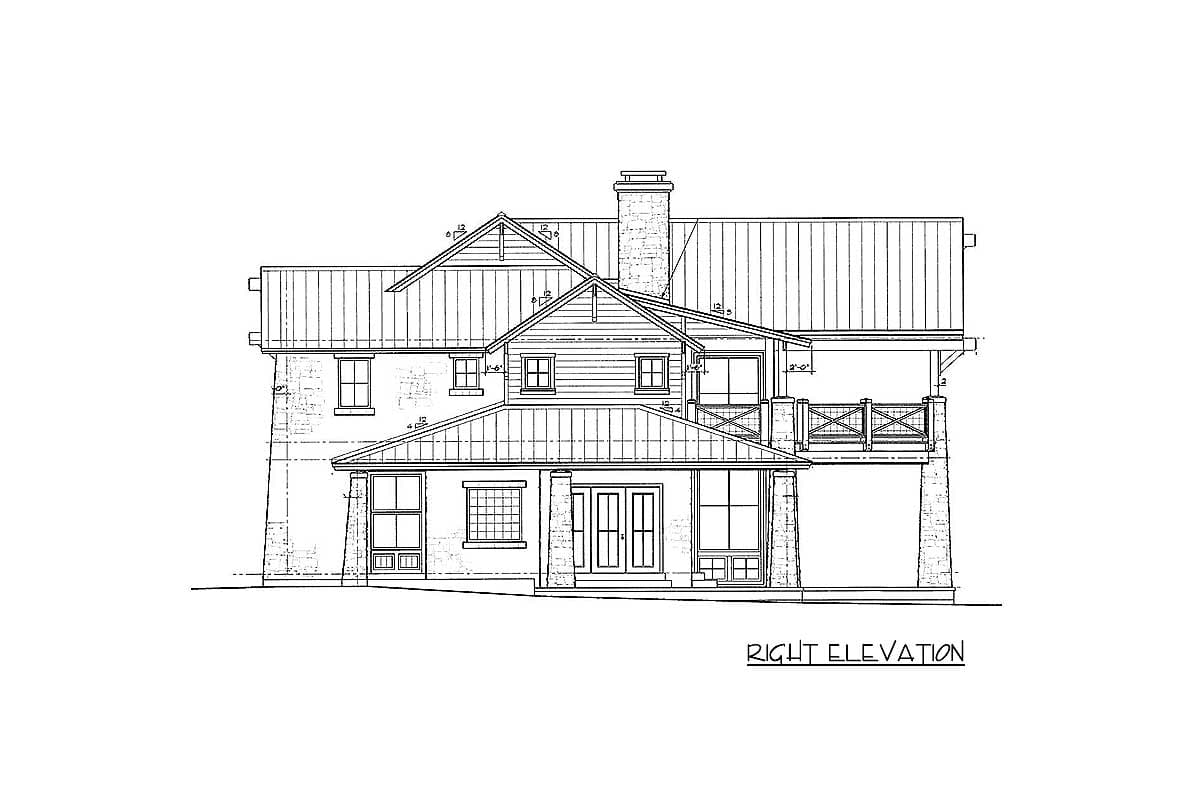

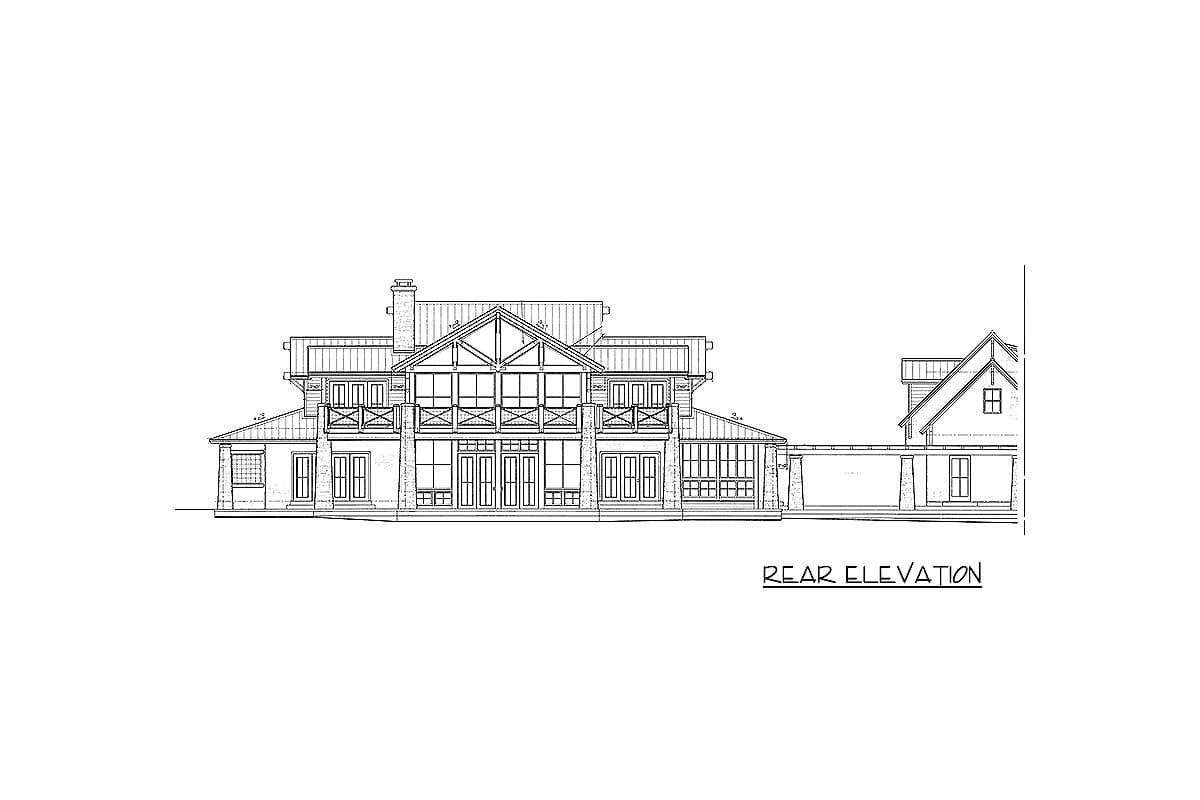

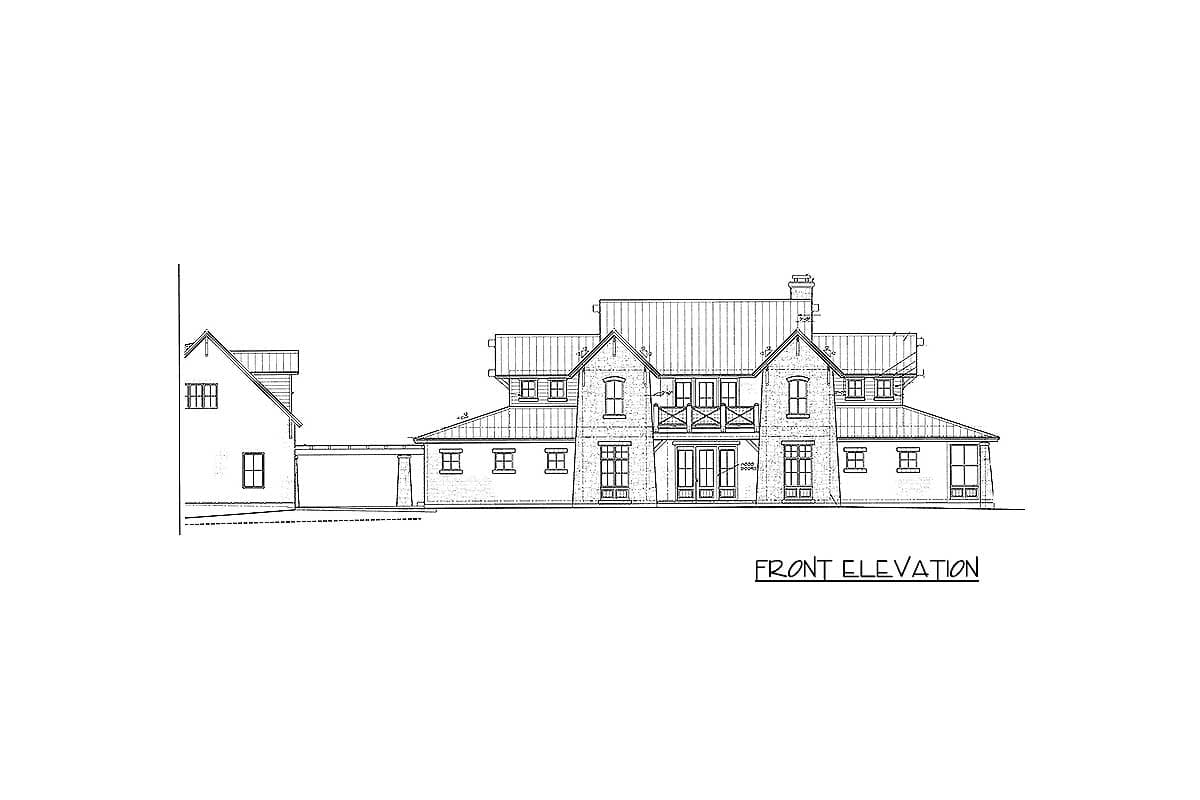

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Exterior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

Building Code

All of our plans are designed to provide the information needed to build your home. Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Plan details



Unique Hill Country Home Plan

  • 3,163

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $725
  • 8 Sets $825
  • Reproducible Set $825
  • PDF - single-use $825
  • CAD $1,025
  • View all purchase option online

About This Plan

  • The stone exterior and metal roof immediately draw your eyes towards this unique Hill Country home plan.
  • From the moment you step into the foyer, the views reach back across the sunken living room with fireplace to the huge covered patio beyond.
  • Bask in the luxury of the master suite with its L-shaped walk-in closet and huge master bath with large walk-in shower and corner soaking tub.
  • On the second floor, a balcony overlooks the two-story living room.
  • Both the study and bedroom 2 open onto a covered wood deck with magnificent views.
  • A covered walkway leads to the garage with a future living space above it that could easily convert to an in-law suite.

Floor Plans

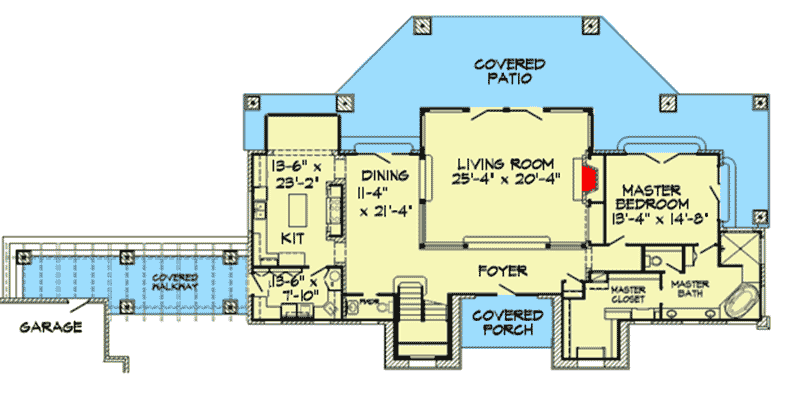

  • Main Level

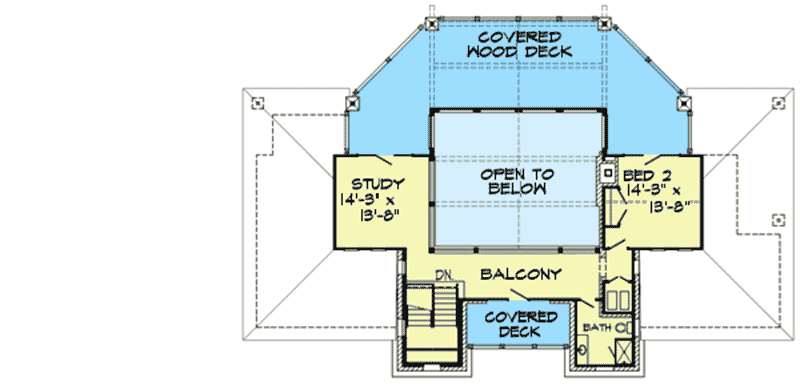

  • 2nd Floor

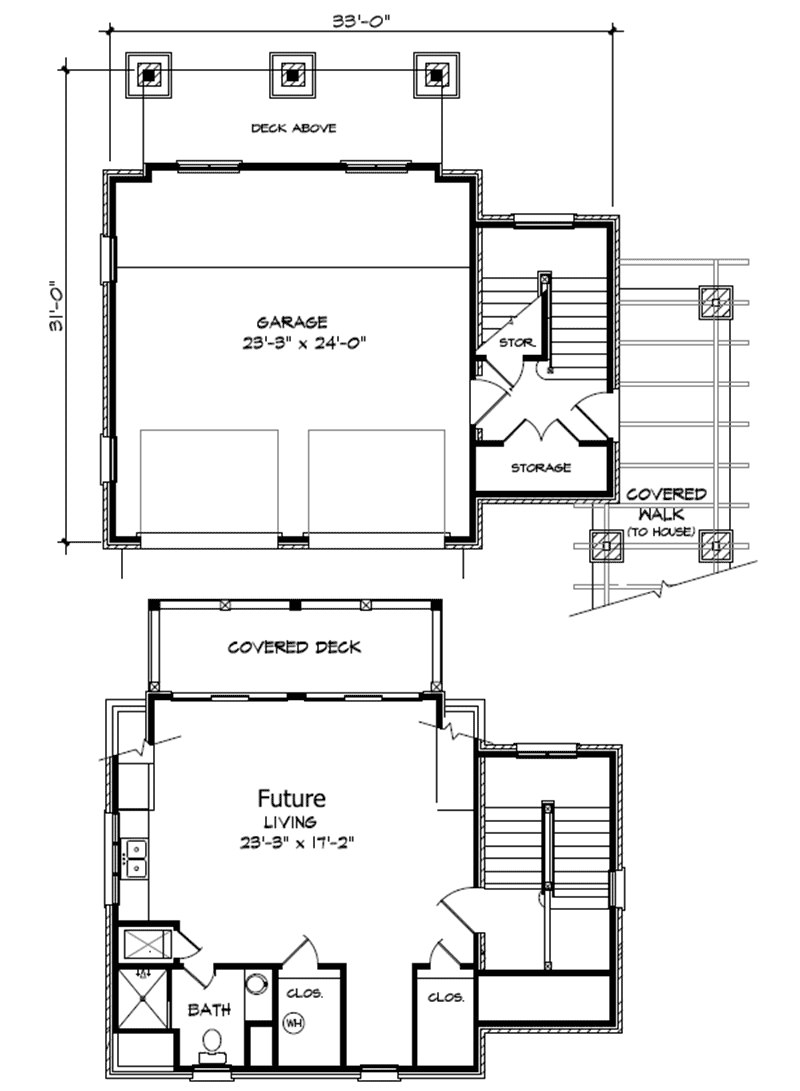

  • Garage

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,163 sq. ft.
  • 1st Floor: 2,273 sq. ft.
  • 2nd Floor: 890 sq. ft.
  • Porch, Combined: 1,138 sq. ft.
  • Deck: 487 sq. ft.
  • Covered Patio: 415 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 79' 0"
  • Depth: 52' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Architectural Style

  • Country
  • Hill Country
  • Mountain
  • Vacation

Special features

  • 1st Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • In-Law Suite
  • PDF
  • Wrap Around Porch
