Plan 36487TX

Unique Hill Country House Plan

Unique Hill Country House Plan

Plan 36487TX

  • 6,381

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

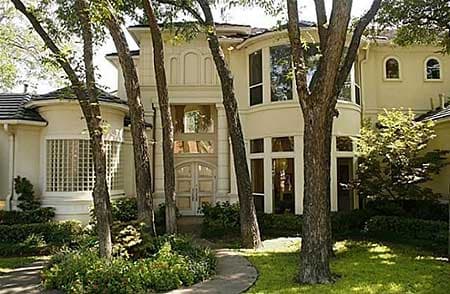

  • This sprawling Hill Country house plan has a unique footprint with wonderful angles and bays.

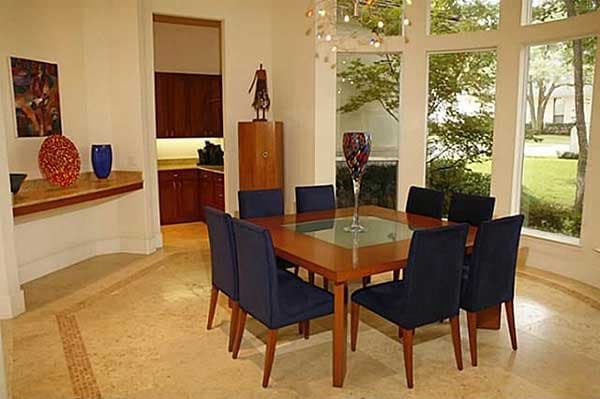

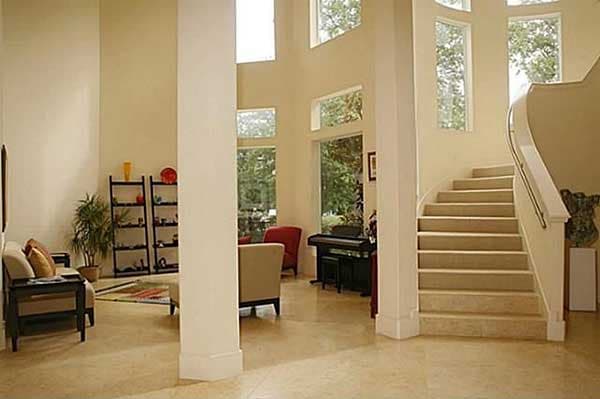

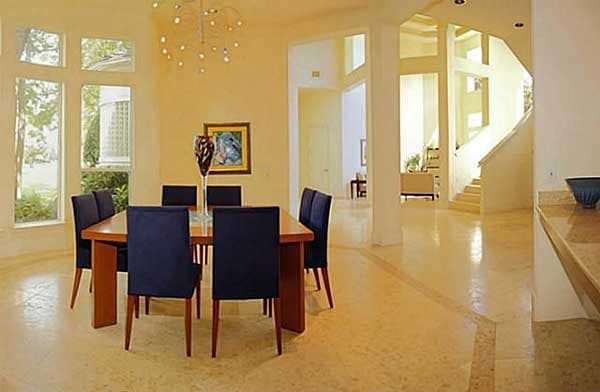

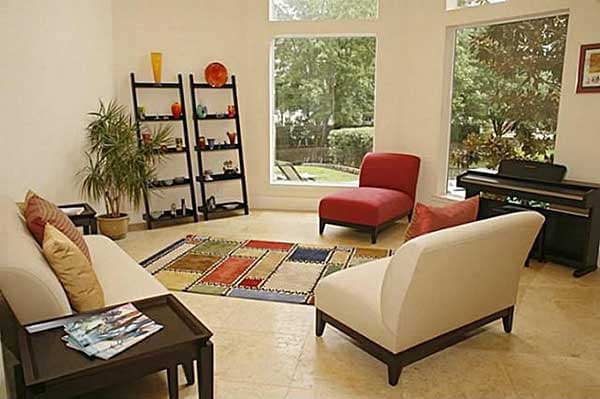

  • The grand foyer gives you spectacular views of the formal living room, dining room and stunning curved staircase.

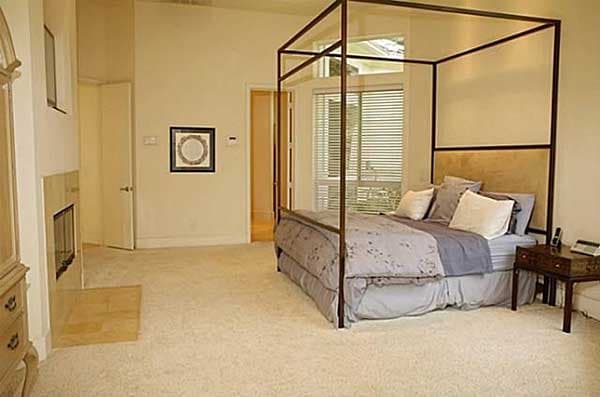

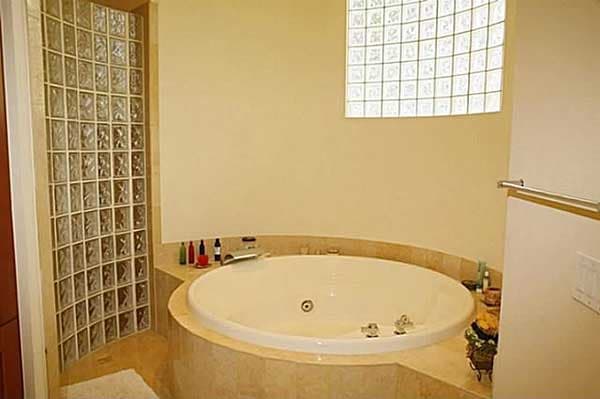

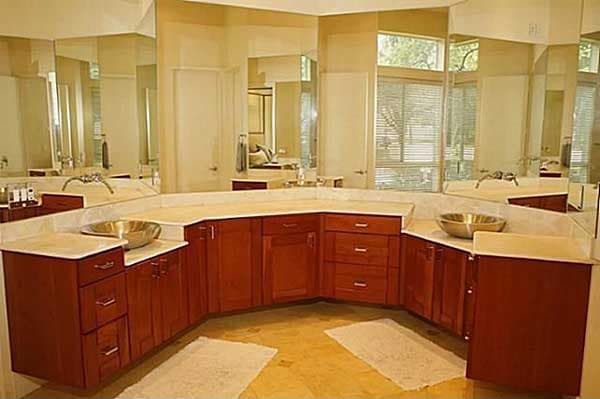

  • Ultra-luxurious describes the master suite that boasts a fireplace, a separate sitting room with built-ins and a private veranda.
  • The master walk-in closet is massive and is divided into his and her compartments.
  • All the way across the house a guest suite comes with a private patio.

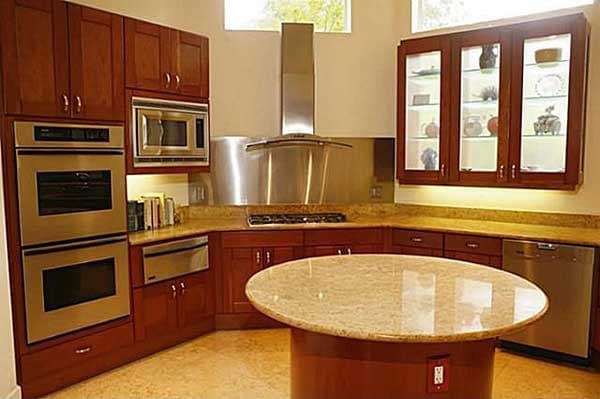

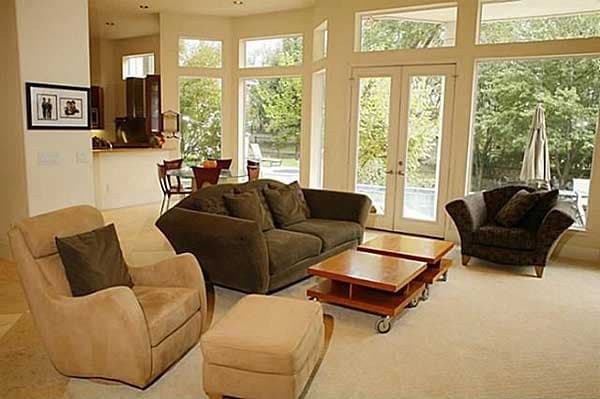

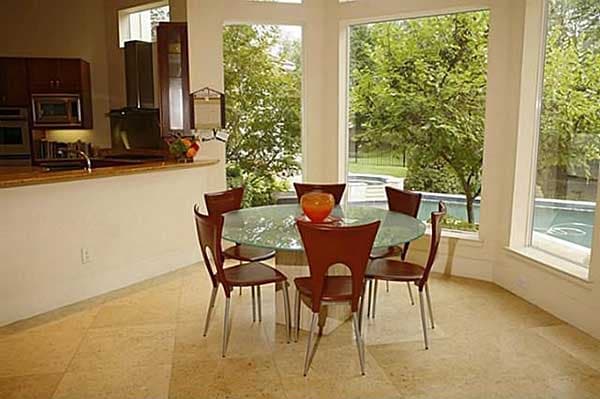

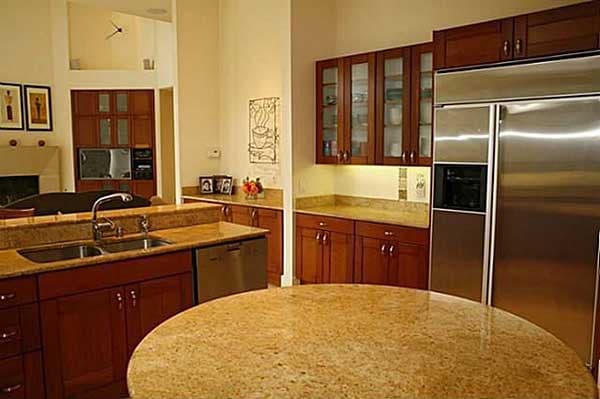

  • The informal family area is huge and the kitchen is ultra-high end with two dishwashers, a six burner cook top and a giant walk-in pantry.

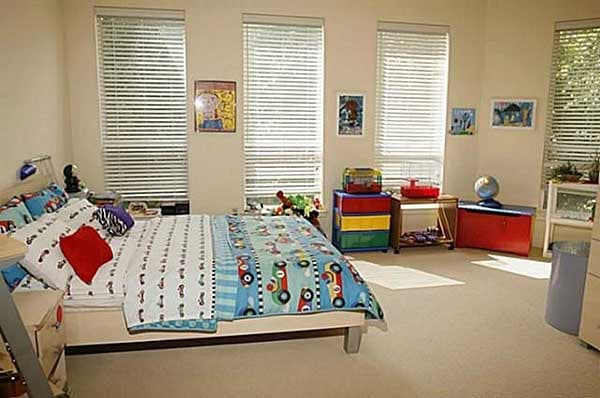

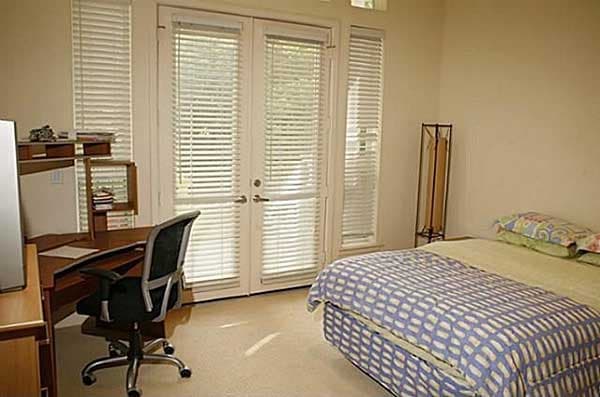

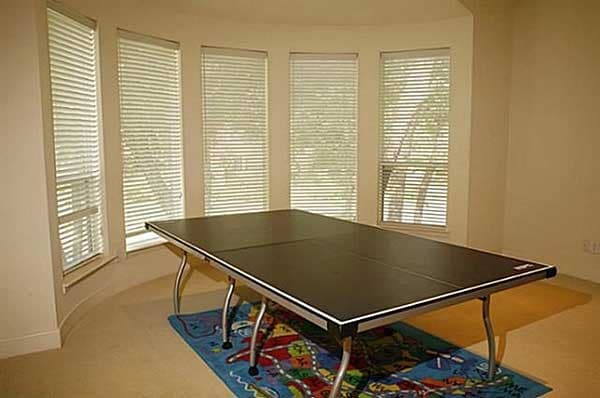

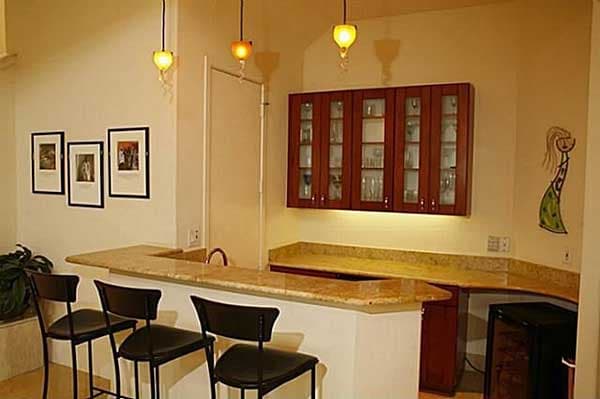

  • The second floor is no less luxurious, with three full bedroom suites, a gorgeous study that has a private balcony and wet bar and a game room with a big storage closet.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

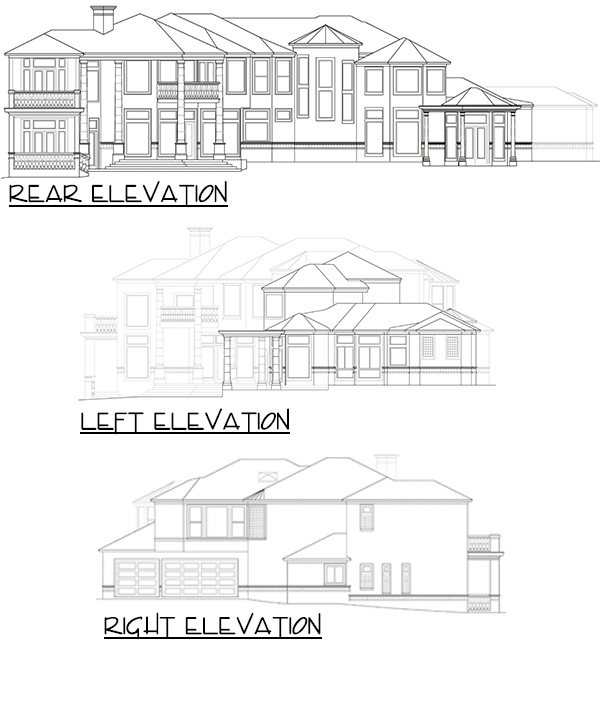

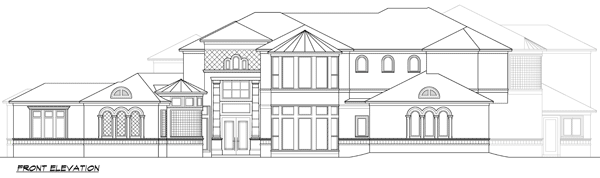

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



Unique Hill Country House Plan

  • 6,381

    Heated s.f.

  • 5

    Beds

  • 6

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $2,860
  • 5 Sets $3,060
  • CAD $4,290
  • View all purchase option online

About This Plan

  • This sprawling Hill Country house plan has a unique footprint with wonderful angles and bays.
  • The grand foyer gives you spectacular views of the formal living room, dining room and stunning curved staircase.
  • Ultra-luxurious describes the master suite that boasts a fireplace, a separate sitting room with built-ins and a private veranda.
  • The master walk-in closet is massive and is divided into his and her compartments.
  • All the way across the house a guest suite comes with a private patio.
  • The informal family area is huge and the kitchen is ultra-high end with two dishwashers, a six burner cook top and a giant walk-in pantry.
  • The second floor is no less luxurious, with three full bedroom suites, a gorgeous study that has a private balcony and wet bar and a game room with a big storage closet.

Floor Plans

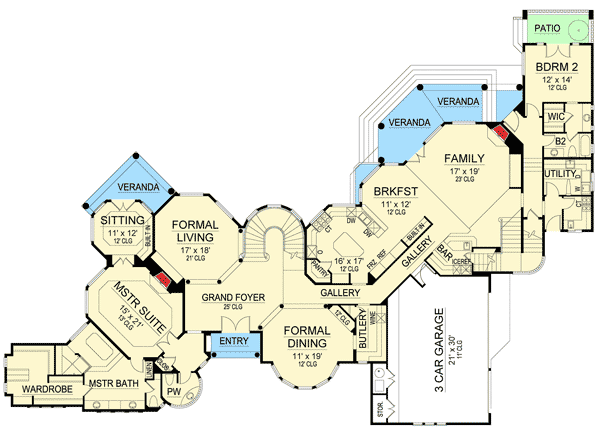

  • Main Level

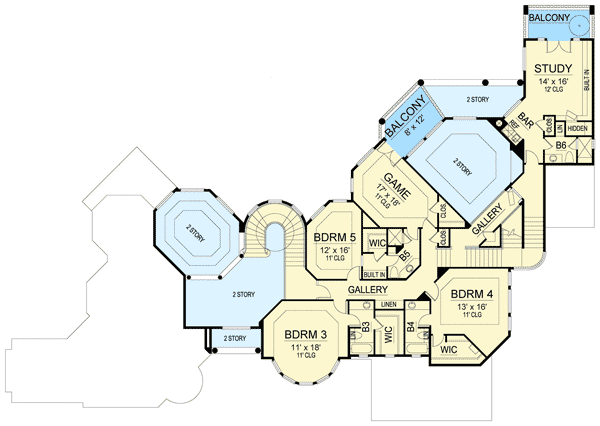

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,381 sq. ft.
  • 1st Floor: 4,138 sq. ft.
  • 2nd Floor: 2,243 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 125' 0"
  • Depth: 88' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 716 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 11' 0"
