Plan 72690DA
Updated Craftsman Bungalow
Heated S.F.
2,319
Beds
3
Baths
2.5
Stories
1-2
Cars
2
What's Included
Plan Details
  • Iconic Craftsman windows sparkle across this Craftsman-style bungalow. Other Craftsman details include decorative corbels, tapered supports undergirding slender twin posts, and shake textured siding that fills the gable ends.
  • Natural light spills into the vaulted foyer through sidelights and a transom. Double doors open into the vaulted den to the left of the foyer. Alternately, this makes a good location for a home office. An opening on the foyer's right leads to the main bathroom and two bedrooms. The front bedroom feels larger, due to its vaulted ceiling.
  • Just past a wide coat closet, the foyer spills out into an expansive vaulted living room. Windows fill much of the rear wall, and a fireplace nestles into the closest rear corner. Sliding glass doors offer easy access to a wide covered patio.
  • The dining room has a flat ceiling and is open to the living room. The kitchen, in turn, is open to the dining room, across a raised eating bar. The kitchen is also accessible through a pocket door between the roomy pantry and the bonus room stairs.
  • An opening on the opposite side of the living room leads to the appointed owners' suite which boasts a walk-in closet, and a deluxe bathroom, complete with a double vanity, deep soaking tub, and separately enclosed shower and toilet.
  • A large bonus space lies over the garage.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

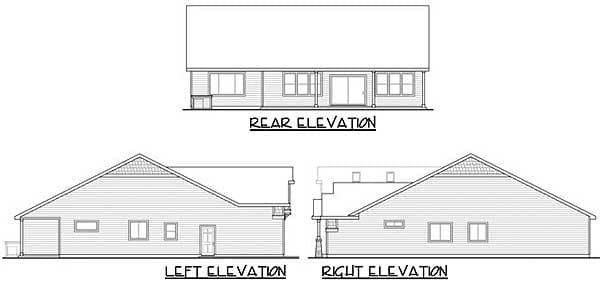

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Updated Craftsman Bungalow

  • 2,319

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

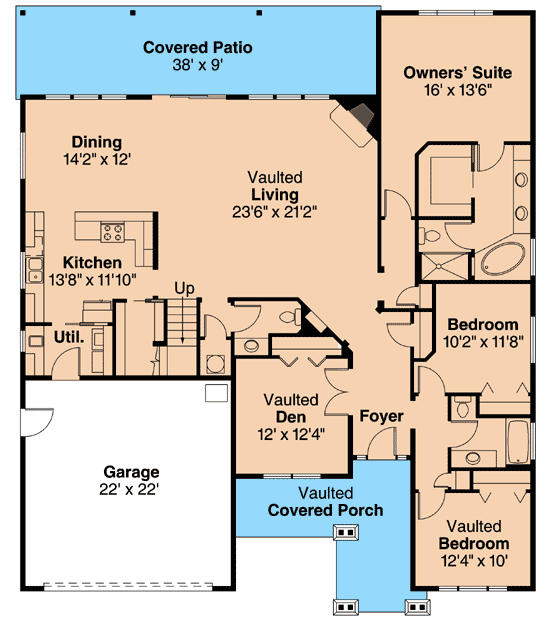

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,319 sq. ft.
  • 1st Floor: 2,319 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 62' 0"
  • Max ridge height: 24' 5"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 513 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
