Updated Two Family Home Plan

Plan 21945DR

  • 3,310

    Heated s.f.

  • 2

    Units

  • 44'

    Width

  • 40'

    Depth

  • This two-family home plan is derived from the original version, house plan 21245DR. We widened that design by 4 ' and added 8' to the depth to make all spaces more comfortable. Additionally, the entry closet was relocated to the landing and basement windows enlarged for more light.
  • Thanks to careful and discreet placement of entrances, this semi-detached multi-family home plan assures privacy to all units. Handsome stone cladding and pleasing gable details further enhance this home's charm. The units are close to mirror images of one another.
  • The covered split entry provides an ideal welcoming point. Upstairs, the open activities area is well-organized, complete with forward living room, computer area, kitchen with island and eating bar and dining area. A powder room and laundry complete the main floor.
  • On the lower level, the raised basement allows ample light for the three bedrooms. A four-piece bathroom is centrally located and a 7' x 8' storage room will be appreciated by all.
  • Related Plans: Get alternate versions with house plans 21245DR and 21601DR.
  • Special Note: Please allow 15 days for delivery.

Each plan includes the following:

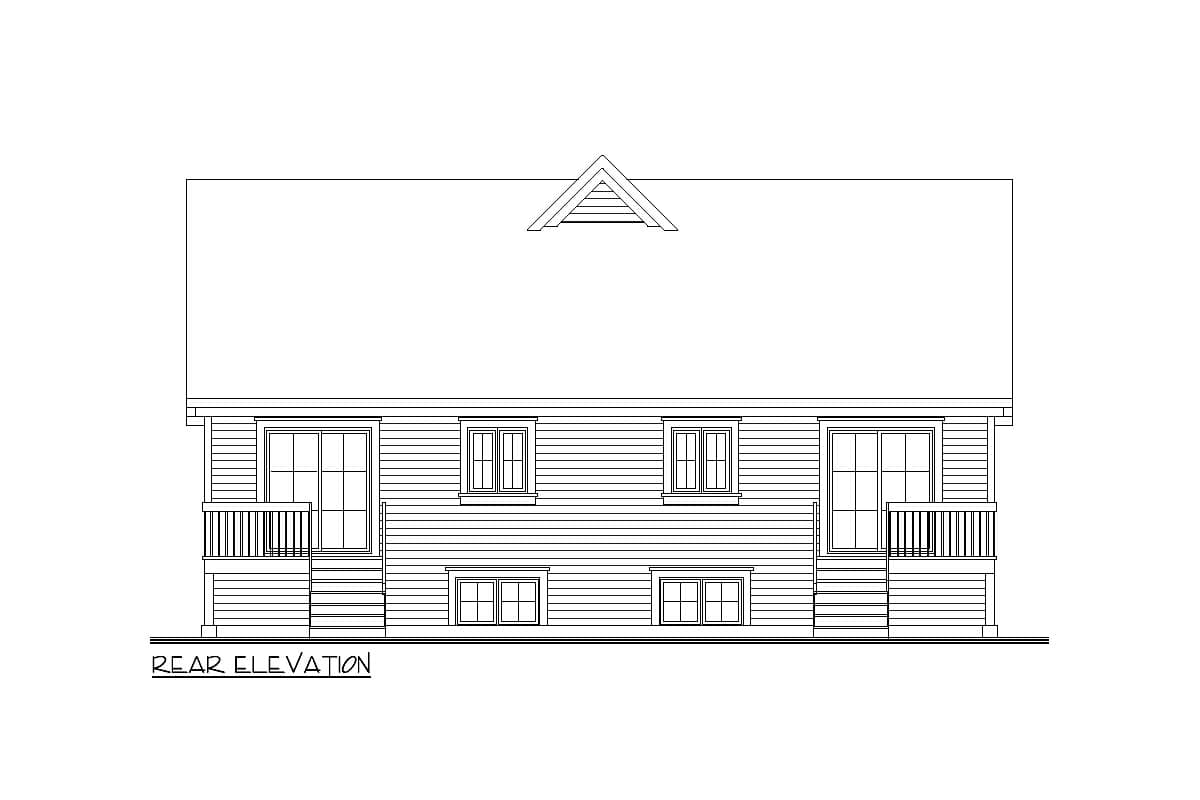

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Unit Details

A
1,655 Sq. Ft.
833 Sq. Ft. Lower Level
833 Sq. Ft. 1st Floor
3 Beds
1 Full Bath
1 Half Bath
22' w 39' d 26' 4" h
B
1,644 Sq. Ft.
822 Sq. Ft. Lower Level
822 Sq. Ft. 1st Floor
3 Beds
1 Full Bath
1 Half Bath
22' w 39' d 26' 4" h
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Updated Two Family Home Plan - 21945DR floor plan - Basement
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

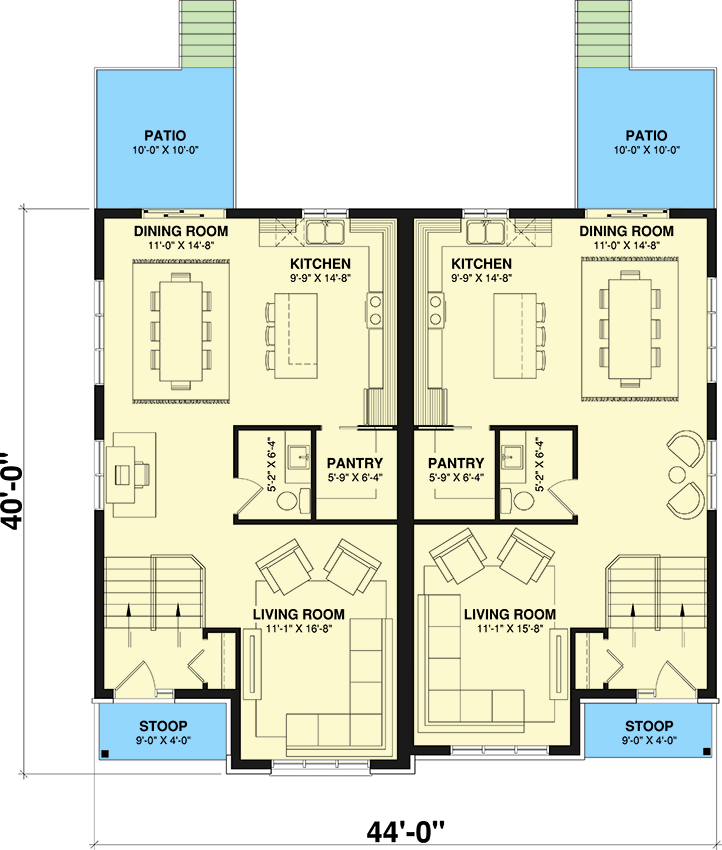

Updated Two Family Home Plan - 21945DR floor plan - Main Level

Updated Two Family Home Plan

  • 3,310

    Heated s.f.

  • 2

    Units

  • 44'

    Width

  • 40'

    Depth

Floor Plan

  • Basement

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,310 sq. ft.
  • Lower Level: 1,655 sq. ft.
  • 1st Floor: 1,655 sq. ft.

Dimensions

  • Width: 44' 0"
  • Depth: 40' 0"
  • Max ridge height: 26' 4"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 2
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 7' 8" First Floor / 8' 0"
