Upscale European Country Styling

Plan 51033MM

  • 2,021

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

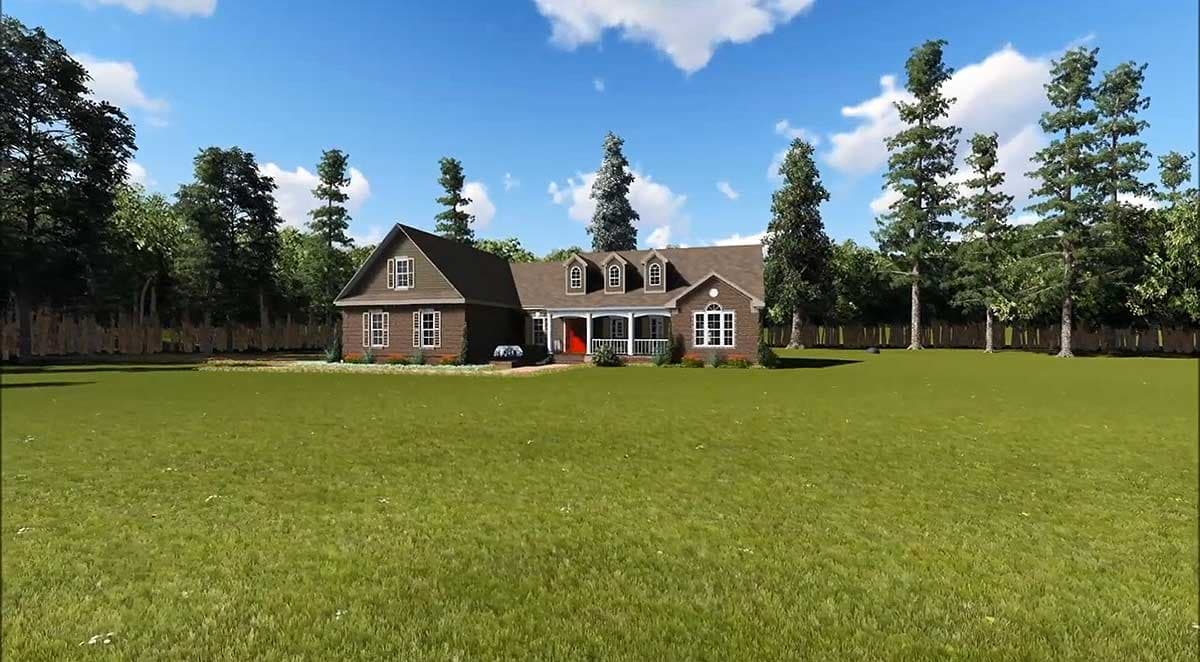

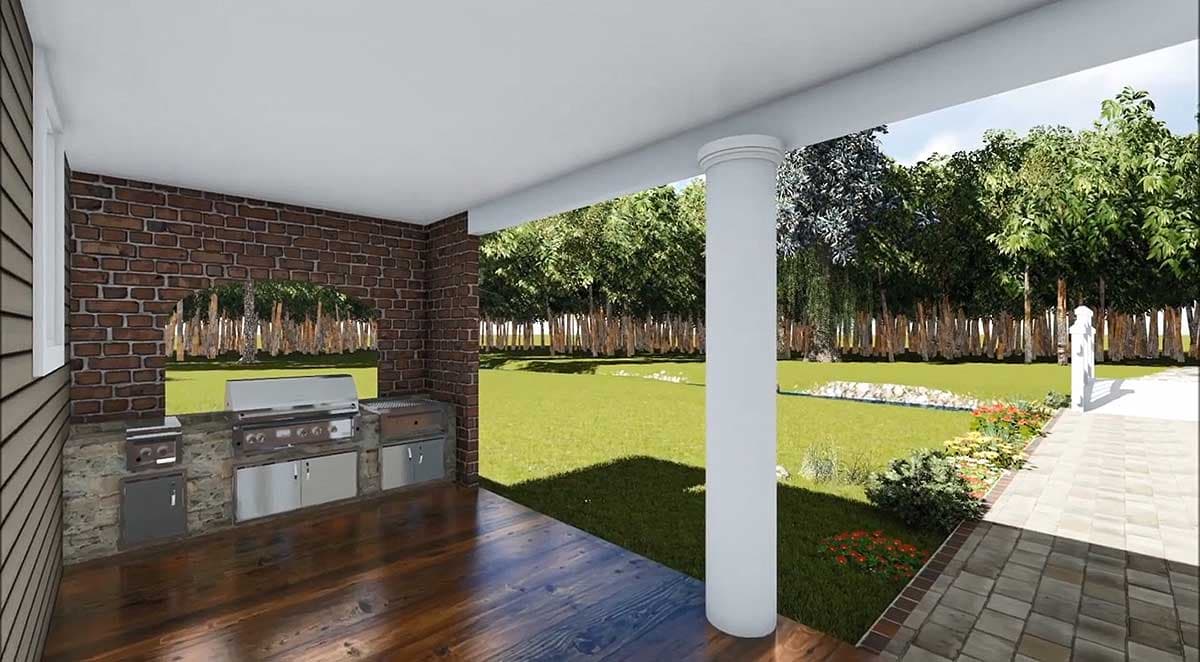

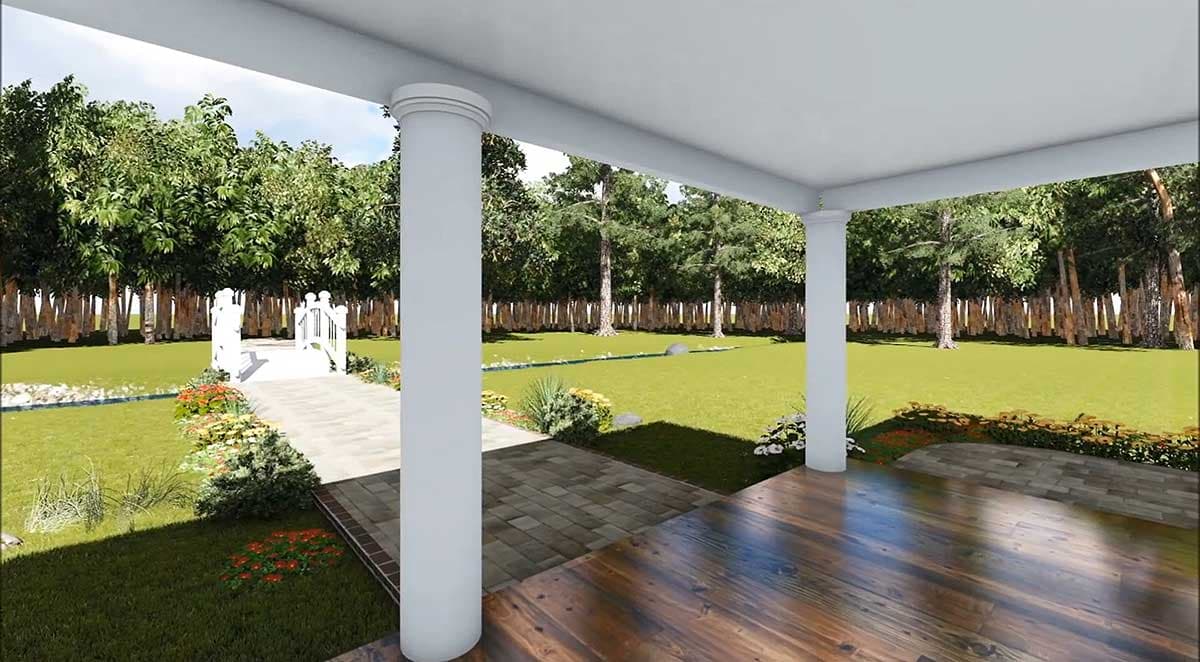

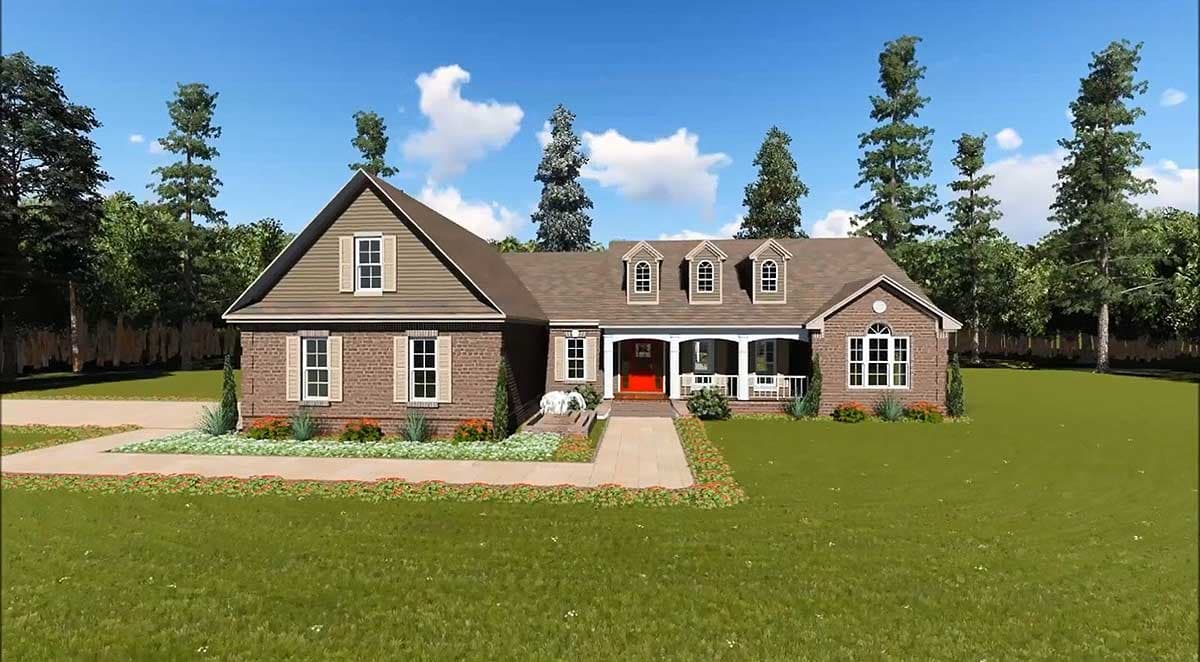

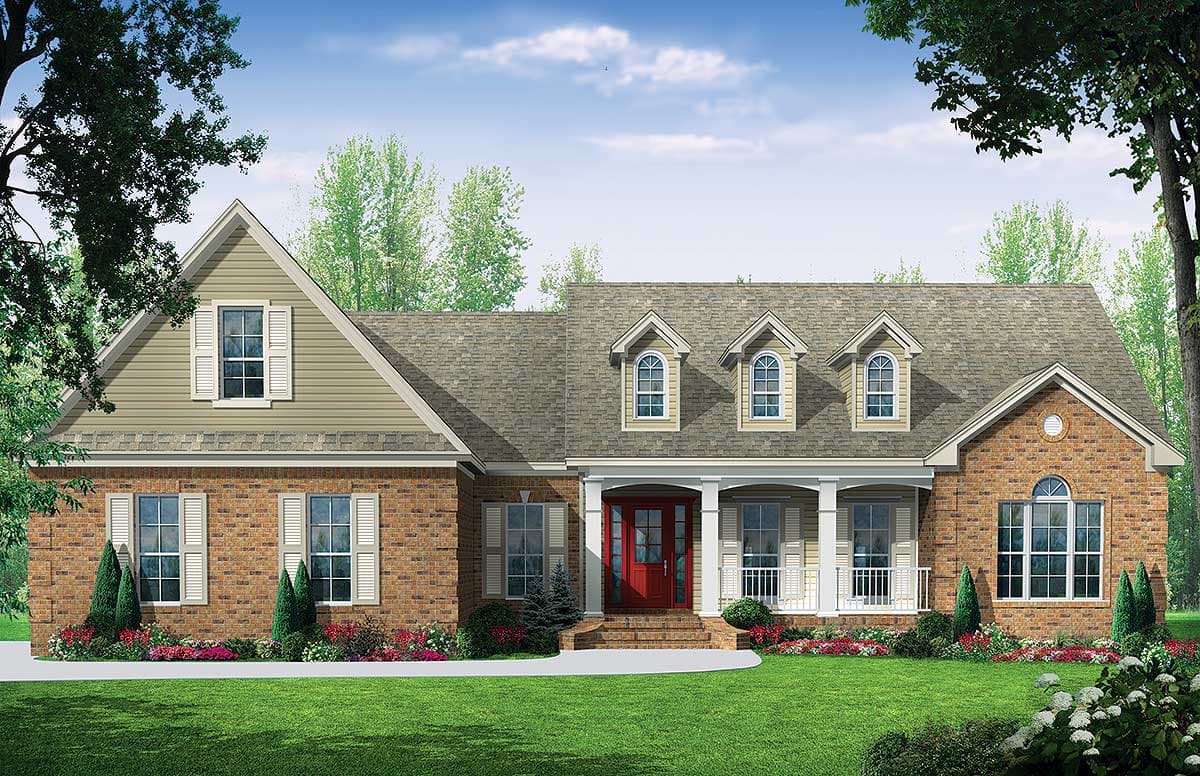

  • This inviting home has European Country styling with upscale features. The front and rear covered porches add plenty of usable outdoor living space, and include that much-requested outdoor kitchen.

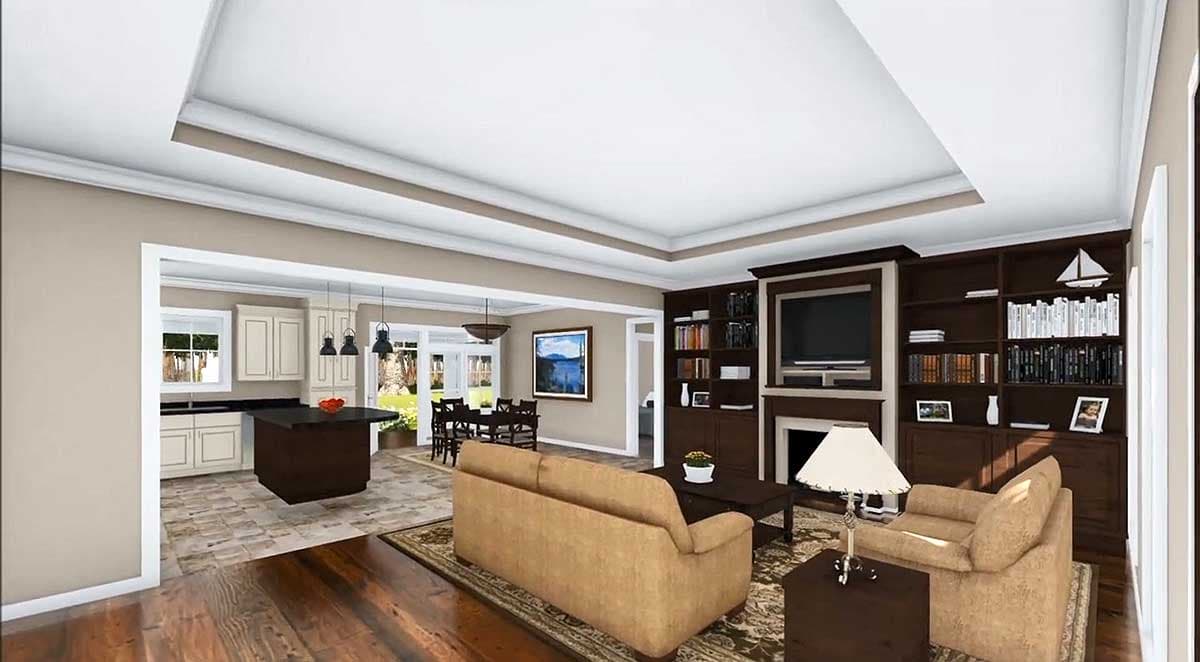

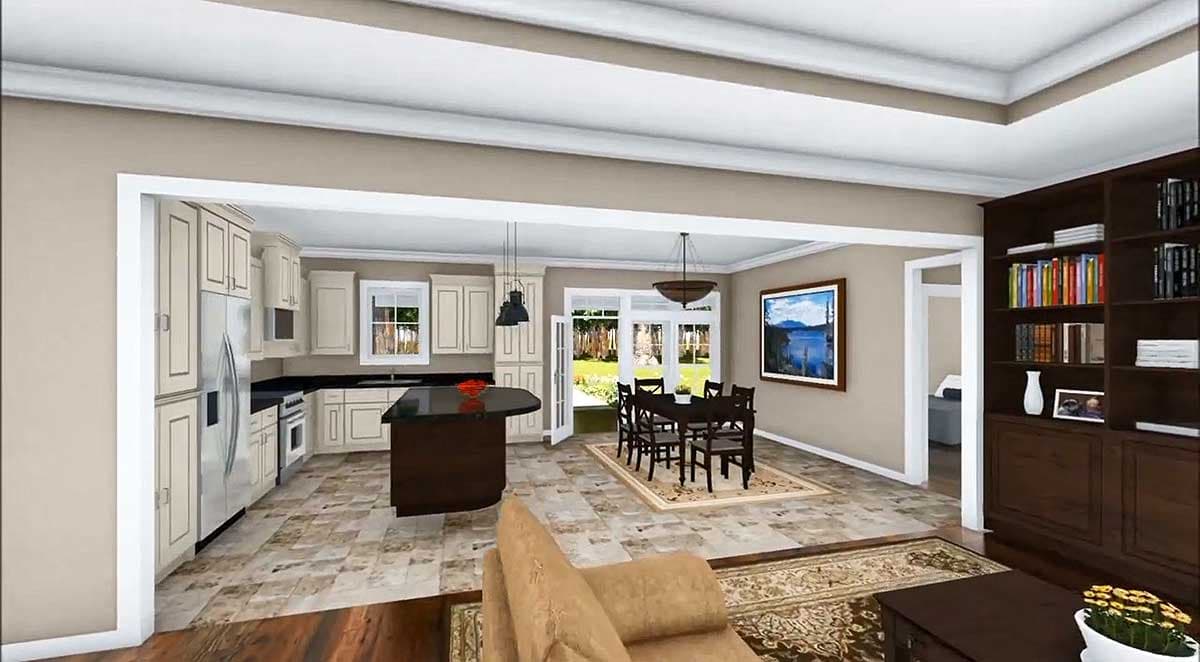

  • The expansive great room includes a beautiful trayed ceiling and features built-in cabinets and a gas fireplace.

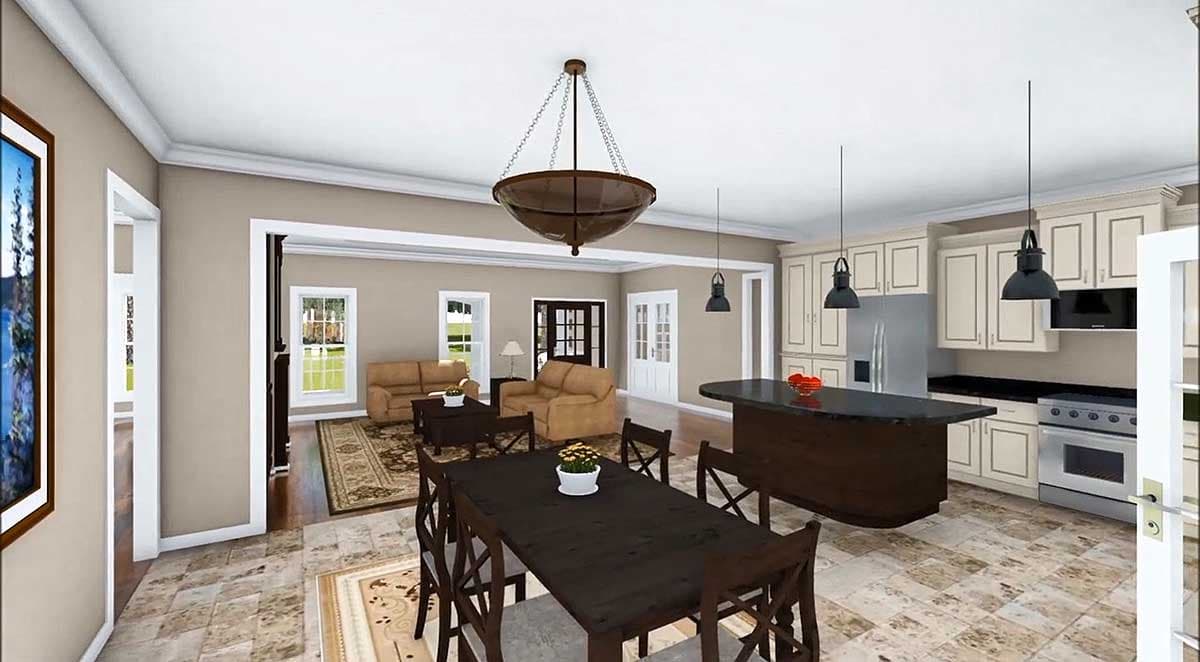

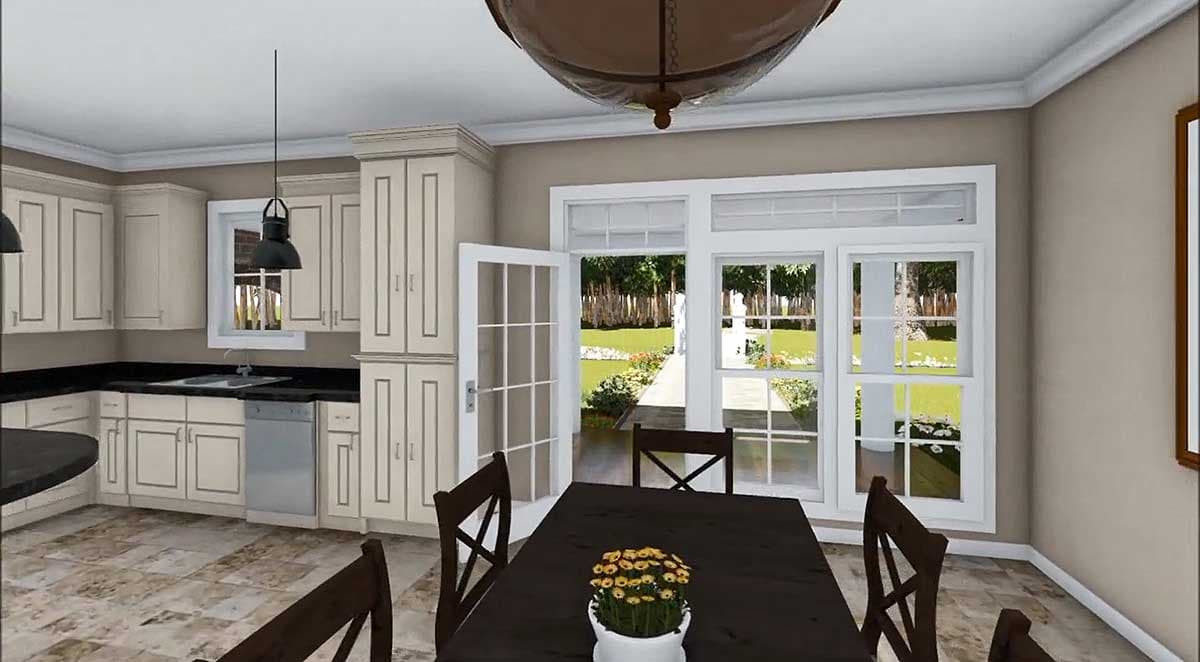

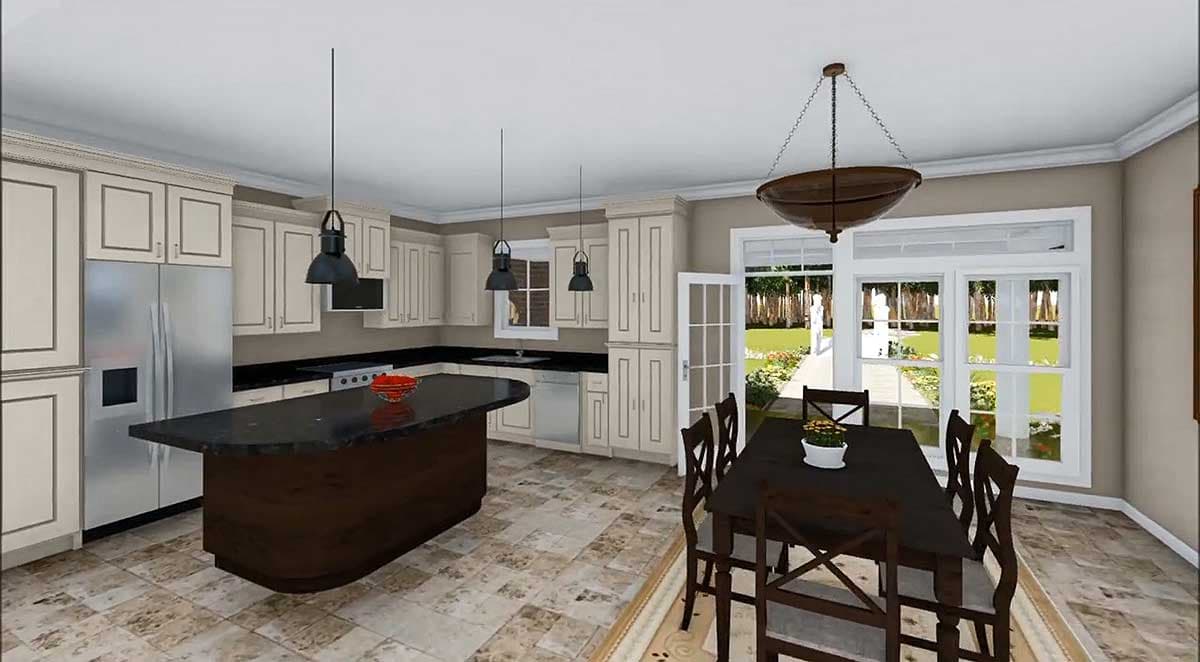

  • The spacious kitchen features an oversized island with a large eating bar and breakfast area.

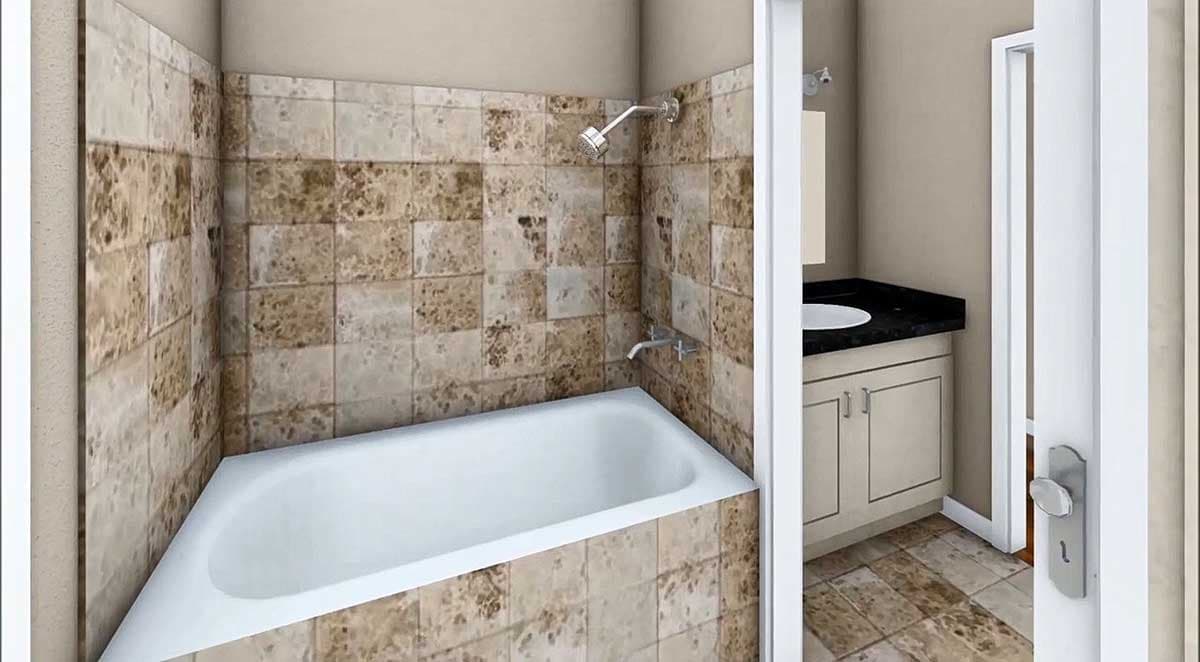

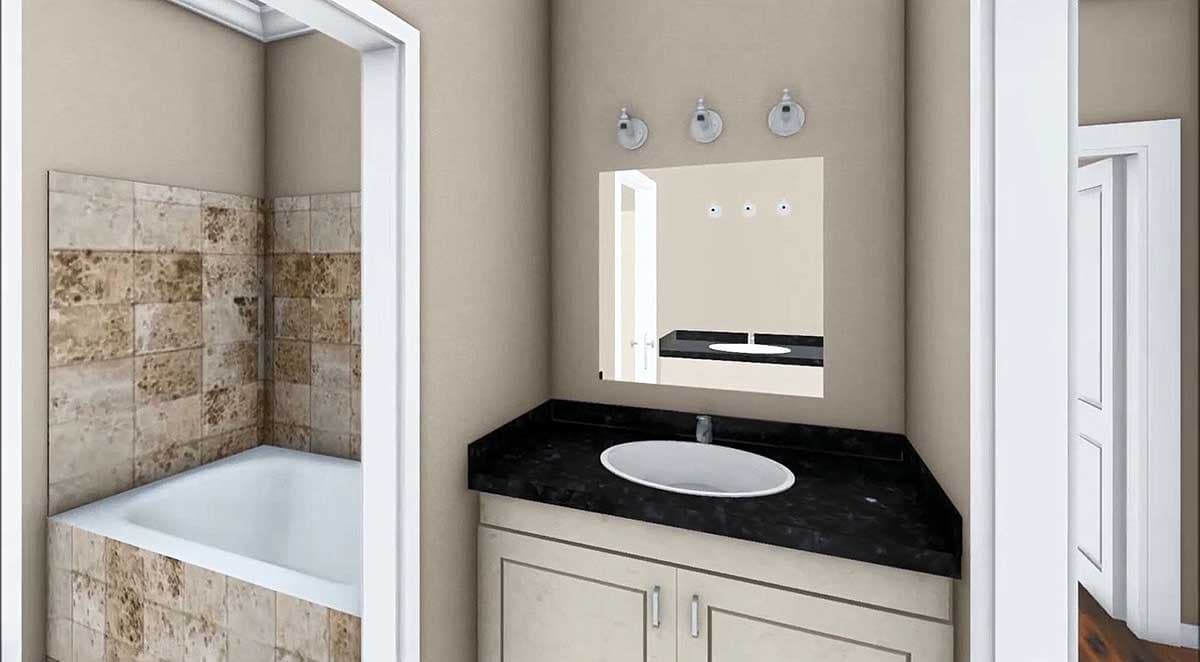

  • The hall bath is equipped with dual lavatories for convenience.

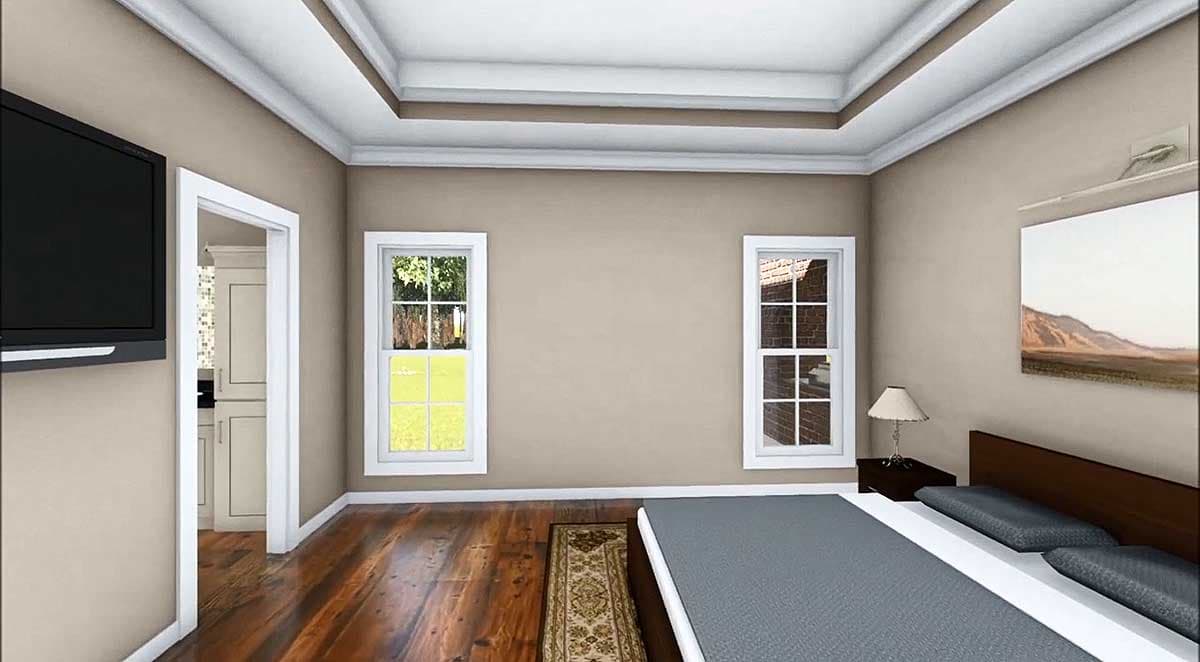

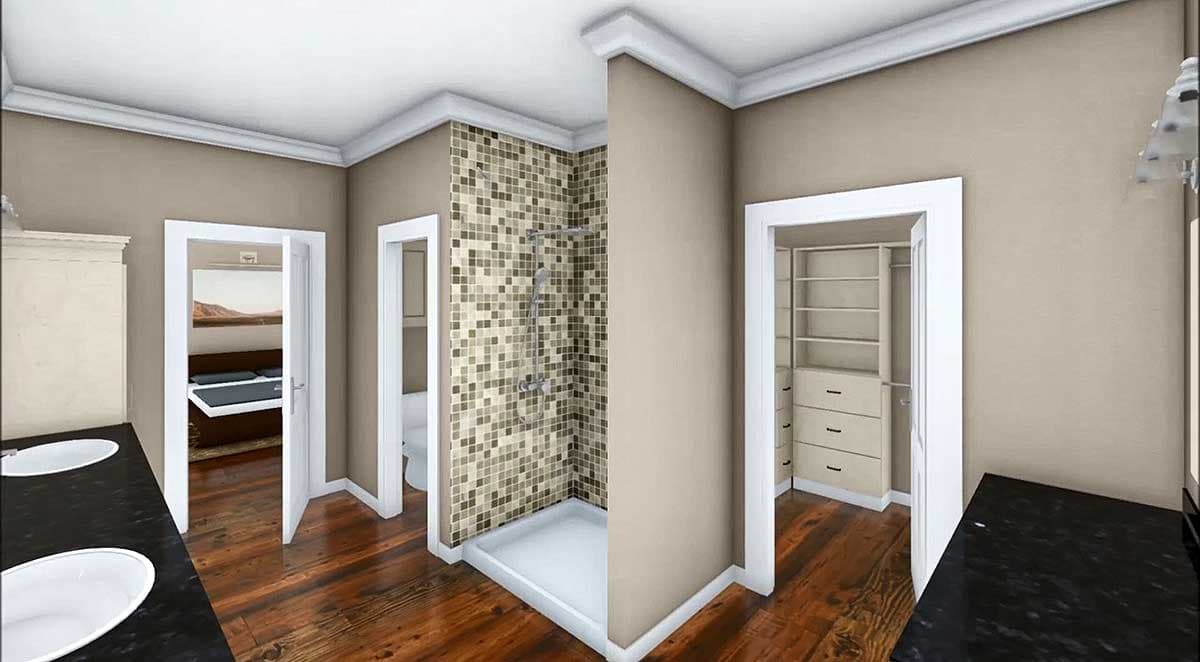

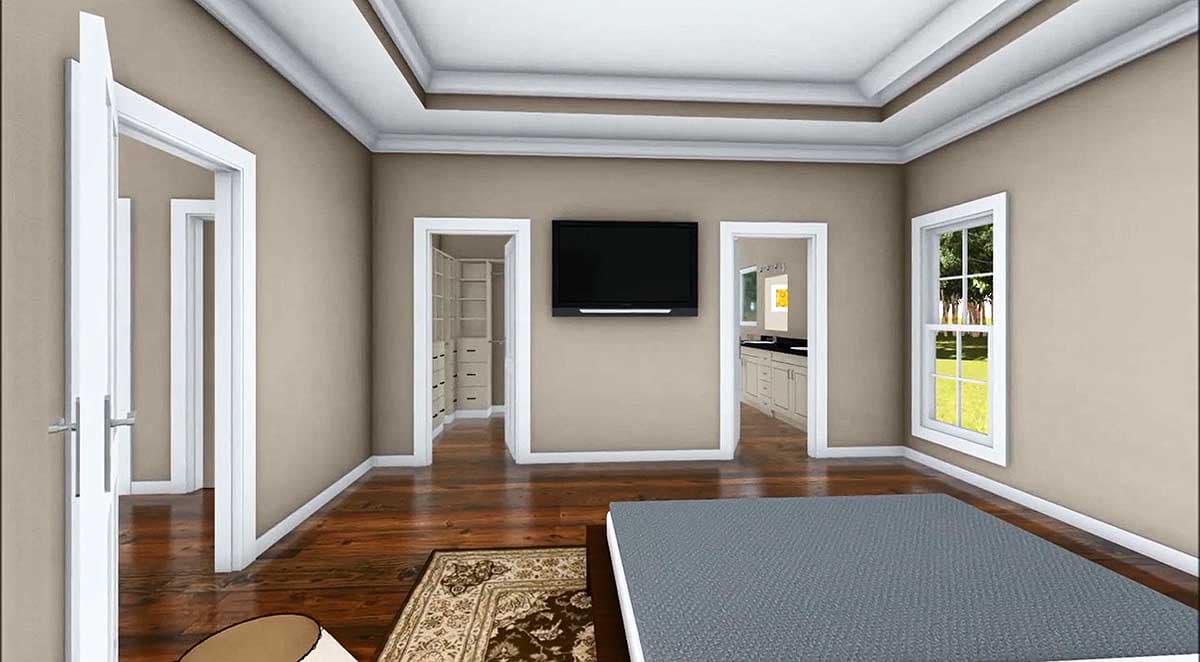

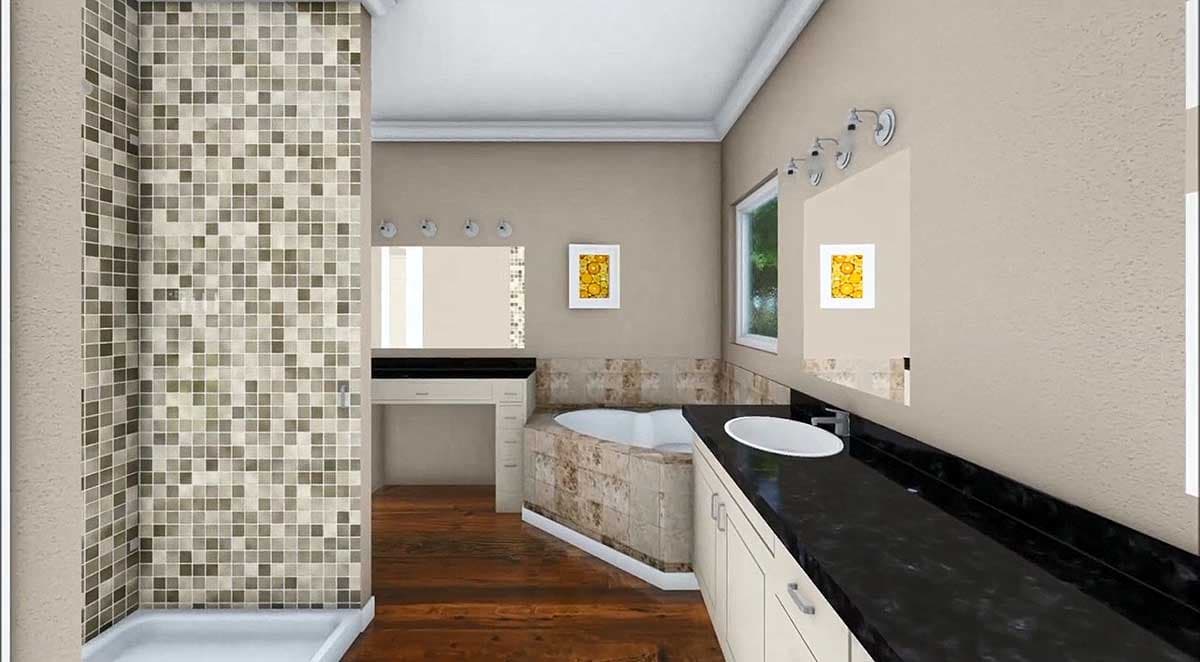

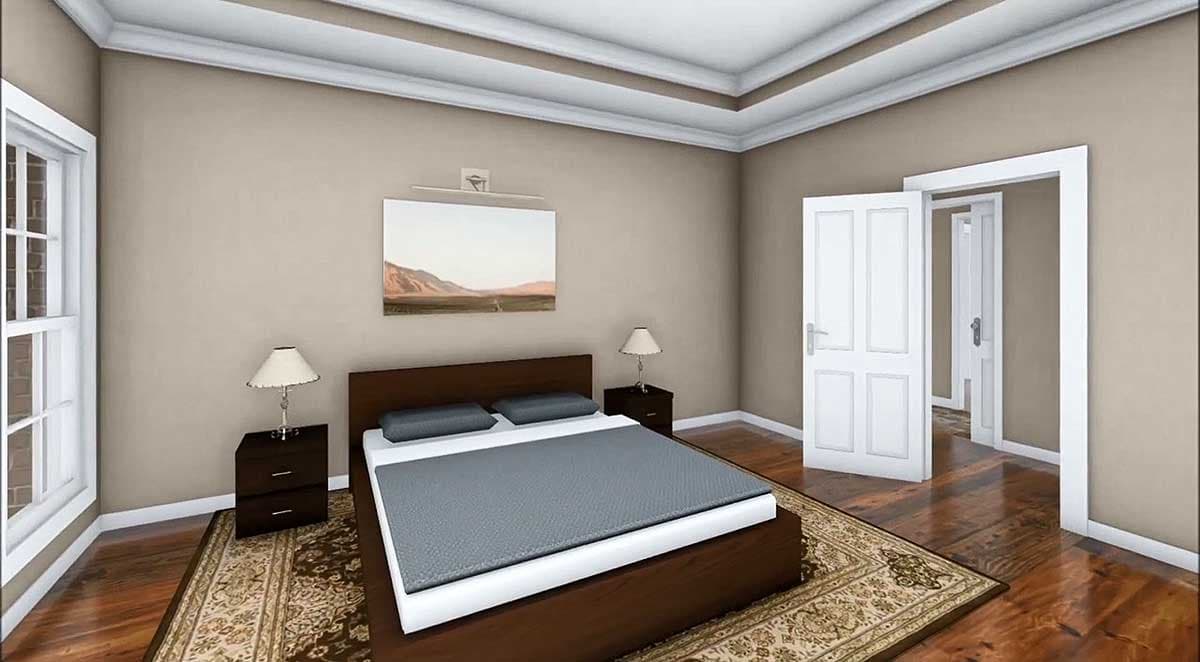

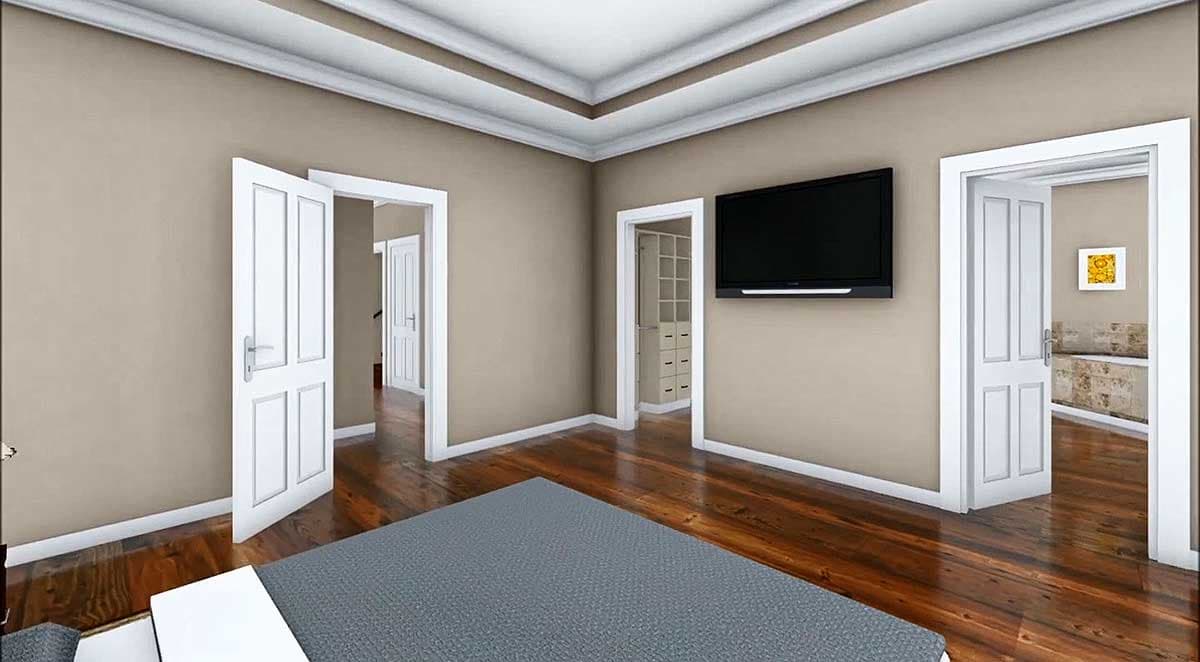

  • The master bedroom has a raised ceiling and opens into the well-equipped bath with dual lavatories, oversized corner jet tub, and large his and her walk-in closets.

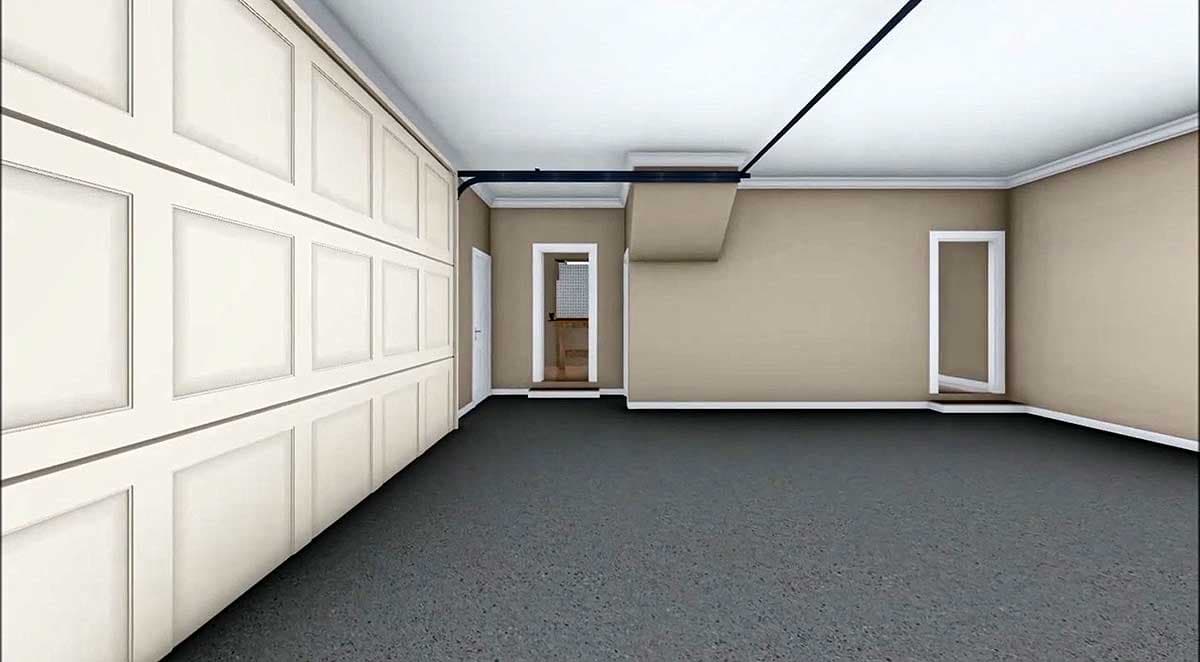

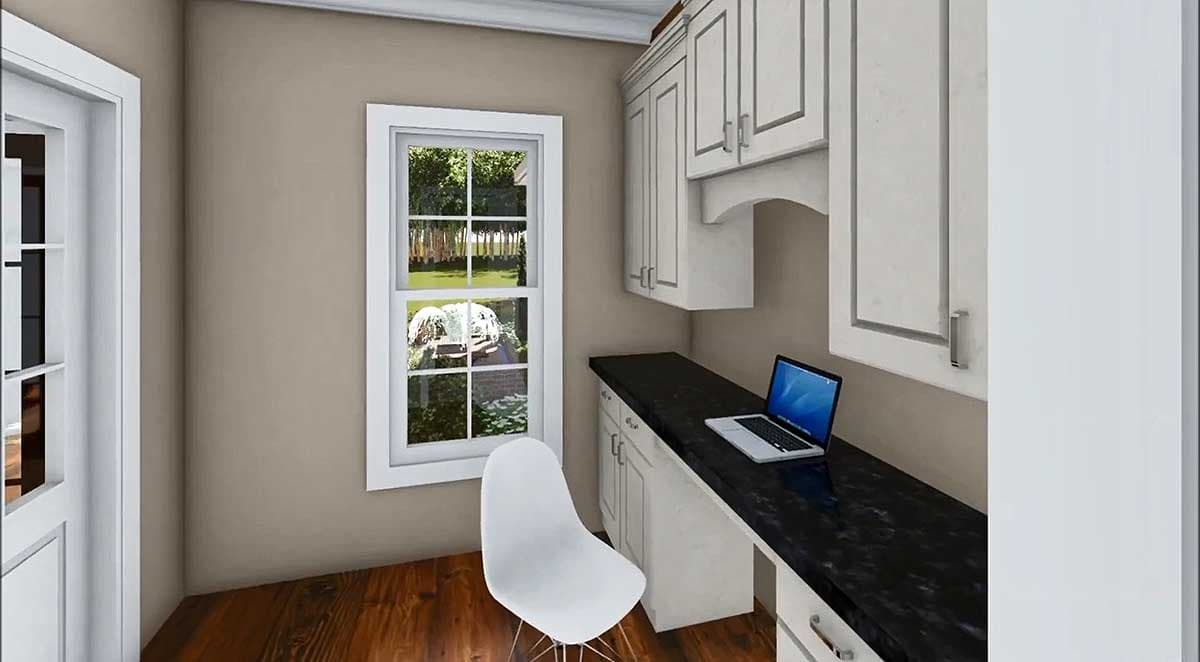

  • There is a storage area off the garage for projects and storage. The media/hobby space could be used as a home office, dining room, or playroom.

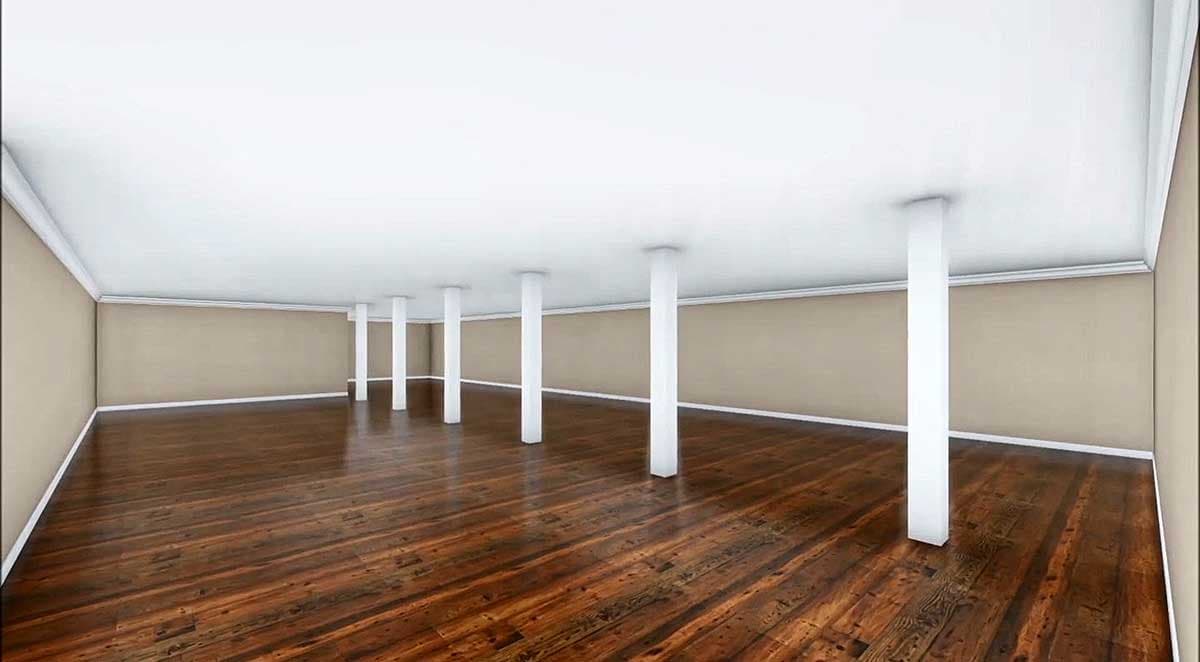

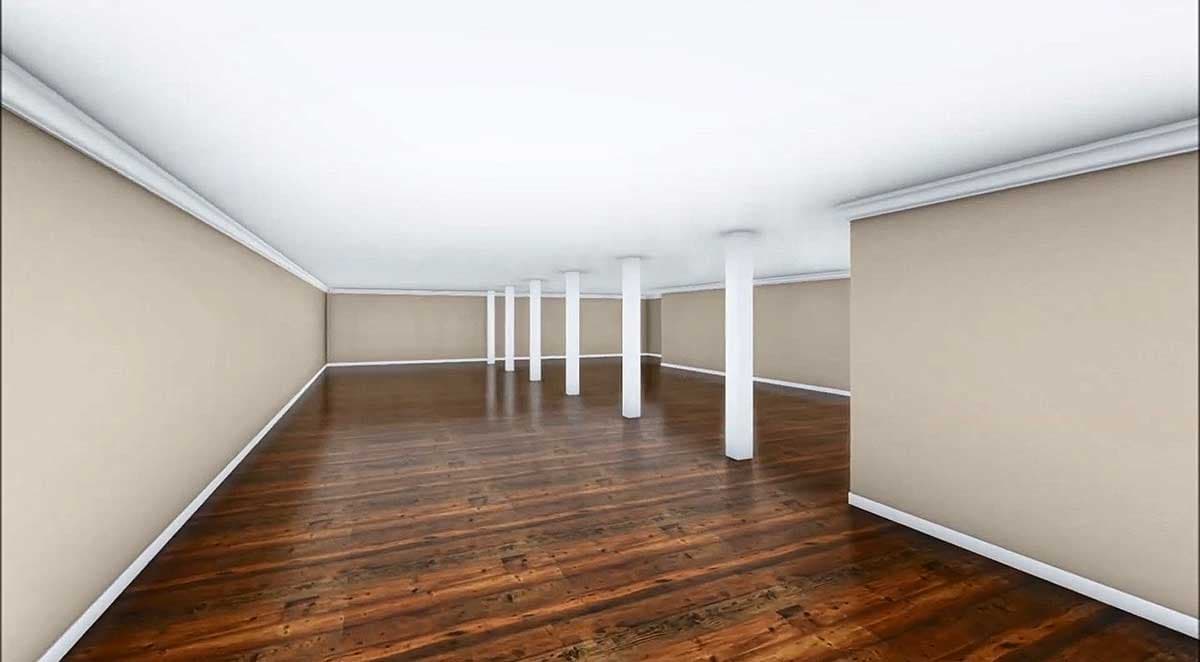

  • There is also a full basement that could be used for additional storage or future expansion.
  • Related Plans: See the slab and crawl space layout with house plan 51006MM. And get a three-car garage with house plan 51099MM.
  • Get more room with house plan 51058MM (2,401 s.f.). And get a country exterior with house plan 5178MM.

Cover Sheet: Showing architectural rendering of residence.

Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.

Foundation Plan and Details: In general, each house plan set includes one foundation type.

Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.

Foundation types typically offered: (each type may or may not be available for a given design)

·       Slab: Slab is a type of foundation consisting of a structural concrete slab poured directly on the grade. No accessible space exists in slab construction. Slab foundations are popular in areas (i.e. the Southern United States) where there is a relatively high water table (i.e. the "water table" refers to the depth in the soil at which you find water). Traditionally, the slab foundation is the least expensive foundation type when building on a relatively flat lot.

·       Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.

·       Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.



Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.

Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.

Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.

Specifications Form: In general, each house plan set includes a blank short-form FHA/VA specifications document for your reference.

License to Build: Each set of construction plans include ONE license to build.

Plans include relevant building sections and details.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

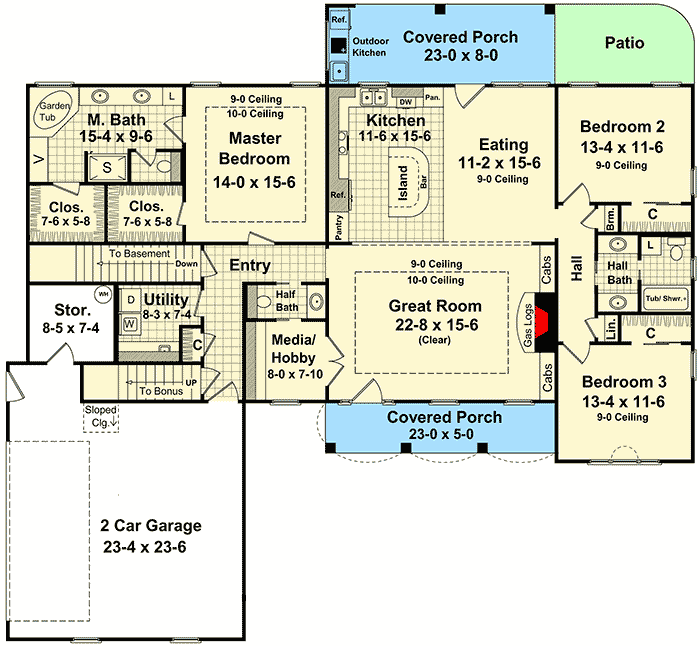

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Upscale European Country Styling - 51033MM floor plan - Main Level

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

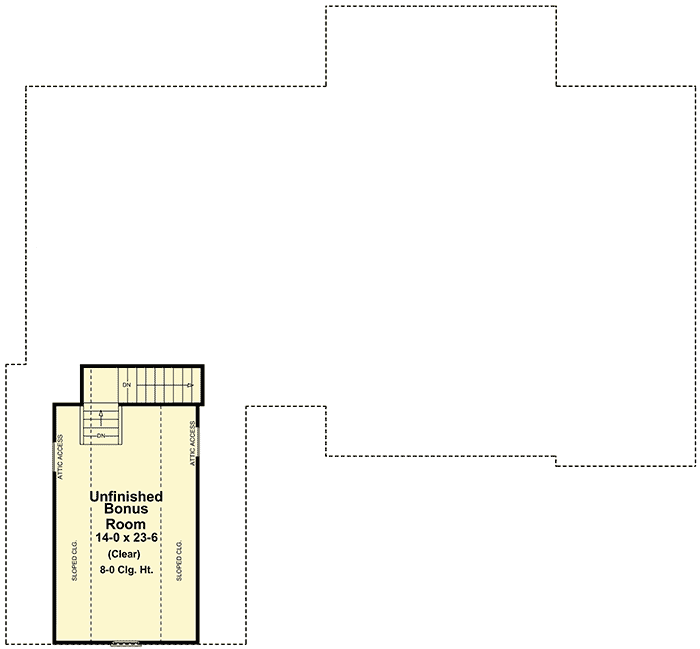

Upscale European Country Styling - 51033MM floor plan - Bonus

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,021 sq. ft.
  • 1st Floor: 2,021 sq. ft.
  • Porch, Rear: 184 sq. ft.
  • Bonus: 354 sq. ft.
  • Porch, Front: 115 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 69' 0"
  • Depth: 63' 10"
  • Max ridge height: 22' 5"

Garage

  • Type: Attached
  • Area: 487 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Upscale European Country Styling

  • 2,021

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Printed $1,215
  • 5 Sets $1,365
  • PDF - Single-Build $1,465
  • 5 Sets + PDF $1,540
  • Reproducible Set $1,700
  • CAD + PDF - Single Build $1,990
  • View all purchase option online

About This Plan

  • This inviting home has European Country styling with upscale features. The front and rear covered porches add plenty of usable outdoor living space, and include that much-requested outdoor kitchen.
  • The expansive great room includes a beautiful trayed ceiling and features built-in cabinets and a gas fireplace.
  • The spacious kitchen features an oversized island with a large eating bar and breakfast area.
  • The hall bath is equipped with dual lavatories for convenience.
  • The master bedroom has a raised ceiling and opens into the well-equipped bath with dual lavatories, oversized corner jet tub, and large his and her walk-in closets.
  • There is a storage area off the garage for projects and storage. The media/hobby space could be used as a home office, dining room, or playroom.
  • There is also a full basement that could be used for additional storage or future expansion.
  • Related Plans: See the slab and crawl space layout with house plan 51006MM. And get a three-car garage with house plan 51099MM.
  • Get more room with house plan 51058MM (2,401 s.f.). And get a country exterior with house plan 5178MM.

Floor Plans

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,021 sq. ft.
  • 1st Floor: 2,021 sq. ft.
  • Porch, Rear: 184 sq. ft.
  • Bonus: 354 sq. ft.
  • Porch, Front: 115 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 69' 0"
  • Depth: 63' 10"
  • Max ridge height: 22' 5"

Garage

  • Type: Attached
  • Area: 487 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
