Upside Down Northwest House Plan

Name: Plan 64415SC: Upside Down Northwest House Plan
Brand: Architectural Designs
SKU: 64415SC
Price: 1395.0 USD
Availability: InStock

Heated S.F.

1,948

Beds

Baths

Stories

Cars

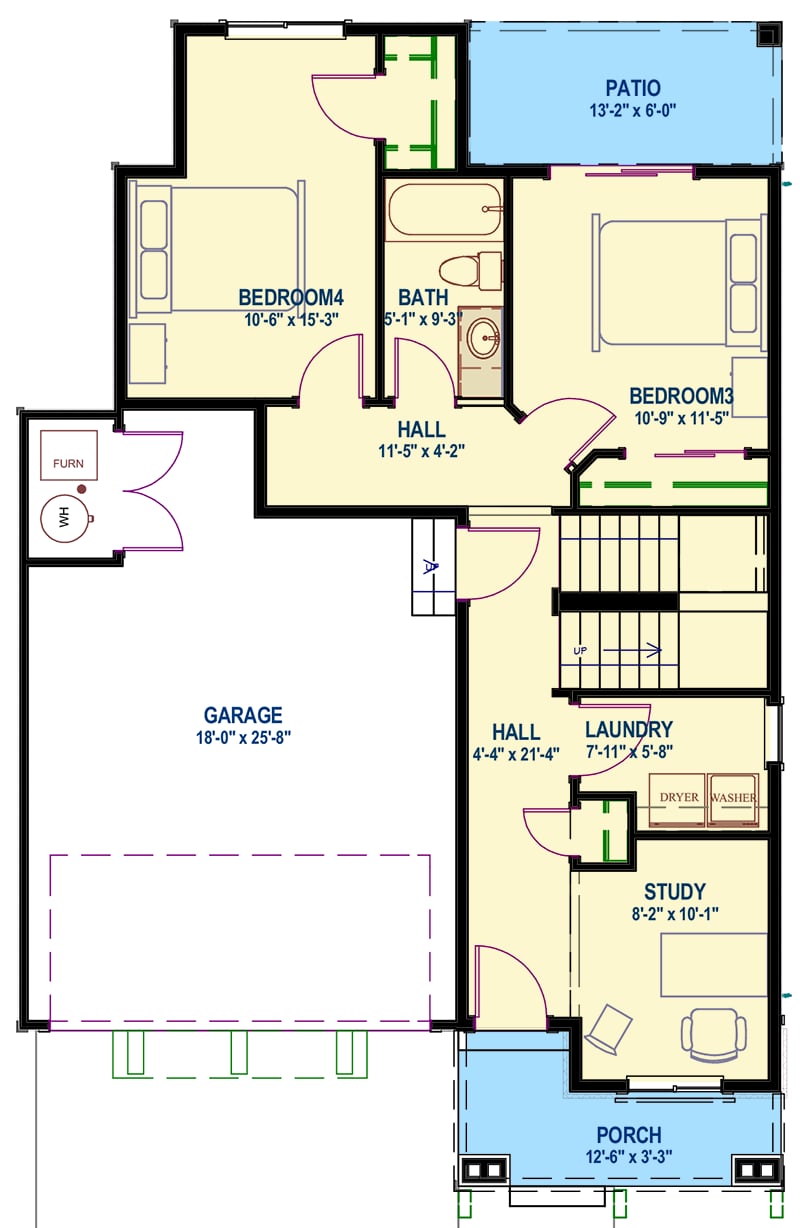

Floor Plan

Main Level

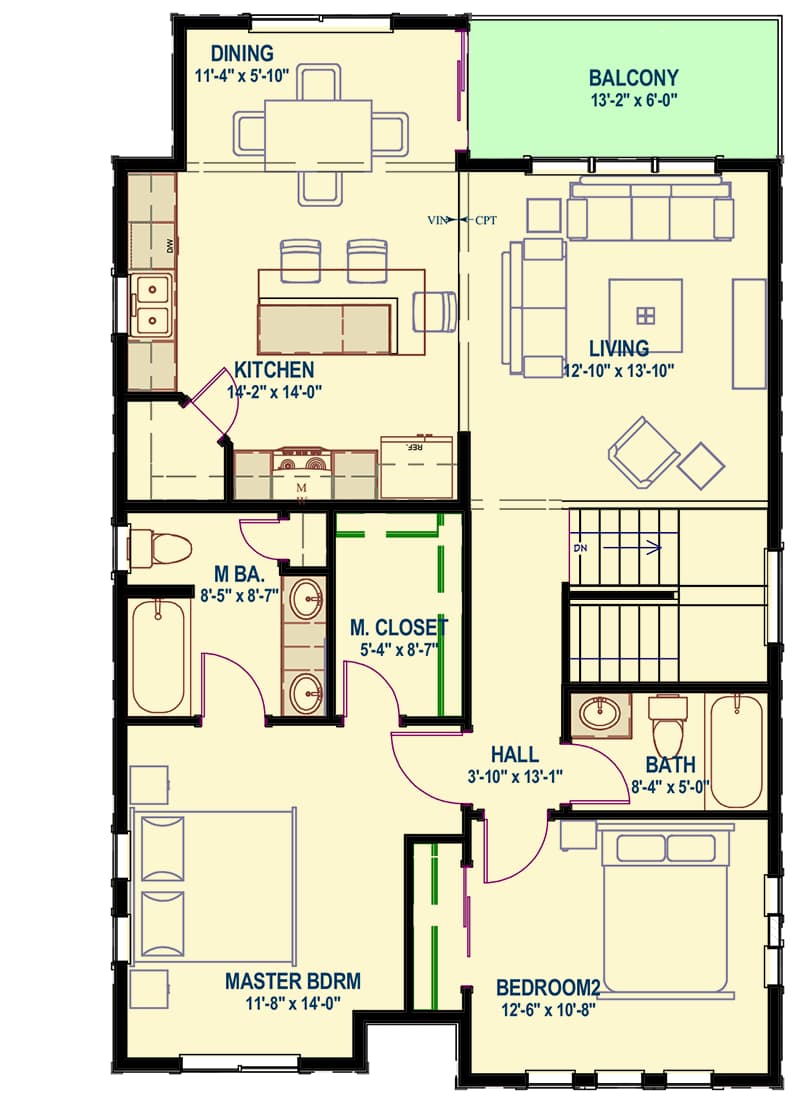

2nd Floor

Plan Details

Accents of stone and decorative wood trim help to boost the visual appearance of the exterior of this Northwest house plan.
Only 32' wide, the home fits well when space is tight.
A study off the foyer is the first room you see when entering the home.
Two family bedrooms lie at the back sharing a hall bathroom.
The main living area is on the second floor with an outdoor balcony accessible from both the living room and the dining room.
Two more bedrooms include the big master suite that faces front.
NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

What's Included

Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
Upper Level Plan (if needed) - same information as Main Level.
Roof Plan - layout with pitch markers, dimensions and notes.
Main Level Electrical Plan - electrical outlets, switches and light locations shown.
Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
