Plan 500005VV

Upstairs for the Kids

4,175 4 4.5 2 2
Pageloader

Upstairs for the Kids

Plan 500005VV

  • 4,175

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This four bed house plan is designed to give the kids their own floor upstairs. There, each bedroom has its own bath and there is a centrally-located playroom. The front bedroom has a "cave" which would be a great place to make a fort in.
  • French doors give you entry to the foyer which leads past the stairs to the open great room. It has a fireplace flanked by built-ins on the left and is open to both the kitchen and the nook. French doors off the nook lead to an open deck.
  • The master suite is set off to the left and has two walk-in closets, two vanities and a walk-in shower.
  • The pantry in the kitchen is oversized giving you great storage. Access to the garage through the nearby mudroom makes unloading groceries a breeze.
  • Tucked into the back-right corner is a roomy laundry room.
  • Related Plans: Get a smaller version with house plan 500032VV (2,998 sq. ft.) and 500034VV (2,493 sq. ft.).

This house plan includes the following:
  • Cover sheet with notes
  • Foundation
  • Floor plans
  • Elevations
  • Sections
  • Framing plans
  • Electrical plans

Plan details



Upstairs for the Kids

  • 4,175

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $2,195
  • CAD $2,895
  • CAD - multi-use $3,395
  • View all purchase option online

About This Plan

  • This four bed house plan is designed to give the kids their own floor upstairs. There, each bedroom has its own bath and there is a centrally-located playroom. The front bedroom has a "cave" which would be a great place to make a fort in.
  • French doors give you entry to the foyer which leads past the stairs to the open great room. It has a fireplace flanked by built-ins on the left and is open to both the kitchen and the nook. French doors off the nook lead to an open deck.
  • The master suite is set off to the left and has two walk-in closets, two vanities and a walk-in shower.
  • The pantry in the kitchen is oversized giving you great storage. Access to the garage through the nearby mudroom makes unloading groceries a breeze.
  • Tucked into the back-right corner is a roomy laundry room.
  • Related Plans: Get a smaller version with house plan 500032VV (2,998 sq. ft.) and 500034VV (2,493 sq. ft.).

Floor Plans

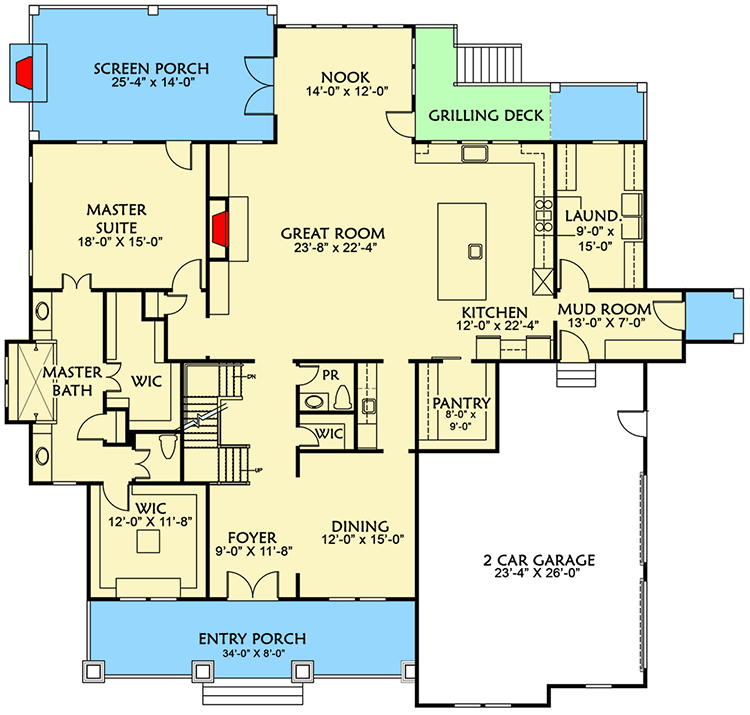

  • Main Level

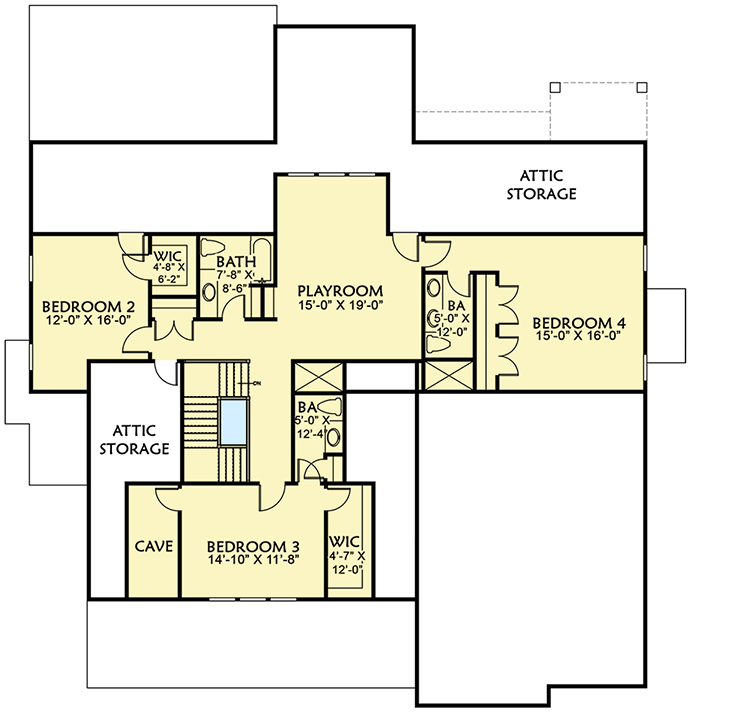

  • 2nd Floor

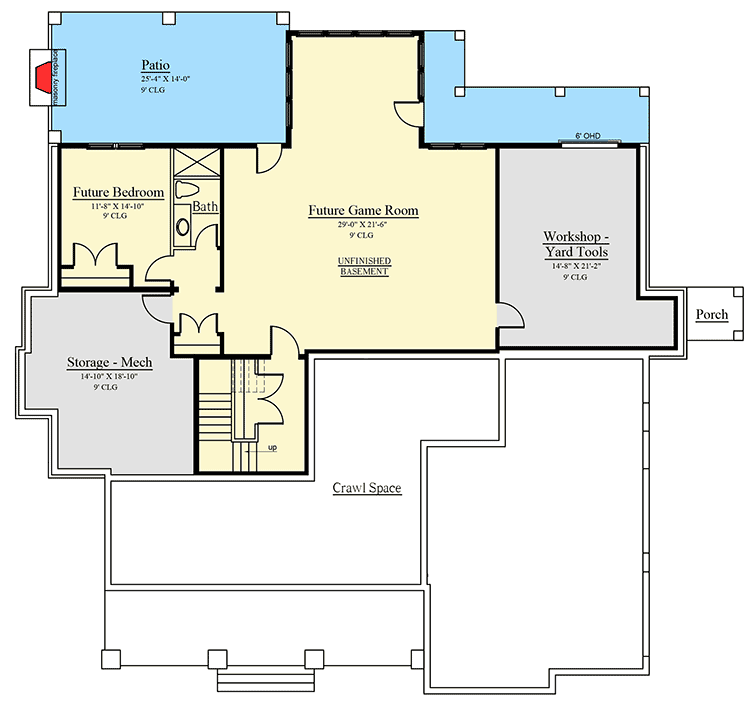

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,175 sq. ft.
  • 1st Floor: 2,701 sq. ft.
  • 2nd Floor: 1,474 sq. ft.
  • Basement Unfinished: 2,019 sq. ft.
  • Porch, Front: 272 sq. ft.
  • Porch, Rear: 60 sq. ft.
  • Screened Porch: 355 sq. ft.
  • Deck: 110 sq. ft.
  • Attic: 167 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 76' 6"
  • Depth: 72' 8"
  • Max ridge height: 42' 2"

Garage

  • Type: Attached
  • Area: 751 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
