Plan 80646PM
Vacation Escape with Sunroom
Heated S.F.
1,015
Beds
2
Baths
2
Stories
2
What's Included
Plan Details

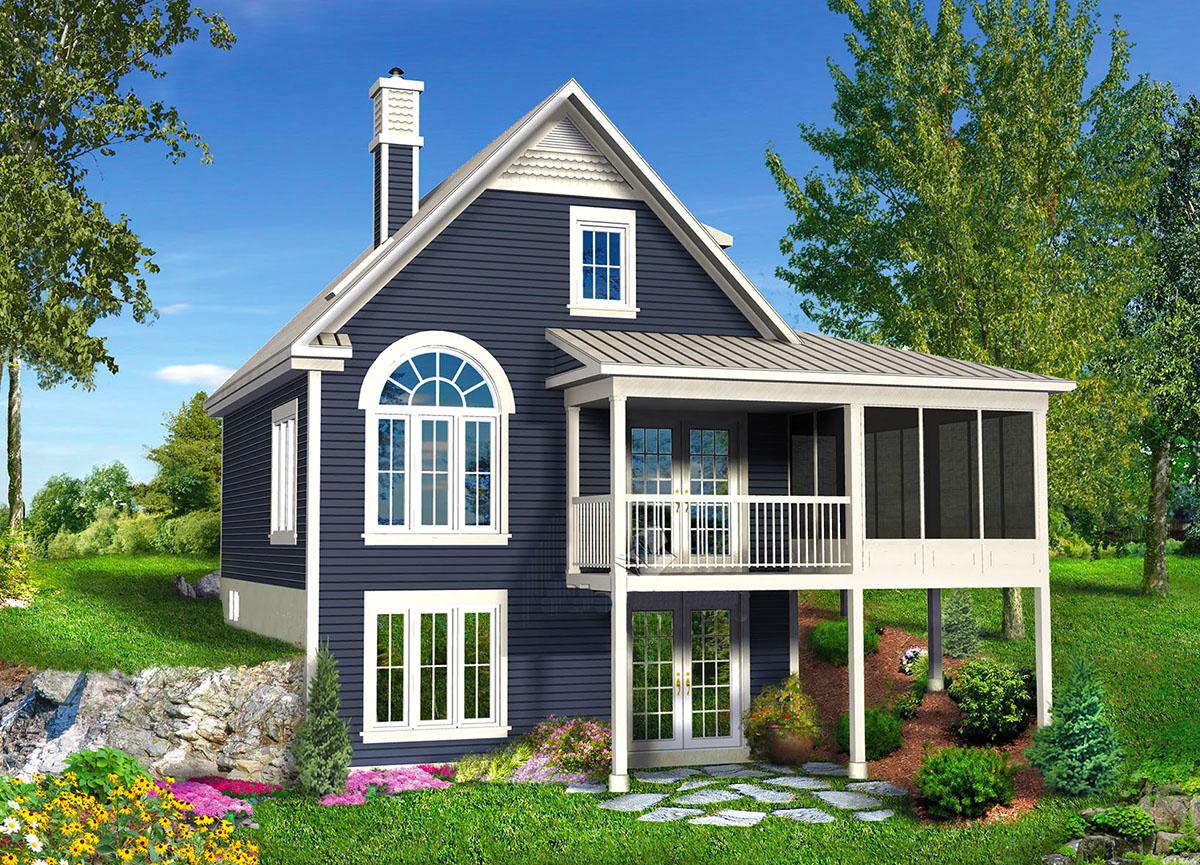

  • This two-story cottage will delight nature lovers who can enjoy the outdoors on the back screened-in and covered porches.
  • The house is 24 feet wide by 28 feet deep and includes a terrace located next to a screened sunroom.

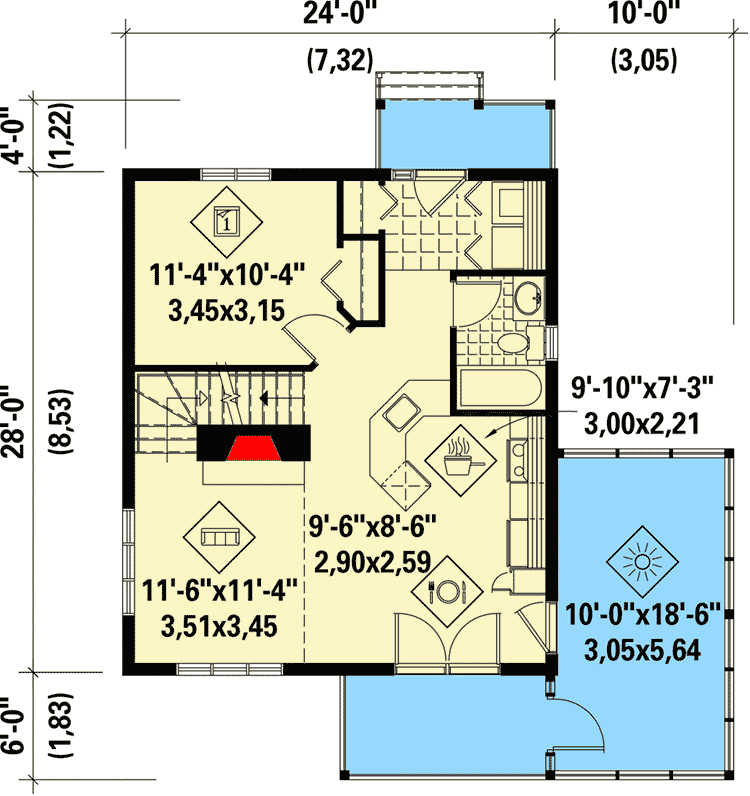

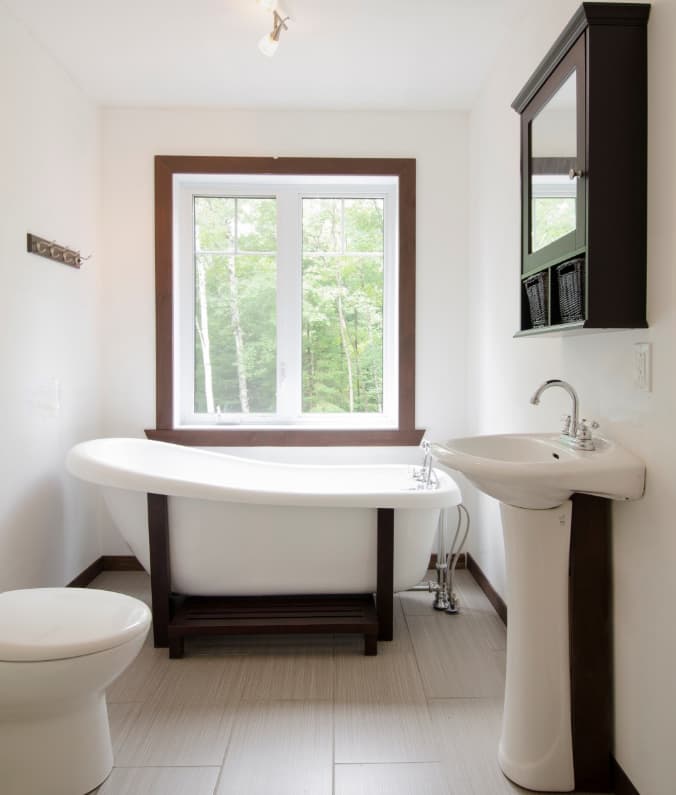

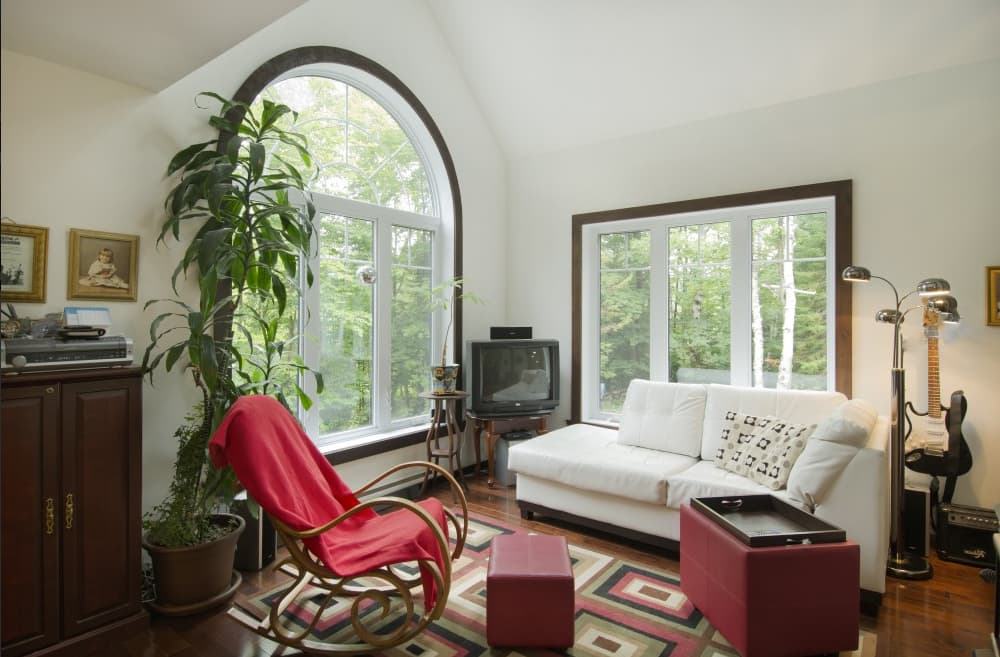

  • It provides 1,015 square feet of living space.The ground floor covers 672 square feet and includes a bathroom, a bedroom, a kitchen opening up onto a dining room and a living room with fireplace.

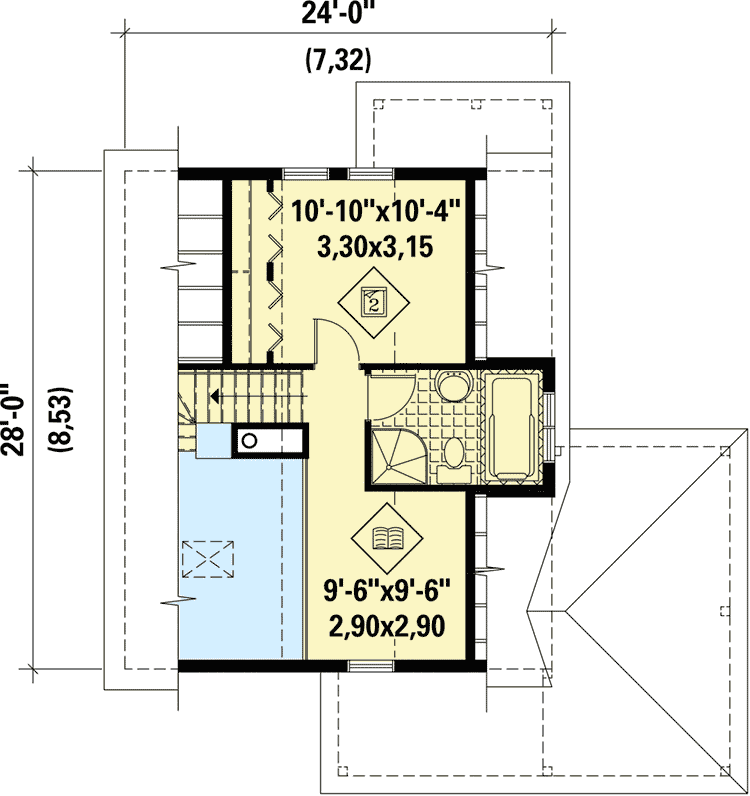

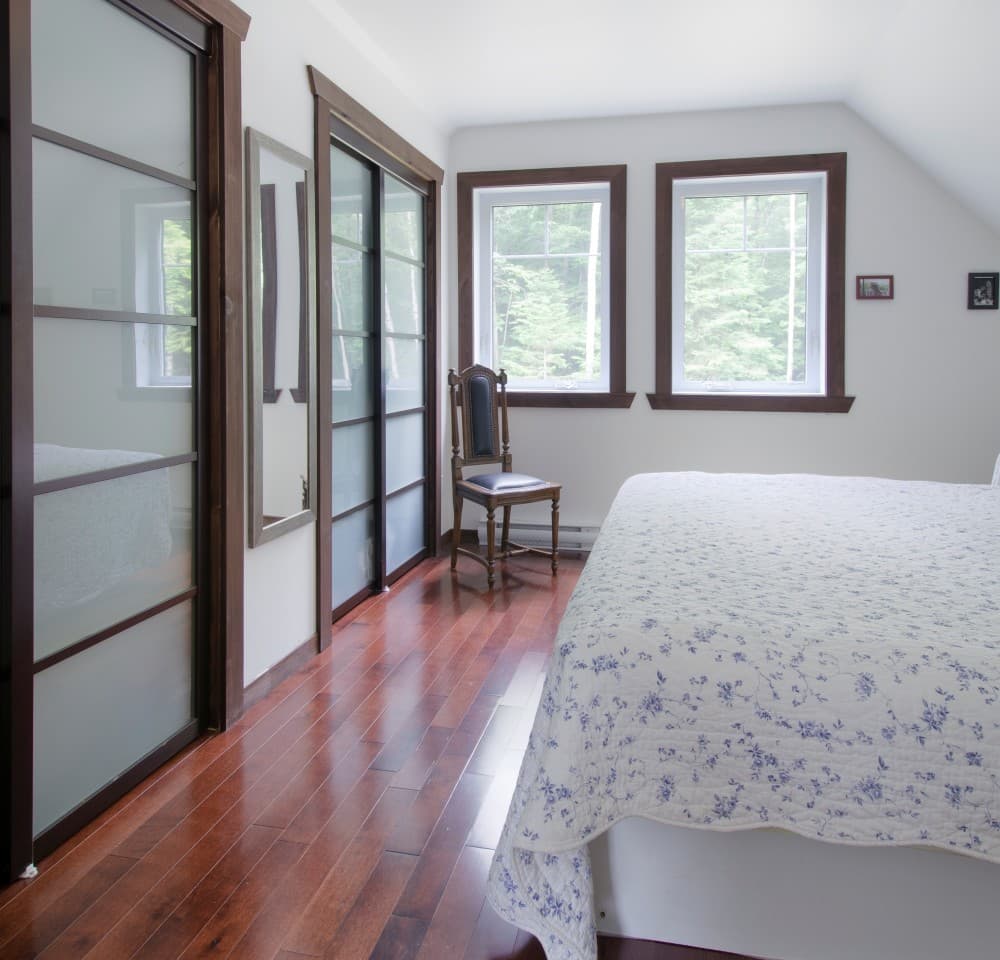

  • The second floor has a 343 square foot living area and includes a bathroom, a reading area and a second bedroom. The reading area over looks the living room below.
What's Included
Please note this plan is designed to the National Building Code of Canada.

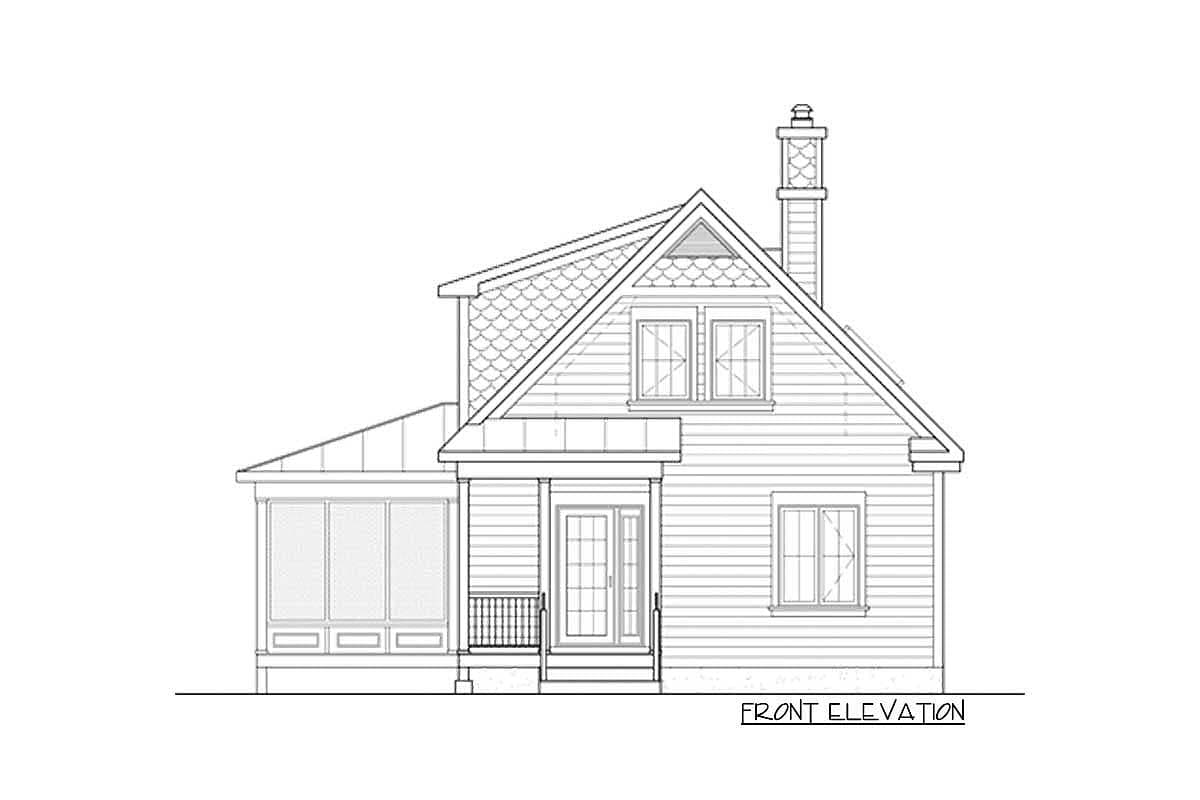

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Vacation Escape with Sunroom

  • 1,015

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,015 sq. ft.
  • 1st Floor: 672 sq. ft.
  • 2nd Floor: 343 sq. ft.

Dimensions

  • Width: 24' 0"
  • Depth: 28' 0"
  • Max ridge height: 36' 2"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Vacation Escape with Sunroom

  • 1,015

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

Vacation Escape with Sunroom

  • 1,015

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

Plan Details

Square Footage Breakdown

  • Total: 1,015 sq. ft.
  • 1st Floor: 672 sq. ft.
  • 2nd Floor: 343 sq. ft.

Dimensions

  • Width: 24' 0"
  • Depth: 28' 0"
  • Max ridge height: 36' 2"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
