Plan 72267DA

Vacation Home Plan with Panoramic Rear View

Heated S.F.
1,735
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 72267DA

Main Level
Main Level
Main Level - Basement Stairs Location
Main Level - Basement Stairs Location
3rd Floor
3rd Floor

Plan 72267DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

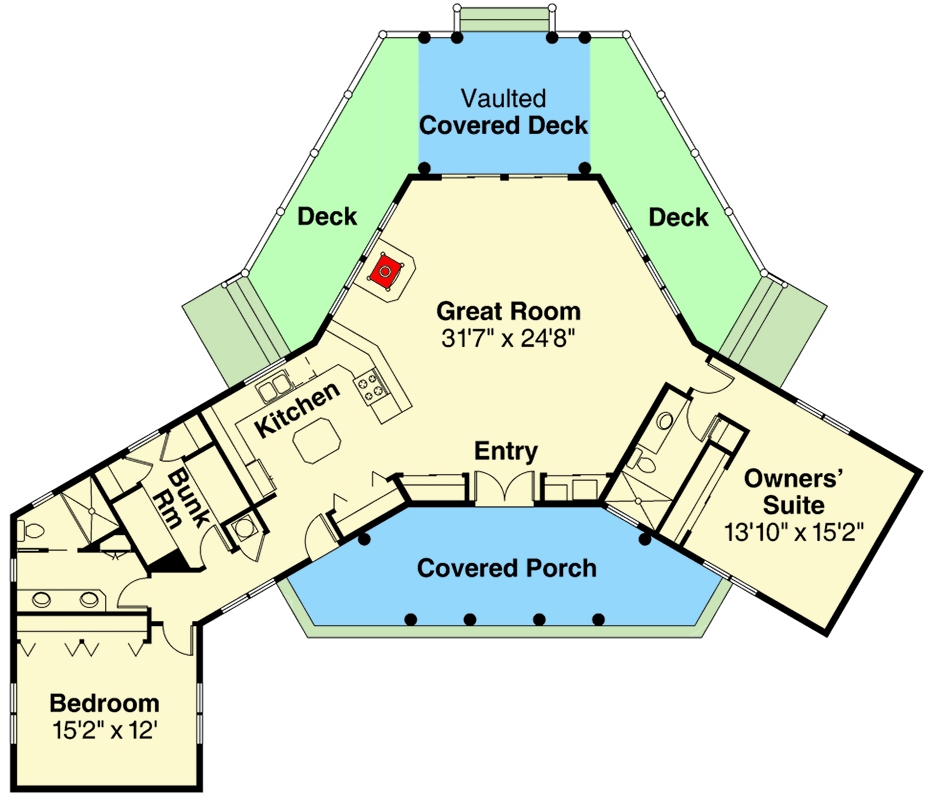

Plan 72267DA: Vacation Home Plan with Panoramic Rear View - Floor Plan - Main Level - Country, Ranch

Main Level - Basement Stairs Location

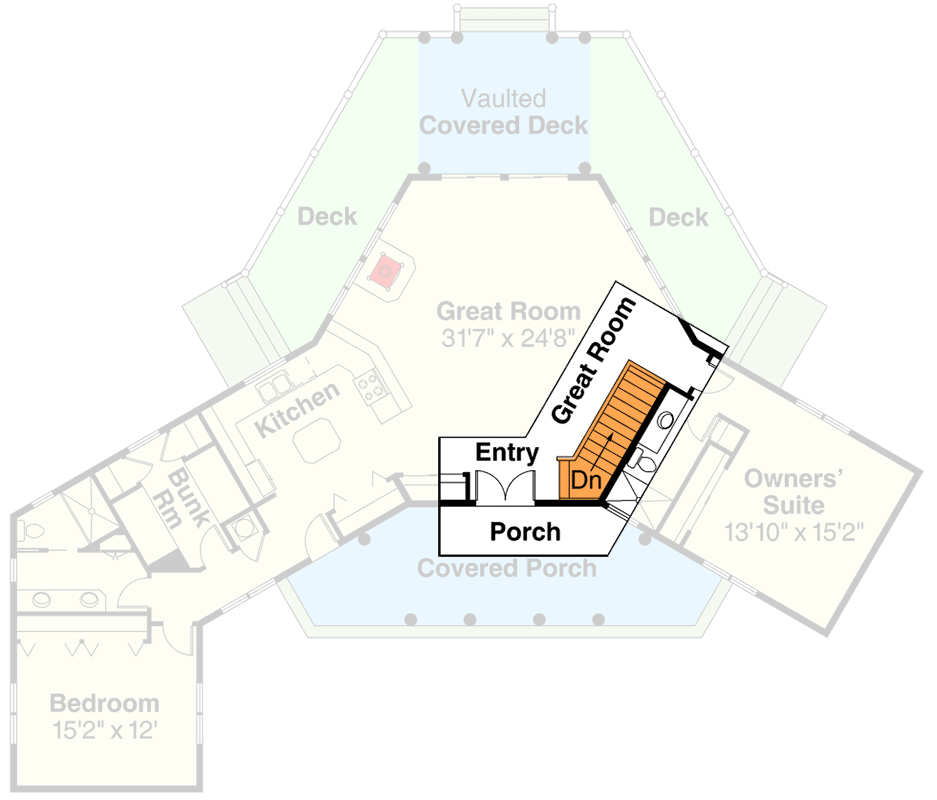

Plan 72267DA: Vacation Home Plan with Panoramic Rear View - Floor Plan - Main Level - Basement Stairs Location - Country, Ranch

3rd Floor

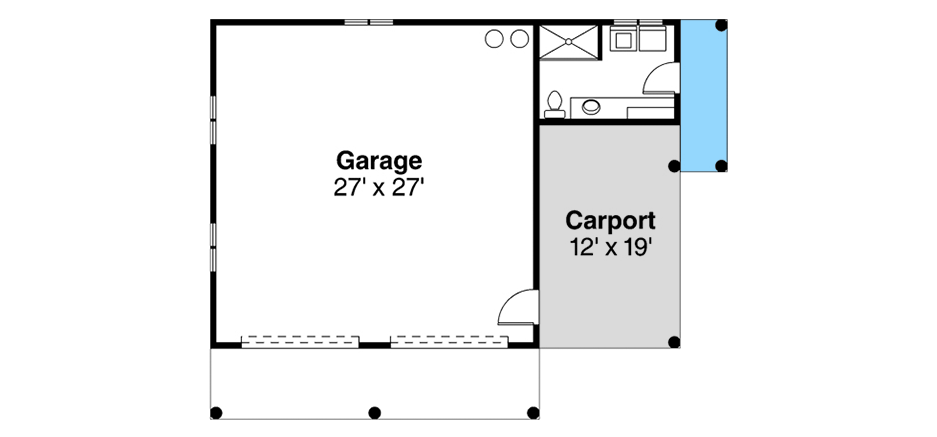

Plan 72267DA: Vacation Home Plan with Panoramic Rear View - Floor Plan - 3rd Floor - Country, Ranch

Plan Details

  • A hexagonal great room is at the core of this vacation house plan designed to take full advantage of a panoramic rear view.
  • The rustic styling blends naturally into the landscape.
  • Log posts and beams support a dramatic covered porch that frames a French door entry. At the rear, this wide open great room is more windows than walls, with a view out across the wrap-around deck, into the great beyond. The central portion of the deck is covered. Log posts and beams, similar to those in front, provide support.
  • A long eating bar is all that separates the great room from the kitchen, and the kitchen is large.
  • Off in a wing of its own, the home plan's master suite is well isolated from the other bedrooms. Its private bathroom, located between the great room and the sleeping area, provides additional sound buffering.
  • The bunkroom has two sets of bunk beds. Bedroom two could be similarly outfitted, or furnished more conventionally.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

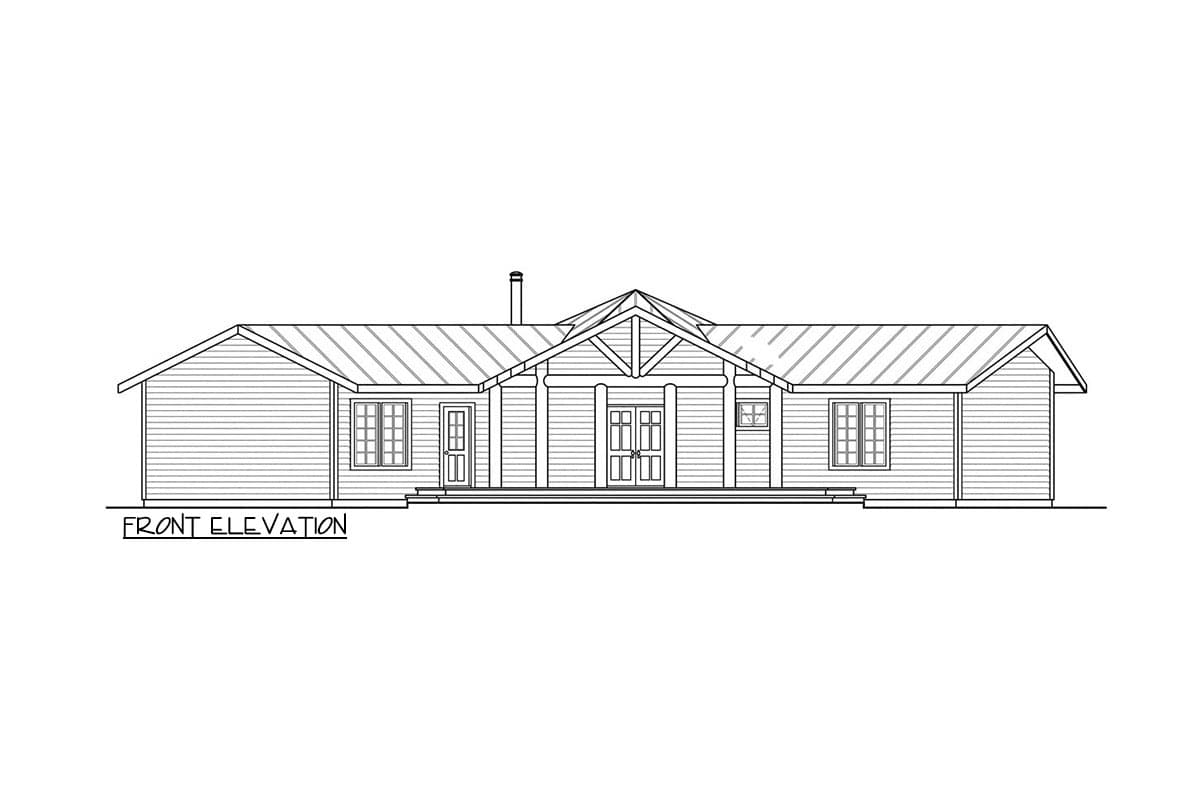

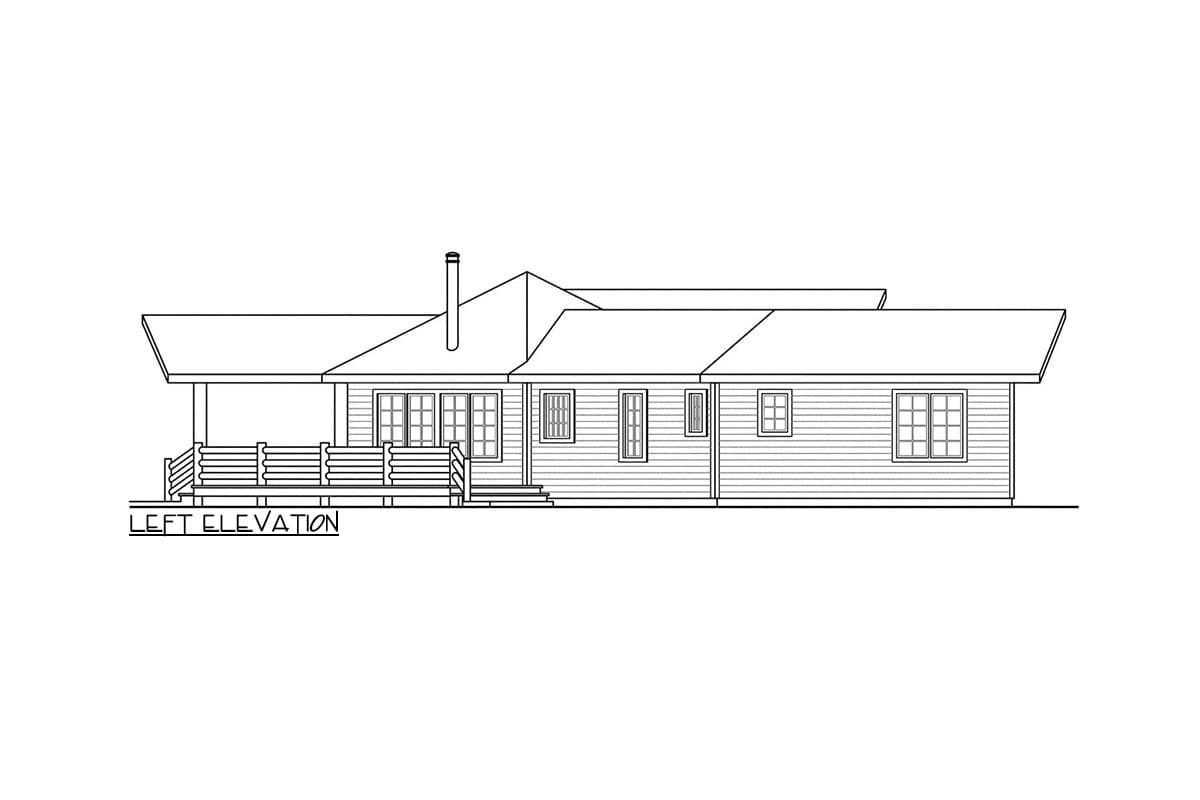

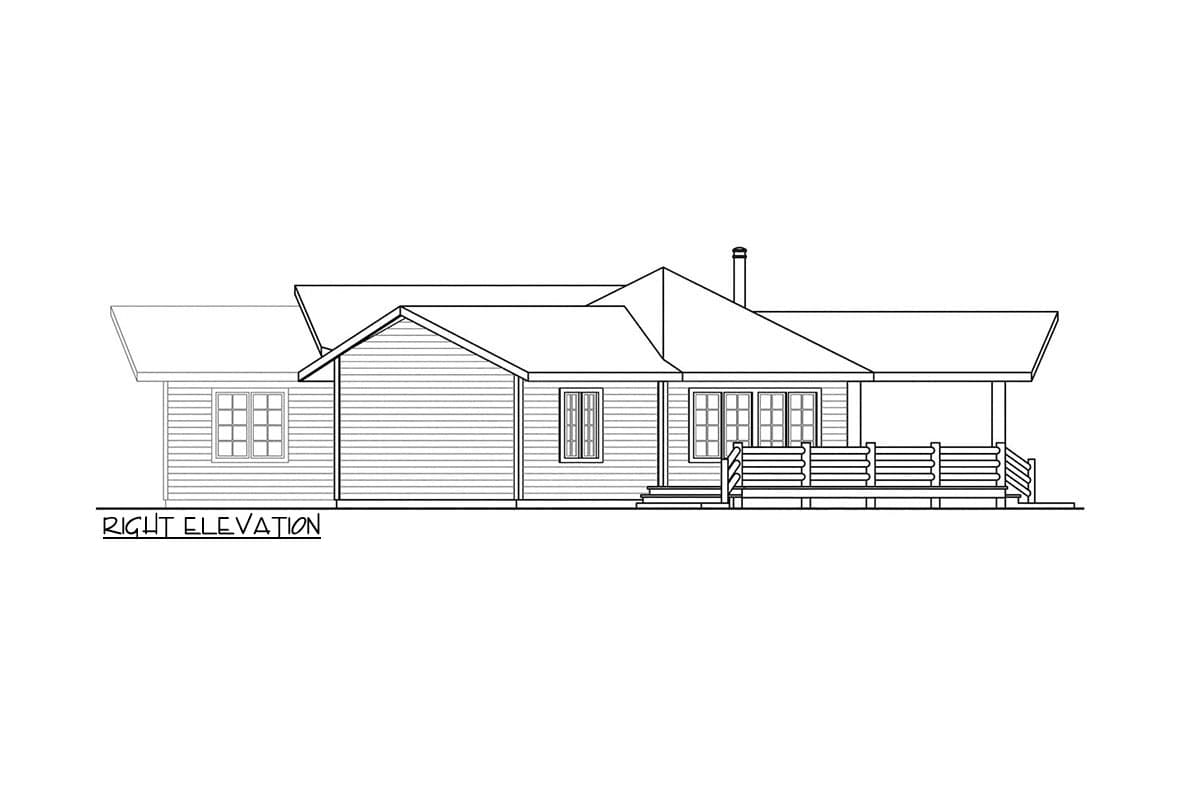

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,735 sq. ft.

1st Floor

1,735 sq. ft.

Carport

228 sq. ft.

Porch, Front

260 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 10"

Depth

64' 0"

Max Ridge Height

18' 6"

Garage

Type

Detached

Area

892 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Ranch

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,735 sq. ft.

1st Floor

1,735 sq. ft.

Carport

228 sq. ft.

Porch, Front

260 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 10"

Depth

64' 0"

Max Ridge Height

18' 6"

Garage

Type

Detached

Area

892 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Ranch

Special Features

Bedrooms - Split

Master Suite - 1st Floor
