Vacation Home with Hexagonal-shaped Living Area and One Bedroom

Heated S.F.
1,219
Beds
1
Baths
2
Stories
1

Floor Plan

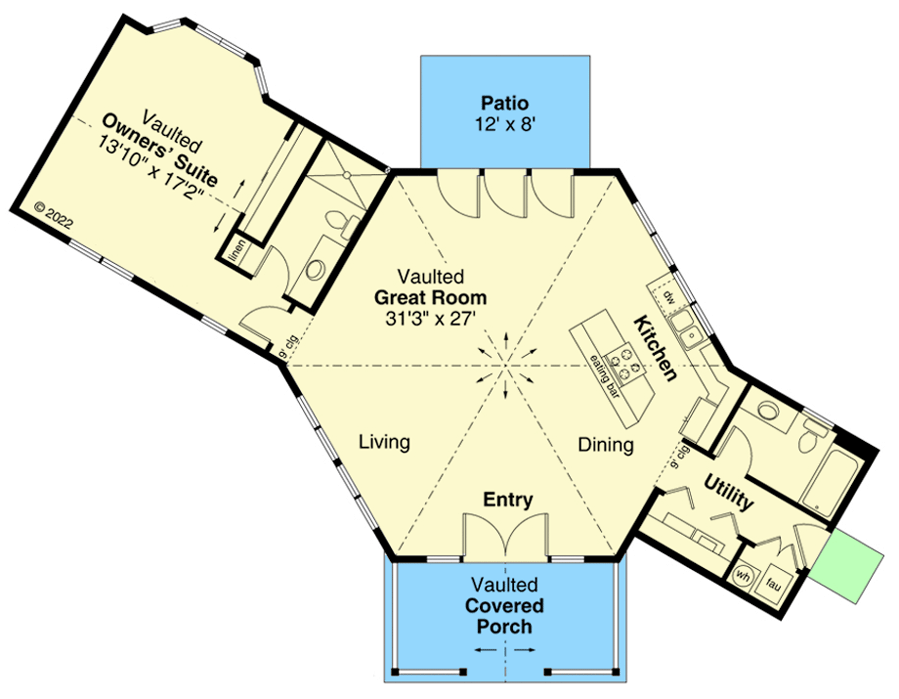

Plan 72324DA

Main Level
Main Level

Plan 72324DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 72324DA: Vacation Home with Hexagonal-shaped Living Area and One Bedroom - Floor Plan - Main Level - Ranch, Vacation

Plan Details

  • This versatile cottage is a perfect house plan for anyone looking to build a vacation home, add an addition to your property, or looking to reduce your footprint. Walking to the unique hexagonal shaped main living area, you pass under the covered front porch. From there you will be greeted by the welcoming feeling of open space and practical living.
  • The kitchen, great room and dining area are all open for entertainment highlighted by the vaulted ceilings while also still maintaining the feel of simplified living.
  • To the left you will walk into the master bedroom with vaulted ceilings, giving the impression of a larger room. The master bedroom has a private bathroom and closet, as well as a bumped-out view with windows galore.
  • The right side of the home contains the laundry room and utility area, as well as the other bathroom for guests.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,219 sq. ft.

1st Floor

1,219 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

61' 10"

Depth

47' 0"

Max Ridge Height

17' 5"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Ranch

Vacation

Special Features

Mudroom

Two Story Great Room

Square Footage Breakdown

Total Heated Area

1,219 sq. ft.

1st Floor

1,219 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

61' 10"

Depth

47' 0"

Max Ridge Height

17' 5"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Ranch

Vacation

Special Features

Mudroom

Two Story Great Room
