Plan 22442DR Vacation House Plan with Wall of Windows

Vacation House Plan with Wall of Windows

Plan 22442DR

  • 1,301

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • A great big wall of windows floods the two-story great room with light in this Vacation house plan.
  • A zero clearance fireplace separates the living area from the dining room and kitchen, all nicely laid out.
  • The master suite is on the first floor and two more bedrooms lie on the upper floor, with an open rail that lets you look down into the rooms below.

Each plan includes the following:

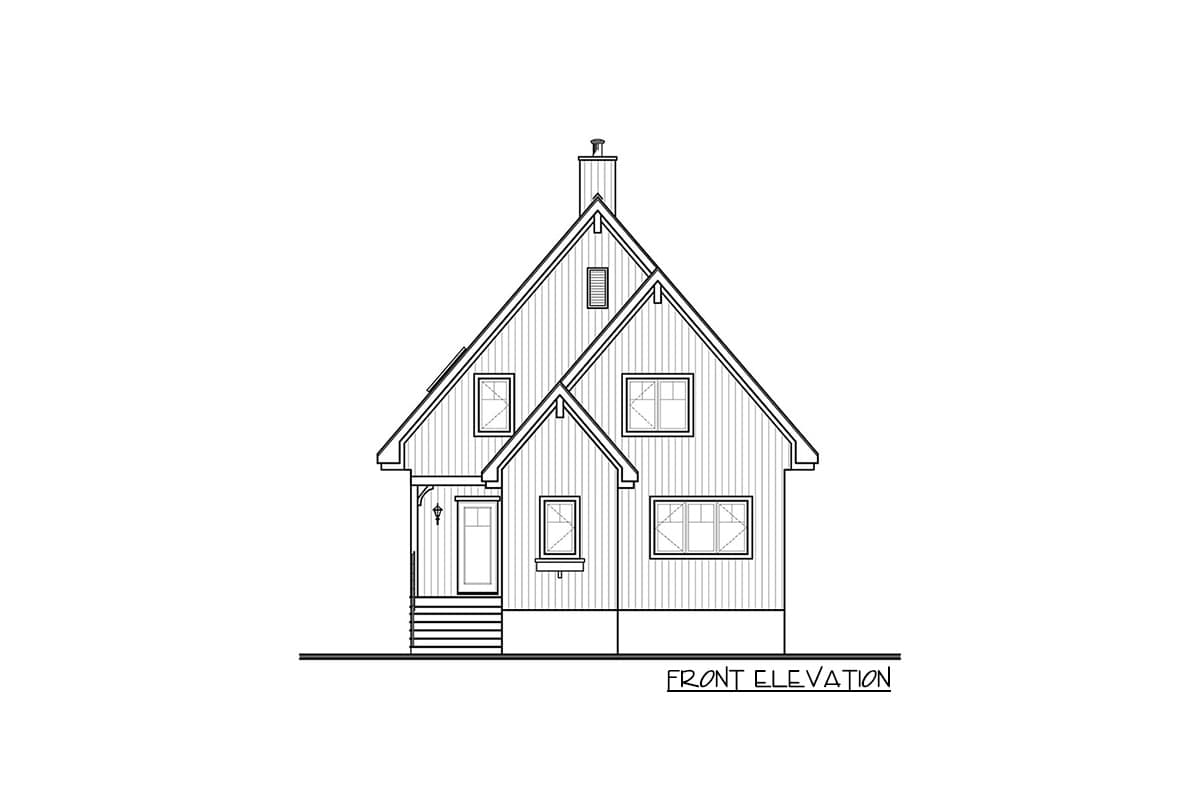

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

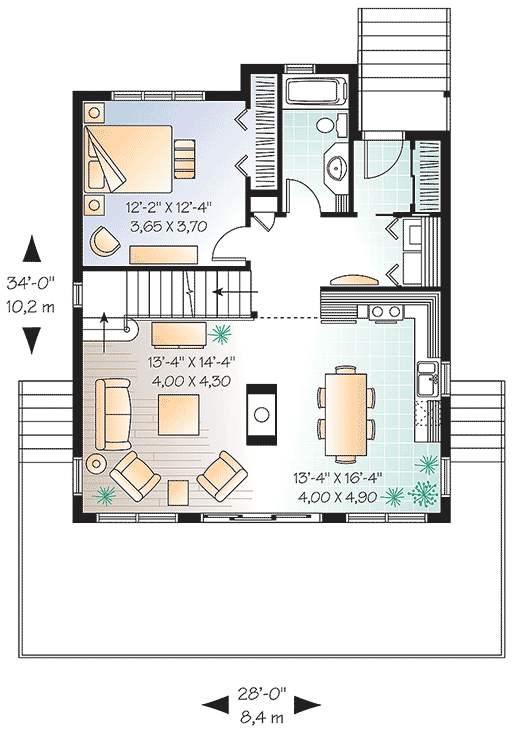

Vacation House Plan with Wall of Windows - 22442DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

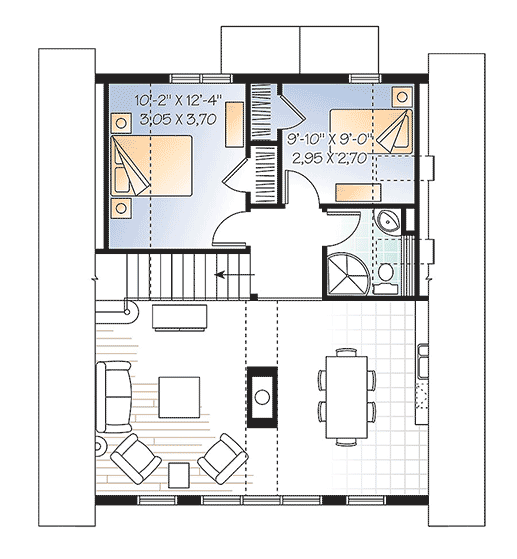

Vacation House Plan with Wall of Windows - 22442DR floor plan - 2nd Floor

Plan details

Plan Collections

Vacation House Plan with Wall of Windows

  • 1,301

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • Reproducible Set $1,055
  • PDF - Single-Build $1,055
  • 5 Sets + PDF $1,180
  • CAD + PDF - Single-Build $1,655
  • View all purchase option online

About This Plan

  • A great big wall of windows floods the two-story great room with light in this Vacation house plan.
  • A zero clearance fireplace separates the living area from the dining room and kitchen, all nicely laid out.
  • The master suite is on the first floor and two more bedrooms lie on the upper floor, with an open rail that lets you look down into the rooms below.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,301 sq. ft.
  • 1st Floor: 893 sq. ft.
  • 2nd Floor: 408 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 34' 0"
  • Max ridge height: 30' 11"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
