Plan 2013GA
Vacation Retreat
Heated S.F.
1,647
Beds
2
Baths
1
Stories
2
What's Included
Plan Details
  • Within this compact and simple design, you'll find a comfortable and welcome vacation retreat.

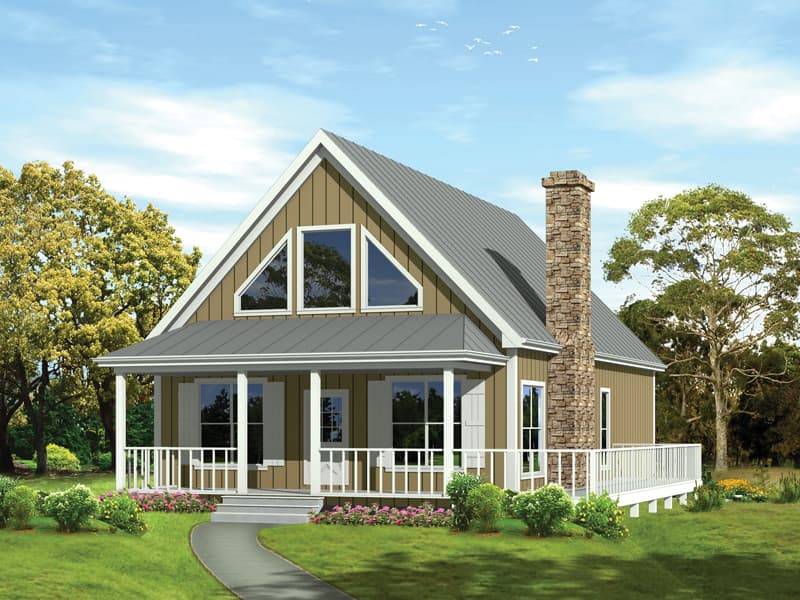

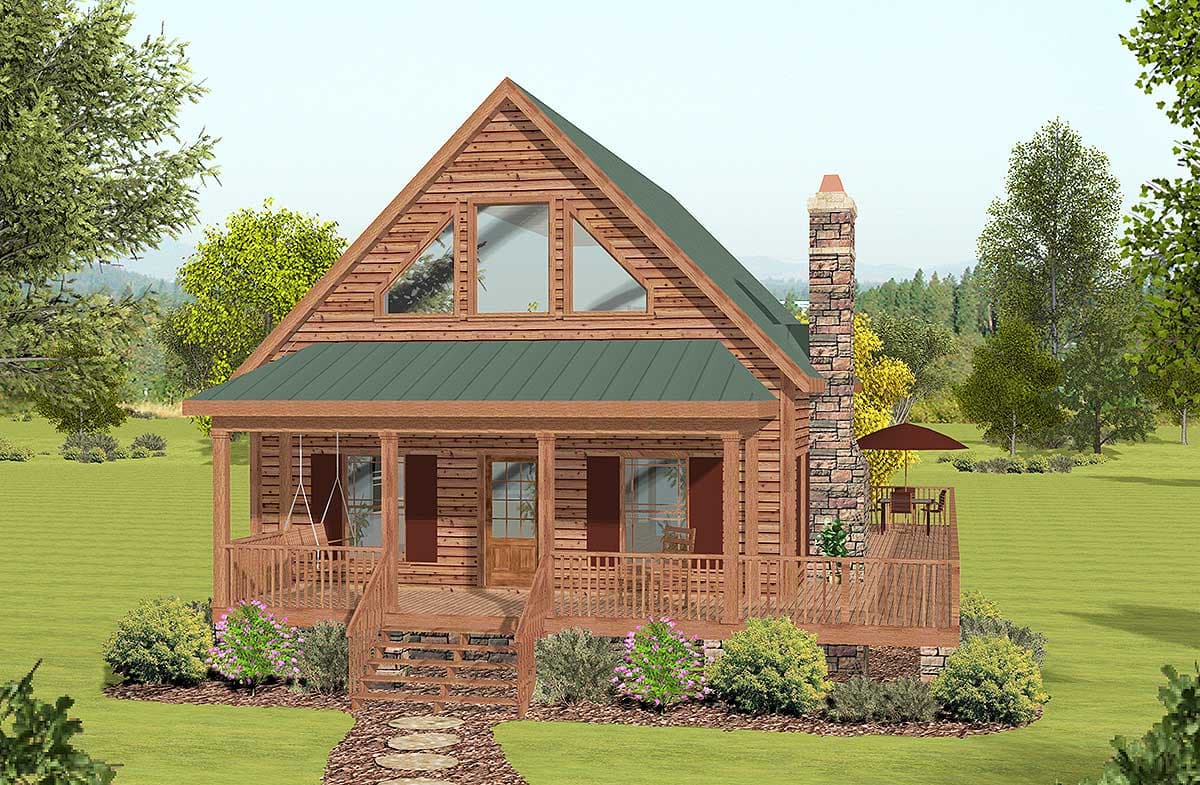

  • It's handsome exterior is constructed with board and batten siding, standing seam metal roofing, and stone accents on the porch and chimney.
  • From the delightful covered front porch, you'll enter an enormous great room with a 20' high vaulted ceiling. Within the great room is an open kitchen with an island and breakfast bar. Just beyond, a compartmentalized bath with 2'-8" doors allows wheelchair access.
  • The large pantry area provides space for a stacked washer/dryer unit.
  • Two bedrooms with 8' high ceilings complete the lower level.
  • Upstairs, you'll find an enormous loft with an 11' high ceiling that overlooks the great room. This multipurpose area provides an abundance of additional sleeping and recreation space.
  • Three large fixed glass windows in each gable end provide plenty of light for the loft and the great room.
  • Related Plan: For a smaller version in reverse see house plan 20099GA.
What's Included
  • Digital exterior rendering cover page

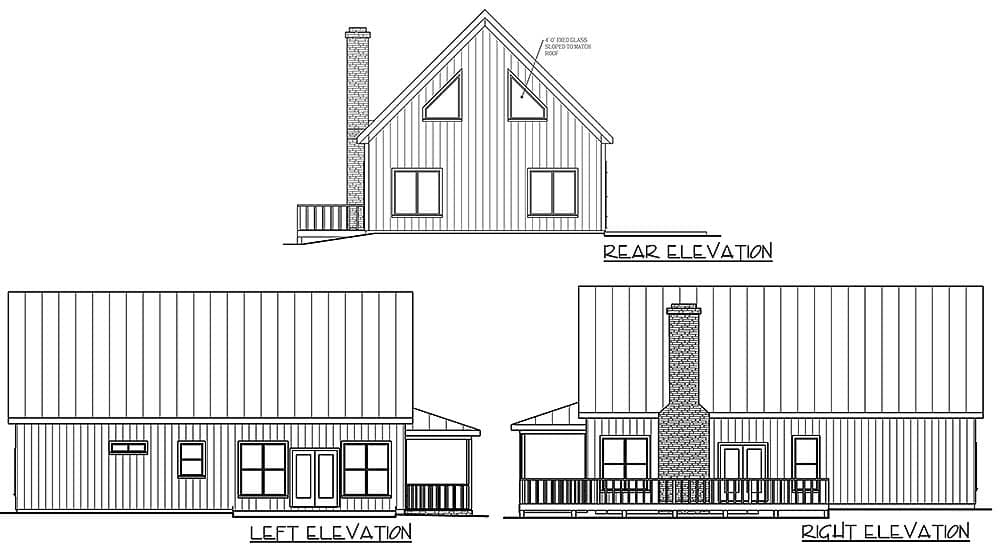

  • Exterior elevation page
  • Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  • Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  • Cross sections and interior elevation page
  • Roof framing plan with 3-D roof framing schematic
  • IRC code specifications and methodologies
  • General construction details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Vacation Retreat

  • 1,647

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,647 sq. ft.
  • 1st Floor: 1,288 sq. ft.
  • 2nd Floor: 359 sq. ft.

Dimensions

  • Width: 28' 0"
  • Depth: 46' 0"
  • Max ridge height: 26' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 20' 0" Second Floor / 11' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Vacation Retreat

  • 1,647

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

Vacation Retreat

  • 1,647

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

Plan Details

Square Footage Breakdown

  • Total: 1,647 sq. ft.
  • 1st Floor: 1,288 sq. ft.
  • 2nd Floor: 359 sq. ft.

Dimensions

  • Width: 28' 0"
  • Depth: 46' 0"
  • Max ridge height: 26' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 20' 0" Second Floor / 11' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

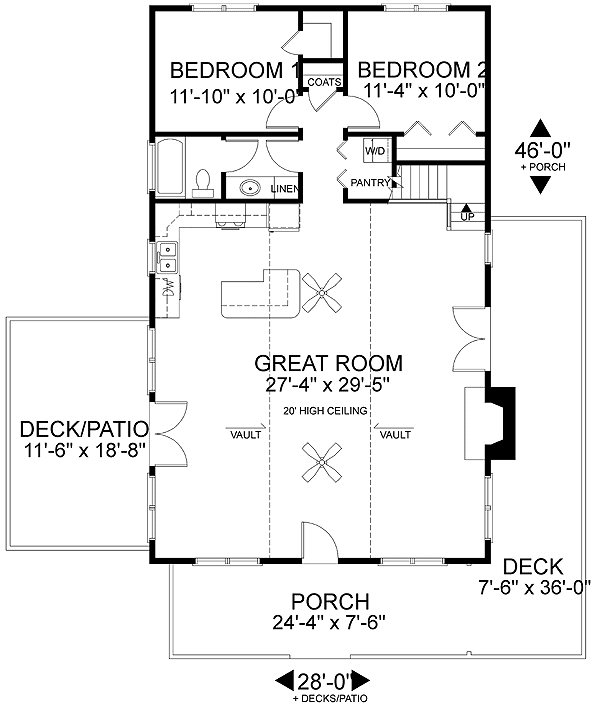

    Main Level

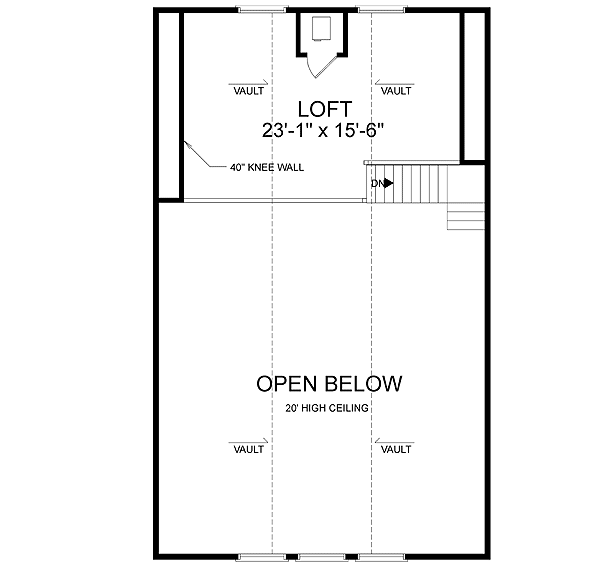

    2nd Floor
