Plan 5957ND
Vacation Retreat with Sensational Master Suite
Heated S.F.
2,143
Beds
3
Baths
2
Stories
2
What's Included
Plan Details
  • Ideal as a vacation retreat or overlooking a golf course, this design features a dynamic master suite that occupies the entire second floor and opens to a balcony deck. Another deck wraps around three sides on the first floor.

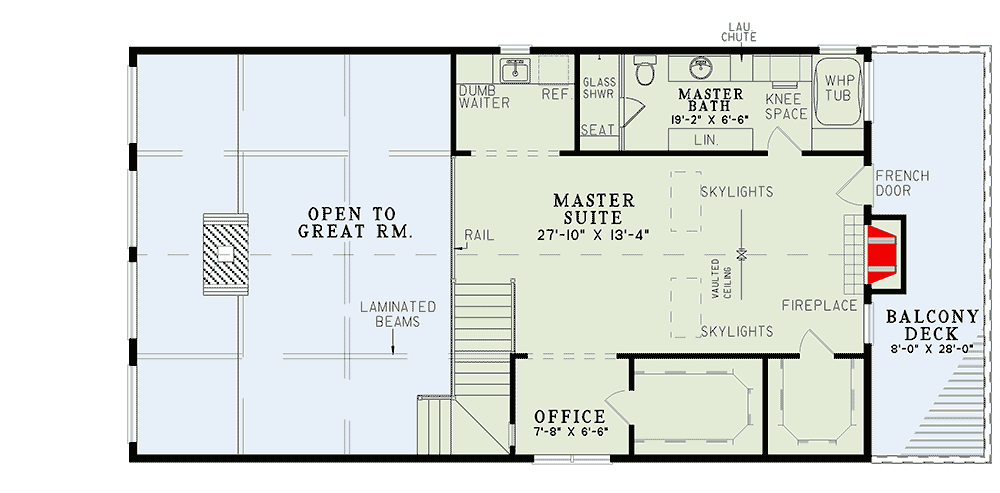

  • The master suite has its own fireplace, a vaulted ceiling with skylights, an office and a morning kitchen with a dumbwaiter to and from the kitchen below. The bedroom overlooks the great room. Two large walk-in closets and a luxury-filled bath with a laundry chute complete the suite.

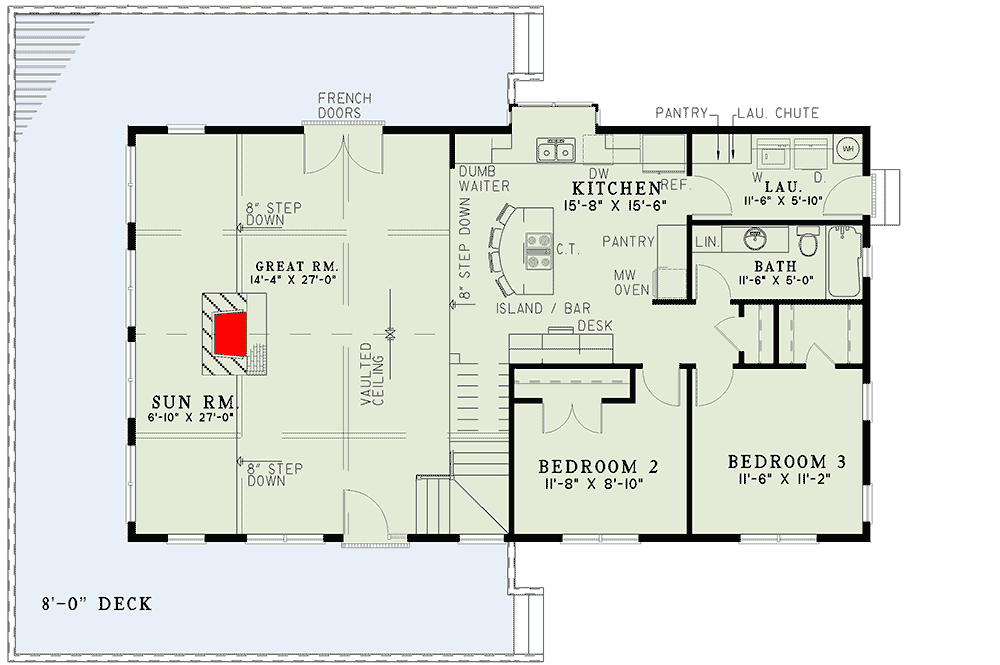

  • Downstairs, a free-standing fireplace separates the great room from the sunken sunroom, and beams dress up the vaulted ceiling. From the great room, you step up to the kitchen.
  • Ceilings: 8' standard first floor.
  • Foundation options: slab or crawl space. Please specify when ordering.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Vacation Retreat with Sensational Master Suite

  • 2,143

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,143 sq. ft.
  • 1st Floor: 1,400 sq. ft.
  • 2nd Floor: 743 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 28' 0"
  • Max ridge height: 25' 11"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
