Plan 72247DA
Vaulted Gathering Space
Heated S.F.
1,434
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Nostalgic posts and handrails rim the front porch of this contemporary version of the country-style ranch home plan. Wooden shutters accent the large front window closest to the street.
  • Young families or retirees will appreciate this easy to maintain small-sized house plan. Stepping inside brings you immediately into the expansive heart of this home. Two handy closets are just inside the door, and a passage to the right leads to the three bedrooms lined up along the right wing. A garage, family room and laundry room fill out the opposite side of the home.
  • Vaulted ceilings give you a sense of spaciousness in the open living room, dining room and kitchen. The ceiling slopes up from the front, reaching its apex at the center of the living room. Then it slopes down to meet the exterior wall of the dining room and kitchen at the rear. Wide sliding glass doors in the dining room offer easy access to a covered patio, highlighted and supported by slender wooden posts.
  • Counters and cabinetry line both sides of the galley kitchen, which can be reached via the bedroom wing as well as the living and dining room. A wide window fronts the sink, while a narrow pantry nestles into an alcove across the room. Two or more people can easily work together here, without getting in each other's way.
  • The main bathroom is located off of the hallway that leads to all three bedrooms. Closets line one entire wall in the owners' suite, and its bathroom has a double vanity.
What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

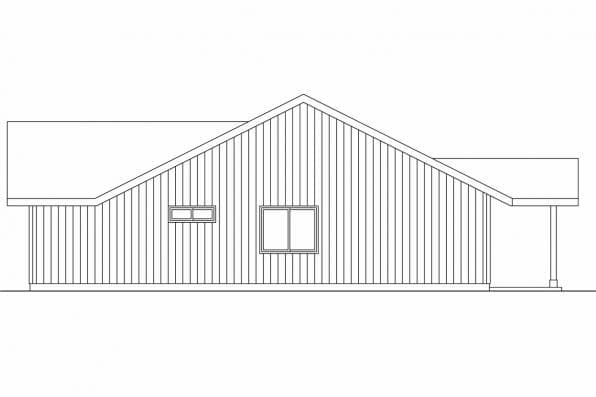

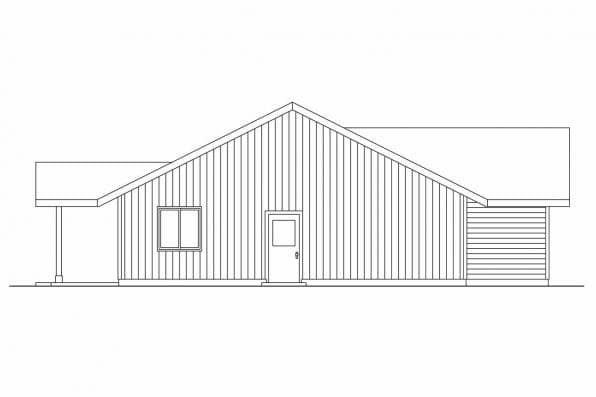

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Vaulted Gathering Space

  • 1,434

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

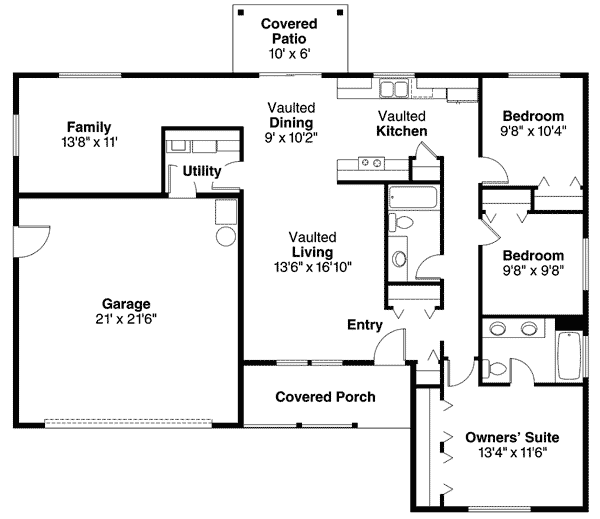

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,434 sq. ft.
  • 1st Floor: 1,434 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 48' 0"
  • Max ridge height: 18' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 476 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Vaulted Gathering Space

  • 1,434

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Vaulted Gathering Space

  • 1,434

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 1,434 sq. ft.
  • 1st Floor: 1,434 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 48' 0"
  • Max ridge height: 18' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 476 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

    Main Level
