Plan 72738DA
Vaulted Hexagona Great Room
Heated S.F.
1,625
Beds
2
Baths
2
Stories
1
Floor Plan

Plan 72738DA

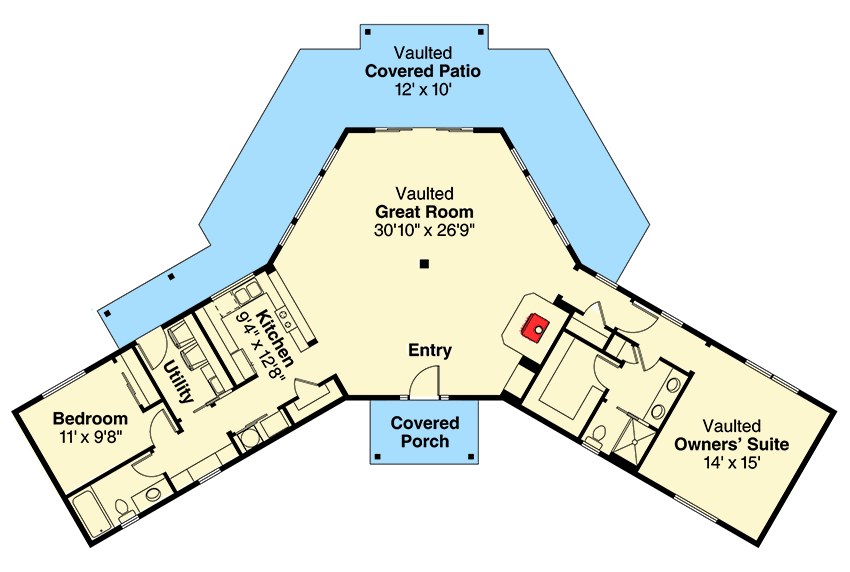

Main Level
slide image 0

Plan 72738DA

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This contemporary ranch house plan has a vautlted hexagonal great room at its heart. Perfect for taking in whatever view your lot has to offer; the great room has windows on three sides with a sliding glass door in the center that opens to a vaulted covered patio.
  • The owners' suite takes up one wing of the home along with its generous sized walk-in closet. The wing to the left of the great room features the kitchen, utility room and a second bedroom and bath.
  • The roof has a 6:12 pitch.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

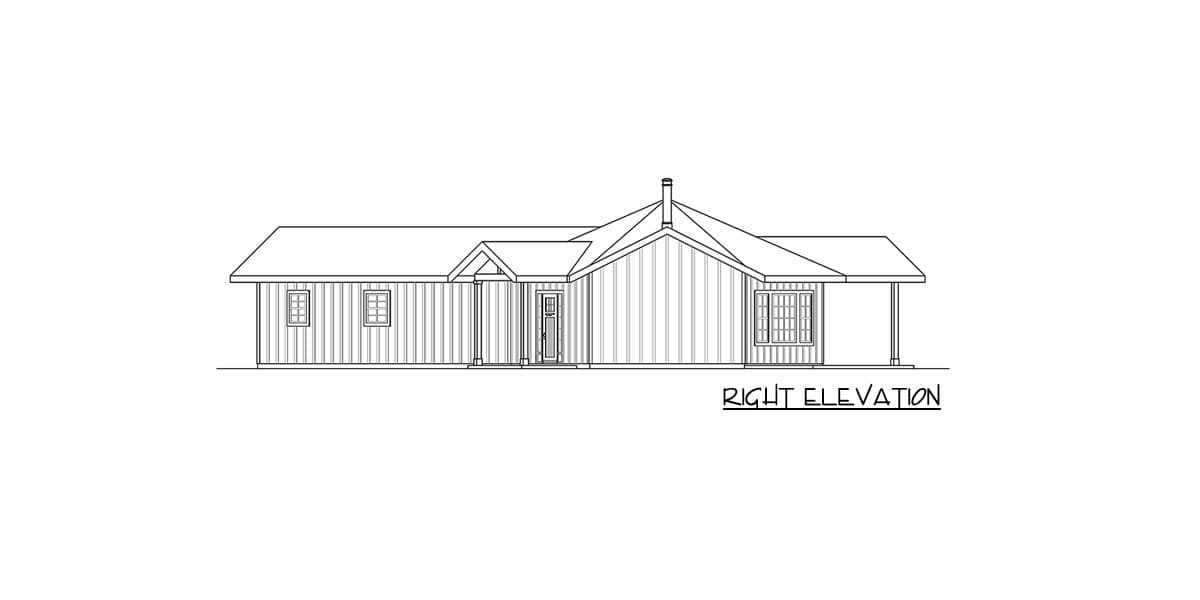

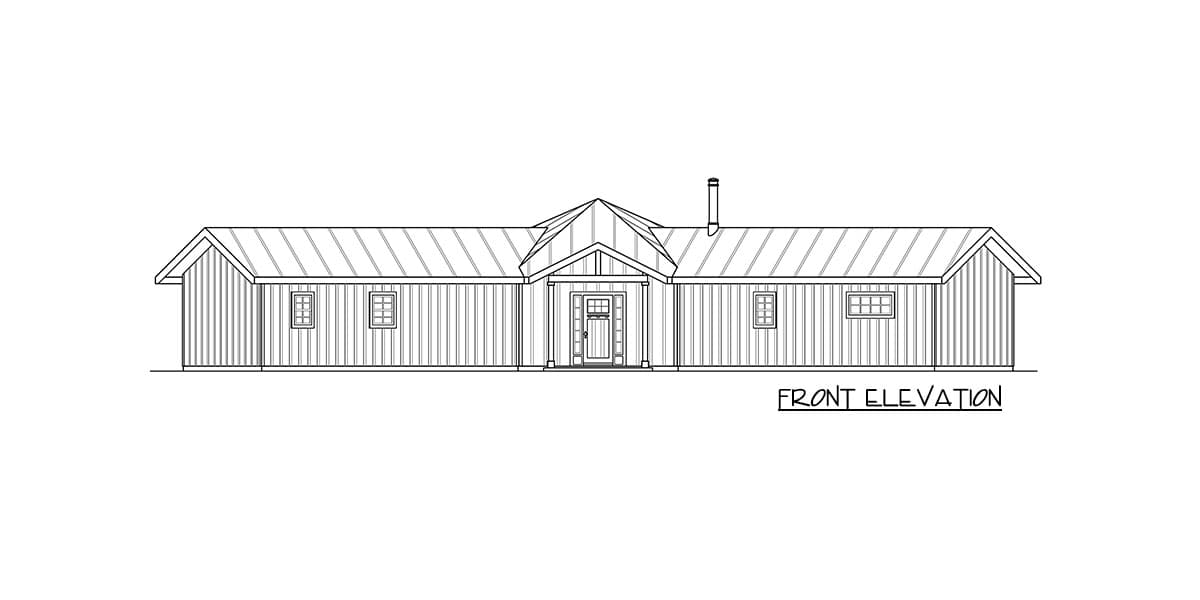

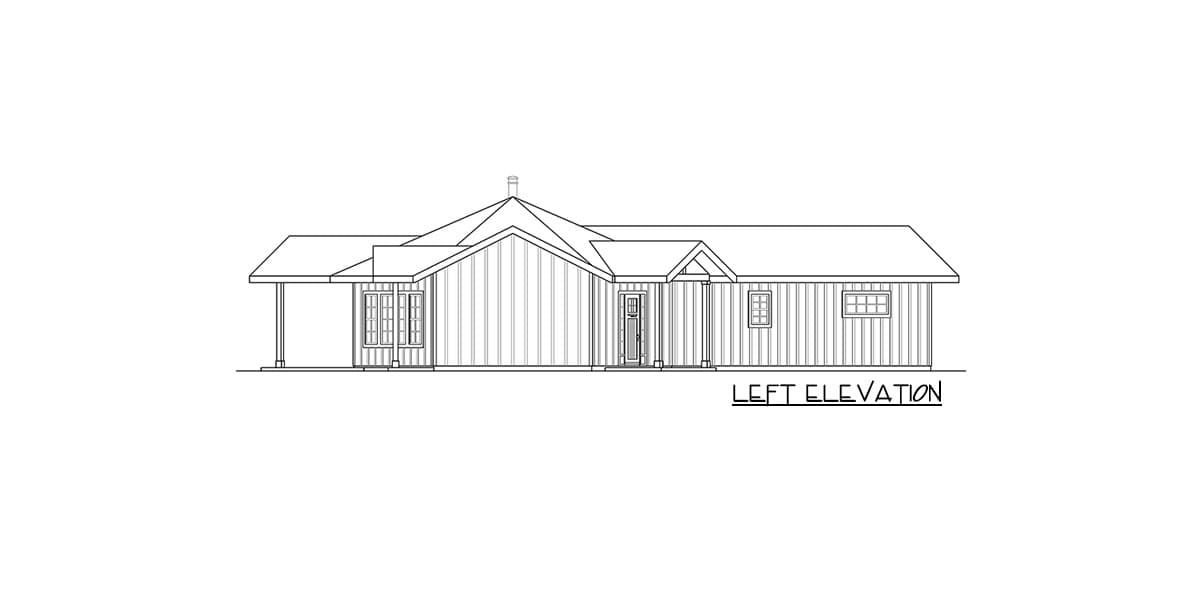

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,625 sq. ft.

1st Floor

1,625 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

84' 0"

Depth

52' 9"

Max Ridge Height

17' 6"

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mountain

Vacation

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,625 sq. ft.

1st Floor

1,625 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

84' 0"

Depth

52' 9"

Max Ridge Height

17' 6"

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mountain

Vacation

Special Features

Bedrooms - Split

Master Suite - 1st Floor
