Vaulted Master and Great Room

Plan 89829AH

  • 2,746

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 3 bedroom house plan has most of the living on the the upper level leaving the downstairs for cars, family room fun and storage.
  • Porches in front and back on the upper floor increase your living options.
  • The great room has a vaulted ceiling giving you a great space to enjoy.
  • The dining room is open to the kitchen and dining room and the porch gives you a convenient spot for al fresco dining.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.

Plans include the following:

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Vaulted Master and Great Room - 89829AH floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

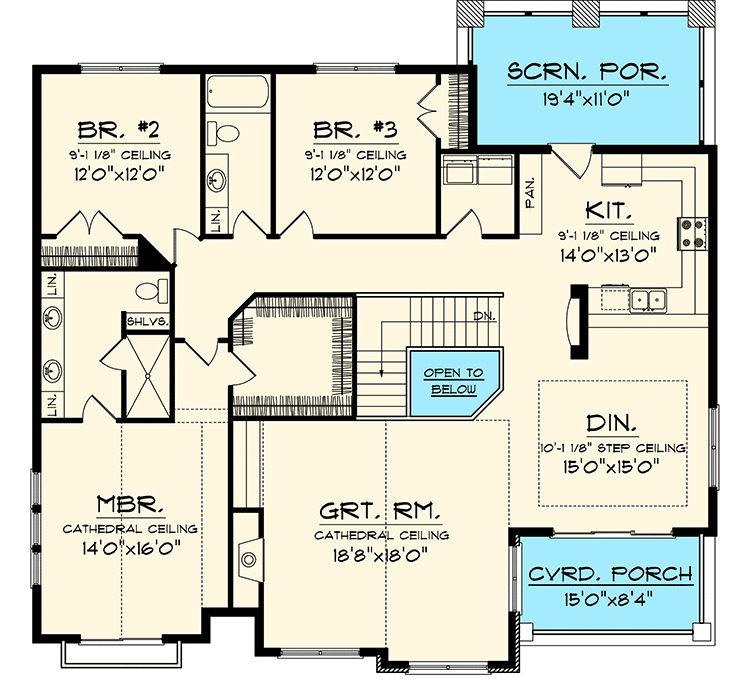

Vaulted Master and Great Room - 89829AH floor plan - 2nd Floor

Architectural Style

Vaulted Master and Great Room

  • 2,746

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,746 sq. ft.
  • 1st Floor: 852 sq. ft.
  • 2nd Floor: 1,894 sq. ft.

Dimensions

  • Width: 51' 0"
  • Depth: 50' 0"
  • Max ridge height: 37' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 1020 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
