Vaulted Master and Great Room

Heated S.F.
2,746
Beds
3
Baths
3
Stories
2
Cars
3

Floor Plan

Plan 89829AH

Main Level
Main Level
2nd Floor
2nd Floor

Plan 89829AH

M-F 9am-5pm EST |

1-203-761-8500

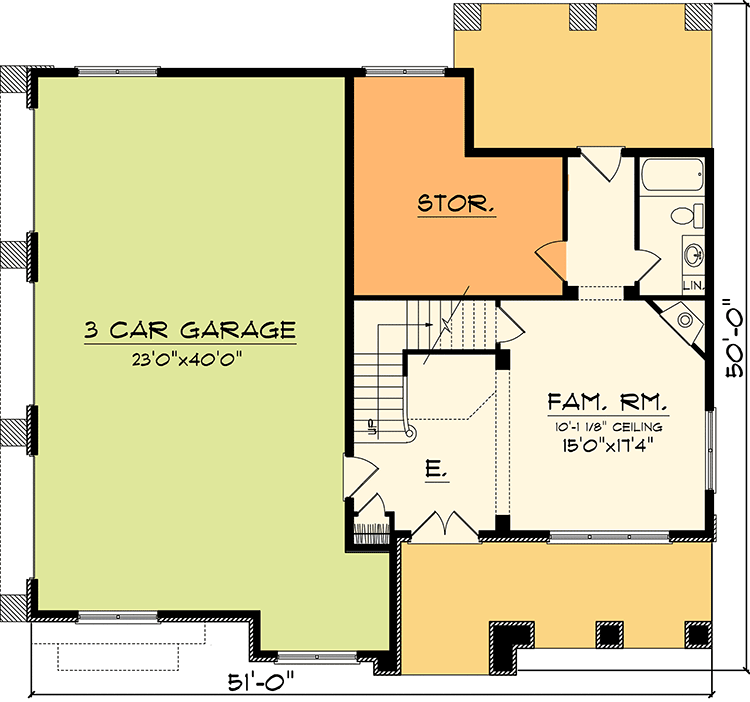

Main Level

Plan 89829AH: Vaulted Master and Great Room - Floor Plan - Main Level - Craftsman, Northwest

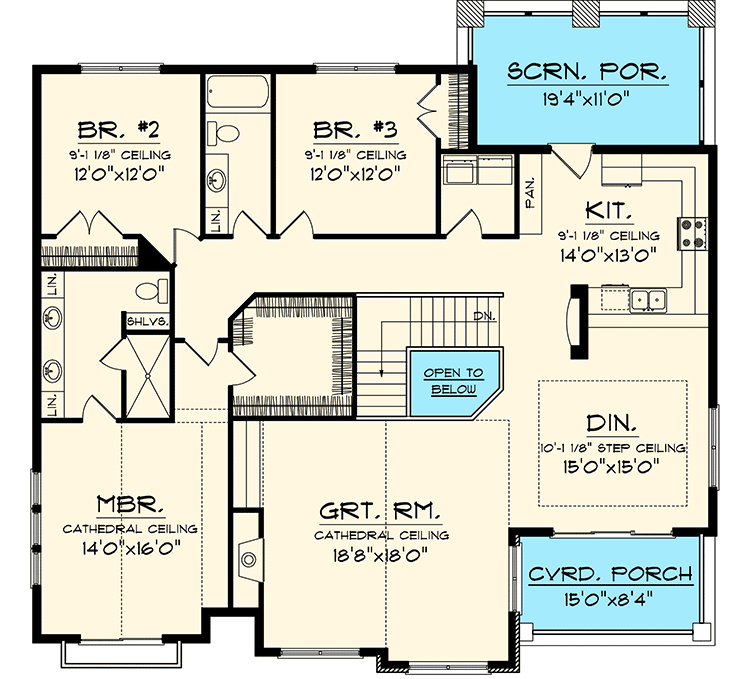

2nd Floor

Plan 89829AH: Vaulted Master and Great Room - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

  • This 3 bedroom house plan has most of the living on the the upper level leaving the downstairs for cars, family room fun and storage.
  • Porches in front and back on the upper floor increase your living options.
  • The great room has a vaulted ceiling giving you a great space to enjoy.
  • The dining room is open to the kitchen and dining room and the porch gives you a convenient spot for al fresco dining.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.

What's Included

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,746 sq. ft.

1st Floor

852 sq. ft.

2nd Floor

1,894 sq. ft.

Screened Porch

212 sq. ft.

Covered Patio

125 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

51' 0"

Depth

50' 0"

Max Ridge Height

37' 0"

Garage

Type

Attached

Area

1020 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Laundry - Main Level

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

2,746 sq. ft.

1st Floor

852 sq. ft.

2nd Floor

1,894 sq. ft.

Screened Porch

212 sq. ft.

Covered Patio

125 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

51' 0"

Depth

50' 0"

Max Ridge Height

37' 0"

Garage

Type

Attached

Area

1020 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Laundry - Main Level

Master Suite - Upstairs
