Plan 680025VR
Vaulted Ranch with Lower Level Expansion and Drive-Under Garage
Heated S.F.
1,792
Beds
3-5
Baths
2
Stories
1
Cars
1

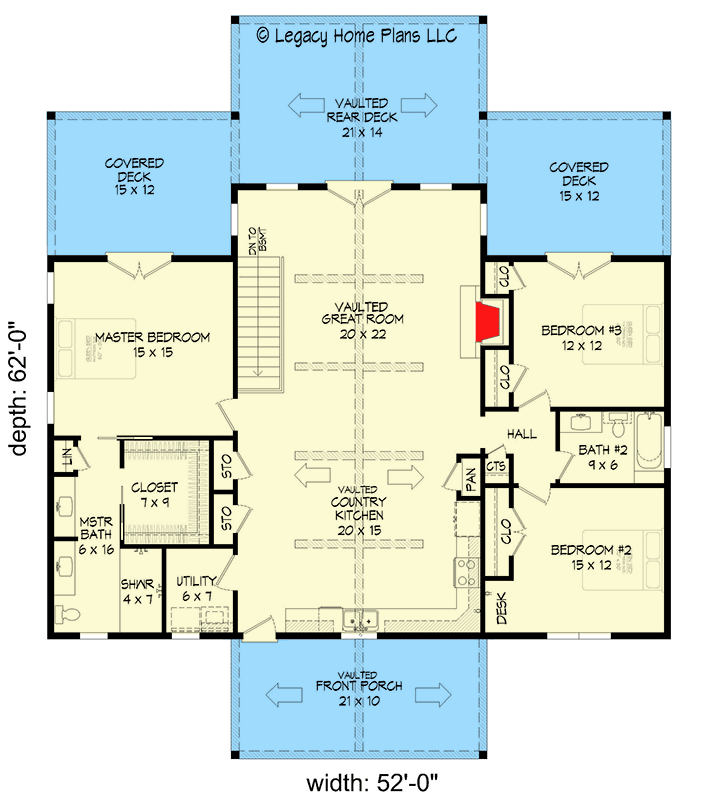

Floor Plan

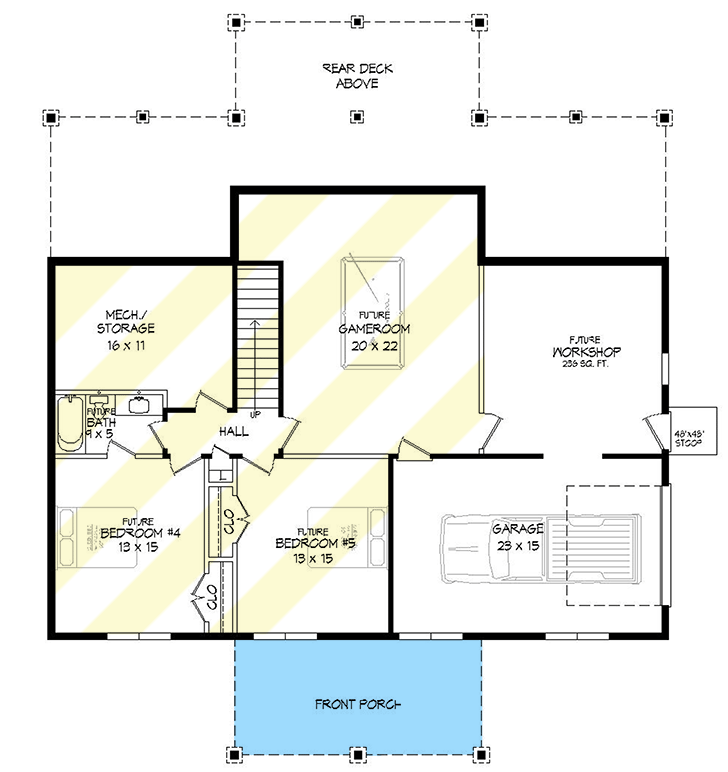

Optional Lower Level
Reverse Floor Plan
Vaulted Ranch with Lower Level Expansion and Drive-Under Garage - 680025VR floor plan - Optional Lower Level
Plan Details
  • This vaulted ranch home plan offers three bedrooms on the main floor and has two more in the optional finished lower level that comes with the plans. Note, the rendering shows the plan from the back.
  • A vaulted covered entry porch welcomes you inside with the vault continuing inside across the kitchen and great room.
  • The kitchen is located in front and is open to the vaulted great room. A pair of French doors on the back wall takes you to the rear porch which has a vaulted section in the center and two non-vaulted sections to either side.
  • The master bedroom has a large walk-in closet and private bath. Across the home, a second bedrooms has its own bath and convenient access to the laundry room.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
