Plan 17688LV
Vaulted Study And More
Heated S.F.
5,303
Beds
4-5
Baths
4.5
Stories
2
Cars
3
What's Included
Plan Details
  • With nothing above it, the front-facing study in this French Country home plan vaults upward.
  • Built-ins flank the fireplace in the large family room with its wall of windows to let in light.

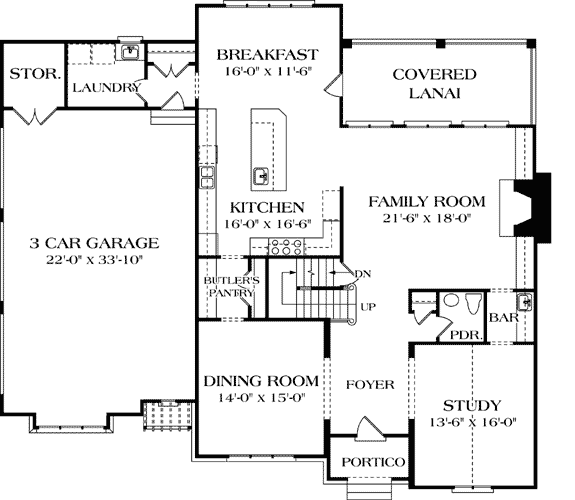

  • You will love all the counter space in the kitchen with its big center island. A door off the breakfast area keads to the covered lanai, a great place for a cup of coffee or a meal.

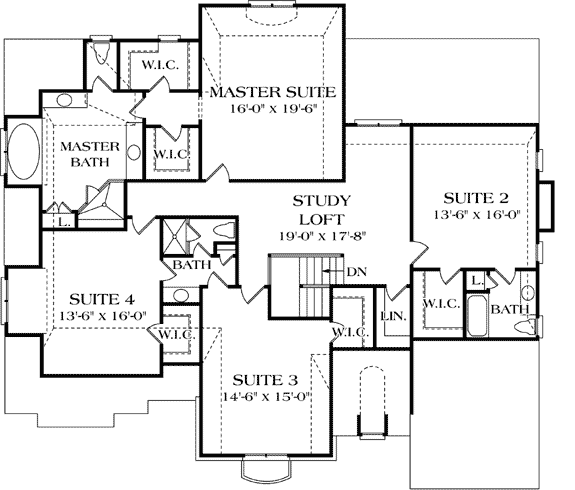

  • Four bedrooms reside on the upper level along with the study loft. Plenty of closet space can be found here with walk-ins in each bedroom.

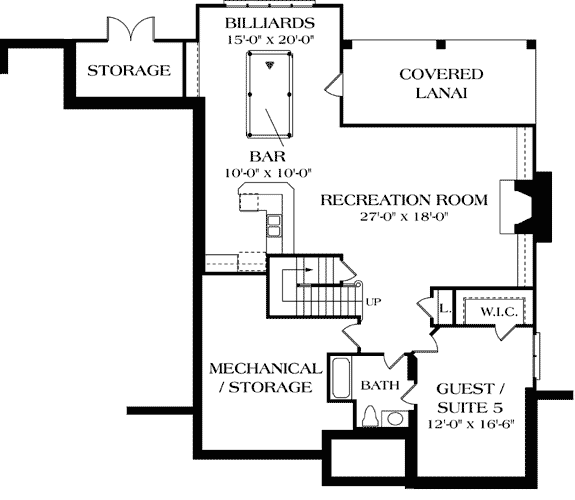

  • A finished lower level comes with the house plans and includes great recreation space and a potential fifth bedroom and storage. If your lot slopes gain access to another outdoor space.
What's Included
Each plan set includes the following:
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Vaulted Study And More

  • 5,303

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 5,303 sq. ft.
  • Lower Level: 1,414 sq. ft.
  • 1st Floor: 1,805 sq. ft.
  • 2nd Floor: 2,084 sq. ft.

Dimensions

  • Width: 62' 2"
  • Depth: 54' 0"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 840 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
