Plan 22194SL

Versatile 1-Bedroom Carriage House Plan with 2-Car Garage Space

Heated S.F.
511
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 22194SL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 22194SL

M-F 9am-5pm EST |

1-203-761-8500

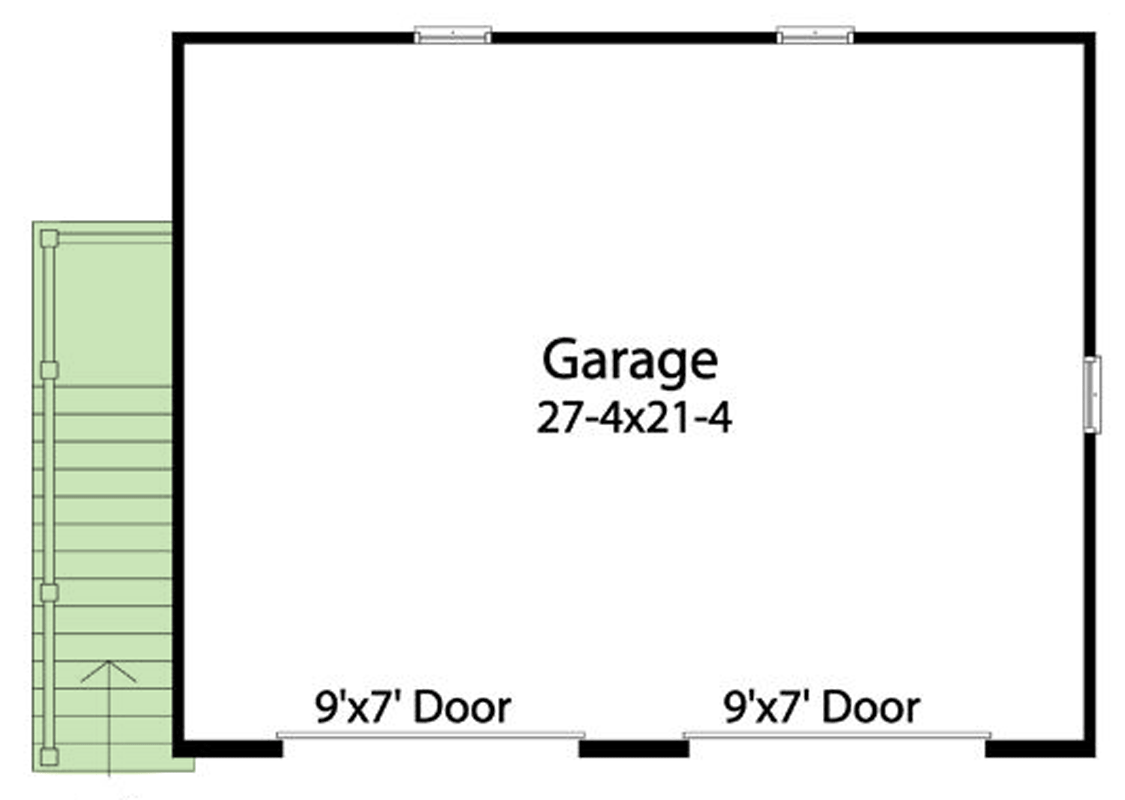

Main Level

Plan 22194SL: Versatile 1-Bedroom Carriage House Plan with 2-Car Garage Space - Floor Plan - Main Level

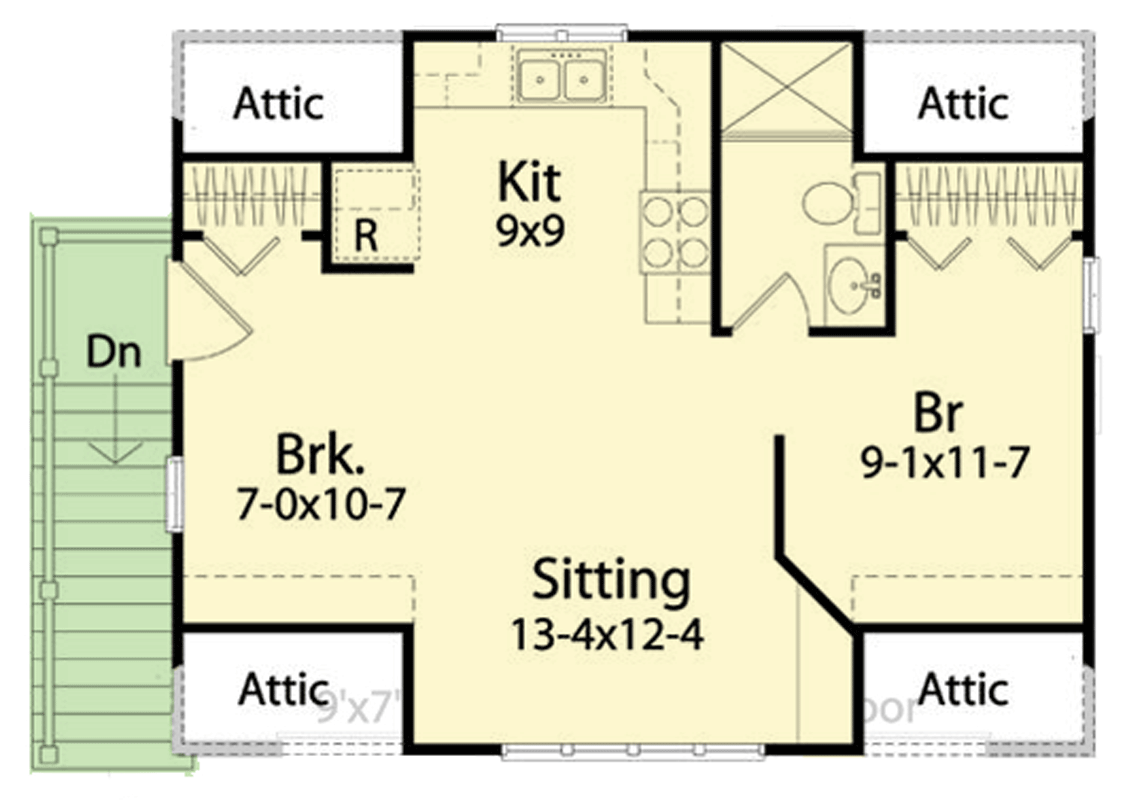

2nd Floor

Plan 22194SL: Versatile 1-Bedroom Carriage House Plan with 2-Car Garage Space - Floor Plan - 2nd Floor

Plan Details

  • This charming carriage house plan offers 511 finished sq ft of upstairs living, featuring 1 bedroom, 1 bath, and a spacious 2-car front-entry garage below.
  • Access the private upstairs apartment via an exterior staircase, leading to a functional layout perfect for a guest suite or rental.
  • The upstairs living space includes a cozy breakfast nook and integrated laundry, creating a self-sufficient and comfortable environment.
  • The primary suite, conveniently located upstairs, provides a private retreat with easy access to all amenities within the apartment.
  • An external staircase leads to a private entry landing, offering a charming welcome to the upstairs living quarters.

What's Included

  • Foundation plan
  • Fully dimensioned floor plans
  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

511 sq. ft.

2nd Floor

511 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 0"

Depth

22' 0"

Max Ridge Height

23' 6"

Garage

Type

Detached

Area

616 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Special Features

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

511 sq. ft.

2nd Floor

511 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 0"

Depth

22' 0"

Max Ridge Height

23' 6"

Garage

Type

Detached

Area

616 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Special Features

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs
