Plan 940010JNK

Versatile 3-4 Bed Ranch House Plan with Craftsman Charm and Covered Porches

Heated S.F.
1,506
Beds
3 - 4
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 940010JNK

Main Level
Main Level
Main Level - Alternate Configuration
Main Level - Alternate Configuration

Plan 940010JNK

M-F 9am-5pm EST |

1-203-761-8500

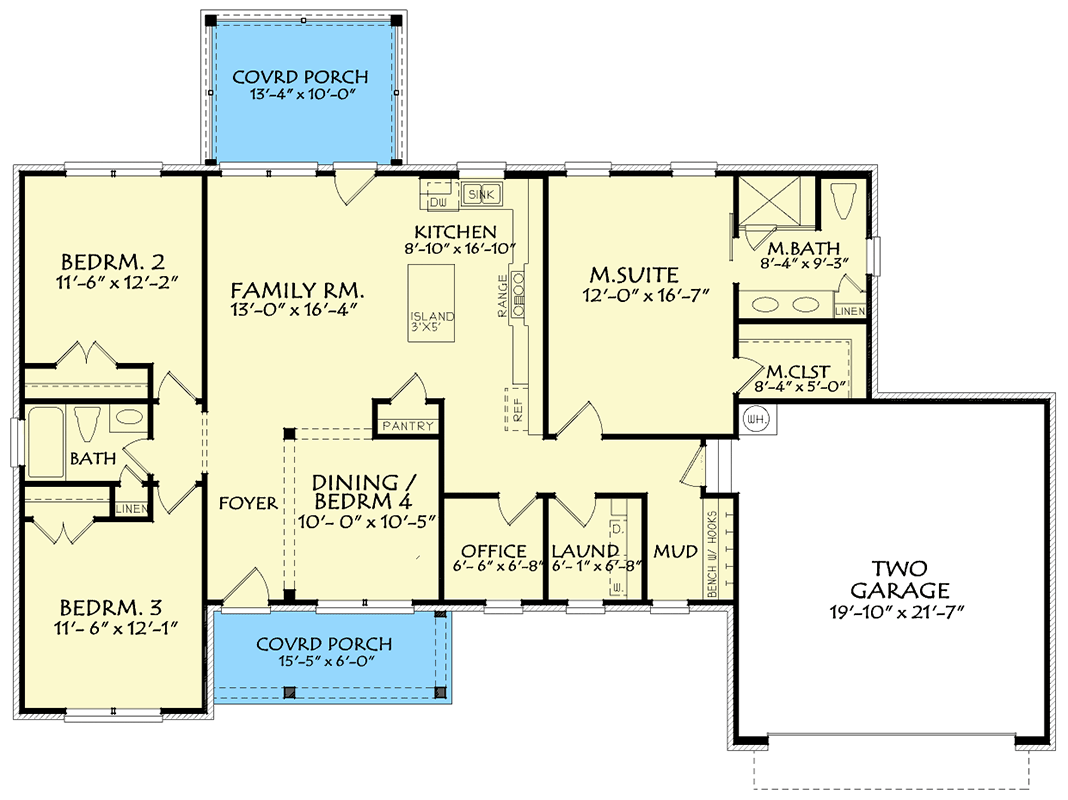

Main Level

Plan 940010JNK: Versatile 3-4 Bed Ranch House Plan with Craftsman Charm and Covered Porches - Floor Plan - Main Level - Country, Craftsman, Modern Farmhouse, Ranch, Traditional

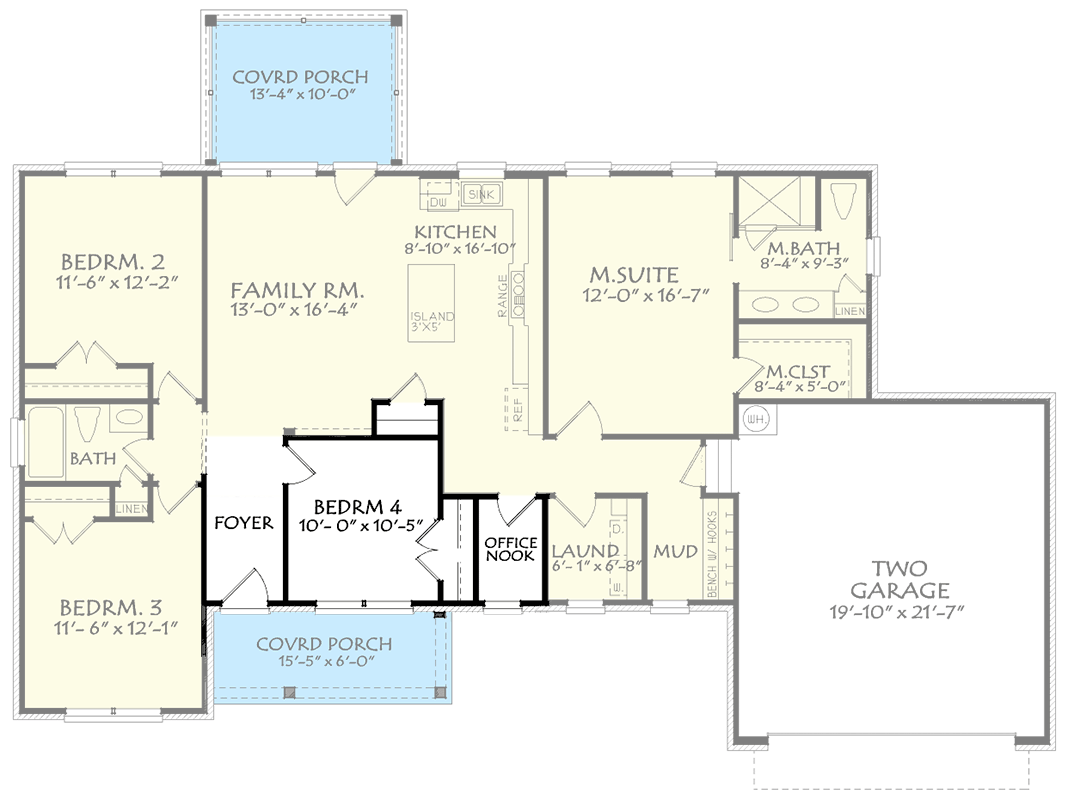

Main Level - Alternate Configuration

Plan 940010JNK: Versatile 3-4 Bed Ranch House Plan with Craftsman Charm and Covered Porches - Floor Plan - Main Level - Alternate Configuration - Country, Craftsman, Modern Farmhouse, Ranch, Traditional

Plan Details

  • This inviting 1,506 sq. ft. Craftsman Ranch house plan features 3 or 4 flexible bedrooms, 2 full bathrooms, and a spacious 455 sq. ft. two-car front-entry garage, all wrapped in a charming New American exterior.
  • Step inside the welcoming foyer, which opens directly into the expansive family room, creating an immediate sense of open-concept living, complemented by a dedicated home office discreetly placed for productivity.
  • The central family room flows seamlessly into the dining area, which offers the flexibility to serve as a formal dining space or a fourth bedroom, while the adjacent kitchen boasts a functional island, ample counter space, and direct access to the rear covered porch for effortless indoor-outdoor dining.
  • The private master suite provides a serene retreat on one side of the home, complete with a luxurious master bath and generous walk-in closet, thoughtfully separated from the two additional bedrooms on the opposite side that share a full bath, ensuring privacy for all occupants.
  • Enjoy the outdoors from two distinct covered porches: a welcoming front porch perfect for greeting guests and a spacious rear porch ideal for morning coffee or evening relaxation.

What's Included

  • Covered Sheet
  • Front & Rear elevations - 1/4" scale - hatched w/ materials
  • Right & Left elevations - 1/4" scale - hatched w/ materials
  • Roof Over view Plan Foundation Plan
  • Floor plans - w/ Kitchen & Bath elevations
  • Sections, stair sections, typical wall section details, and miscellaneous details
  • Separate electrical plans
  • Typical Detail sheet

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,506 sq. ft.

1st Floor

1,506 sq. ft.

Porch, Front

93 sq. ft.

Porch, Rear

133 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

66' 6"

Depth

37' 0"

Max Ridge Height

16' 5"

Garage

Type

Standard, Attached

Area

455 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

5 on 12

Architectural Style

Country

Craftsman

Modern Farmhouse

Ranch

Traditional

Special Features

Bedrooms - Split

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,506 sq. ft.

1st Floor

1,506 sq. ft.

Porch, Front

93 sq. ft.

Porch, Rear

133 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

66' 6"

Depth

37' 0"

Max Ridge Height

16' 5"

Garage

Type

Standard, Attached

Area

455 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

5 on 12

Architectural Style

Country

Craftsman

Modern Farmhouse

Ranch

Traditional

Special Features

Bedrooms - Split

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
