Versatile 3300 Square Foot Lake Home Plan with 4 Bedrooms

Plan 680120VR

  • 3,312

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • This versatile lake house plan home plan is designed to take advantage of your views with outdoor spaces on the main and lower levels. The home gives you 3,312 square feet of heated living with 4 bedrooms and 3 baths and a 3-car garage.
  • Enter through French doors and the inside is vaulted through the entire home from the front to the back. A door on the back wall takes you to the rear porch which is vaulted as well.
  • Retreat to your master suite with its own private screened porch, a roomy walk-in closet, and a 4-piece bath. Across the home, Bed 2 has a bath just outside the room.
  • The walk-out basement gives you two bedroom suites, a large open space with access to the outdoors and room for mechanicals.
  • Related Plans: Get an alternate version with house plans 68928VR and a 2-bed version with house plan 68585VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

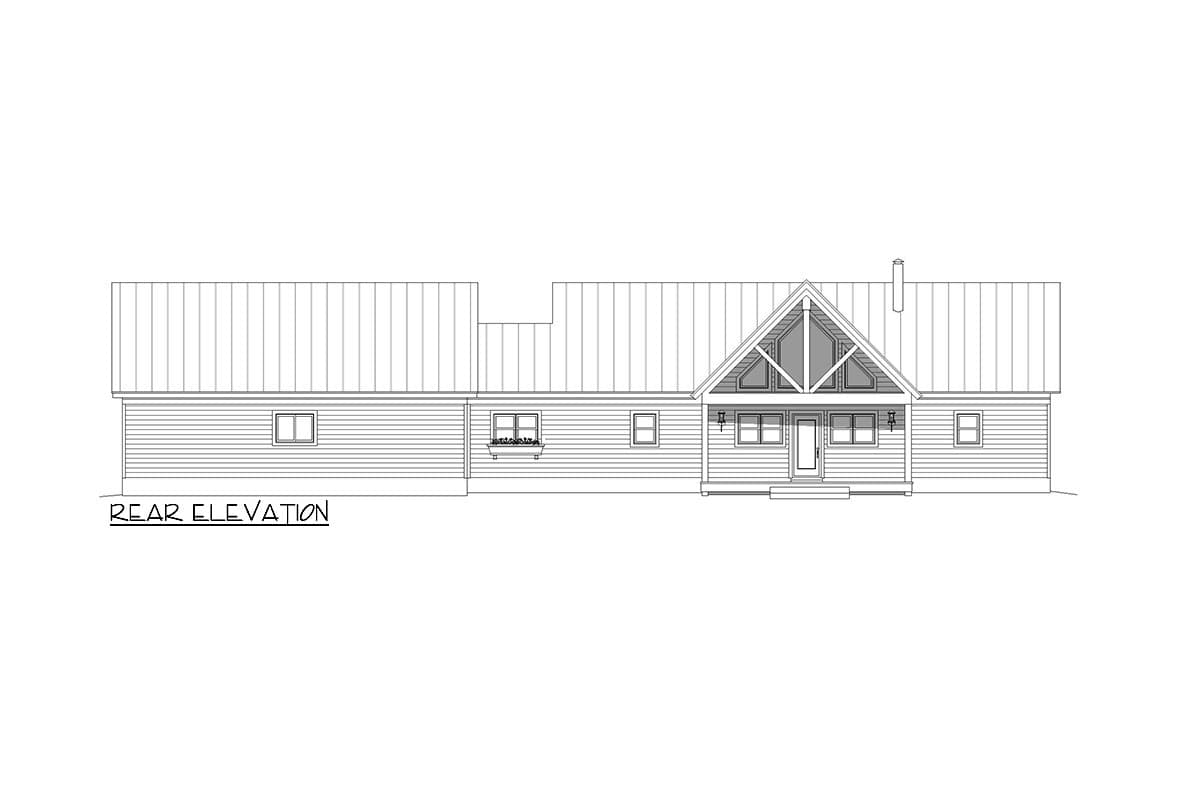

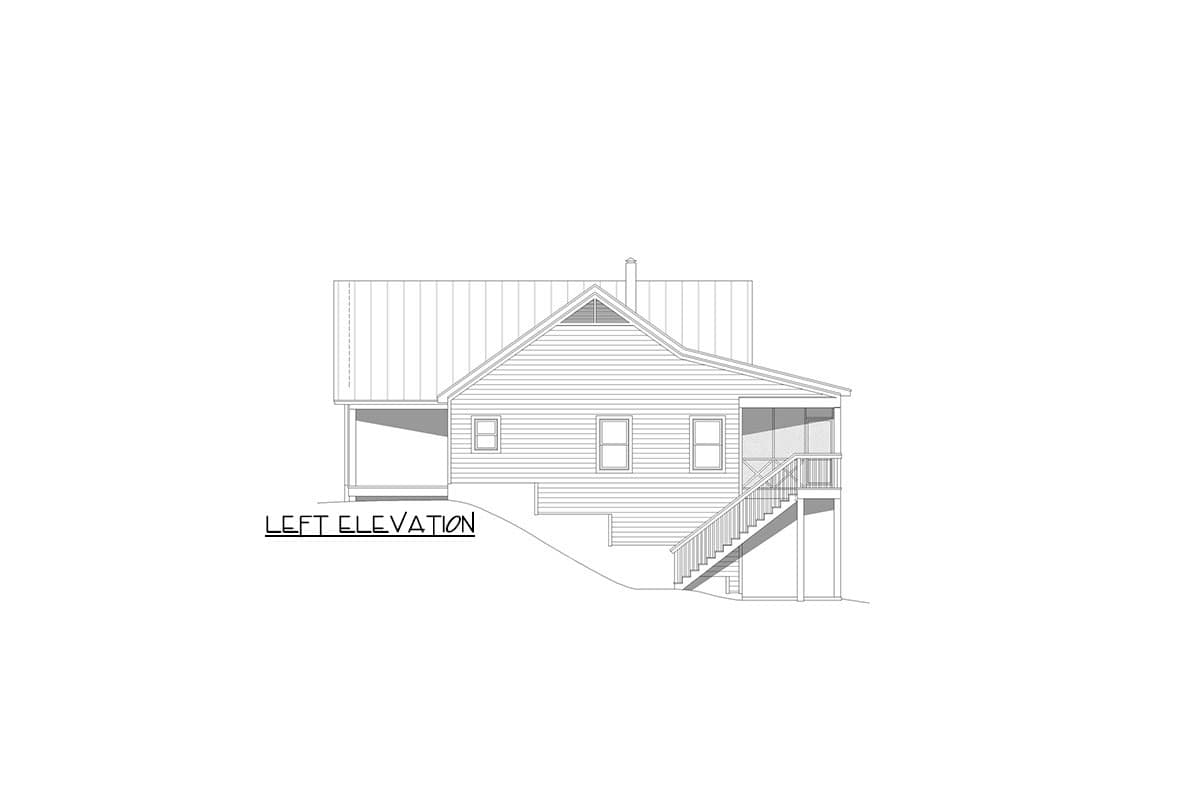

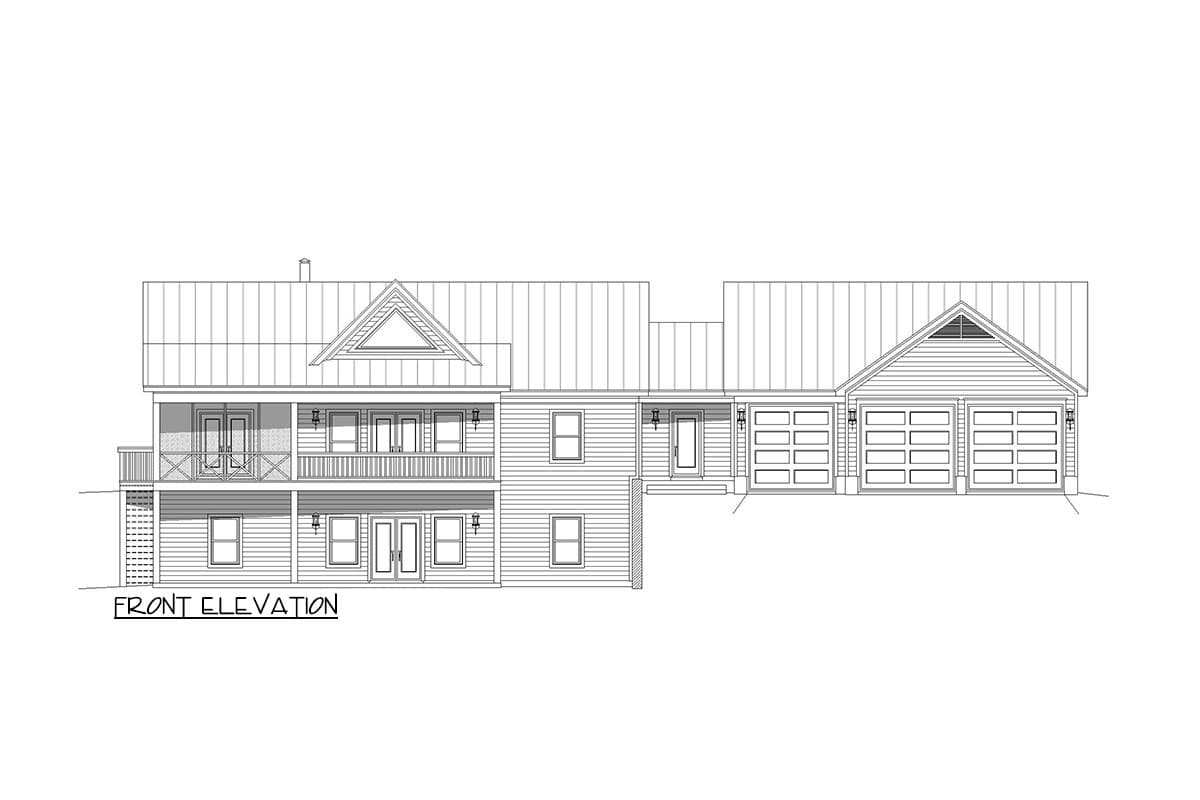

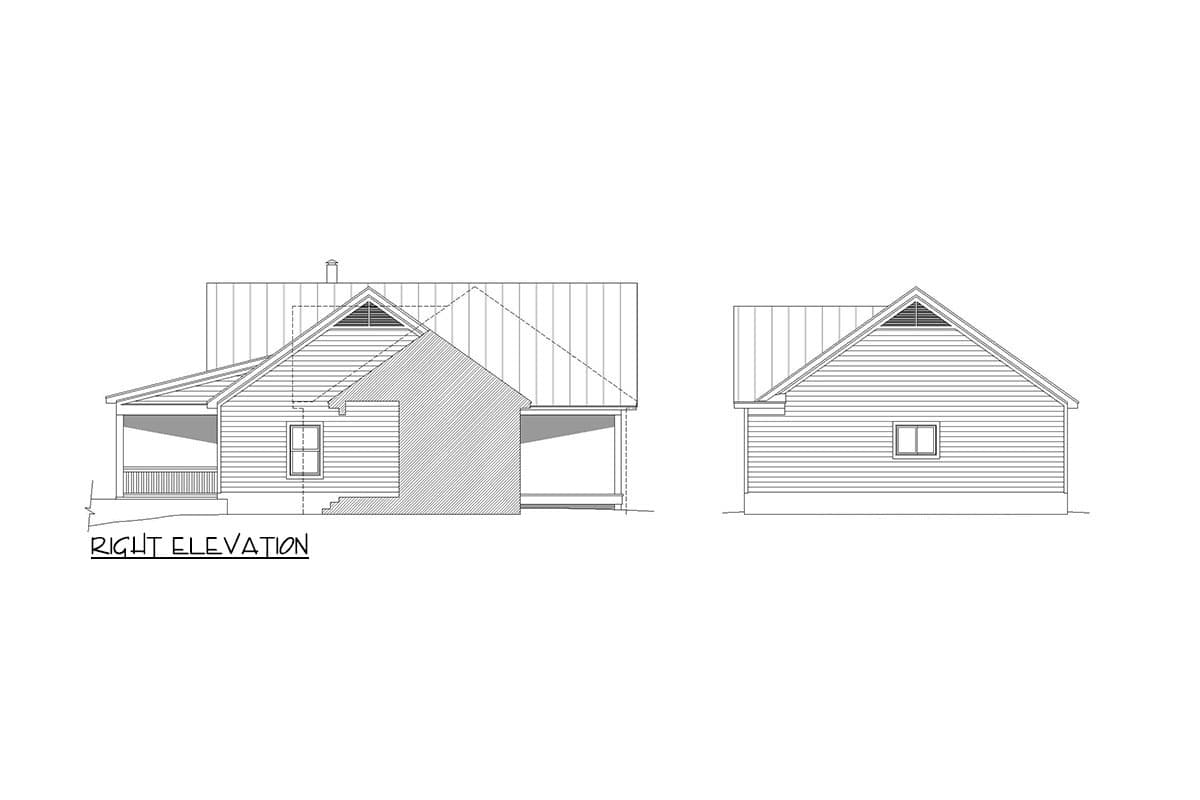

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

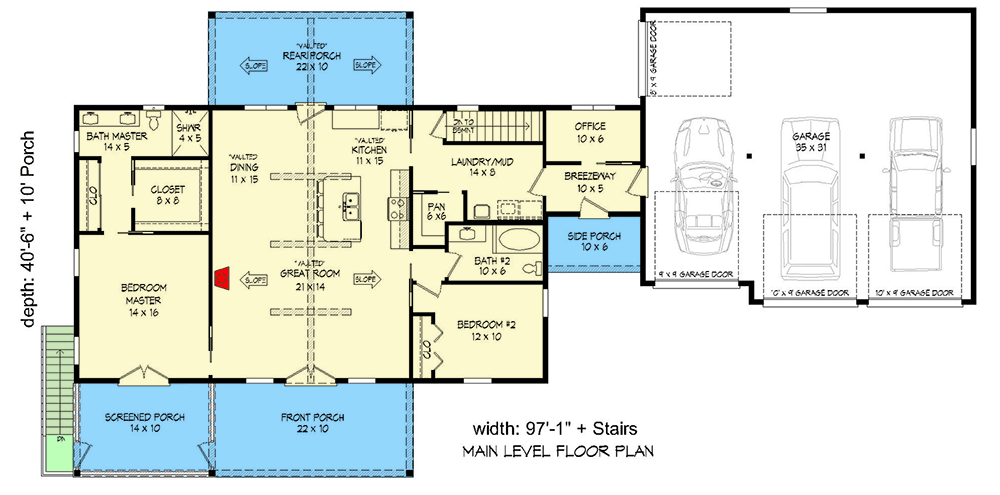

Versatile 3300 Square Foot Lake Home Plan with 4 Bedrooms - 680120VR floor plan - Main Level

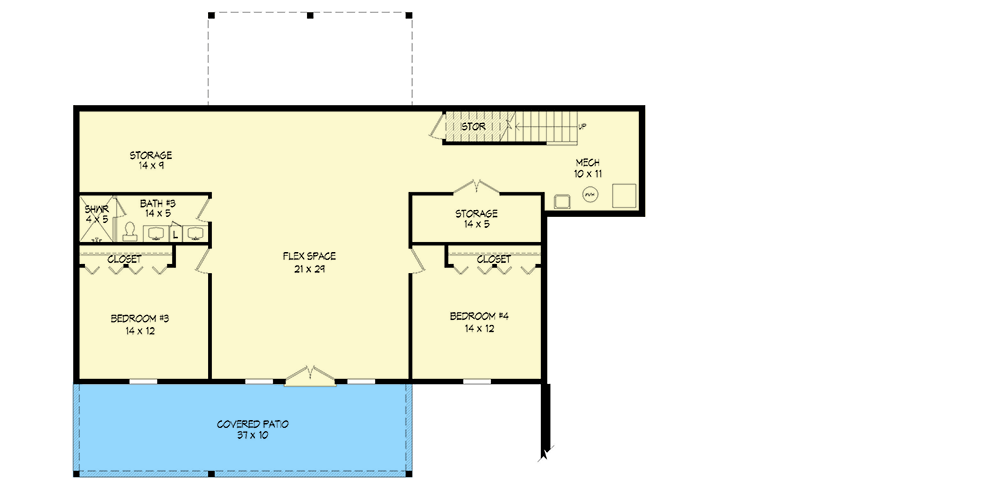

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Versatile 3300 Square Foot Lake Home Plan with 4 Bedrooms - 680120VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,312 sq. ft.
  • Lower Level: 1,656 sq. ft.
  • 1st Floor: 1,656 sq. ft.
  • Screened Porch: 152 sq. ft.
  • Porch, Rear: 220 sq. ft.
  • Porch, Front: 213 sq. ft.
  • Side Porch: 60 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Crawl, Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 97' 1"
  • Depth: 40' 6"
  • Max ridge height: 20' 9"

Garage

  • Type: Attached
  • Area: 1125 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8.5 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Versatile 3300 Square Foot Lake Home Plan with 4 Bedrooms

  • 3,312

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,075
  • 5 Sets $2,160
  • 5 Sets + PDF $2,324
  • CAD + PDF - Single-Build $2,625
  • View all purchase option online

About This Plan

  • This versatile lake house plan home plan is designed to take advantage of your views with outdoor spaces on the main and lower levels. The home gives you 3,312 square feet of heated living with 4 bedrooms and 3 baths and a 3-car garage.
  • Enter through French doors and the inside is vaulted through the entire home from the front to the back. A door on the back wall takes you to the rear porch which is vaulted as well.
  • Retreat to your master suite with its own private screened porch, a roomy walk-in closet, and a 4-piece bath. Across the home, Bed 2 has a bath just outside the room.
  • The walk-out basement gives you two bedroom suites, a large open space with access to the outdoors and room for mechanicals.
  • Related Plans: Get an alternate version with house plans 68928VR and a 2-bed version with house plan 68585VR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,312 sq. ft.
  • Lower Level: 1,656 sq. ft.
  • 1st Floor: 1,656 sq. ft.
  • Screened Porch: 152 sq. ft.
  • Porch, Rear: 220 sq. ft.
  • Porch, Front: 213 sq. ft.
  • Side Porch: 60 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 97' 1"
  • Depth: 40' 6"
  • Max ridge height: 20' 9"

Garage

  • Type: Attached
  • Area: 1125 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"
