Mountain Ranch Home Plan with 3 Beds and a Rear Screened Porch and Deck

Plan 68928VR

  • 2,719

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • This versatile mountain ranch home plan features a dramatic metal roof, full-length covered porch in front plus a screened and a deck in back, and a 2-car garage.
  • Through the vaulted front entry, discover a spacious vaulted kitchen with ample seating and a versatile great room. French doors in back open to the covered deck.
  • Retreat to your master suite with its own private screened porch, a roomy walk-in closet, and a 5-piece bath.
  • The walk-out basement gives you a bedroom suite, a large open space with access to the back porch and storage.
  • Related Plans: Get an alternate version with house plans 68927VR and 680120VR. Get a 2-bed version with house plan 68585VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

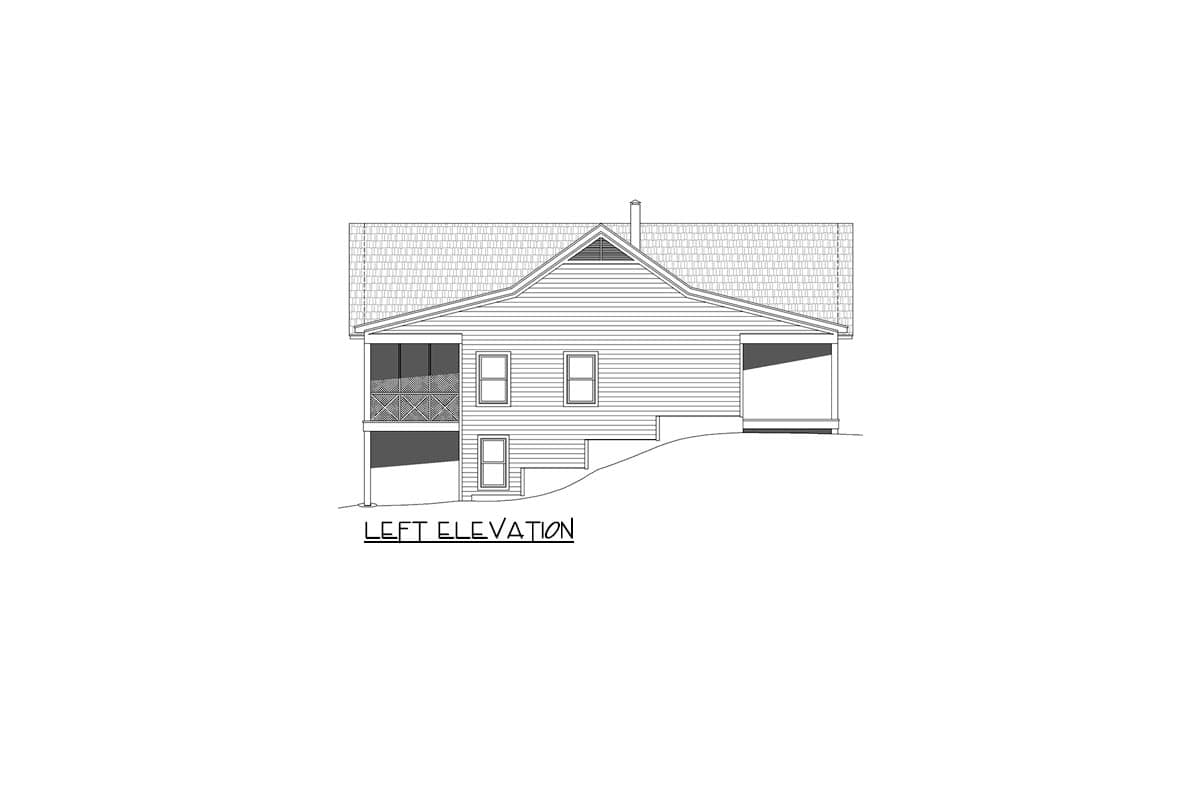

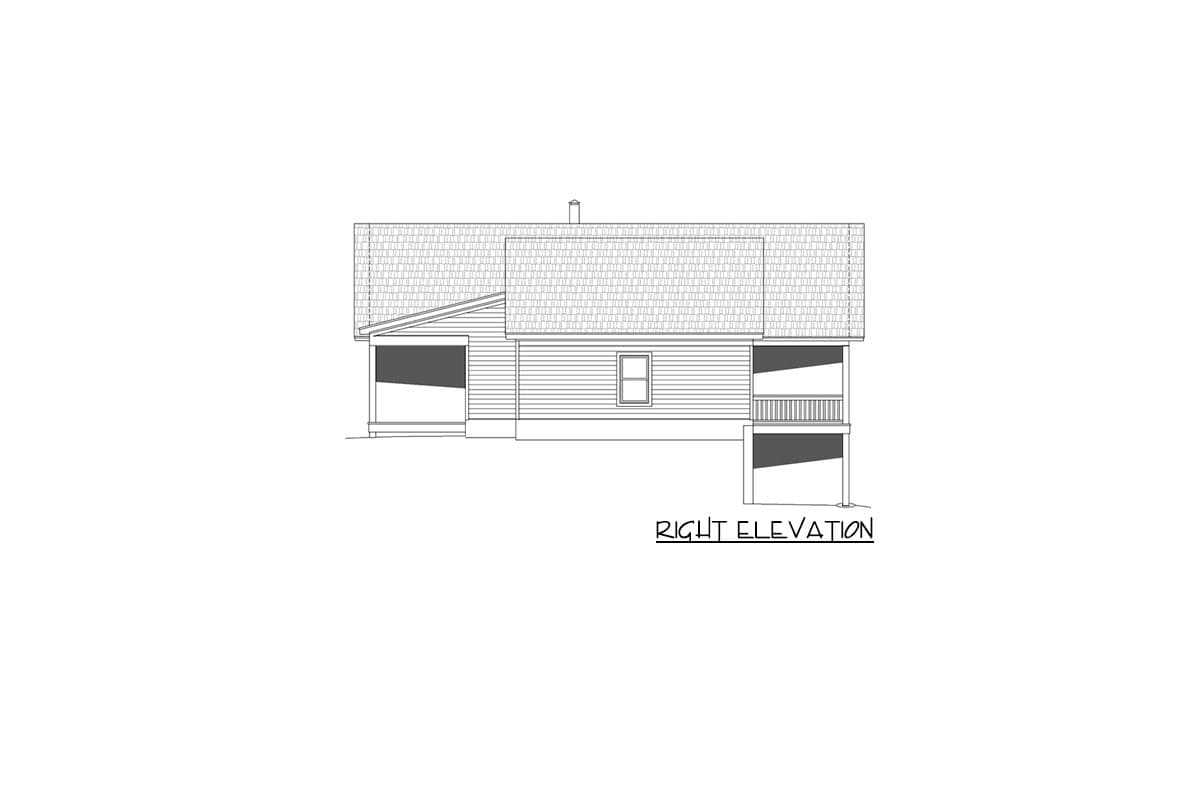

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

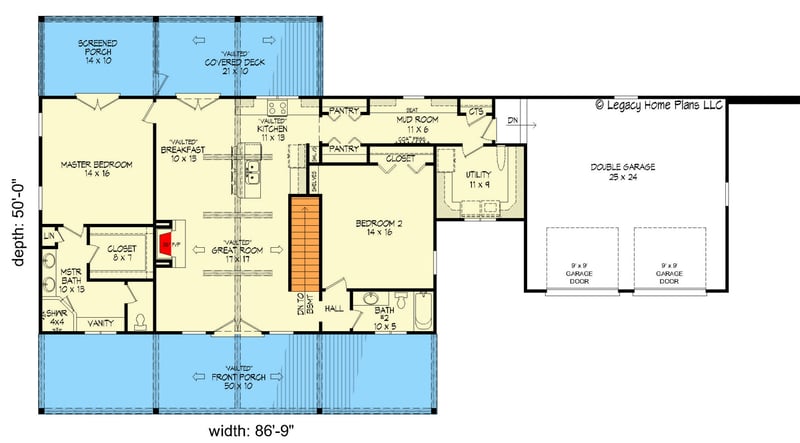

Mountain Ranch Home Plan with 3 Beds and a Rear Screened Porch and Deck - 68928VR floor plan - Main Level

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

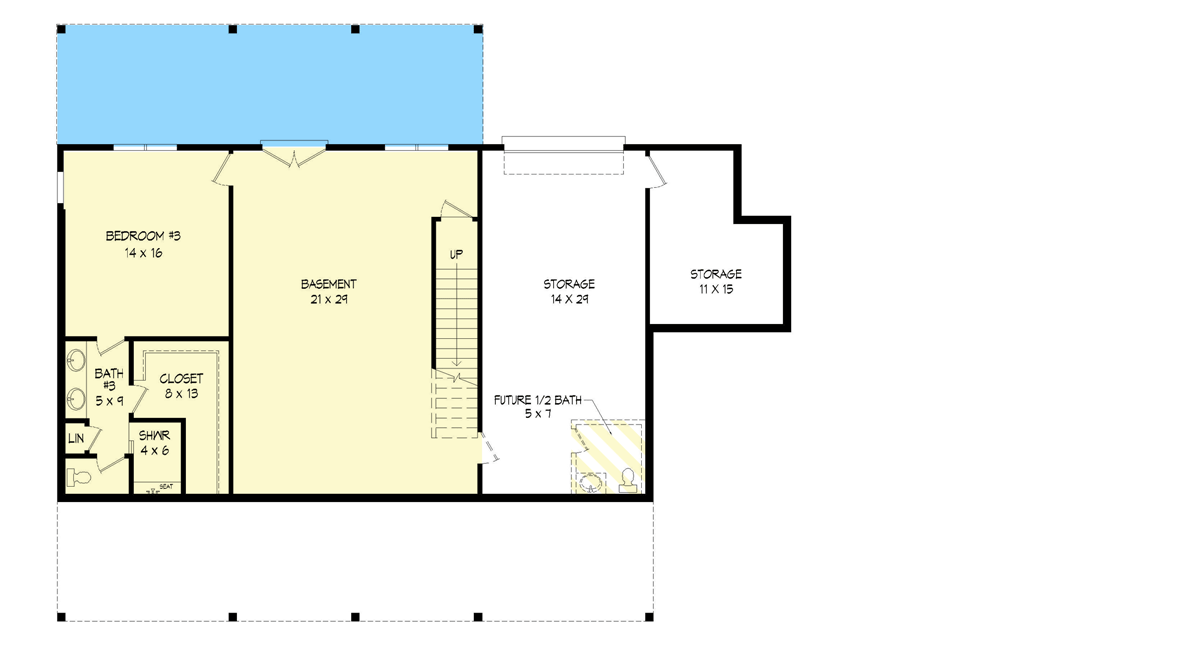

Mountain Ranch Home Plan with 3 Beds and a Rear Screened Porch and Deck - 68928VR floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,719 sq. ft.
  • 1st Floor: 1,650 sq. ft.
  • 2nd Floor: 1,069 sq. ft.
  • Screened Porch: 150 sq. ft.
  • Porch, Rear: 206 sq. ft.
  • Porch, Front: 500 sq. ft.
  • Basement Unfinished: 588 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 86' 9"
  • Depth: 50' 0"
  • Max ridge height: 20' 5"

Garage

  • Type: Attached
  • Area: 611 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8.5 on 12
  • Secondary Pitch: 12 on 12

Architectural Style

Special features

Mountain Ranch Home Plan with 3 Beds and a Rear Screened Porch and Deck

  • 2,719

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,475
  • 5 Sets $1,560
  • 5 Sets + PDF $1,702
  • CAD + PDF - Single-Build $2,025
  • View all purchase option online

About This Plan

  • This versatile mountain ranch home plan features a dramatic metal roof, full-length covered porch in front plus a screened and a deck in back, and a 2-car garage.
  • Through the vaulted front entry, discover a spacious vaulted kitchen with ample seating and a versatile great room. French doors in back open to the covered deck.
  • Retreat to your master suite with its own private screened porch, a roomy walk-in closet, and a 5-piece bath.
  • The walk-out basement gives you a bedroom suite, a large open space with access to the back porch and storage.
  • Related Plans: Get an alternate version with house plans 68927VR and 680120VR. Get a 2-bed version with house plan 68585VR.

Floor Plans

  • Main Level

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,719 sq. ft.
  • 1st Floor: 1,650 sq. ft.
  • 2nd Floor: 1,069 sq. ft.
  • Screened Porch: 150 sq. ft.
  • Porch, Rear: 206 sq. ft.
  • Porch, Front: 500 sq. ft.
  • Basement Unfinished: 588 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 86' 9"
  • Depth: 50' 0"
  • Max ridge height: 20' 5"

Garage

  • Type: Attached
  • Area: 611 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8.5 on 12
  • Secondary Pitch: 12 on 12
