Plan 66038WE
Versatile Design
Heated S.F.
3,137
Beds
3
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 66038WE

Main Level
slide image 0
2nd Floor
slide image 1

Plan 66038WE

1-800-854-7852

1-262-521-4596

Main Level

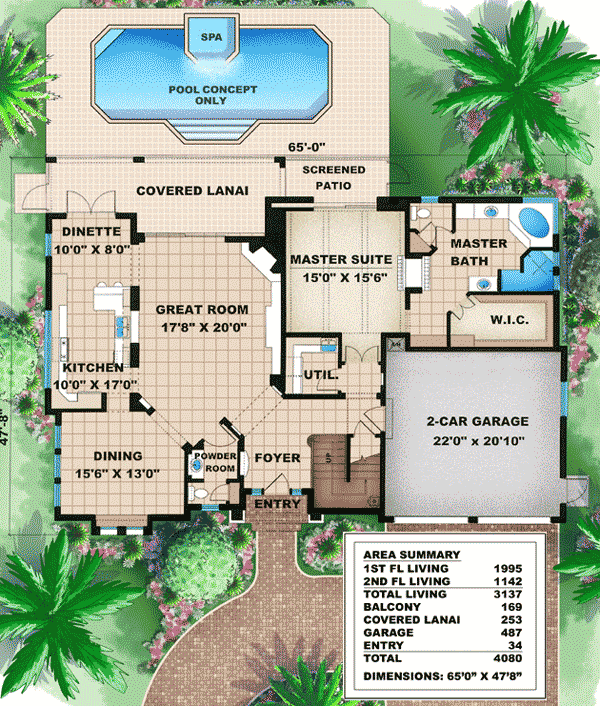

floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • You will love the versatility of this home plan. The master suite has a two-way fireplace that gives you the perfect setting for those long soaks in the tub. There is also a private screen room off the master suite for late night talks or early morning coffee.
  • The utility room is very close to the master so laundry is a breeze.
  • The kitchen is galley style so there is plenty of room for two cooks.
  • Upstairs both bedrooms have private balconies. Bedroom 2 with the living/rec room attached can easily convert from a game room to an in-law suit, so they will have lots of privacy but still be close to home.
  • The cupola is purely decorative and the ridge height of 31'2" does not include this feature.
What's Included
Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,137 sq. ft.

1st Floor

1,995 sq. ft.

2nd Floor

1,142 sq. ft.

Entry

34 sq. ft.

Balcony / Veranda

169 sq. ft.

Lanai

253 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

65' 0"

Depth

47' 8"

Max Ridge Height

31' 2"

Garage

Type

Attached

Area

487 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9' 4"

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

European

Mediterranean

Special Features

Breakfast Nook

Formal Dining

Game/Rec Room

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,137 sq. ft.

1st Floor

1,995 sq. ft.

2nd Floor

1,142 sq. ft.

Entry

34 sq. ft.

Balcony / Veranda

169 sq. ft.

Lanai

253 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

65' 0"

Depth

47' 8"

Max Ridge Height

31' 2"

Garage

Type

Attached

Area

487 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9' 4"

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

European

Mediterranean

Special Features

Breakfast Nook

Formal Dining

Game/Rec Room

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery
