Plan 680613VR

Versatile Detached 1-Car Garage House Plan with Loft and Balcony

Heated S.F.
0
Beds
0
Baths
0
Stories
2
Cars
1

Floor Plan

Plan 680613VR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 680613VR

M-F 9am-5pm EST |

1-203-761-8500

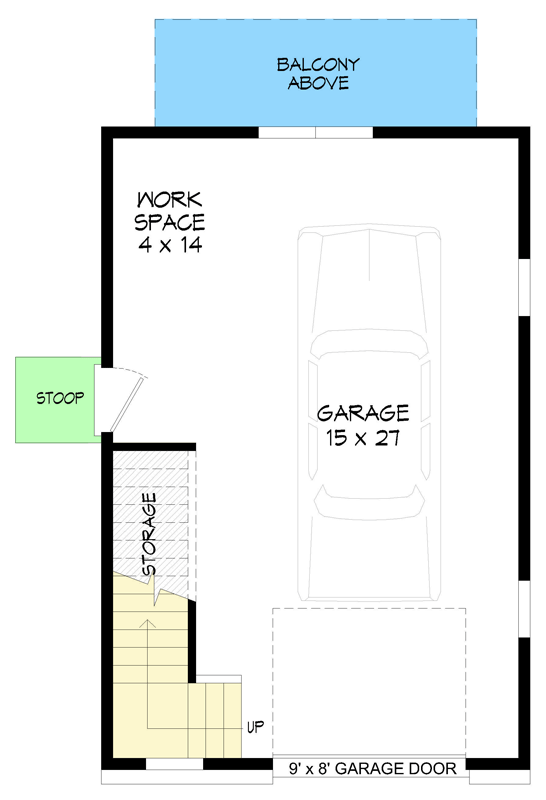

Main Level

Plan 680613VR: Versatile Detached 1-Car Garage House Plan with Loft and Balcony - Floor Plan - Main Level - Craftsman

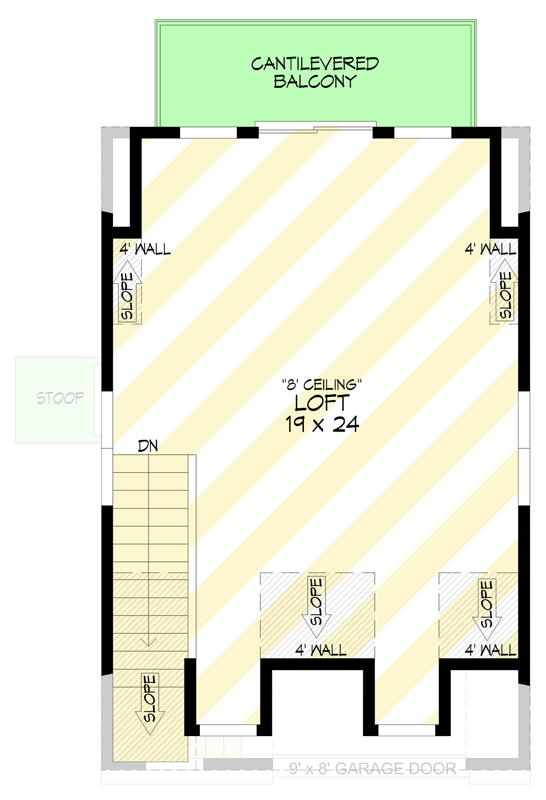

2nd Floor

Plan 680613VR: Versatile Detached 1-Car Garage House Plan with Loft and Balcony - Floor Plan - 2nd Floor - Craftsman

Plan Details

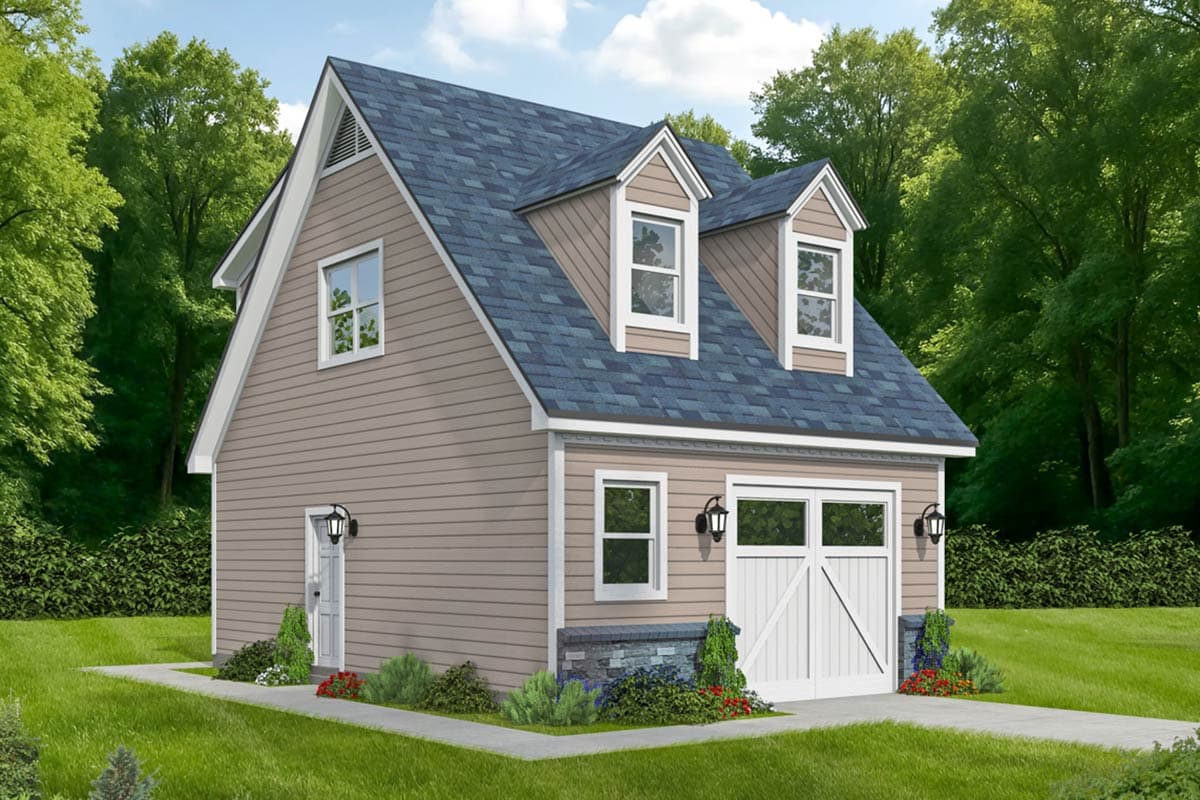

  • This charming Craftsman style detached garage plan features a generous 600 sq. ft. single-car garage, complemented by an expansive 530 sq. ft. loft, offering versatile additional space without traditional bedrooms.
  • Upon entering through the inviting side stoop, you are greeted by the practical main level, primarily dedicated to vehicle storage and a dedicated workspace, with a staircase leading directly to the upper loft.
  • The ground floor prioritizes functionality, housing a spacious 15' x 27' garage bay with a front-facing 9' x 8' door, along with a convenient 4' x 14' workspace perfect for projects or hobbies. Additional storage is cleverly integrated beneath the staircase.
  • Ascending to the second level reveals a substantial 19' x 24' loft, designed with an 8' ceiling and charming sloped walls, offering a flexible area ideal for an art studio, home gym, or quiet retreat, separate from the primary garage functions below.

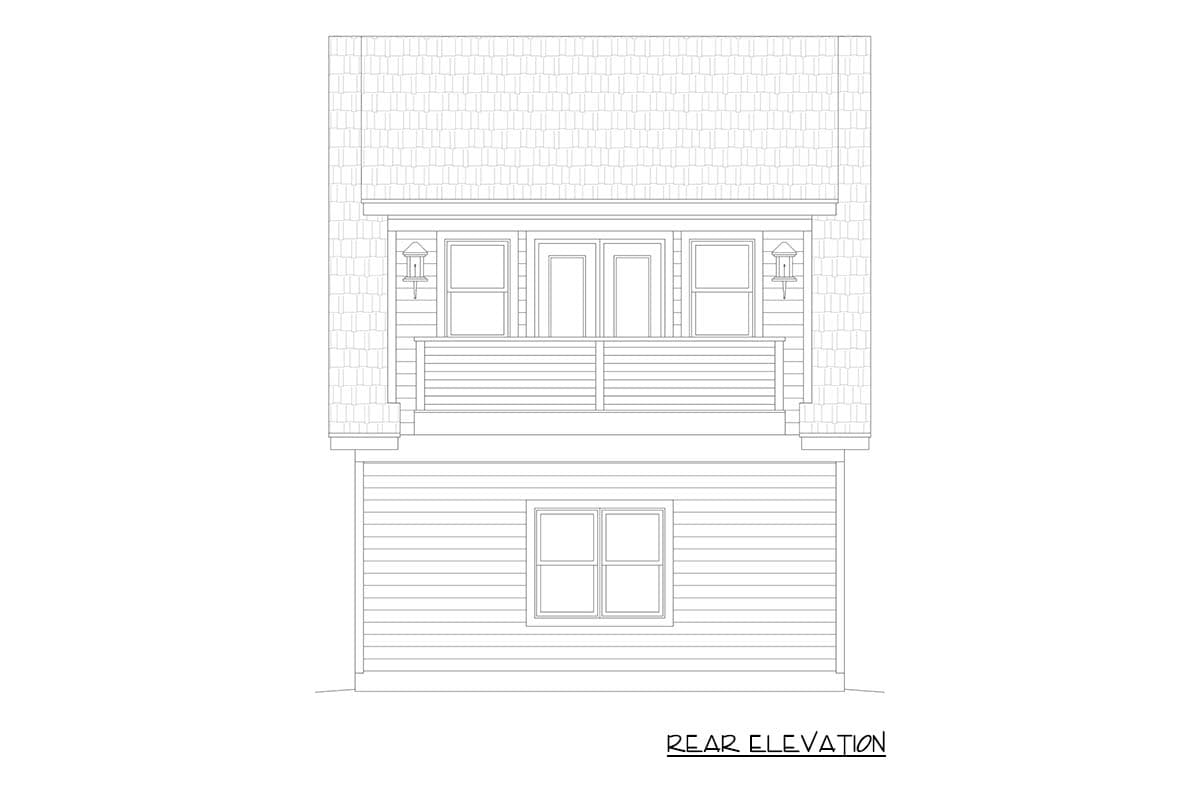

  • An inviting stoop provides a welcoming entry to the structure, while the upper level boasts a cantilevered balcony, perfect for enjoying fresh air and views, adding a delightful outdoor extension to the loft.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

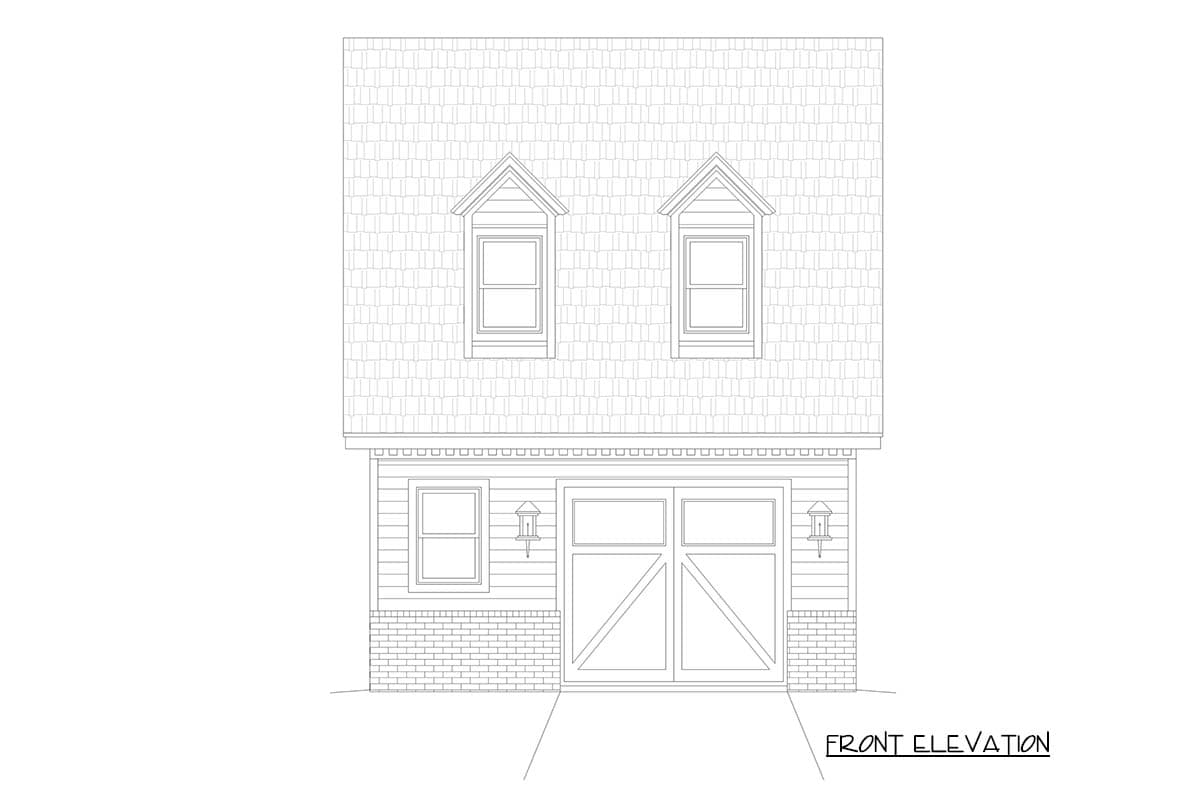

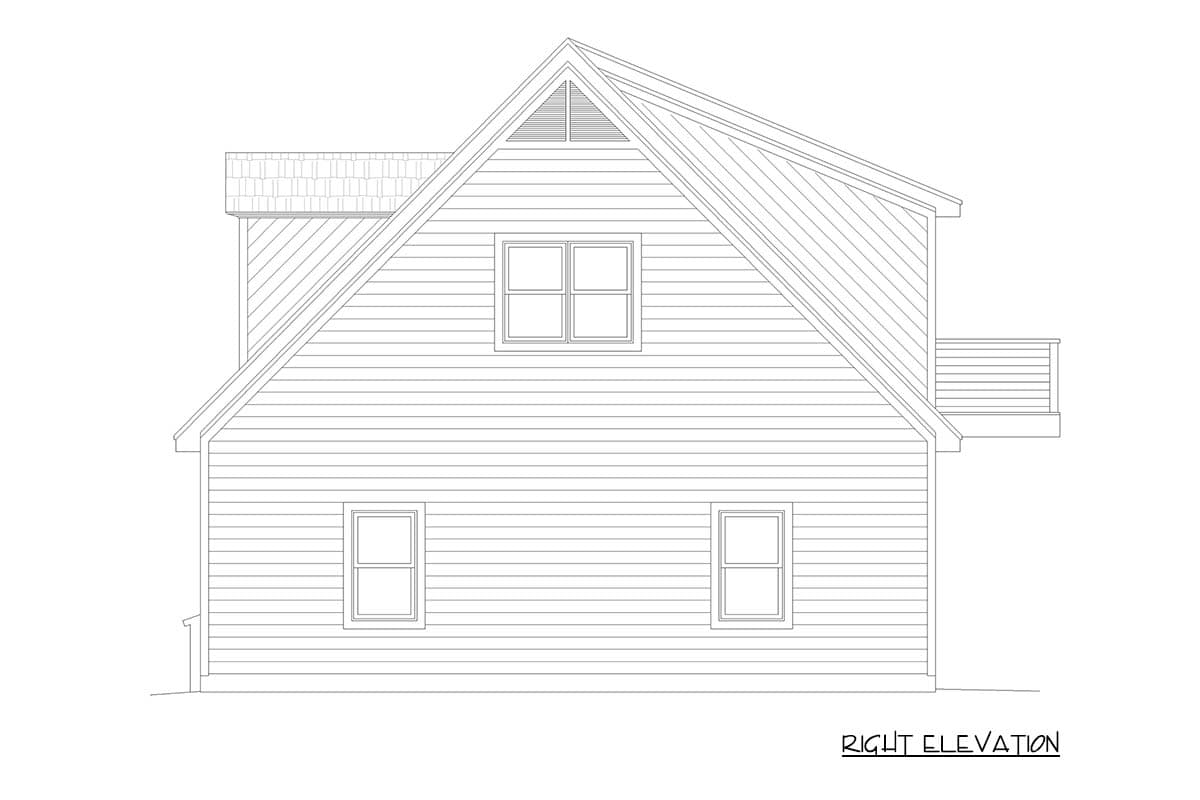

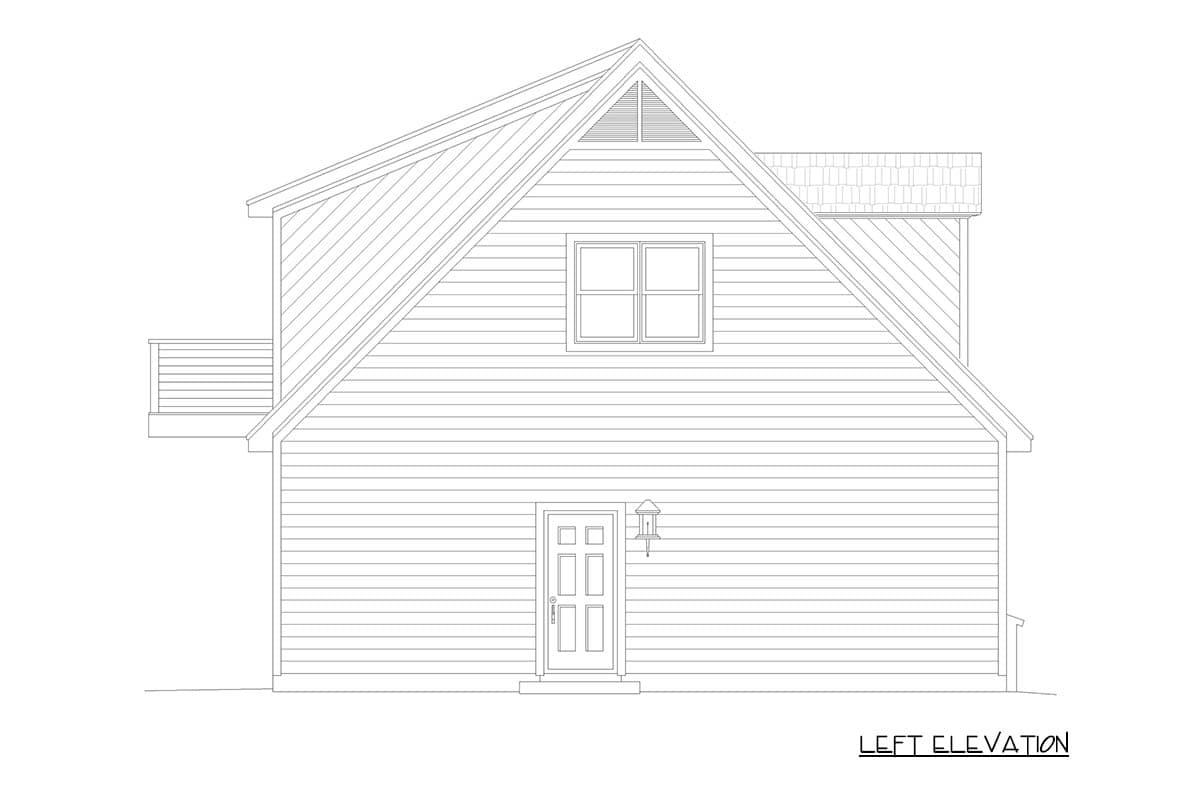

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Loft

530 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

20' 0"

Depth

30' 0"

Max Ridge Height

26' 6"

Garage

Type

Detached

Area

600 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Special Features

Loft

Optionally Finished Bonus Room

Workshop

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Loft

530 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

20' 0"

Depth

30' 0"

Max Ridge Height

26' 6"

Garage

Type

Detached

Area

600 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Special Features

Loft

Optionally Finished Bonus Room

Workshop
