Versatile Single-Story Ranch Home Plan with Office

Plan 790027GLV

  • 1,737

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 2

    Stories

  • 2

    Cars

  • This appealing single-story house plan features a clapboard and shake exterior, welcoming covered front porch, and a 2-car garage.
  • Inside, a spacious great room with a step ceiling is open to the dining area and kitchen, providing clean sightlines and easy entertaining.
  • The well-appointed kitchen boasts a snack bar for casual meals and a walk-in pantry.
  • A study or third bedroom off the great room offers versatility and convenience.
  • The tucked-away master suite features a walk-in closet and 4-piece bath with an oversized walk-in shower.

Plans include the following details:

  • Cover sheet with notes
  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes
These items are NOT included:
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

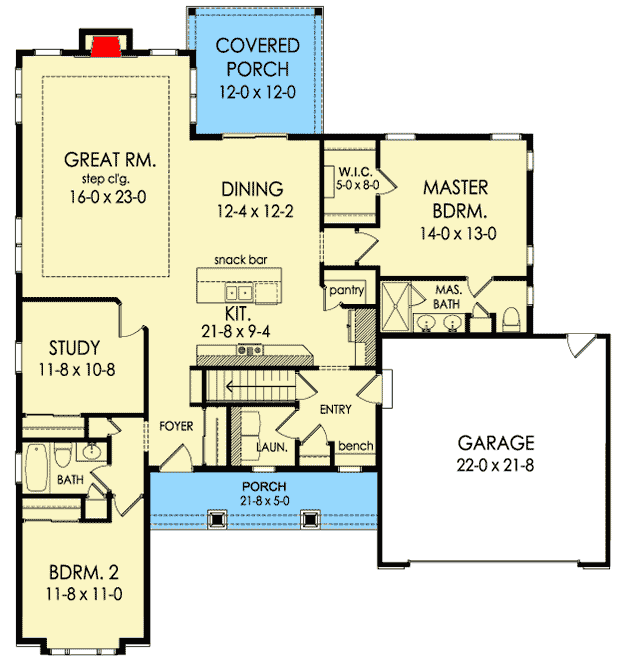

Versatile Single-Story Ranch Home Plan with Office - 790027GLV floor plan - Main Level

Versatile Single-Story Ranch Home Plan with Office

  • 1,737

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,737 sq. ft.
  • 1st Floor: 1,737 sq. ft.

Dimensions

  • Width: 56' 4"
  • Depth: 60' 4"
  • Max ridge height: 24' 6"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 477 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick And Truss
