Plan 680611VR

Versatile Traditional 1-Car Garage House Plan with Bonus Loft

Heated S.F.
0
Beds
0
Baths
0
Stories
2
Cars
1

Floor Plan

Plan 680611VR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 680611VR

M-F 9am-5pm EST |

1-203-761-8500

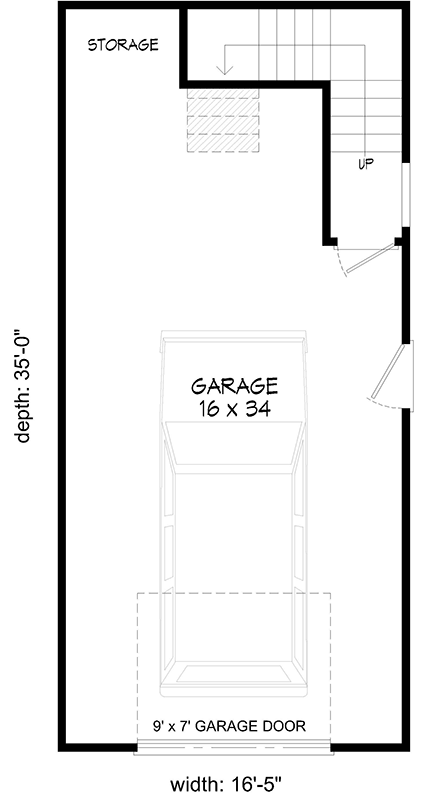

Main Level

Plan 680611VR: Versatile Traditional 1-Car Garage House Plan with Bonus Loft - Floor Plan - Main Level - Traditional

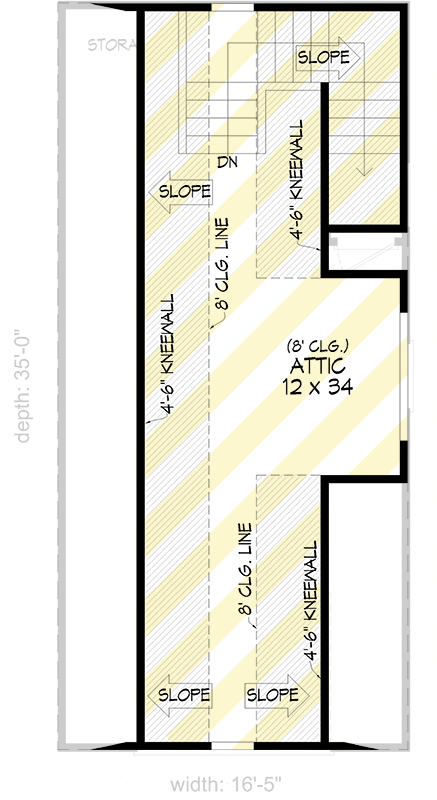

2nd Floor

Plan 680611VR: Versatile Traditional 1-Car Garage House Plan with Bonus Loft - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This traditional style detached garage plan, built on a slab foundation, offers 583 square feet for a single vehicle, complemented by a spacious 352 square foot unheated loft above, with no heated living space or bedrooms.
  • Upon entering through the front-facing garage door, you are greeted by an expansive single-bay space, ideal for vehicle storage, a dedicated workshop, or housing recreational equipment, with convenient access to the upper level.
  • The generous ground floor provides ample room for a variety of uses, from protecting your car to serving as a hobby area, while a staircase leads to the versatile unheated loft, offering flexible design possibilities.
  • Above the garage, the 352 square foot loft presents an excellent opportunity for additional storage, a quiet home office, or a creative studio, ready to be customized to your specific needs.

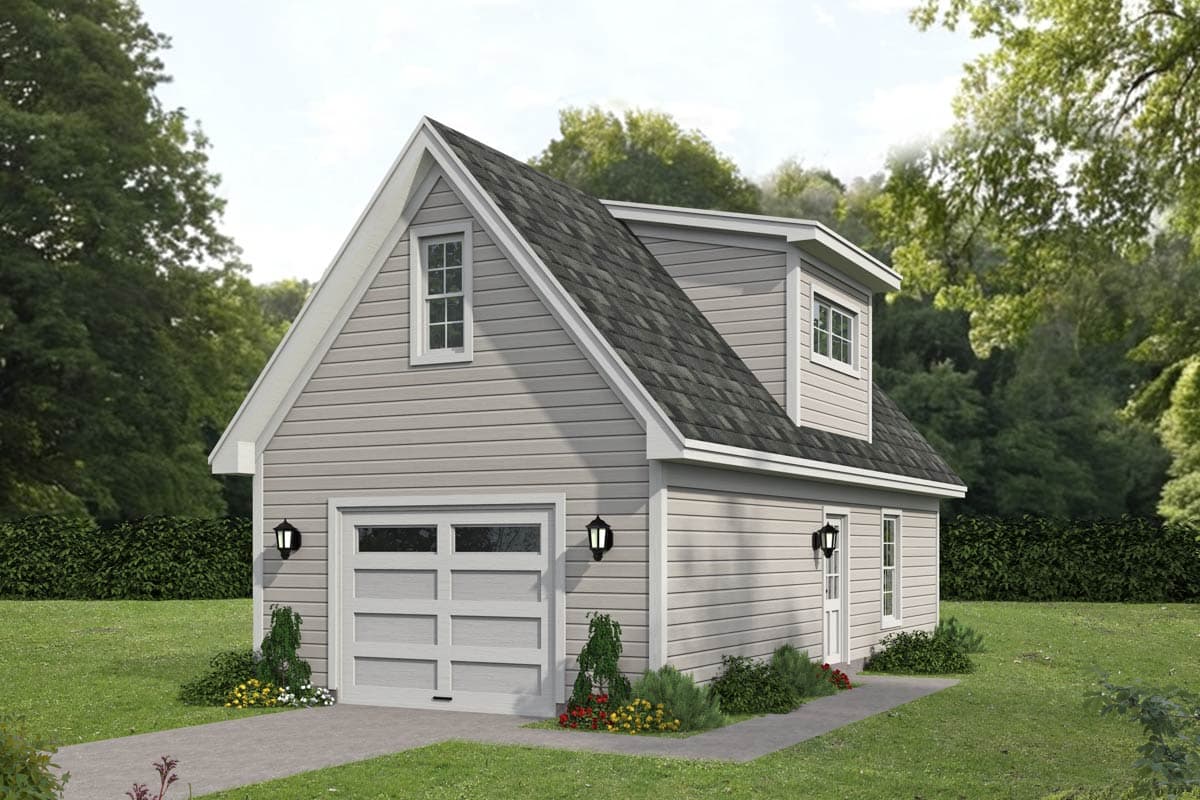

  • The charming traditional exterior features classic light grey siding, crisp white trim, and a steeply pitched roof, creating an appealing aesthetic that seamlessly integrates with any existing home or landscape.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Attic

352 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

16' 5"

Depth

35' 0"

Max Ridge Height

19' 6"

Garage

Type

Detached

Area

583 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Loft

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Attic

352 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

16' 5"

Depth

35' 0"

Max Ridge Height

19' 6"

Garage

Type

Detached

Area

583 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Loft
