Versatile Transitional Southern House Plan

Heated S.F.
3,247
Beds
3 - 4
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 510039WDY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 510039WDY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

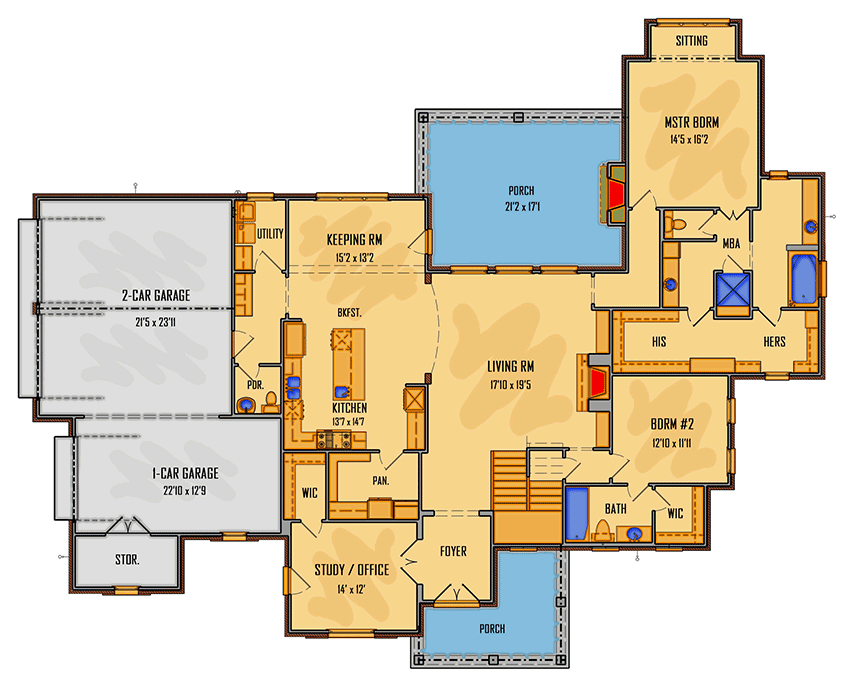

Plan 510039WDY: Versatile Transitional Southern House Plan - Floor Plan - Main Level - Acadian, European, French Country, Louisiana-Style, Southern, Transitional

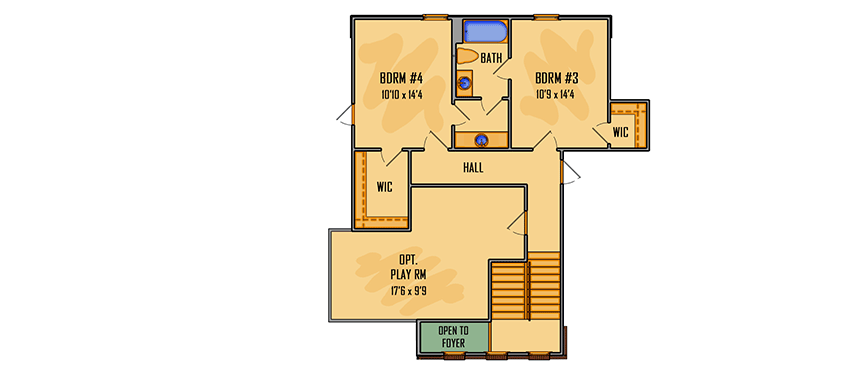

2nd Floor

Plan 510039WDY: Versatile Transitional Southern House Plan - Floor Plan - 2nd Floor - Acadian, European, French Country, Louisiana-Style, Southern, Transitional

Plan Details

  • The gracious exterior of this transitional Southern house plan is well matched to its versatile interior.
  • An open floor plan expands the feel of the home and lots of extras are included like the big walk-in pantry, built-ins flanking the living room fireplace and a large storage closet off the garage.
  • In the master bedroom, a sitting area is included as well as a huge walk-in closet divided into his and her sections.
  • Bedroom 2 is also on the first floor with two more bedrooms upstairs.
  • The home comes with the option for a second floor playroom.

What's Included

This plan has 10 pages as follows:
  1. Coversheet Color Rendering
  2. First Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing
  3. Second Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing, Shutter Detail

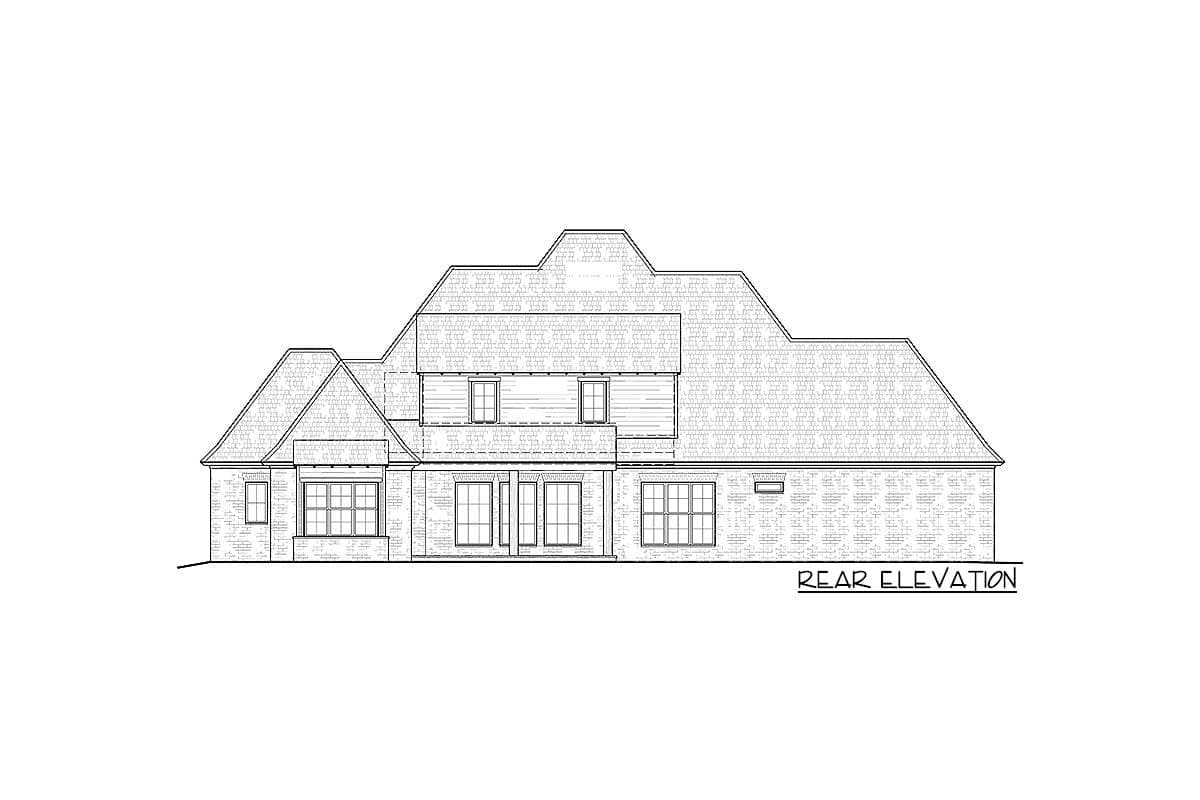

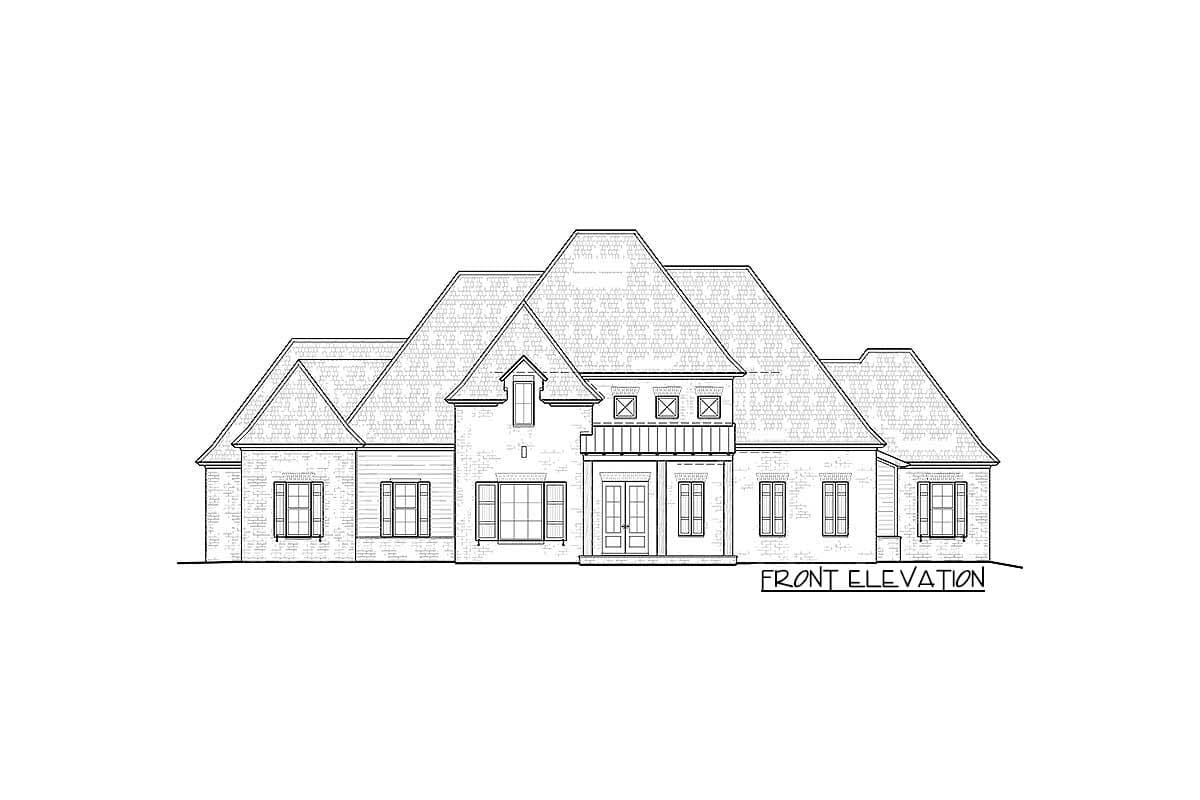

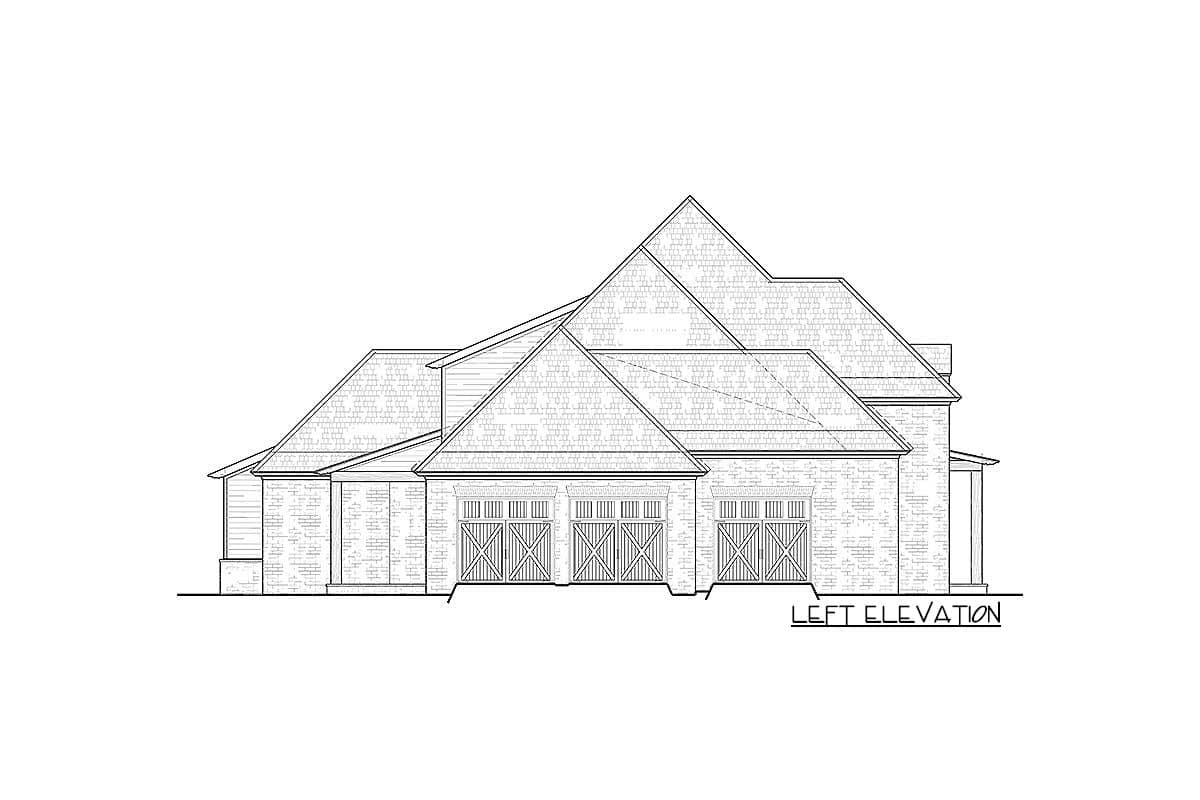

  4. Front & Left Exterior Elevations, Jack Arch Detail, Brick Details

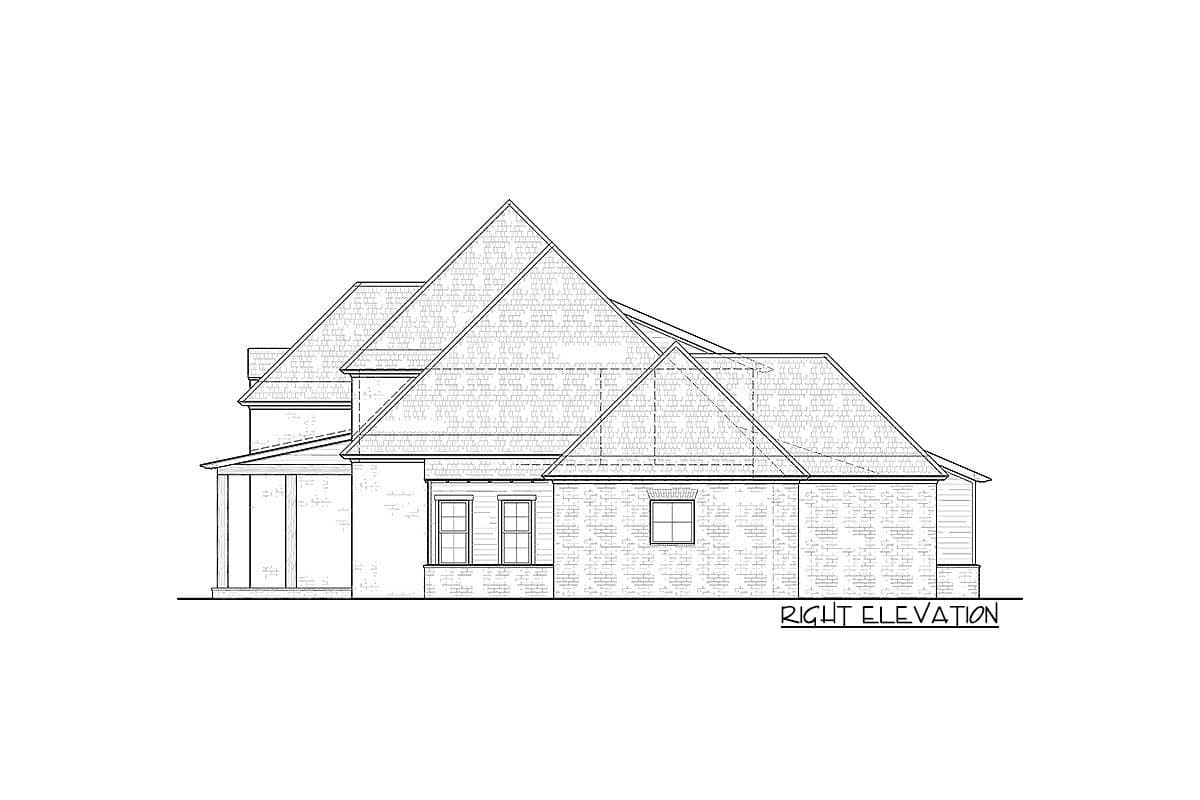

  5. Rear & Right Exterior Elevations, Column Detail
  6. Building Sections, Roof Plan, Cornice Details, Flashing Detail, And Rafter Span Schedule
  7. First Floor Electrical Plan and Schedules
  8. Second Floor Electrical Plan and Schedules
  9. Slab Foundation
  10.  Footing Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,247 sq. ft.

1st Floor

2,656 sq. ft.

2nd Floor

591 sq. ft.

Bonus

255 sq. ft.

Porch, Front

166 sq. ft.

Porch, Rear

388 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

88' 1"

Depth

72' 2"

Max Ridge Height

36' 4"

Garage

Type

Attached

Area

908 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

16 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

European

French Country

Louisiana-Style

Southern

Transitional

Special Features

Home Office

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Optionally Finished Bonus Room

Outdoor Fireplace

Playroom

Walk-in Pantry

Plan Collections

Home Office
