Plan 36369TX

Vertical Mediterranean Escape

Heated S.F.
3,596
Beds
3
Baths
3
Stories
3
Cars
2

Floor Plan

Plan 36369TX

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 36369TX

M-F 9am-5pm EST |

1-203-761-8500

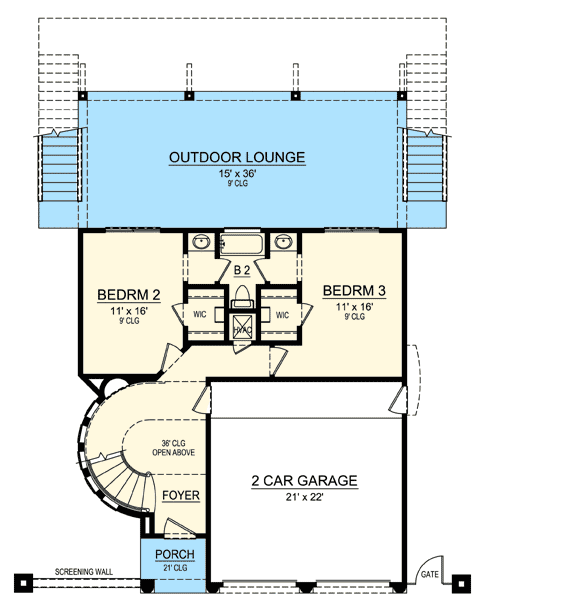

Main Level

Plan 36369TX: Vertical Mediterranean Escape - Floor Plan - Main Level - European, Mediterranean, Spanish

2nd Floor

Plan 36369TX: Vertical Mediterranean Escape - Floor Plan - 2nd Floor - European, Mediterranean, Spanish

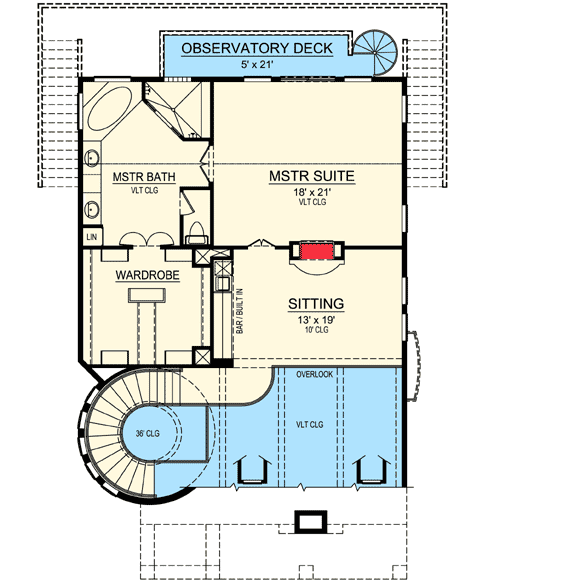

3rd Floor

Plan 36369TX: Vertical Mediterranean Escape - Floor Plan - 3rd Floor - European, Mediterranean, Spanish

Plan Details

  • This unusually narrow Mediterranean house plan is great for a tight lot. It gives you three floors of living space and each one has outdoor spaces as well.
  • The master is on the top floor and has a large sitting room with a 2-sided fireplace and a 21' wide observatory deck with spiral stair. The bath is spacious and the wardrobe is too and is divided for his and her use.
  • The middle floor is where you'll entertain. The kitchen has service on three sides and views as well. The family room and game room each have access to outdoor overlooks and the family also has a 2-sided fireplace.
  • The ground floor has parking for 2 cars and bedrooms sharing a bath and a large outdoor lounge spanning the entire back of the home.

What's Included

  • Cover sheet
  • Foundation Plan - schematic only
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,596 sq. ft.

1st Floor

826 sq. ft.

2nd Floor

1,584 sq. ft.

3rd Floor

1,186 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

45' 0"

Depth

63' 0"

Max Ridge Height

43' 0"

Garage

Type

Attached

Area

501 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

10'

Architectural Style

European

Mediterranean

Spanish

Special Features

Game/Rec Room

Master Suite - Sitting Area

Square Footage Breakdown

Total Heated Area

3,596 sq. ft.

1st Floor

826 sq. ft.

2nd Floor

1,584 sq. ft.

3rd Floor

1,186 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

45' 0"

Depth

63' 0"

Max Ridge Height

43' 0"

Garage

Type

Attached

Area

501 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

10'

Architectural Style

European

Mediterranean

Spanish

Special Features

Game/Rec Room

Master Suite - Sitting Area
