Plan 62876DJ Victorian-inspired House Plan with Upstairs Bedrooms and Laundry

Victorian-inspired House Plan with Upstairs Bedrooms and Laundry

Plan 62876DJ

  • 3,073

    Heated s.f.

  • 4-5

    Beds

  • 3 - 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • This Victorian-inspired hose plan has a large front covered porch with ornate details and a roof with finials.
  • As you enter the home you will be greeted by a stunning 2-story entry. To the right of the entry, you will find a formal dining room with a tray ceiling. On the other side of the entry, you will find a wonderful office with a built-in credenza.
  • Further into the home, the great room is warmed by a fireplace. The large kitchen includes a walk-in pantry and a large island. A breakfast nook accesses a covered patio off the rear of the home.
  • Upstairs you will find the bedrooms. The massive master suite includes his/her vanities, a soaking tub, a walk-in shower, an enclosed toilet, and a walk-in closet. Bedroom 2 has access to its own bathroom while bedrooms 3 and 4 share a jack and jill bathroom.
  • Back on the main floor, the home's 2 car side load garage accesses the home through a convenient mudroom with a bench and lockers.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

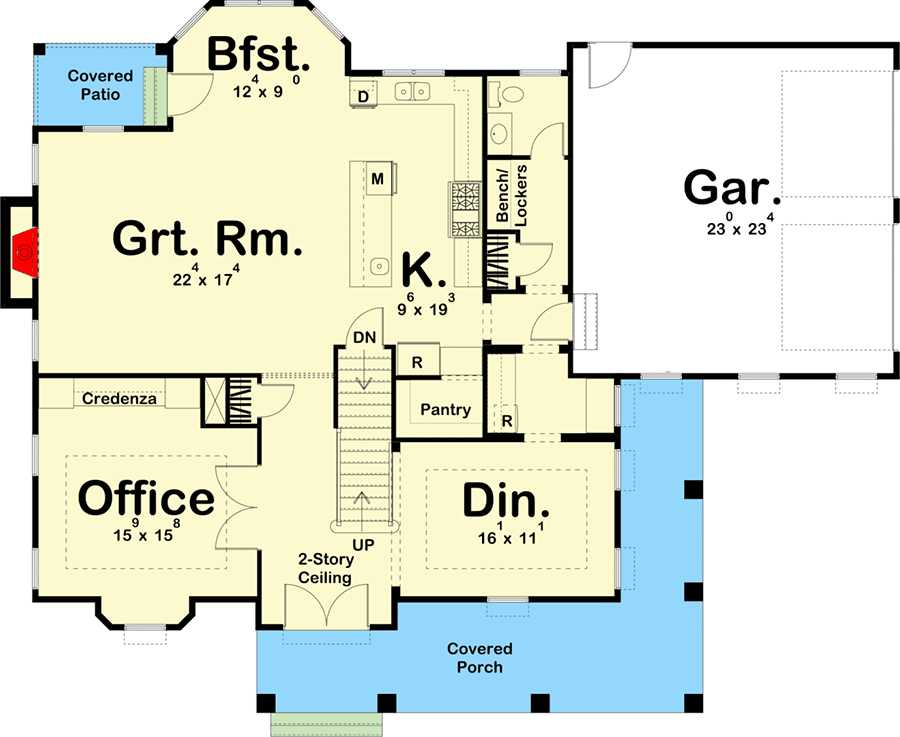

Victorian-inspired House Plan with Upstairs Bedrooms and Laundry - 62876DJ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

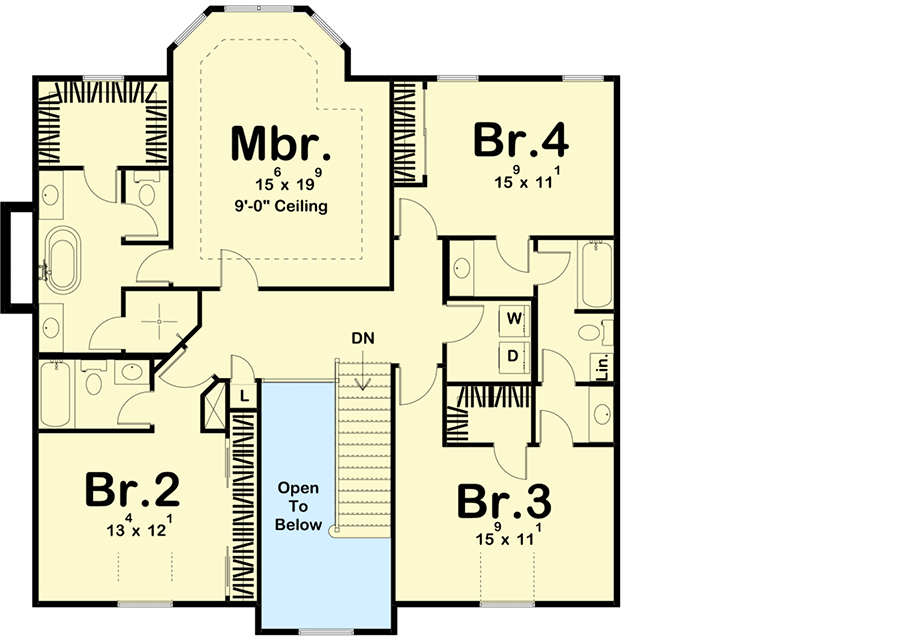

Victorian-inspired House Plan with Upstairs Bedrooms and Laundry - 62876DJ floor plan - 2nd Floor

Optional Lower Level (+250)

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

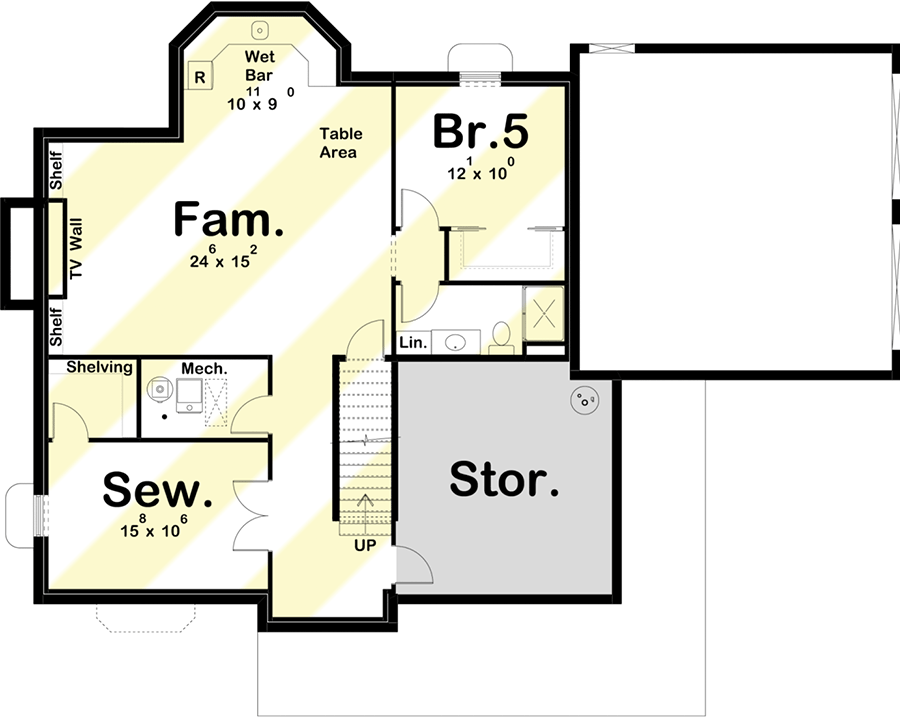

Victorian-inspired House Plan with Upstairs Bedrooms and Laundry - 62876DJ floor plan - Optional Lower Level (+250)

Plan details

Victorian-inspired House Plan with Upstairs Bedrooms and Laundry

  • 3,073

    Heated s.f.

  • 4 - 5

    Beds

  • 3 +

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,500
  • 5 Sets + PDF $1,750
  • PDF - Unlimited Build $2,000
  • CAD - Single-Build $2,000
  • CAD - Unlimited Build $2,500
  • View all purchase option online

About This Plan

  • This Victorian-inspired hose plan has a large front covered porch with ornate details and a roof with finials.
  • As you enter the home you will be greeted by a stunning 2-story entry. To the right of the entry, you will find a formal dining room with a tray ceiling. On the other side of the entry, you will find a wonderful office with a built-in credenza.
  • Further into the home, the great room is warmed by a fireplace. The large kitchen includes a walk-in pantry and a large island. A breakfast nook accesses a covered patio off the rear of the home.
  • Upstairs you will find the bedrooms. The massive master suite includes his/her vanities, a soaking tub, a walk-in shower, an enclosed toilet, and a walk-in closet. Bedroom 2 has access to its own bathroom while bedrooms 3 and 4 share a jack and jill bathroom.
  • Back on the main floor, the home's 2 car side load garage accesses the home through a convenient mudroom with a bench and lockers.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Lower Level (+250)

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,073 sq. ft.
  • 1st Floor: 1,570 sq. ft.
  • 2nd Floor: 1,503 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 62' 0"
  • Depth: 51' 0"

Garage

  • Type: Attached
  • Area: 560 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 16 on 12
  • Secondary Pitch: 6 on 12
