Plan 89878AH

Walkout Ranch With Hip Roofline

Heated S.F.
3,858
Beds
4
Baths
2.5
Stories
1
Cars
3

Floor Plan

Plan 89878AH

Main Level
Main Level
Lower Level
Lower Level

Plan 89878AH

M-F 9am-5pm EST |

1-203-761-8500

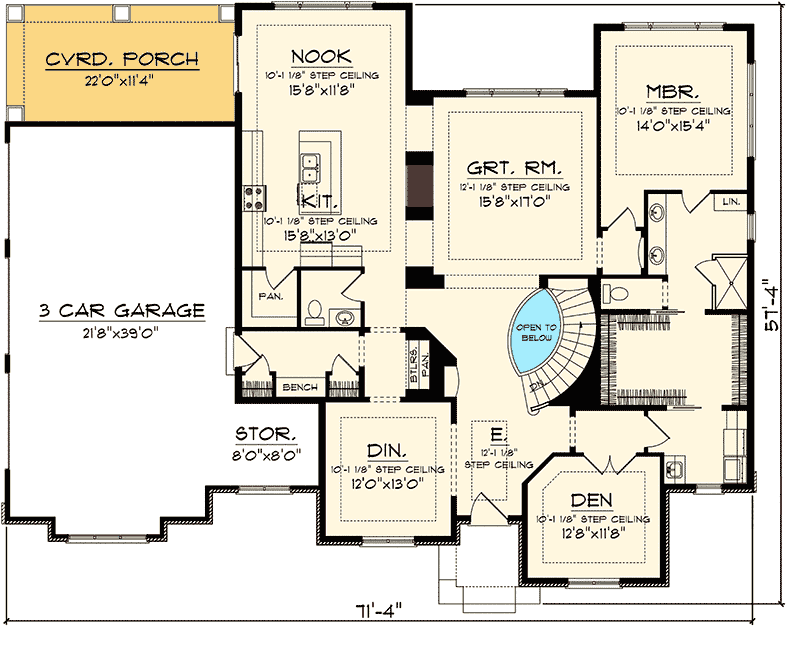

Main Level

Plan 89878AH: Walkout Ranch With Hip Roofline - Floor Plan - Main Level - Northwest, Ranch

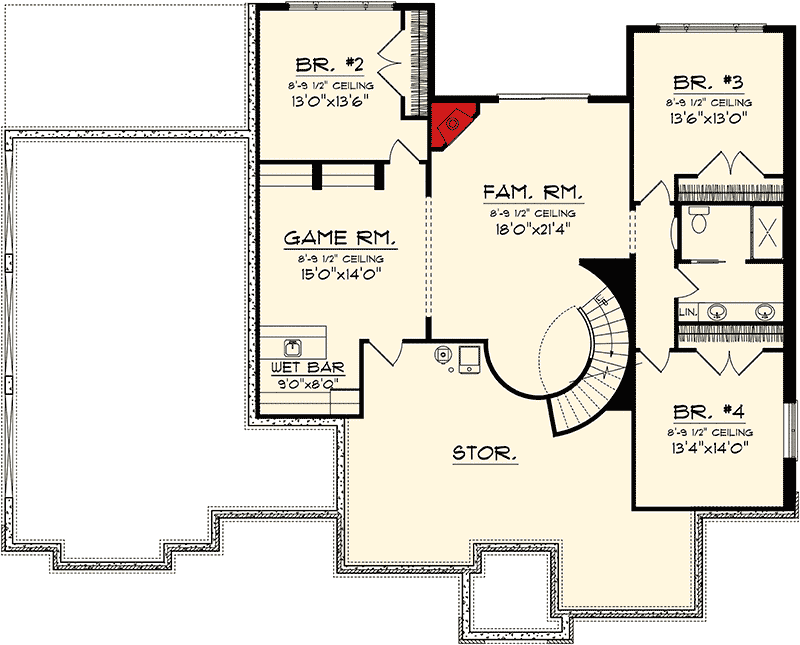

Lower Level

Plan 89878AH: Walkout Ranch With Hip Roofline - Floor Plan - Lower Level - Northwest, Ranch

Plan Details

  • VIDEO: See this home plan from all angles in our YouTube video.

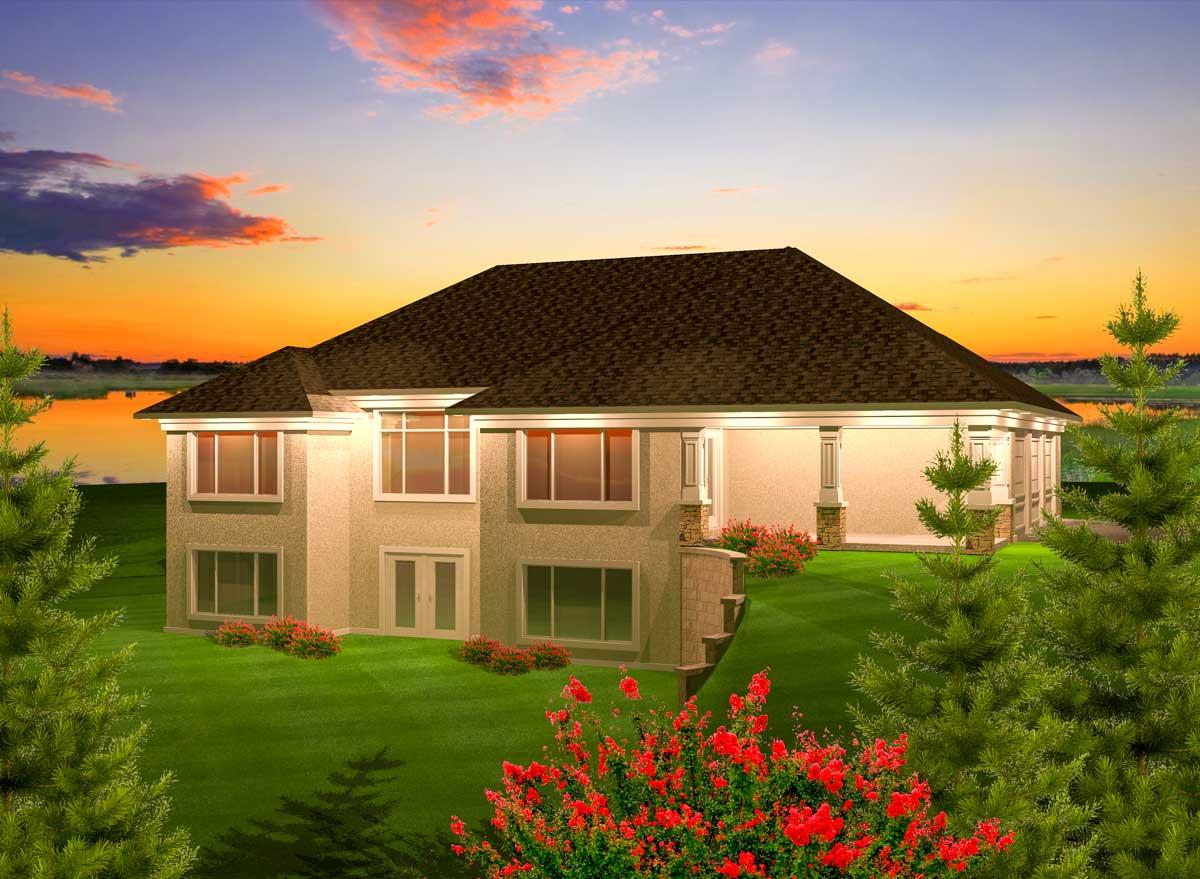

  • A hip roofline defines that tone of this spacious walkout ranch. As you enter you'll be enthralled with the circular staircase with a 2-story ceiling that leads to the lower level along with the multiple step ceilings found throughout the home.
  • The main living area is found at the back of the home where a spacious kitchen with island bar overlooks the great room and nook to create an open plan where you can spread out and stay within site.
  • A formal dining room is located to your left as you enter the home with a den opposite to your right where French doors add charm to the space.
  • The master suite is found to the right of the design and pampers with a large walk-in closet, step ceiling and dual sinks. Three additional bedrooms, a game room, family room and wet bar are located in the lower level.
  • A 3-stall, side-load garage completes the home.

What's Included

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,858 sq. ft.

Lower Level

1,610 sq. ft.

1st Floor

2,248 sq. ft.

Porch, Rear

250 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 4"

Depth

57' 4"

Max Ridge Height

24' 1"

Garage

Type

Attached

Area

912 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Northwest

Ranch

Special Features

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Den

Formal Dining

Game/Rec Room

Master Suite - 1st Floor

Wet Bar

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

3,858 sq. ft.

Lower Level

1,610 sq. ft.

1st Floor

2,248 sq. ft.

Porch, Rear

250 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 4"

Depth

57' 4"

Max Ridge Height

24' 1"

Garage

Type

Attached

Area

912 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Northwest

Ranch

Special Features

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Den

Formal Dining

Game/Rec Room

Master Suite - 1st Floor

Wet Bar

Plan Collections

Sloping Lot
