Plan 80662PM
Wall of Glass
Heated S.F.
1,455
Beds
3
Baths
2
Stories
2
What's Included
Plan Details

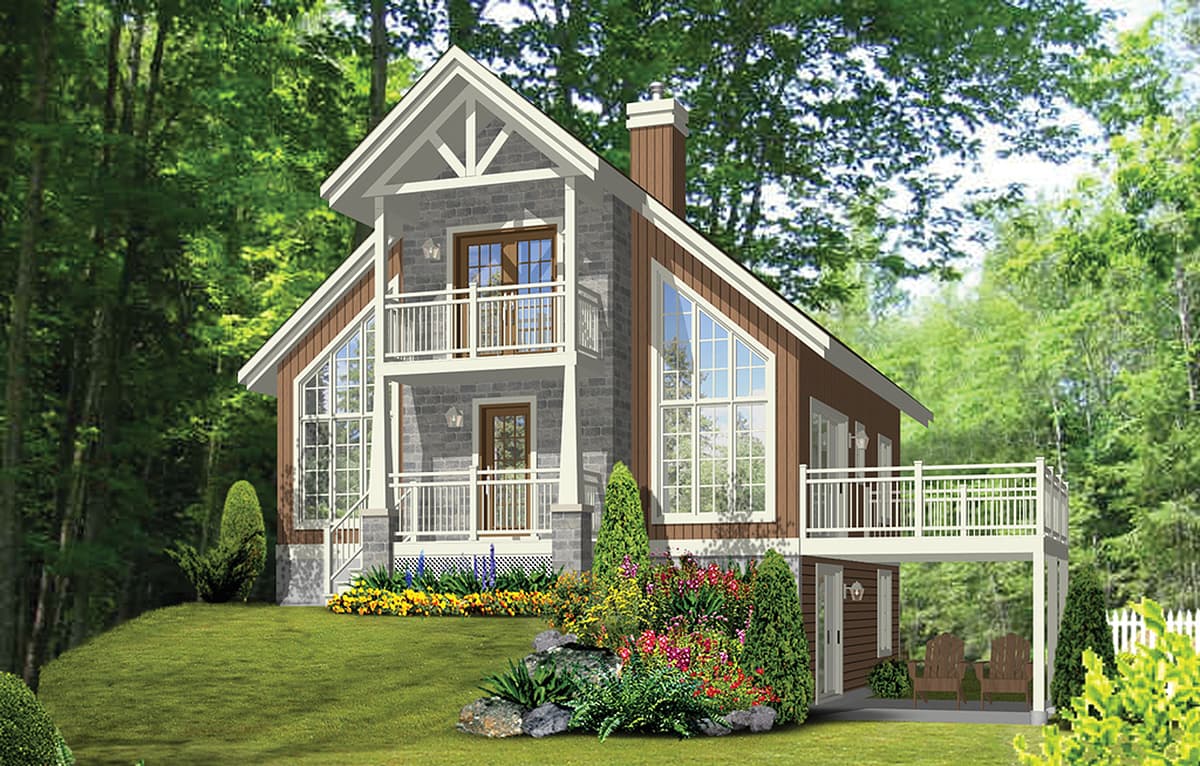

  • This magnificent cottage will stand out with its wall of glass, wide balconies and large terrace.
  • This model is 30 feet wide by 33 feet deep and provides 1,455 square feet of living space.

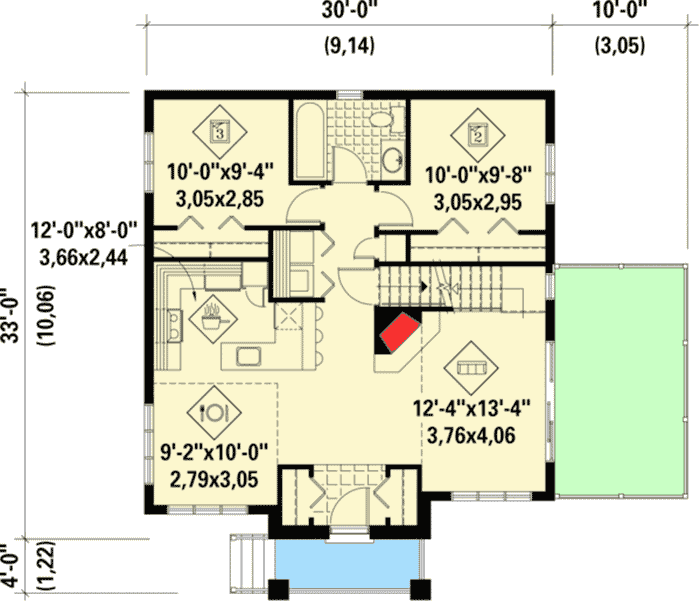

  • The ground floor has a 945 square foot living area and includes an entrance hall with two closets, a living room with fireplace and access to the terrace, a functional kitchen with a lunch counter, a dining room, two bedrooms and a bathroom. The dining and living rooms are open to above.

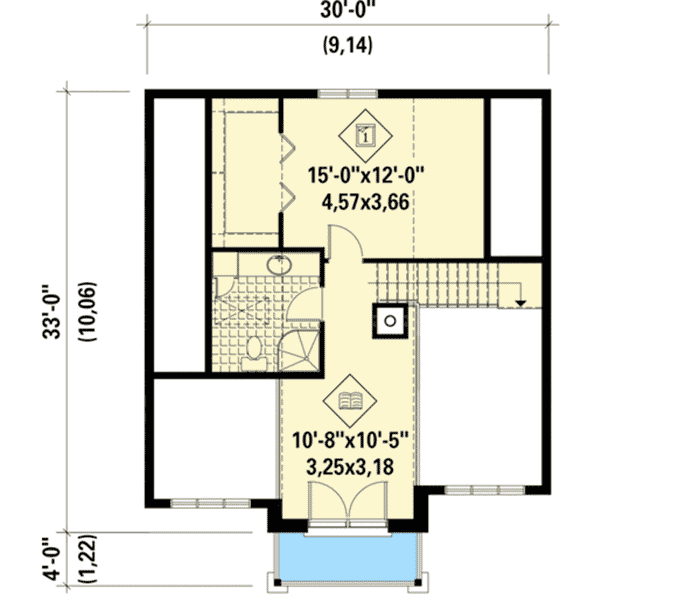

  • The second floor covers 510 square feet and includes a reading room with access to the front balcony, a bathroom and a main bedroom with a large walk-in closet.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Wall of Glass

  • 1,455

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,455 sq. ft.
  • 1st Floor: 945 sq. ft.
  • 2nd Floor: 510 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 33' 0"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
