Weekend Retreat or Year-Round - 1690 Sq Ft

Plan 29807RL

  • 1,690

    Heated s.f.

  • 4

    Beds

  • 2 - 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • This comfortable, proven house plan features a main level with a master suite and second bedroom. You'll find everything you need in a mountain home whether it's a weekend retreat or year round residence.
  • The kitchen is a knockout - don't miss the dramatic views to the 15'6" vaulted great room and breakfast area with its access to both the screened porch and the deck. The breakfast nook rises to 12'3".
  • The adjoining vaulted great room with its wall of windows and fireplace and a formal dining room make this the perfect home for entertaining in a beautiful setting.
  • The terrace level provides additional living space with great views - two additional bedrooms, a bath, a rec room and a gathering room.
  • Finish this space as your budget allows for a great family home or to accommodate those inevitable guests who come to visit.
  • The 2-car garage can be angled to suit site conditions or your own personal tastes.
  • Related Plan: Get a drive-under garage with house plan 29873RL.

Each plan set includes the following:

  • All 4 elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section
  • Typical Details
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

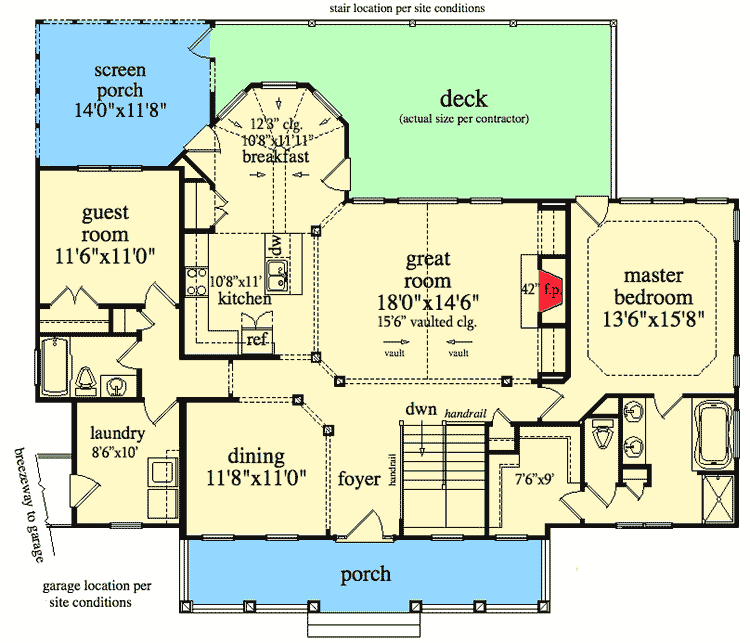

Weekend Retreat or Year-Round - 1690 Sq Ft - 29807RL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

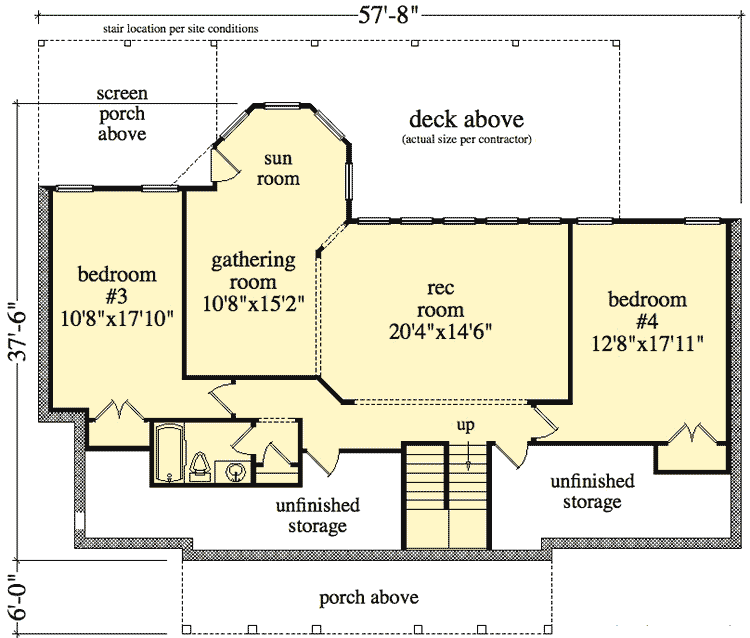

Weekend Retreat or Year-Round - 1690 Sq Ft - 29807RL floor plan - Lower Level

Detached garage

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Weekend Retreat or Year-Round - 1690 Sq Ft - 29807RL floor plan - Detached garage

Weekend Retreat or Year-Round - 1690 Sq Ft

  • 1,690

    Heated s.f.

  • 4

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Lower Level

  • Detached garage

Plan Details

Square Footage Breakdown

  • Total: 1,690 sq. ft.
  • 1st Floor: 1,690 sq. ft.

Dimensions

  • Width: 57' 8"
  • Depth: 43' 6"
  • Max ridge height: 20' 11"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2 or 3

Garage

  • Type: Attached
  • Area: 476 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"
