Welcoming 4-Bed Craftsman Plan with Split-Bed Layout

Plan 444302GDN

  • 2,484

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • Decorative brackets and a wide porch bring inviting curb appeal to this stylish, 4-bedroom Craftsman home plan. The front porch is 29'4" wide and 6' deep and has room for furniture.
  • The open kitchen serves both a large great room and a single dining area with bay window. A 22'7"-high cathedral ceiling crowns the 20' by 20' great room, anchored by a fireplace that is surrounded by builtins. Doors on the back wall take you the back porch - 33'8" wide and 8'4" deep - with sunllights.
  • Livability extends outdoors with large porches on both the front and rear, along with a screen porch with fireplace and outdoor kitchen.
  • A secluded master suite is set apart from two secondary bedrooms and a bedroom / study. Dual walk-in closets frame the hallway that leads to the ensuite with a garden tub and water closet.
  • Enter from the double garage to find a mud hall with a coat closet and utility room on either side. Upstairs, skylights top the bonus room gives you 431 square feet of expansion space that can be used for storage, a play room, or home office.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

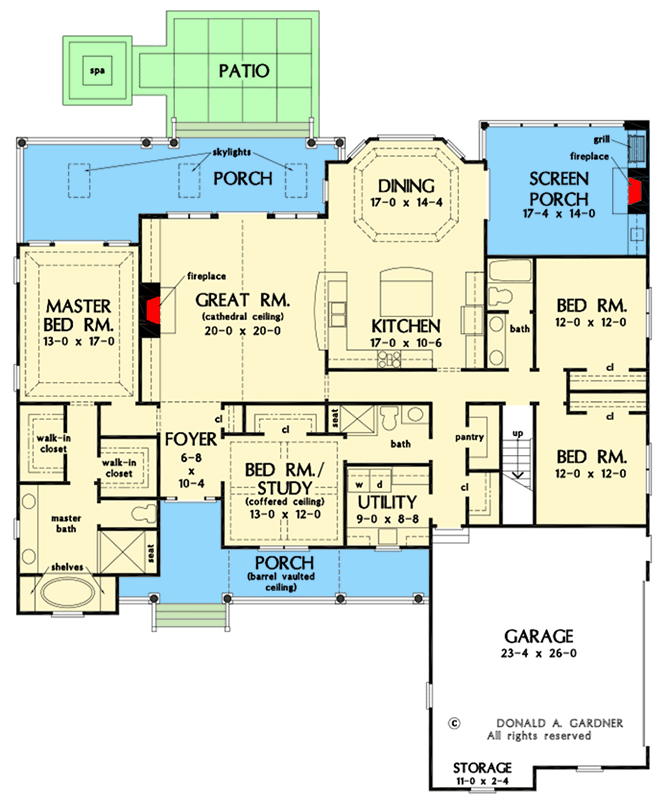

Welcoming 4-Bed Craftsman Plan with Split-Bed Layout - 444302GDN floor plan - Main Level

Bonus Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

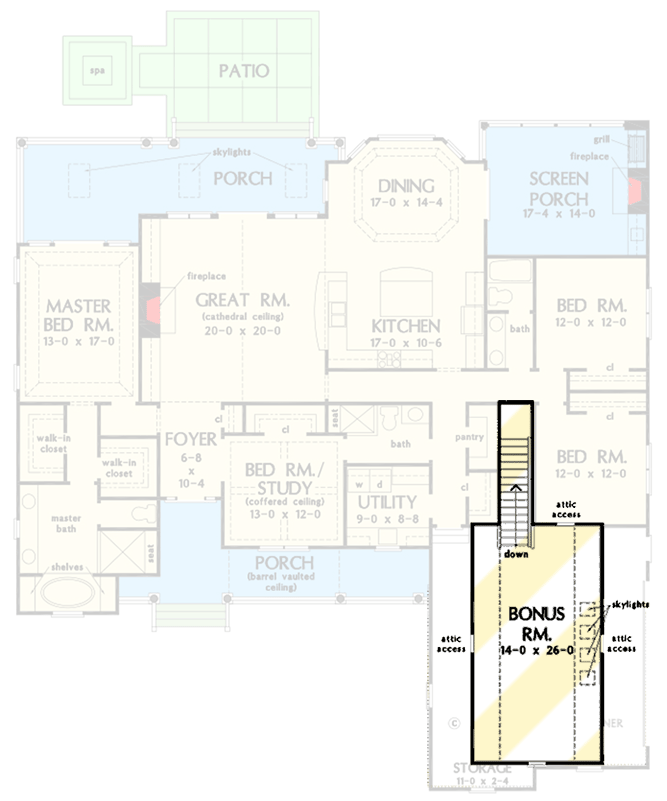

Welcoming 4-Bed Craftsman Plan with Split-Bed Layout - 444302GDN floor plan - Bonus Level

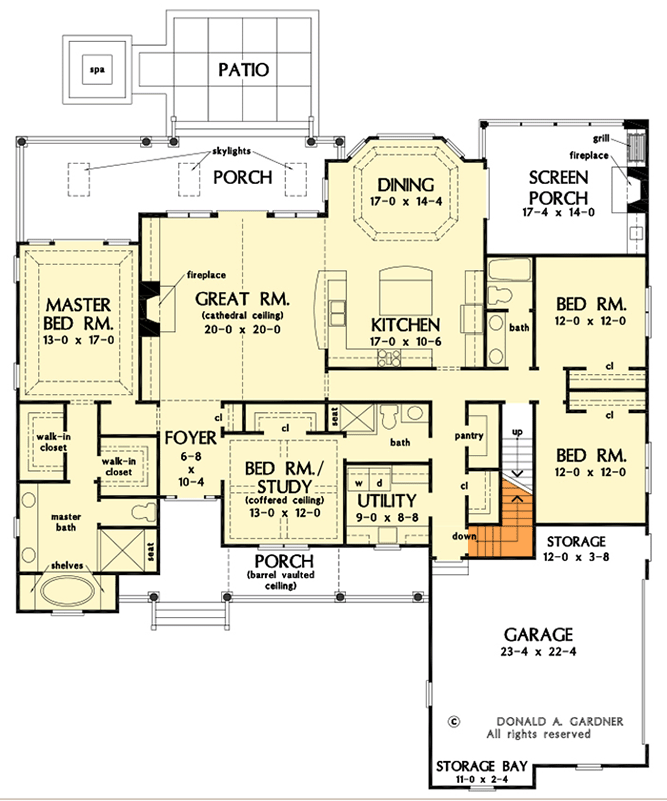

Basement Stairs Location - Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Welcoming 4-Bed Craftsman Plan with Split-Bed Layout - 444302GDN floor plan - Basement Stairs Location - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,484 sq. ft.
  • 1st Floor: 2,484 sq. ft.
  • Covered Patio: 305 sq. ft.
  • Screened Porch: 263 sq. ft.
  • Porch, Rear: 328 sq. ft.
  • Porch, Front: 225 sq. ft.
  • Bonus: 431 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 69' 0"
  • Depth: 73' 0"
  • Max ridge height: 30' 4"

Garage

  • Type: Attached
  • Area: 658 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Welcoming 4-Bed Craftsman Plan with Split-Bed Layout

  • 2,484

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $1,350
  • PDF - Single-Build $1,550
  • CAD Unlimited + PDF $2,725
  • View all purchase option online

About This Plan

  • Decorative brackets and a wide porch bring inviting curb appeal to this stylish, 4-bedroom Craftsman home plan. The front porch is 29'4" wide and 6' deep and has room for furniture.
  • The open kitchen serves both a large great room and a single dining area with bay window. A 22'7"-high cathedral ceiling crowns the 20' by 20' great room, anchored by a fireplace that is surrounded by builtins. Doors on the back wall take you the back porch - 33'8" wide and 8'4" deep - with sunllights.
  • Livability extends outdoors with large porches on both the front and rear, along with a screen porch with fireplace and outdoor kitchen.
  • A secluded master suite is set apart from two secondary bedrooms and a bedroom / study. Dual walk-in closets frame the hallway that leads to the ensuite with a garden tub and water closet.
  • Enter from the double garage to find a mud hall with a coat closet and utility room on either side. Upstairs, skylights top the bonus room gives you 431 square feet of expansion space that can be used for storage, a play room, or home office.

Floor Plans

  • Main Level

  • Bonus Level

  • Basement Stairs Location - Main Level
