Plan 72135DA
Welcoming Ground Level Porch
Heated S.F.
2,887
Beds
4
Baths
2.5
Stories
2
Cars
3
What's Included
Plan Details
  • This home plan's ground-level porch and array of multipaned windows give the home a decidedly welcoming look. The grid design fronting the three-car garage provides a unifying effect, echoing the window grids.
  • The two-story foyer is exceptionally bright, with light washing in through sidelights and three upper level windows. A railed stairway wraps up the right side.
  • A wide bay window expands the living room, and a gas fireplace serves as an alternative focal point here. The dining room, at the rear, is almost entirely open to the living room, and linked to the kitchen by a pocket door.
  • On the other side of the kitchen, the space is completely open to a large family room. Windows fill much of the rear wall, including one set of wide sliders that provide patio access. The den is totally enclosed. It could be outfitted as a home office, or whatever suits.
  • Upstairs, both of the front bedrooms have vaulted ceilings and a high gable end window that crowns a wide bank of lower windows. Master suite luxuries include: dual vanity, huge walk-in closet, private toilet, oversize shower, and a deep soaking tub. Three more bedrooms share a two-section bathroom, while a large utility room is mere steps away.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

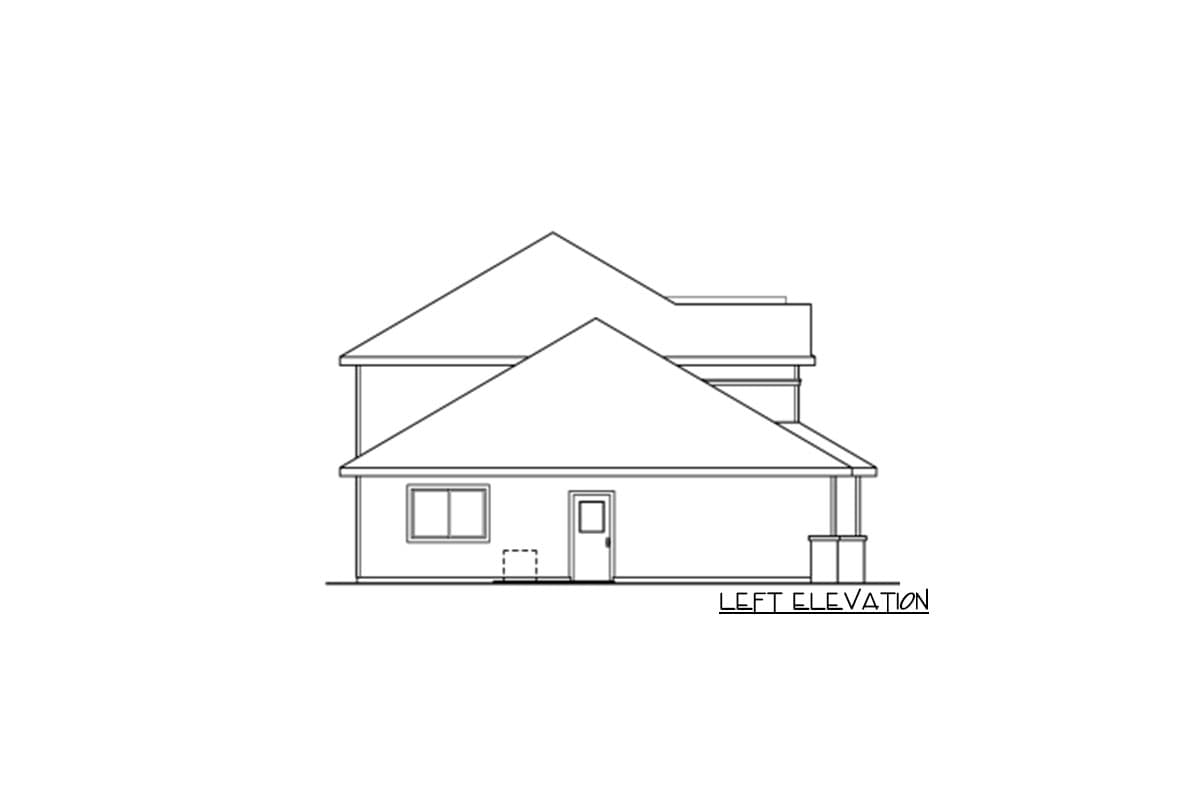

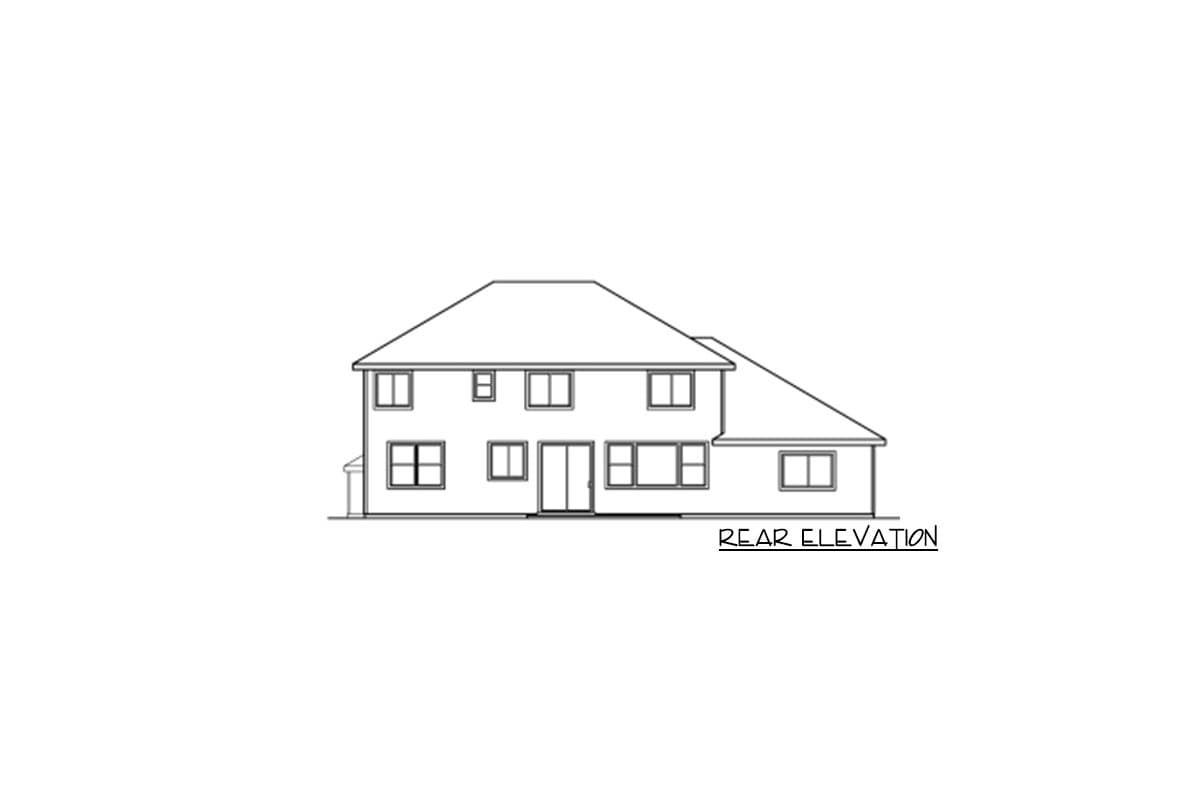

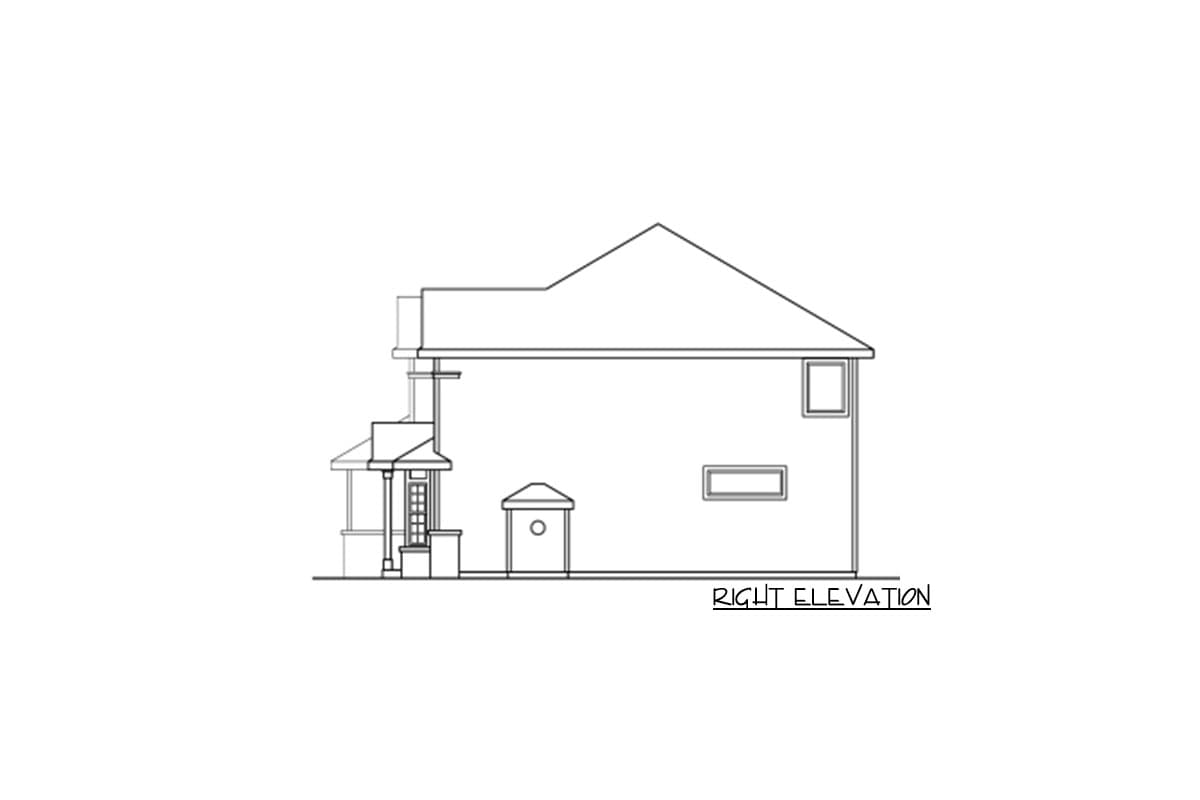

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Welcoming Ground Level Porch

  • 2,887

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

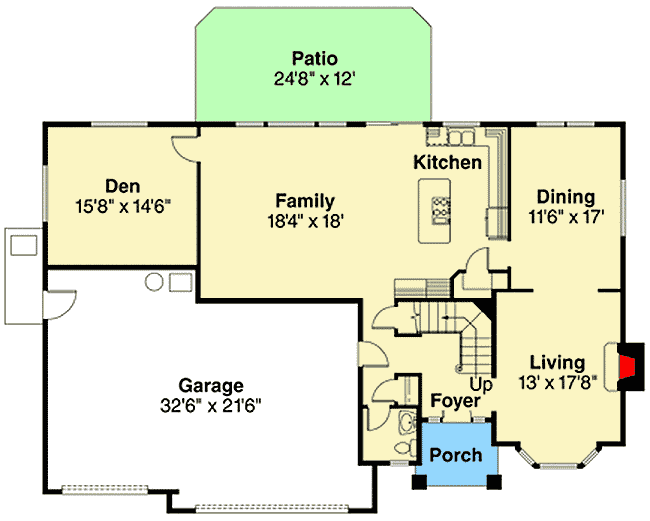

  • Main Level

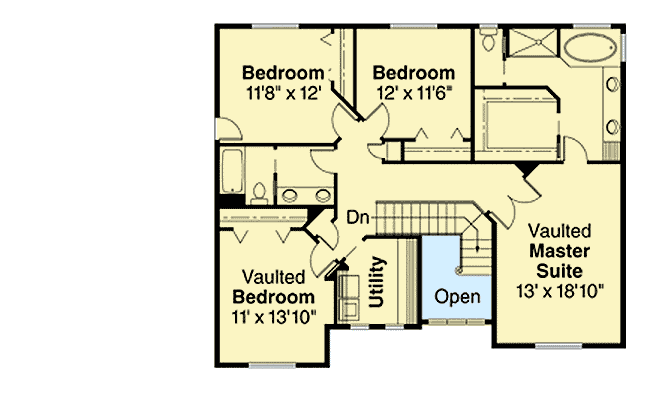

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,887 sq. ft.
  • 1st Floor: 1,545 sq. ft.
  • 2nd Floor: 1,342 sq. ft.

Dimensions

  • Width: 63' 0"
  • Depth: 41' 0"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 766 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
